Home >> Infiniti >> 2012 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Consult-III Function

Consult-III Function




DIAGNOSIS SYSTEM (PRE-CRASH SEAT BELT)

CONSULT-III Function

Diagnosis for pre-crash seat belt system can be performed using CONSULT-III.

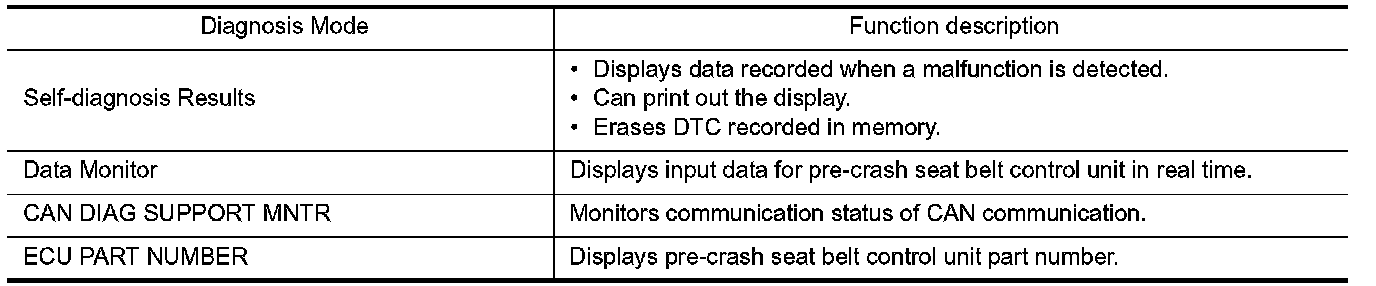

APPLICATION ITEM

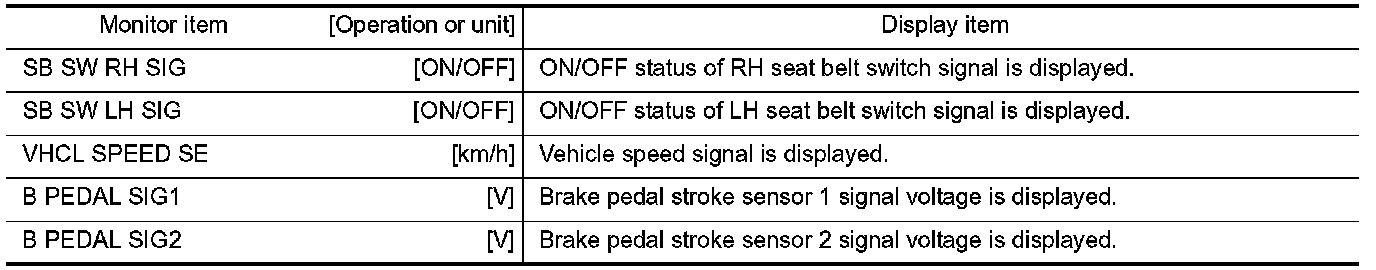

DATA MONITOR
