Pinout Values and Diagnostic Parameters




PRE-CRASH SEAT BELT CONTROL UNIT

Reference Value

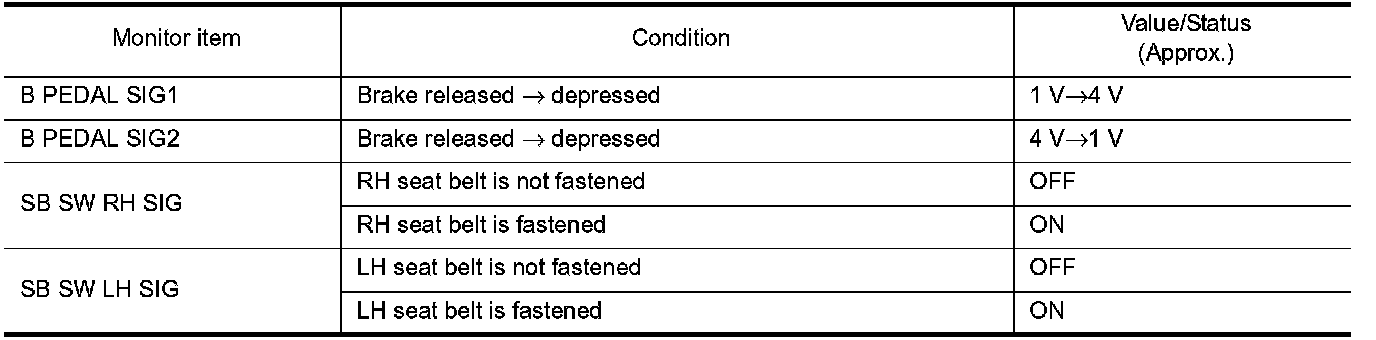

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III MONITOR ITEM






TERMINAL LAYOUT

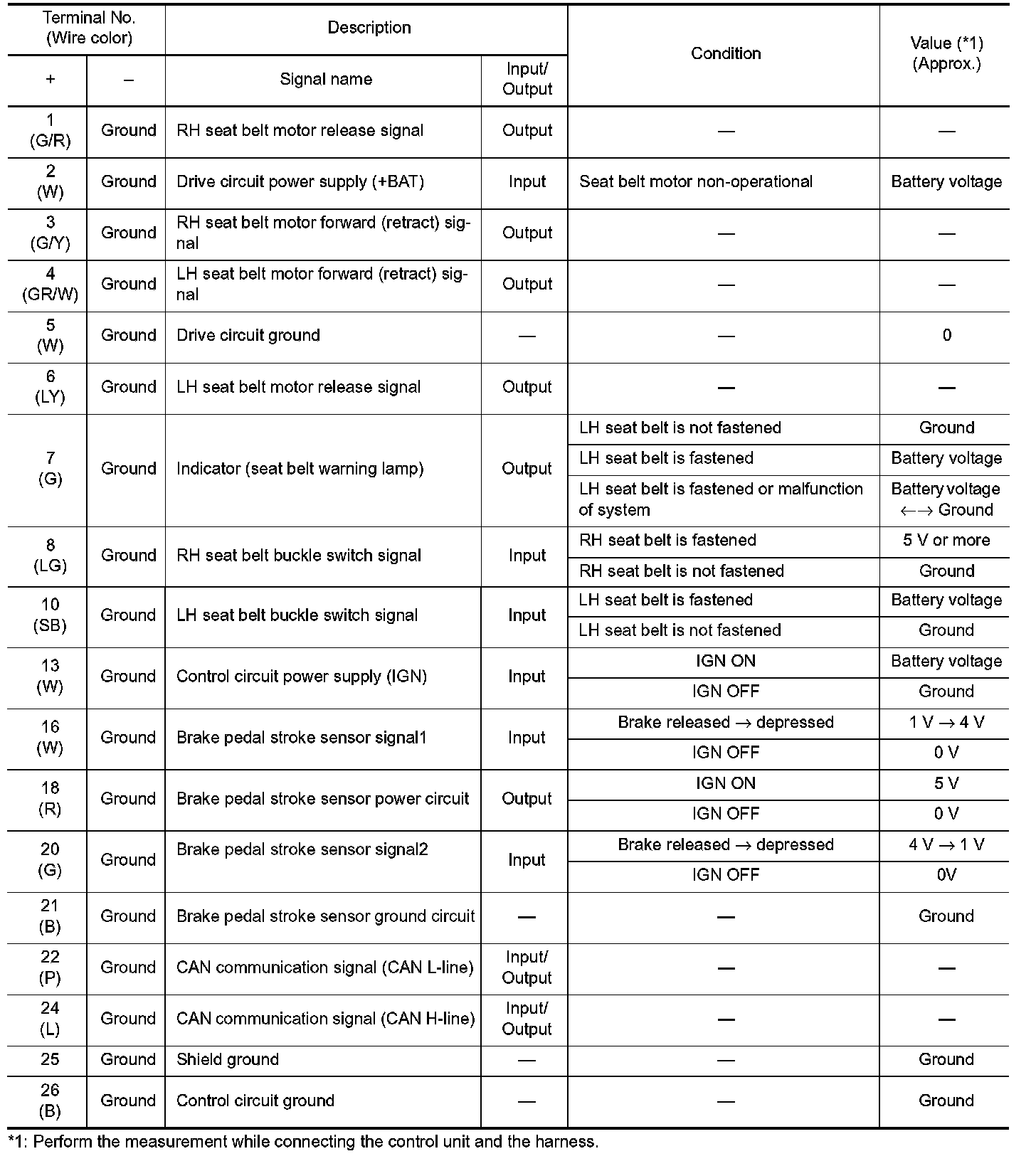

PHYSICAL VALUES
