Seat

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1.Remove the battery negative terminal.





2.Remove the instrument driver lower panel. Removal and Installation A/T Models (A/T models) or {LINK_TO:0000000006469763}, "M/
T MODELS : Removal and Installation" (M/T models).

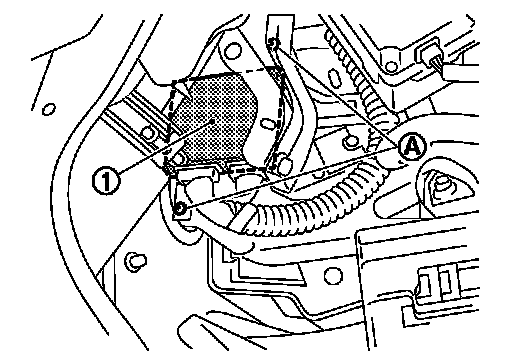

3.Remove the screws (A).
4.Remove automatic drive positioner control unit (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:
Always clamp the harness to the right place.
