Automatic Drive Positioner

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.





1.Remove instrument driver lower panel. Removal and Installation A/T Models (A/T models) or {LINK_TO:0000000006469763}, "M/
T MODELS : Removal and Installation" (M/T models).

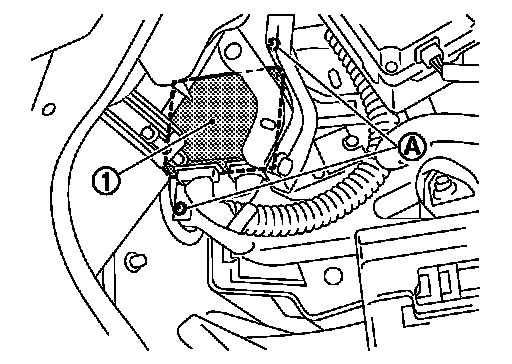

2.Remove screws (A).
3.Remove automatic drive positioner control unit (1).

INSTALLATION

Install in reverse order of removal.

CAUTION:
Be sure to clump the harness to the right place.
