ELECTRICAL LOAD SIGNAL

Description

The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred via the CAN communication line.


Component Function Check


1. CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION

1.Turn ignition switch ON.
2.Connect CONSULT-III and select "DATA MONITOR" mode.

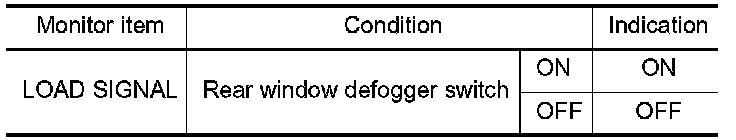

3.Select "LOAD SIGNAL" and check indication under the following conditions.





Is the inspection result normal?
YES- GO TO 2.
NO- Go to .

2. CHECK LIGHTING SWITCH FUNCTION

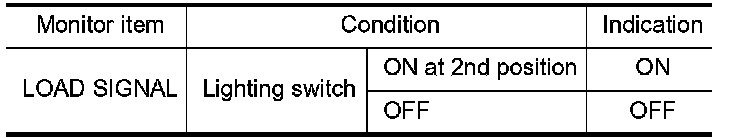

Check "LOAD SIGNAL" indication under the following conditions.





Is the inspection result normal?
YES- GO TO 3.
NO- Go to .

3. CHECK HEATER FAN CONTROL SWITCH FUNCTION

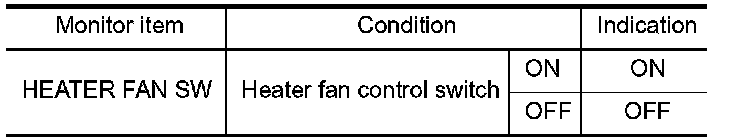

Select "HEATER FAN SW" and check indication under the following conditions.





Is the inspection result normal?
YES- INSPECTION END
NO- Go to .


Diagnosis Procedure


1. INSPECTION START

Confirm the malfunctioning circuit (rear window defogger, headlamp or heater fan). .
Which circuit is related to the incident?
Rear window defogger-GO TO 2.
Headlamp-GO TO 3.
Heater fan-GO TO 4.

2. CHECK REAR WINDOW DEFOGGER SYSTEM

Work Flow.
- INSPECTION END

3. CHECK HEADLAMP SYSTEM

Exterior Lighting.
- INSPECTION END

4. CHECK HEATER FAN CONTROL SYSTEM

Automatic Air Conditioning.
- INSPECTION END
