Ignition Power Supply Fuse No. 3




POWER SUPPLY ROUTING CIRCUIT

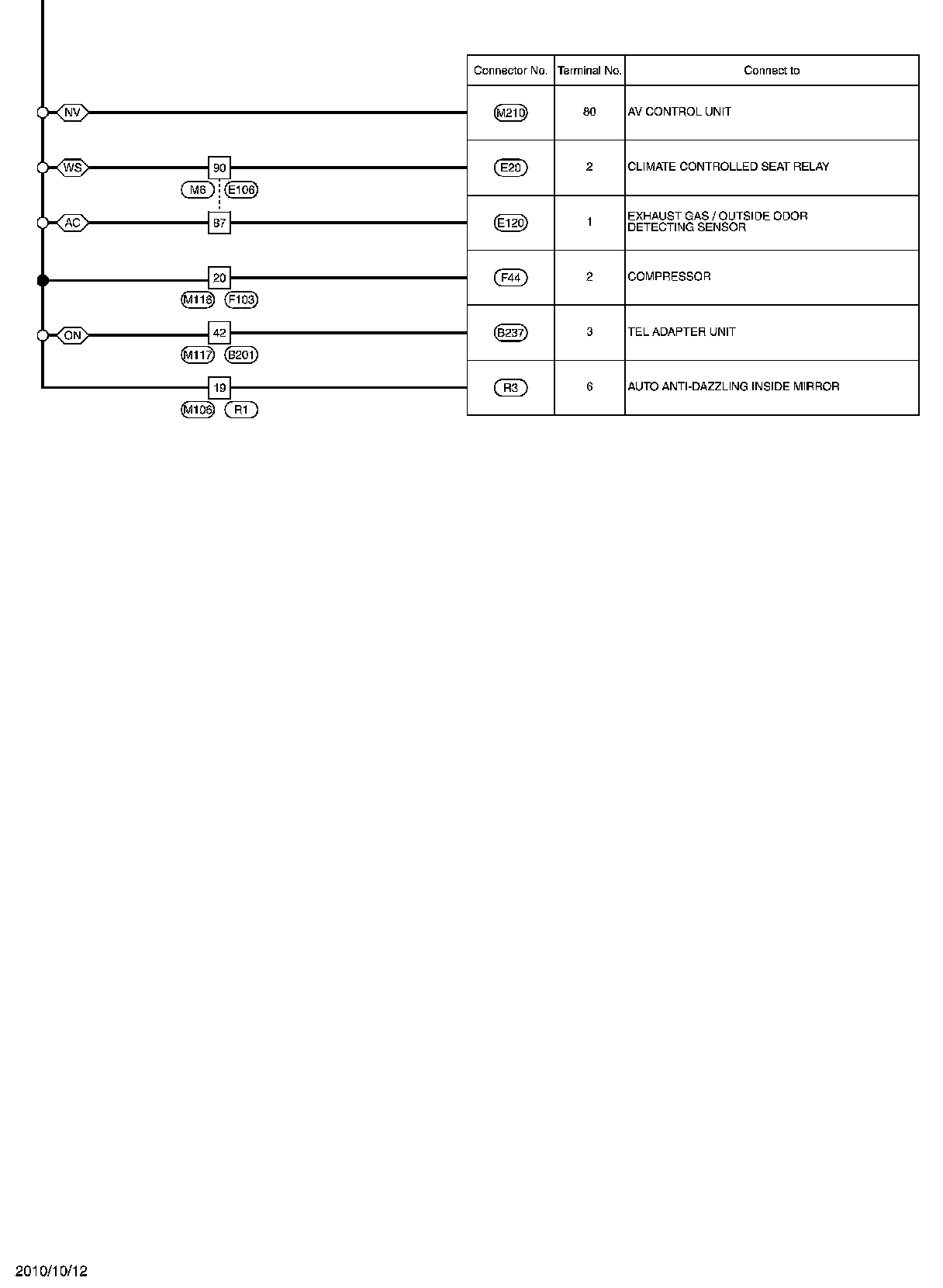

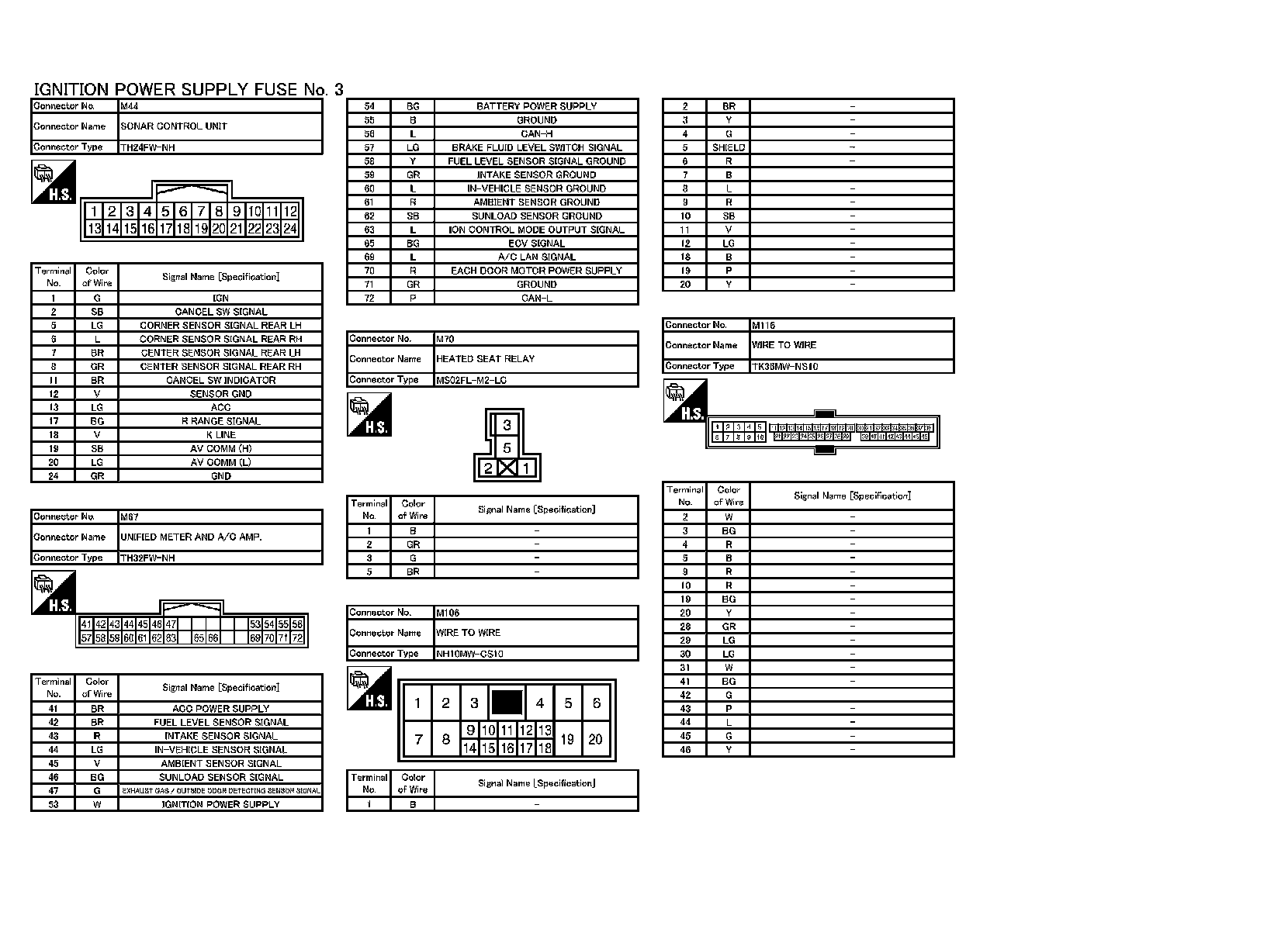

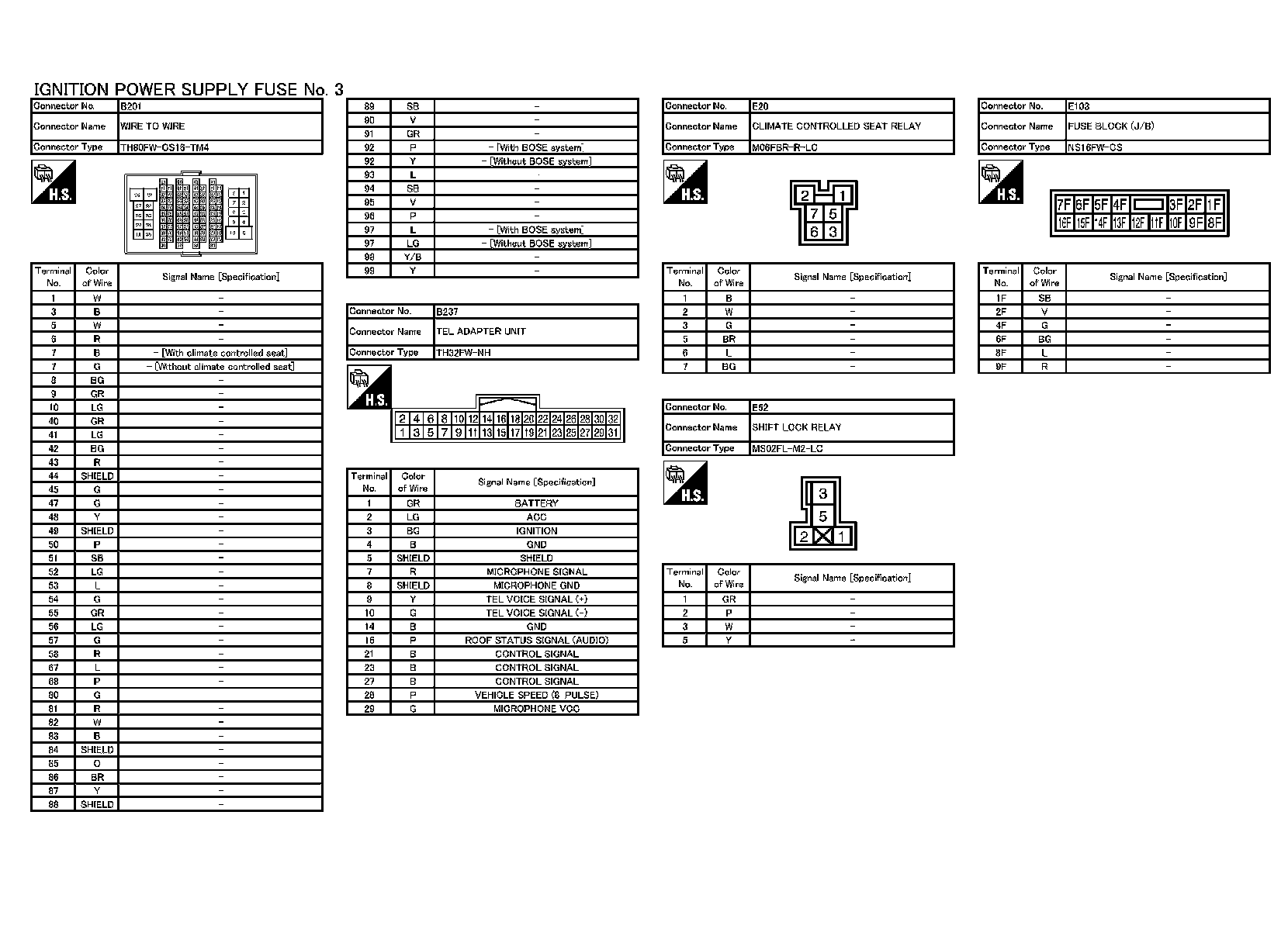

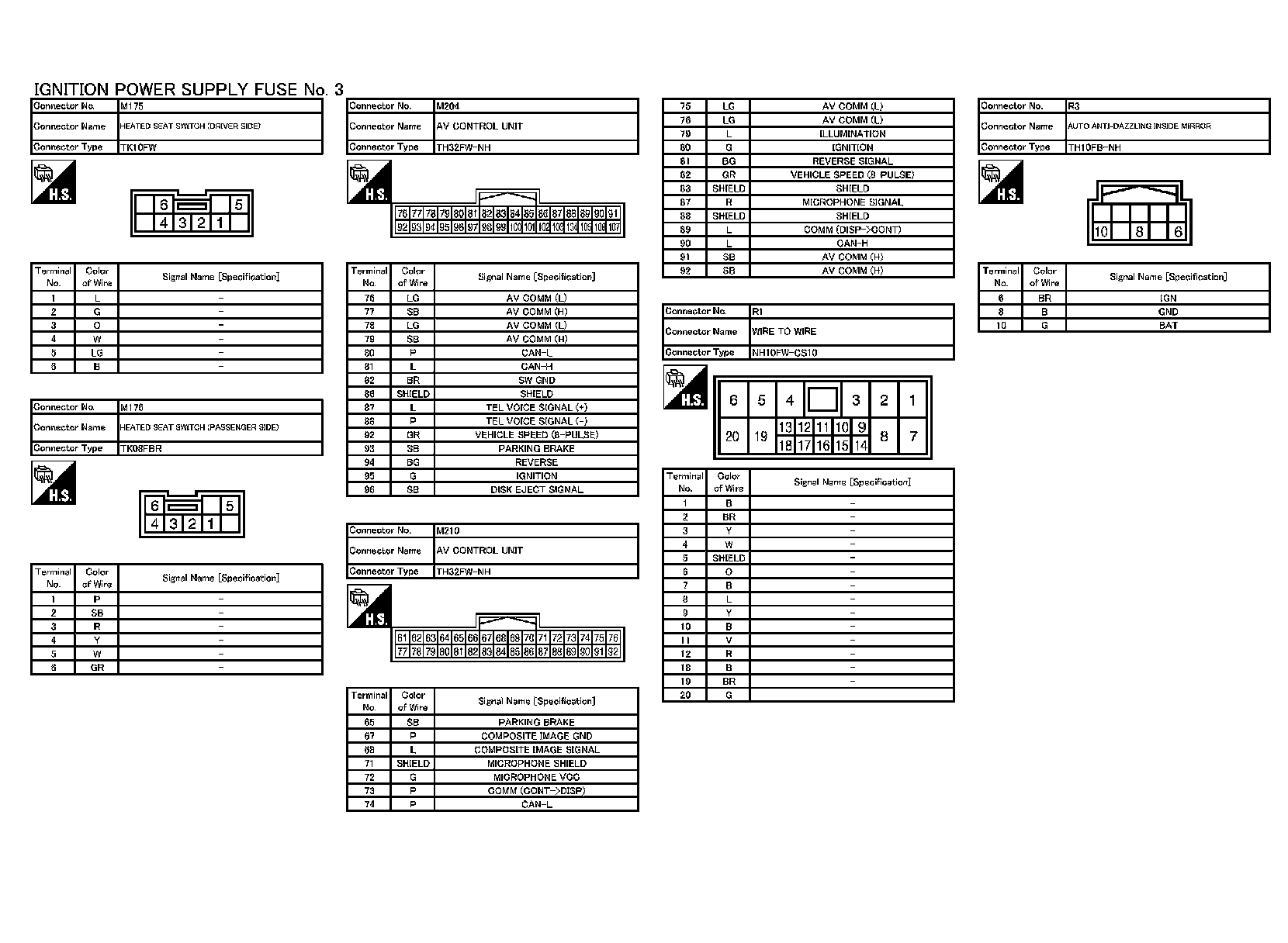

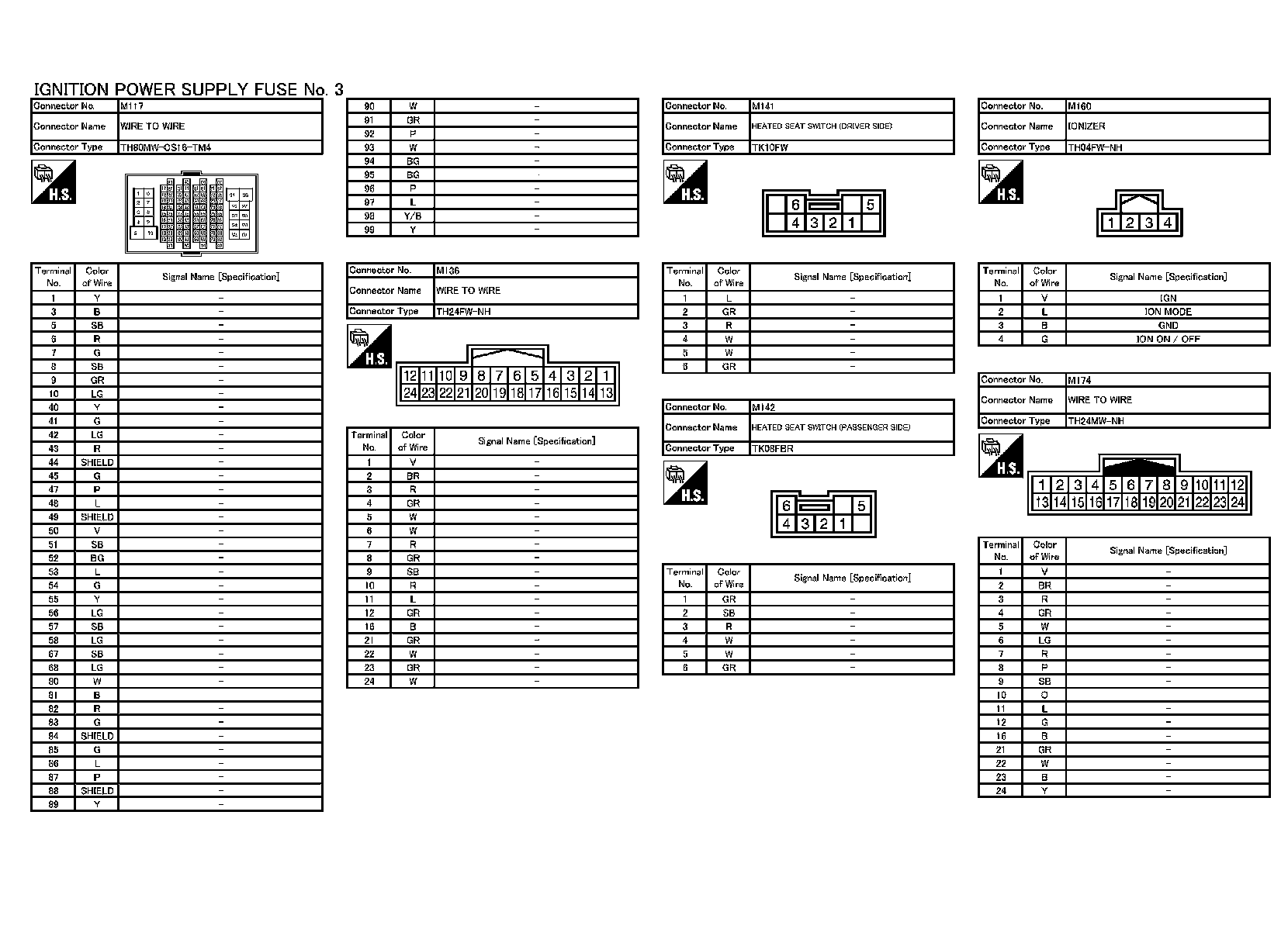

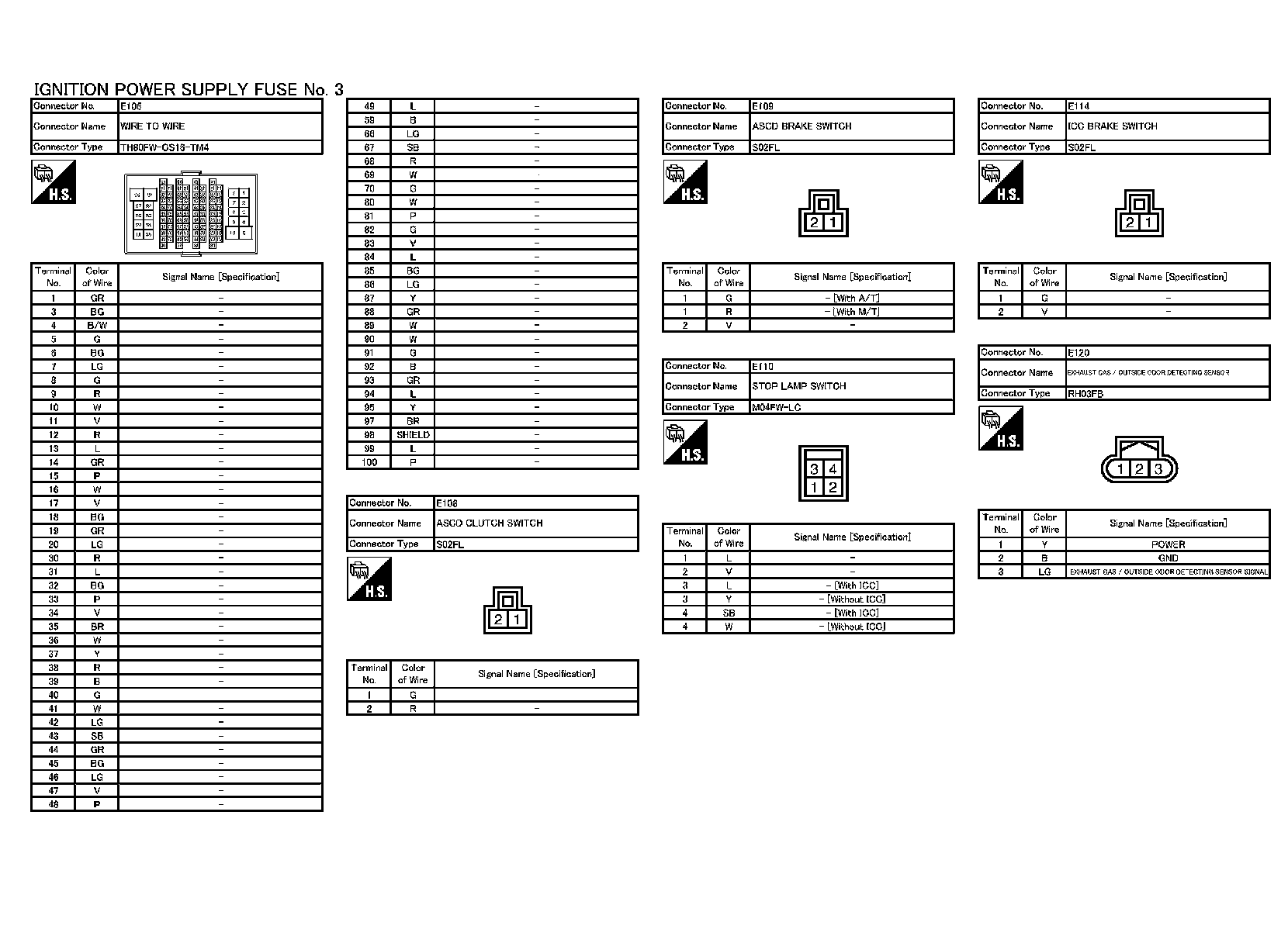

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 3
