Home
>>
Infiniti
>>
2012
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Interior Lighting
>>
Consult-III Function
Consult-III Function
DIAGNOSIS SYSTEM (BCM)
INT LAMP : CONSULT-III Function (BCM - INT LAMP)

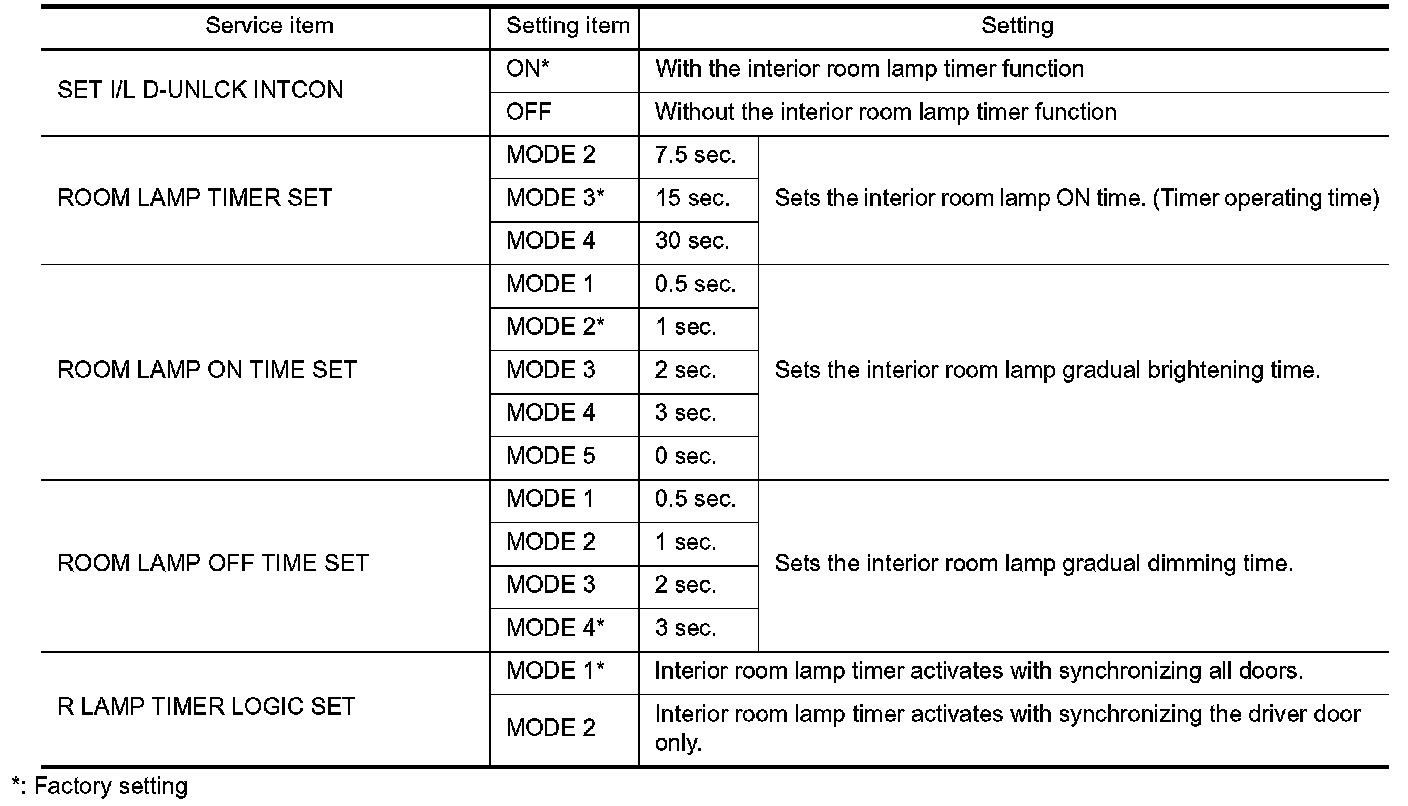

WORK SUPPORT

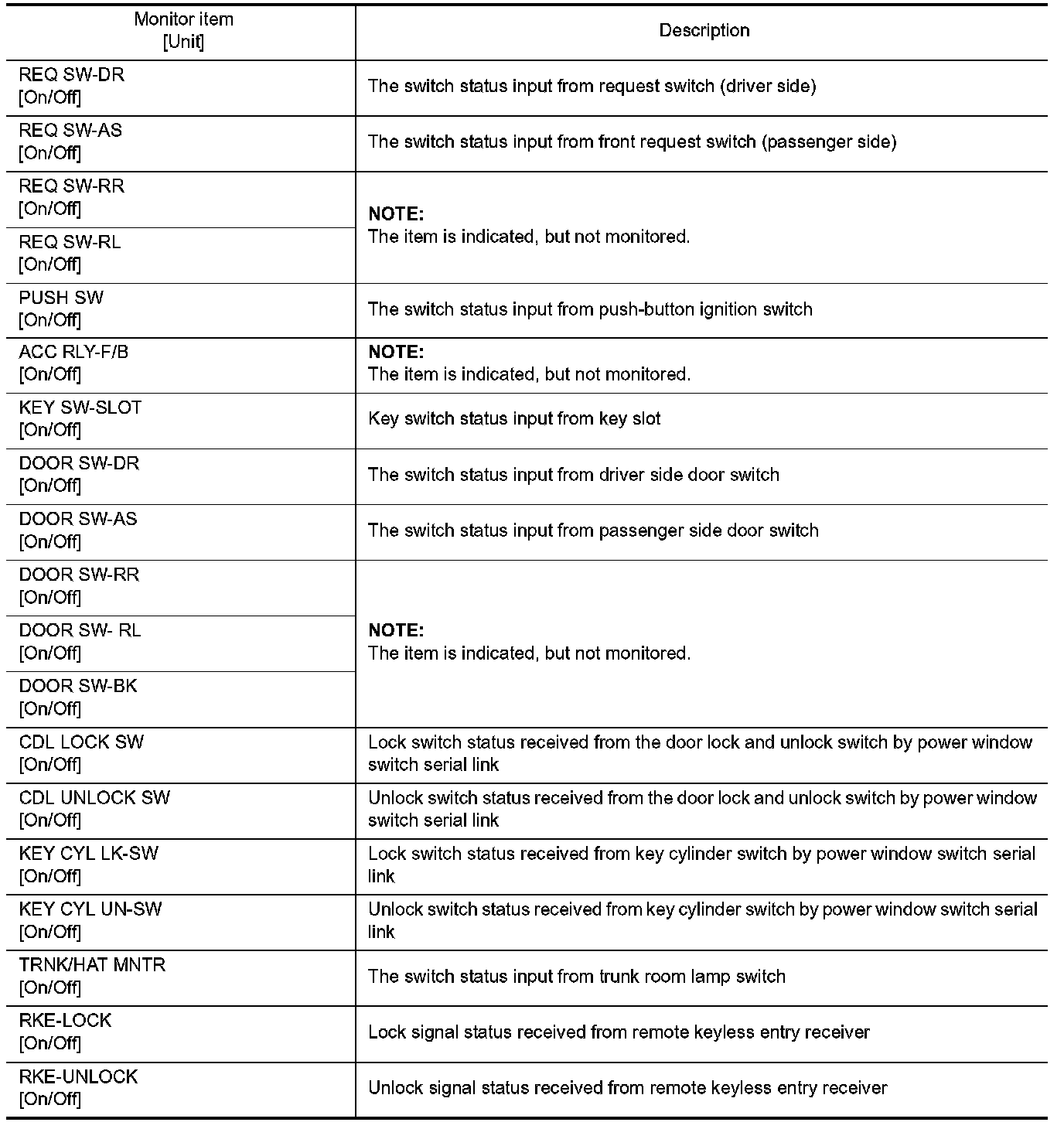

DATA MONITOR
ACTIVE TEST
