FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Infiniti
>>
2012
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Exterior Lighting
>>
Flasher
Flasher
DIAGNOSIS SYSTEM (BCM)
FLASHER : CONSULT-III Function (BCM - FLASHER)

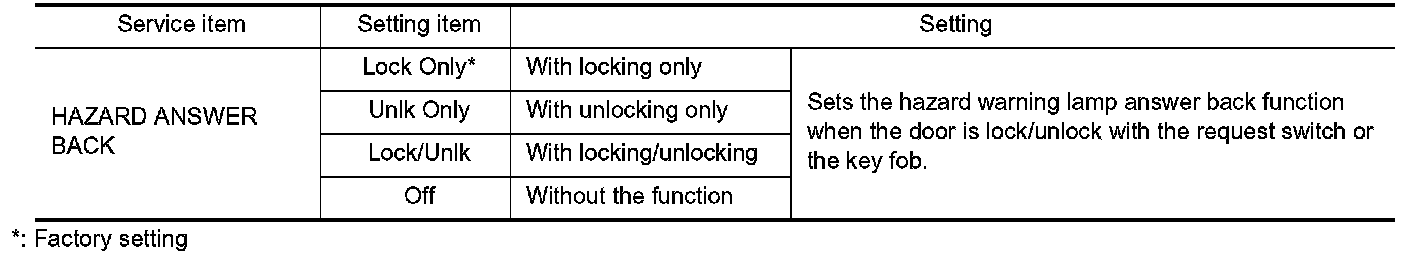

WORK SUPPORT

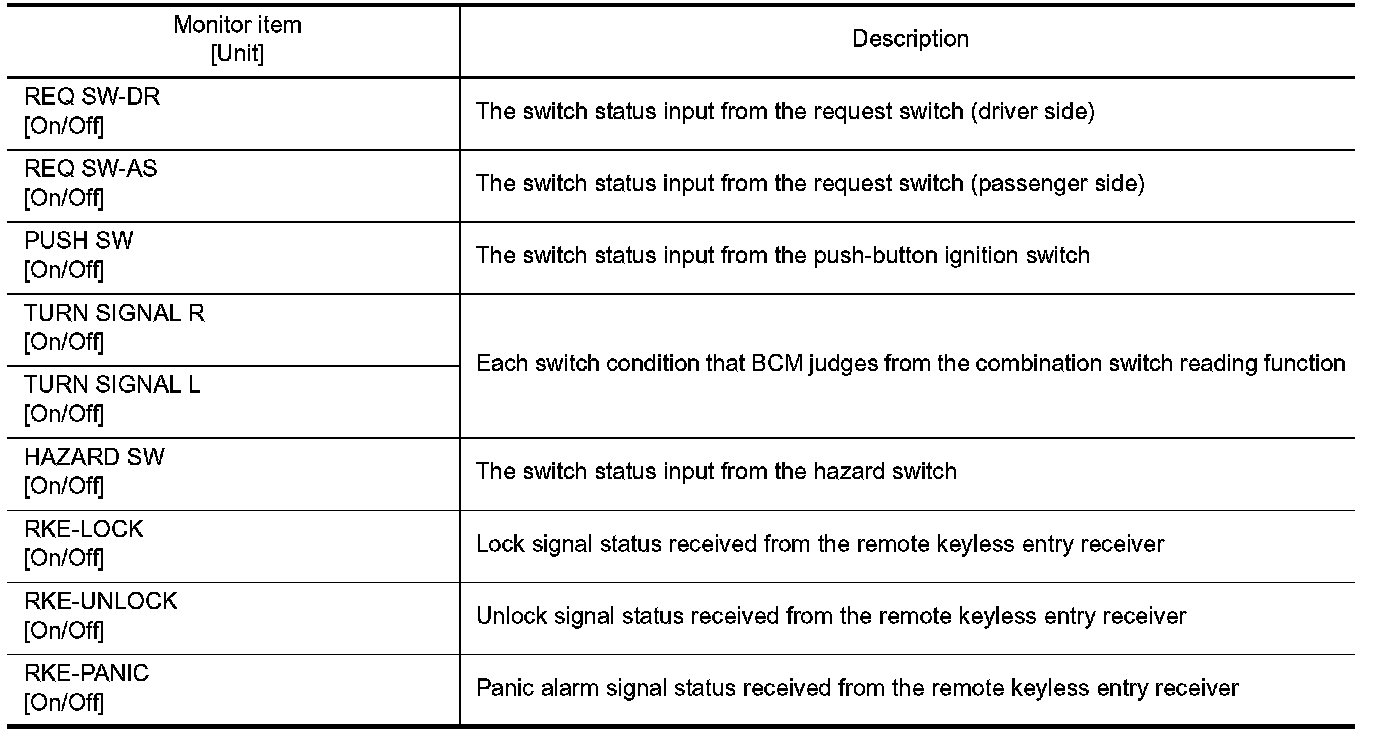

DATA MONITOR

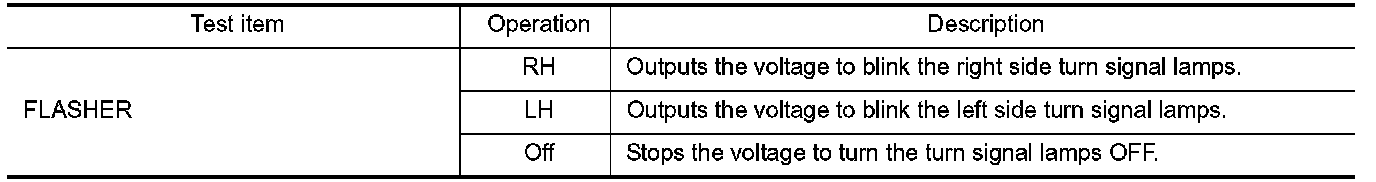

ACTIVE TEST
