Interior Lighting Module: Testing and Inspection




DIAGNOSIS SYSTEM (BCM)

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

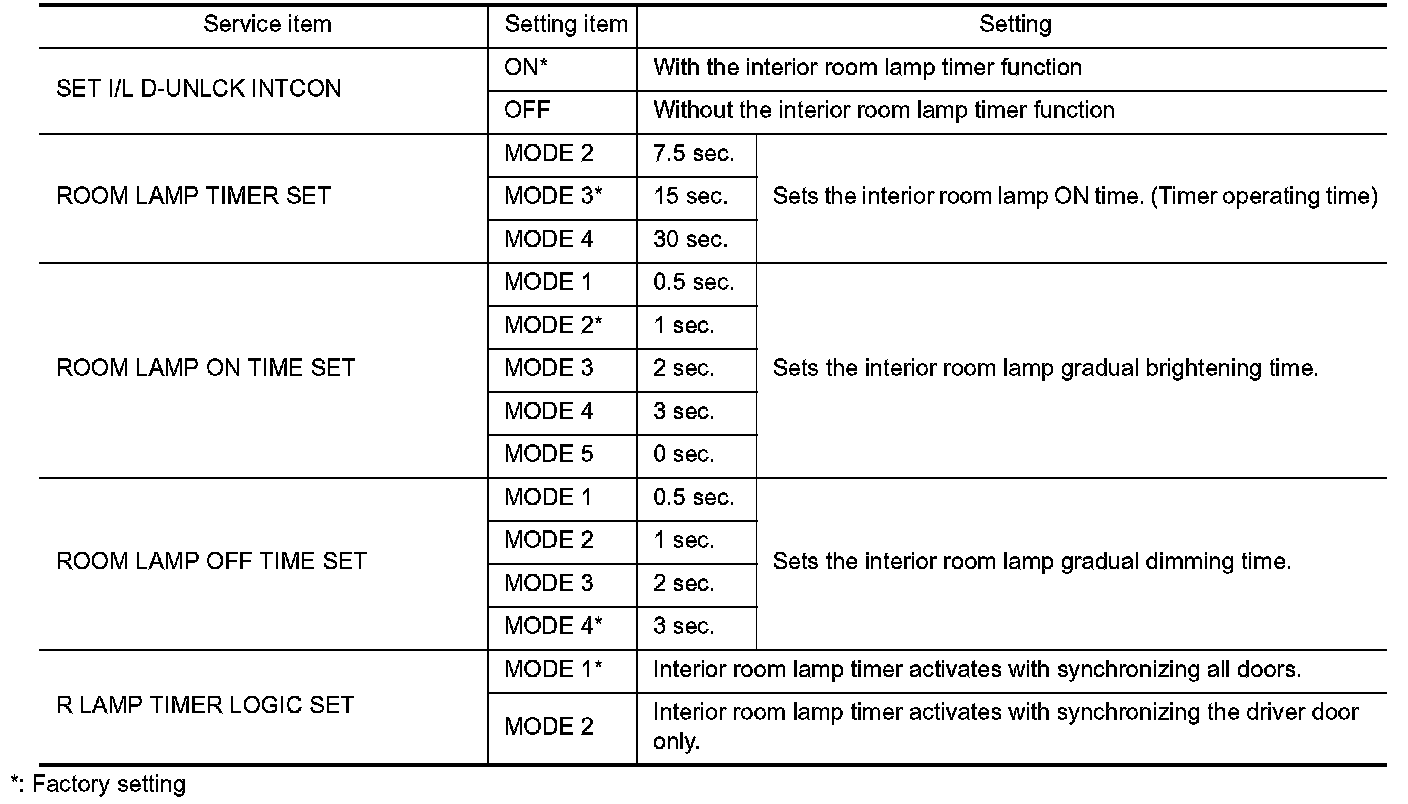

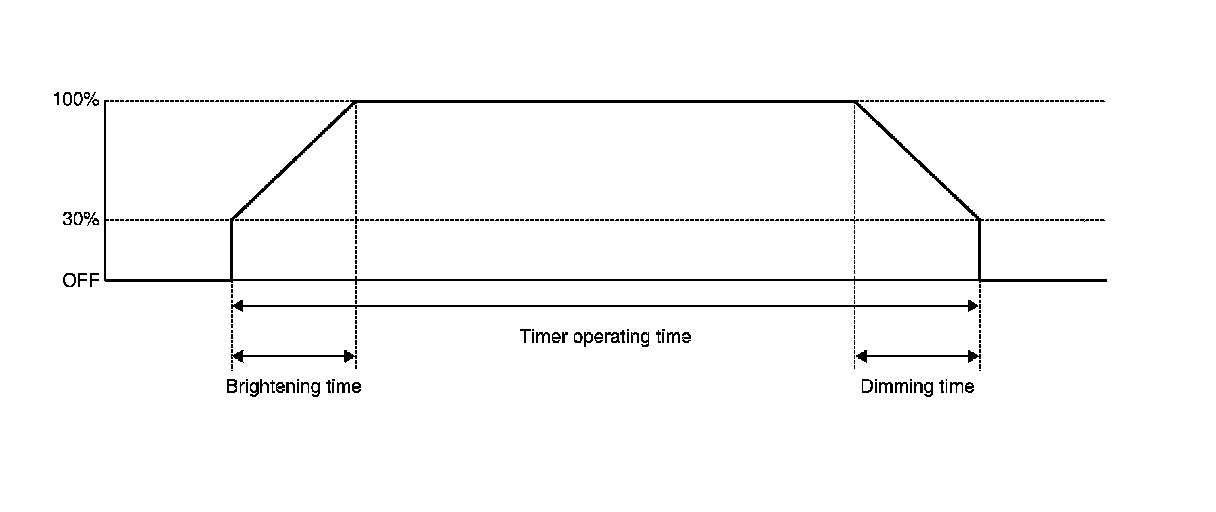

WORK SUPPORT

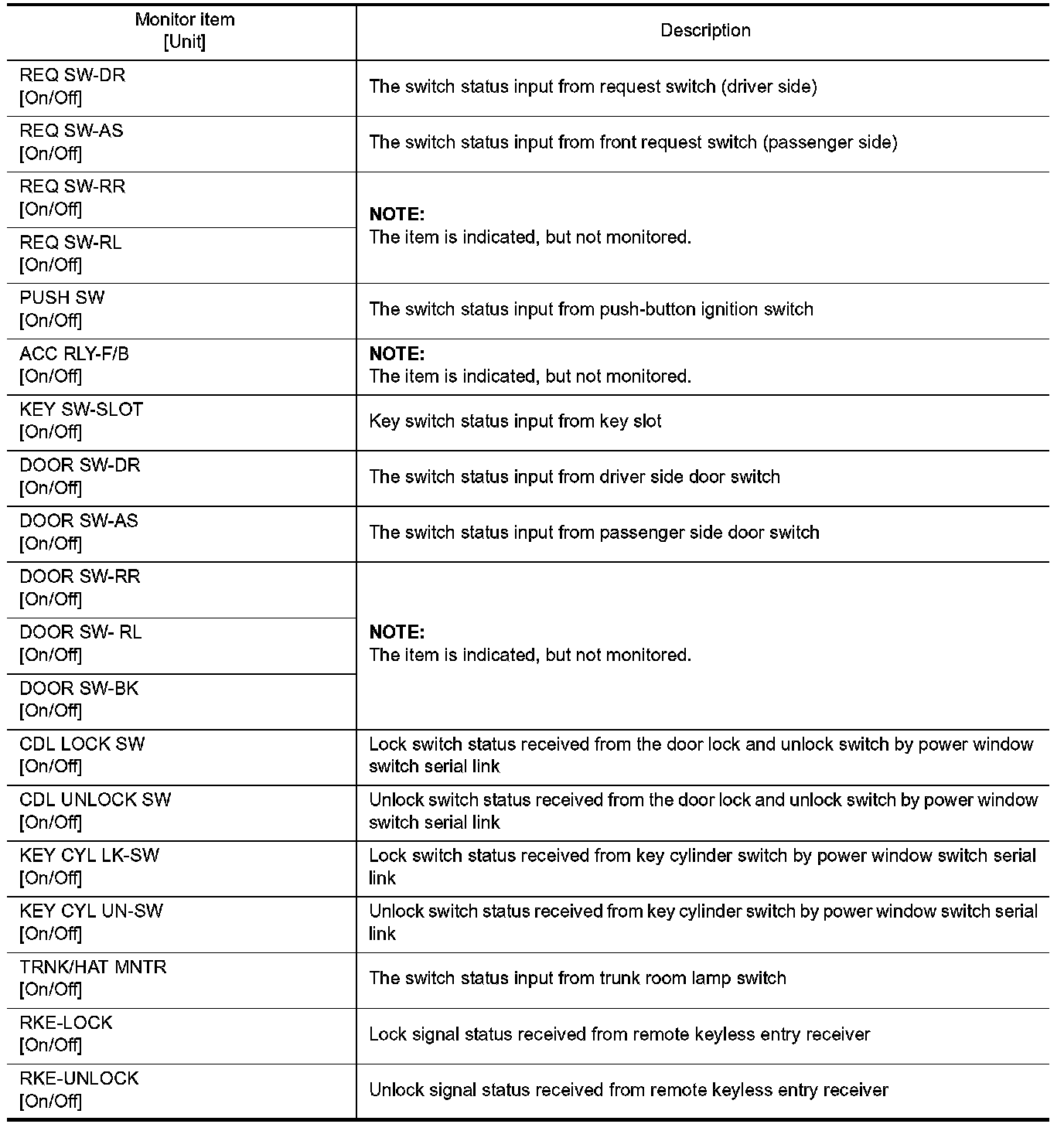

DATA MONITOR

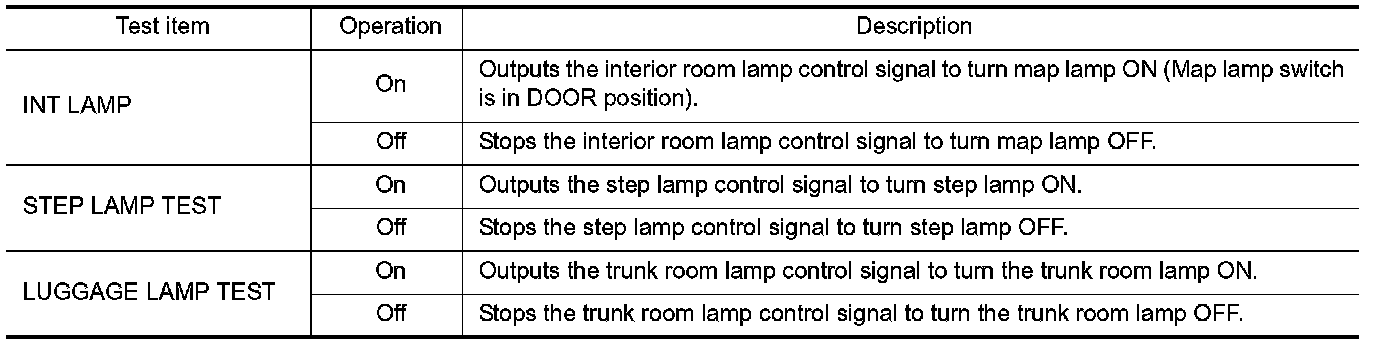

ACTIVE TEST
