Interior Room Lamp Control System
Interior Room Lamp Control System
INTERIOR ROOM LAMP CONTROL SYSTEM

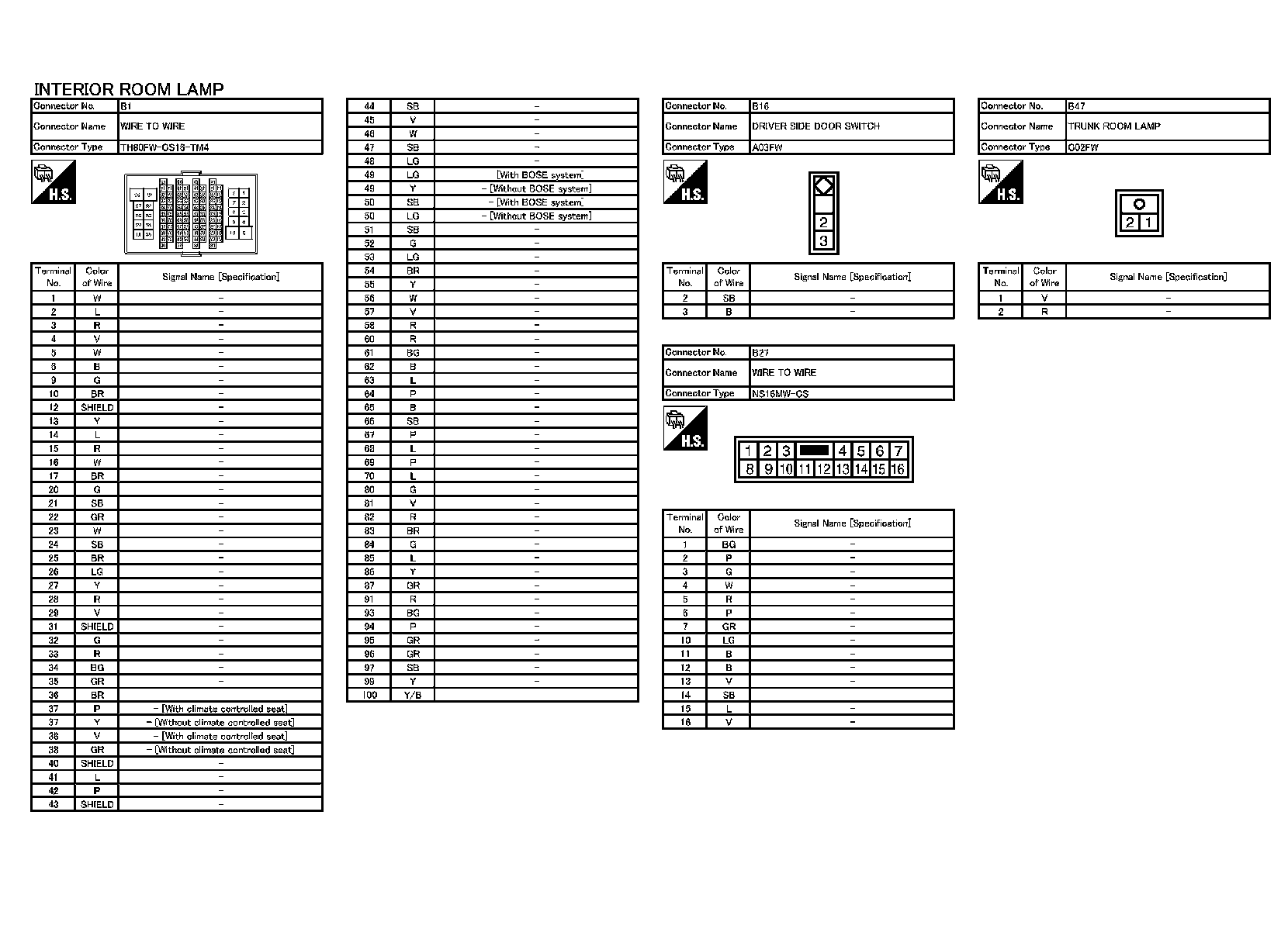

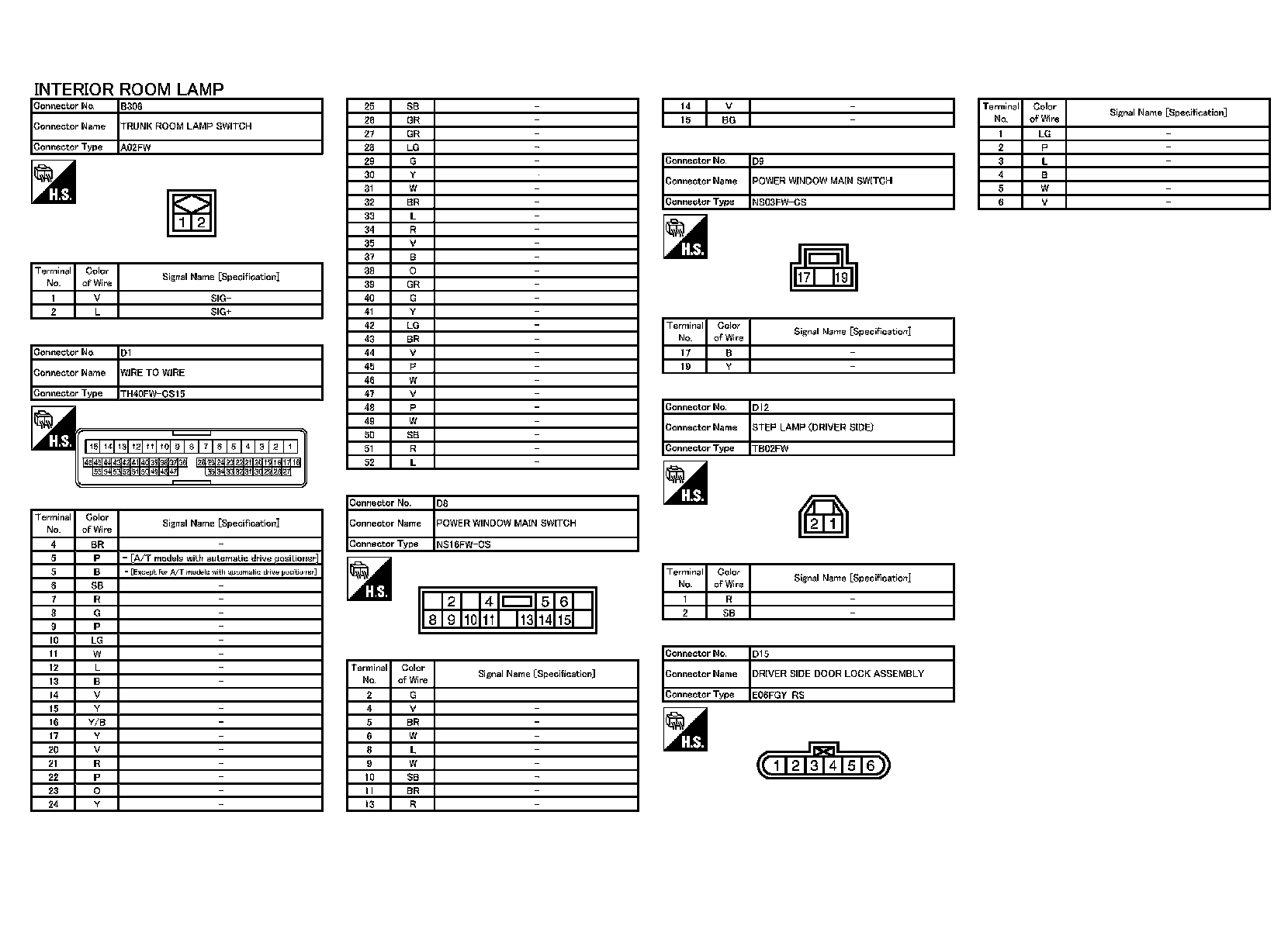

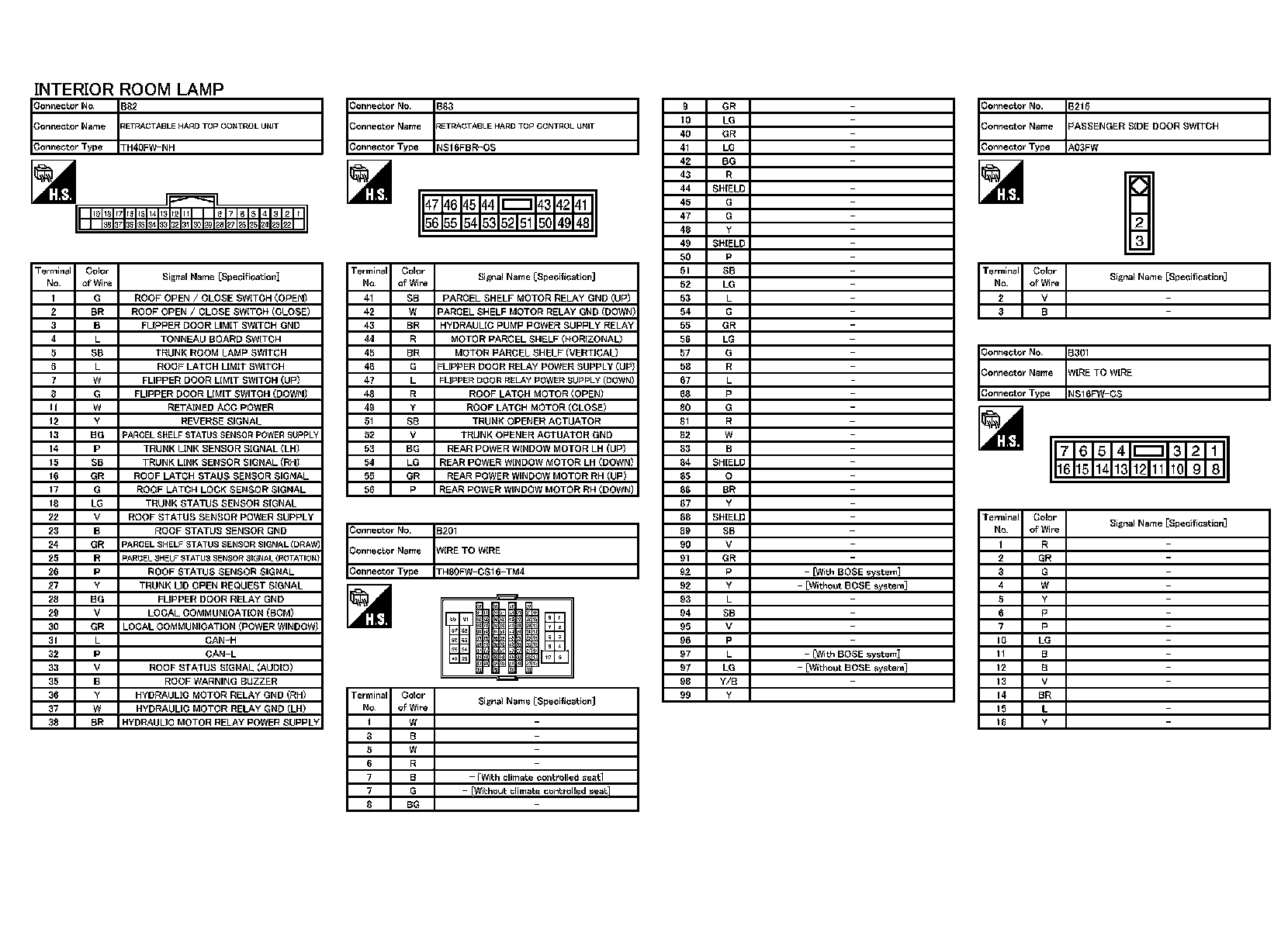

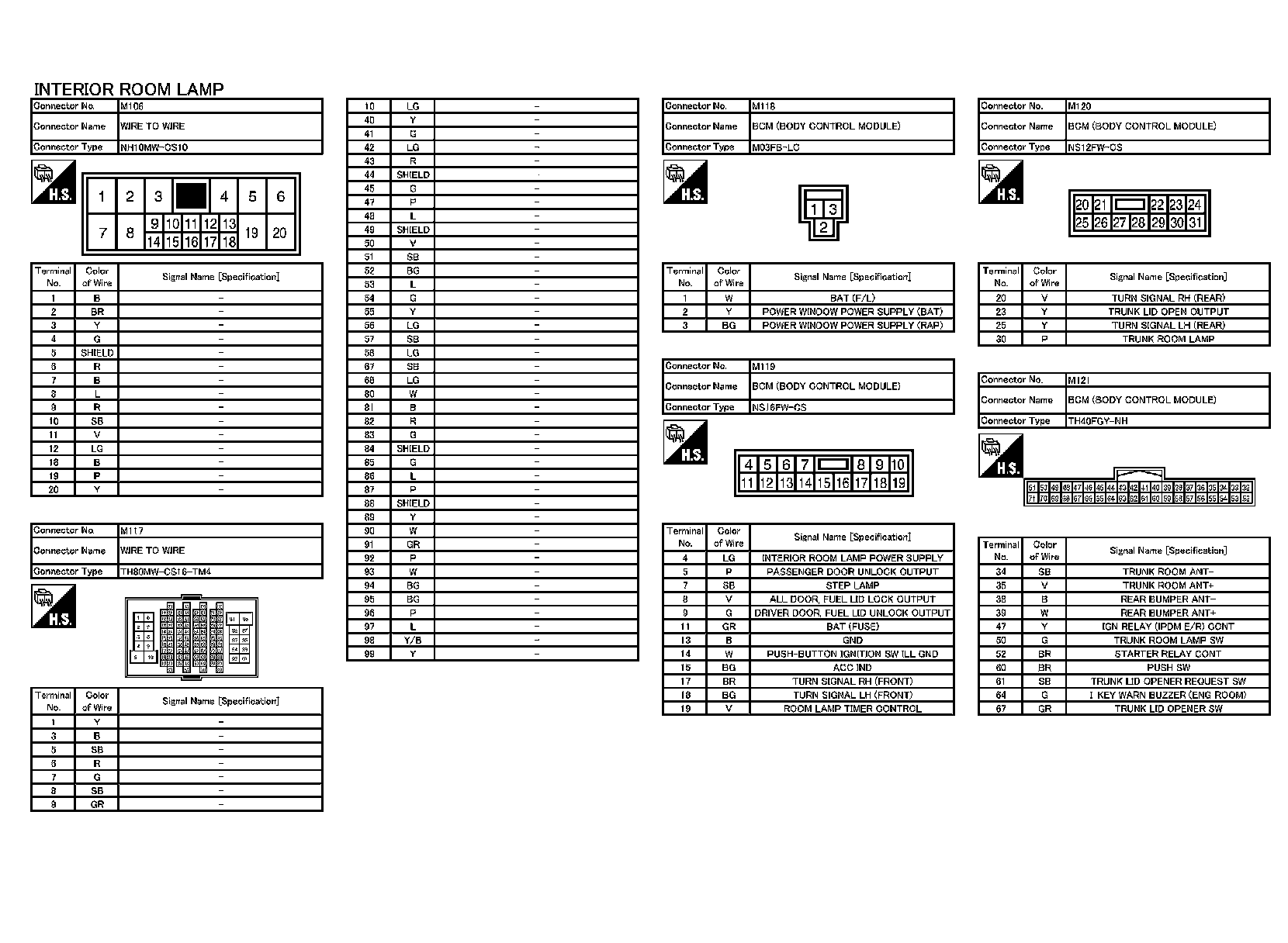

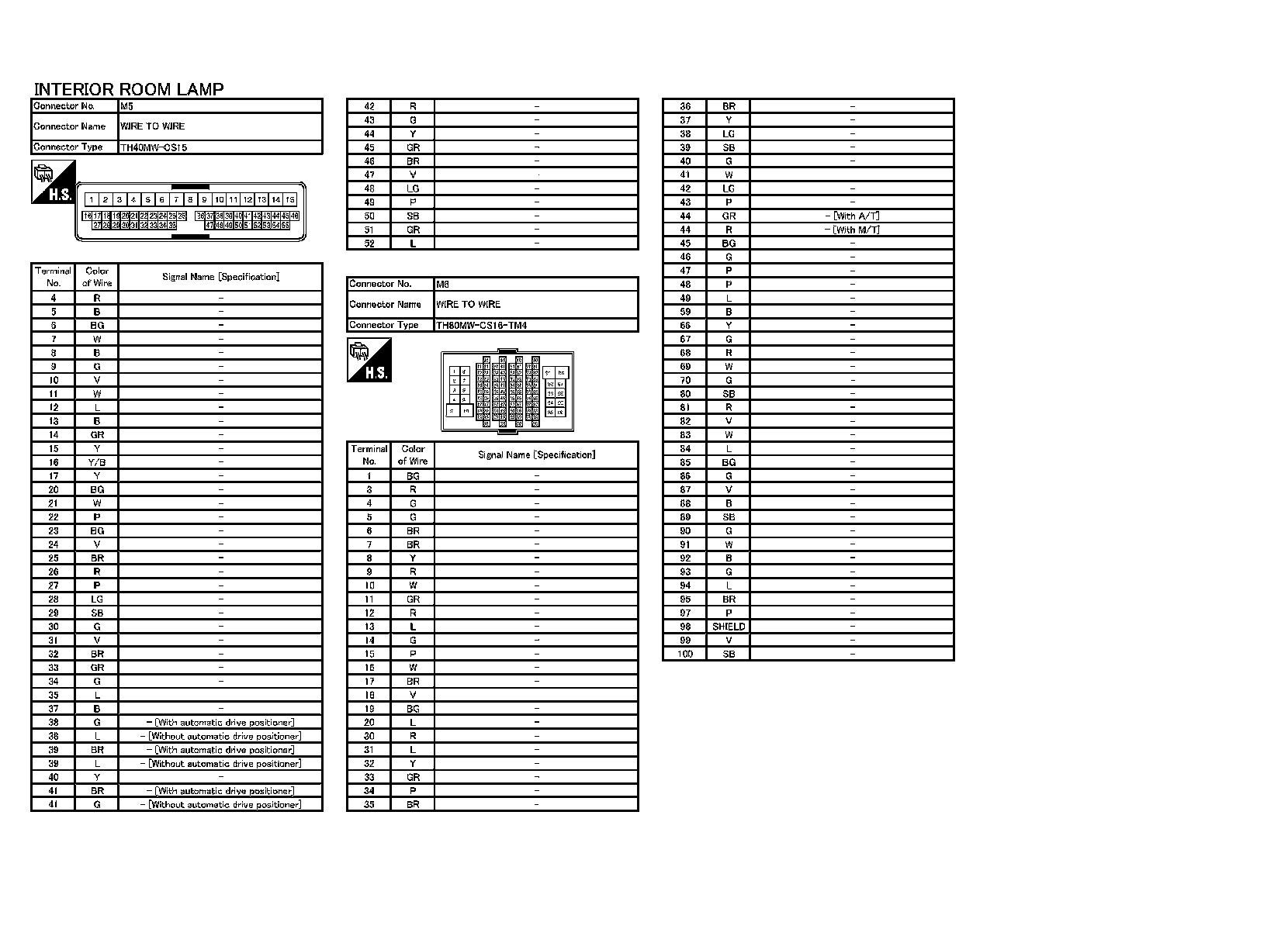

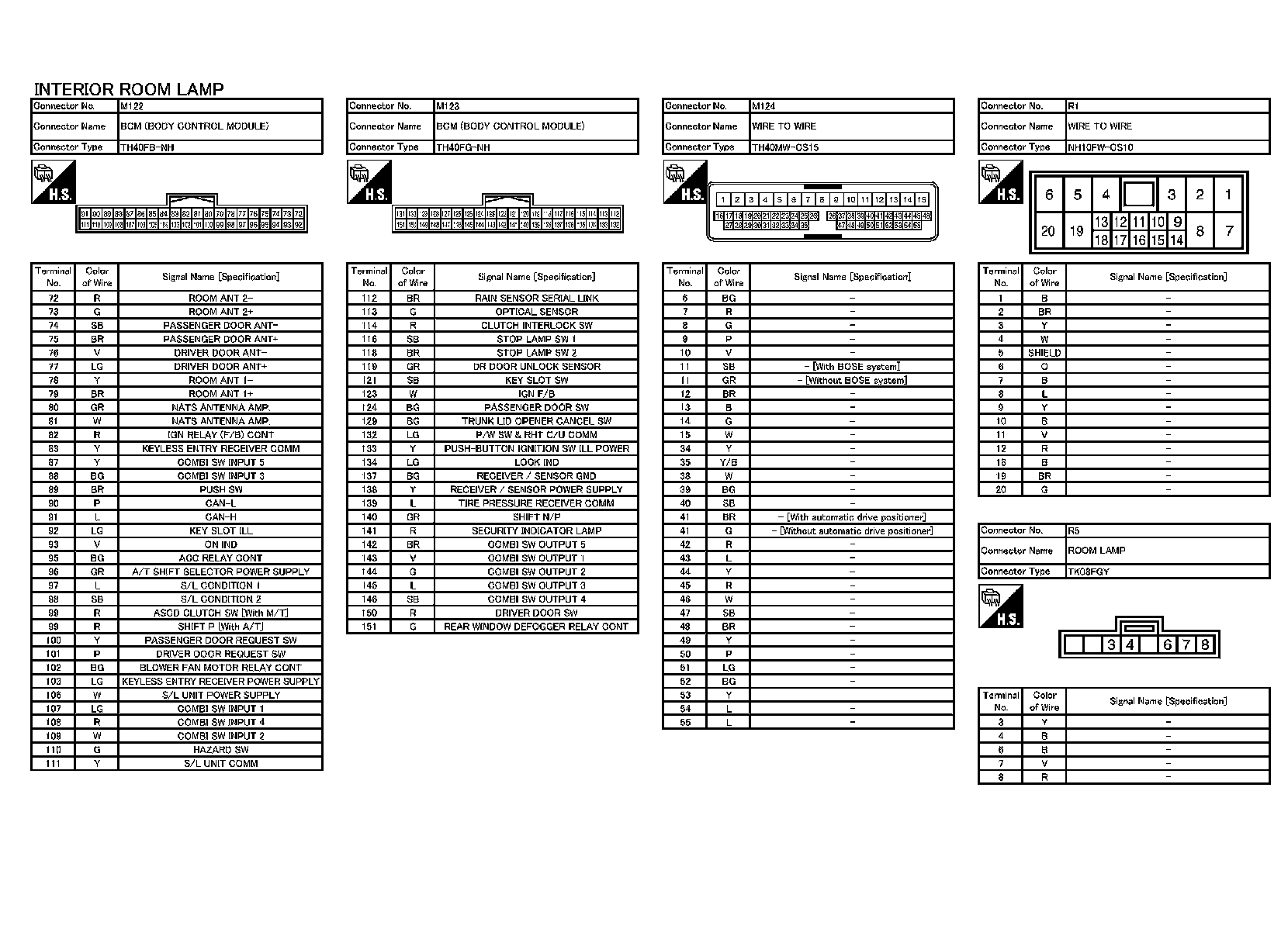

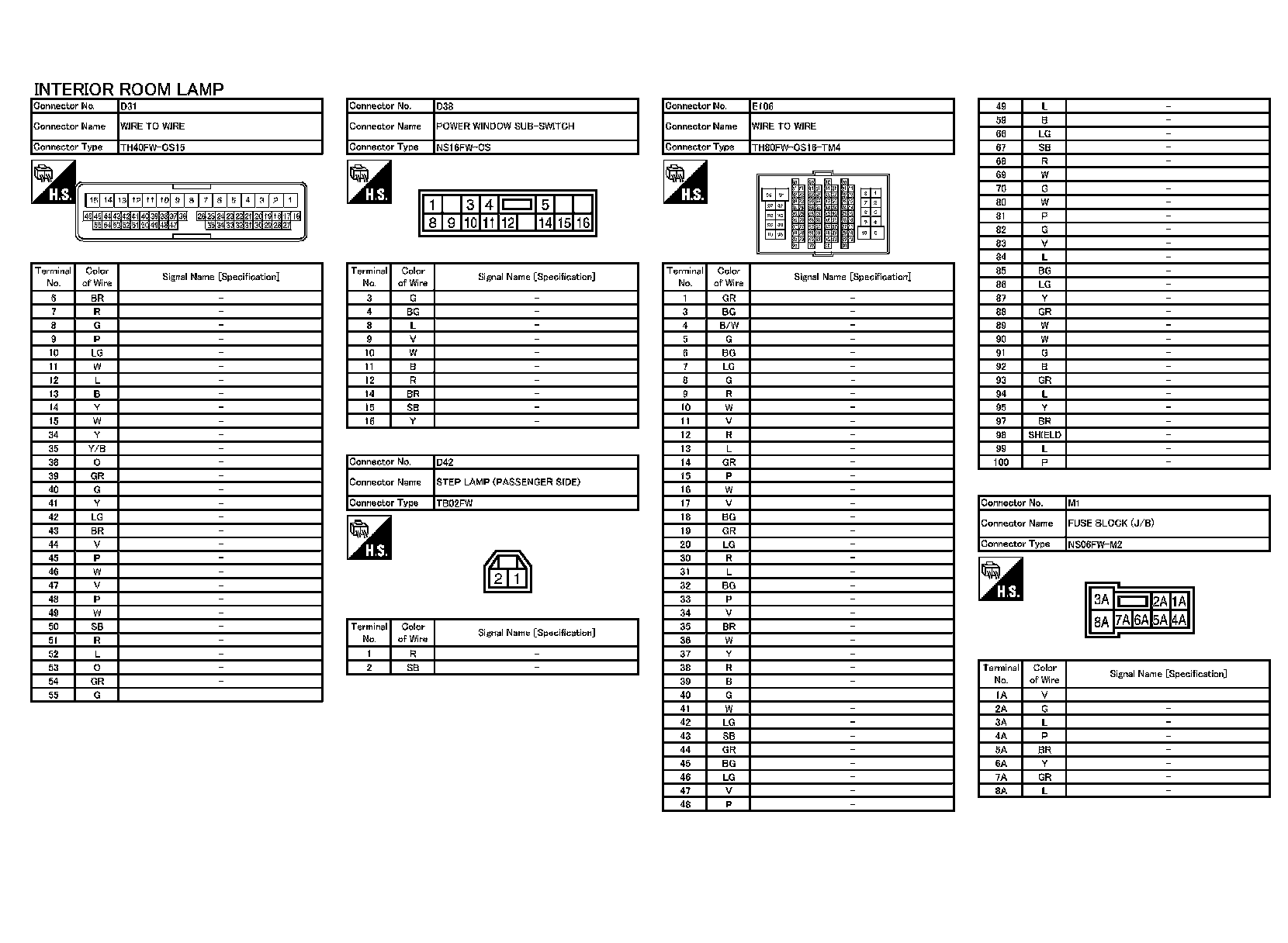

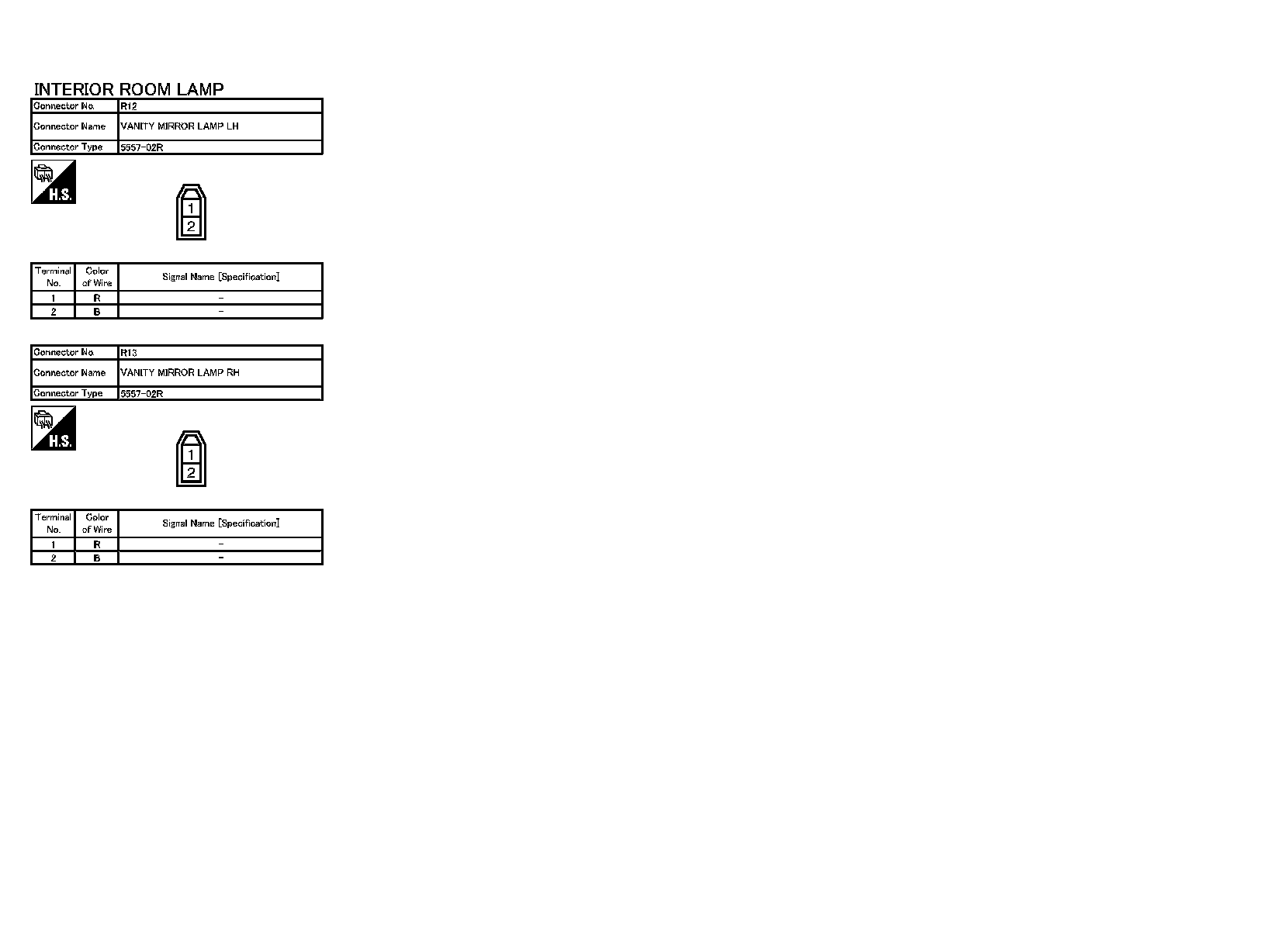

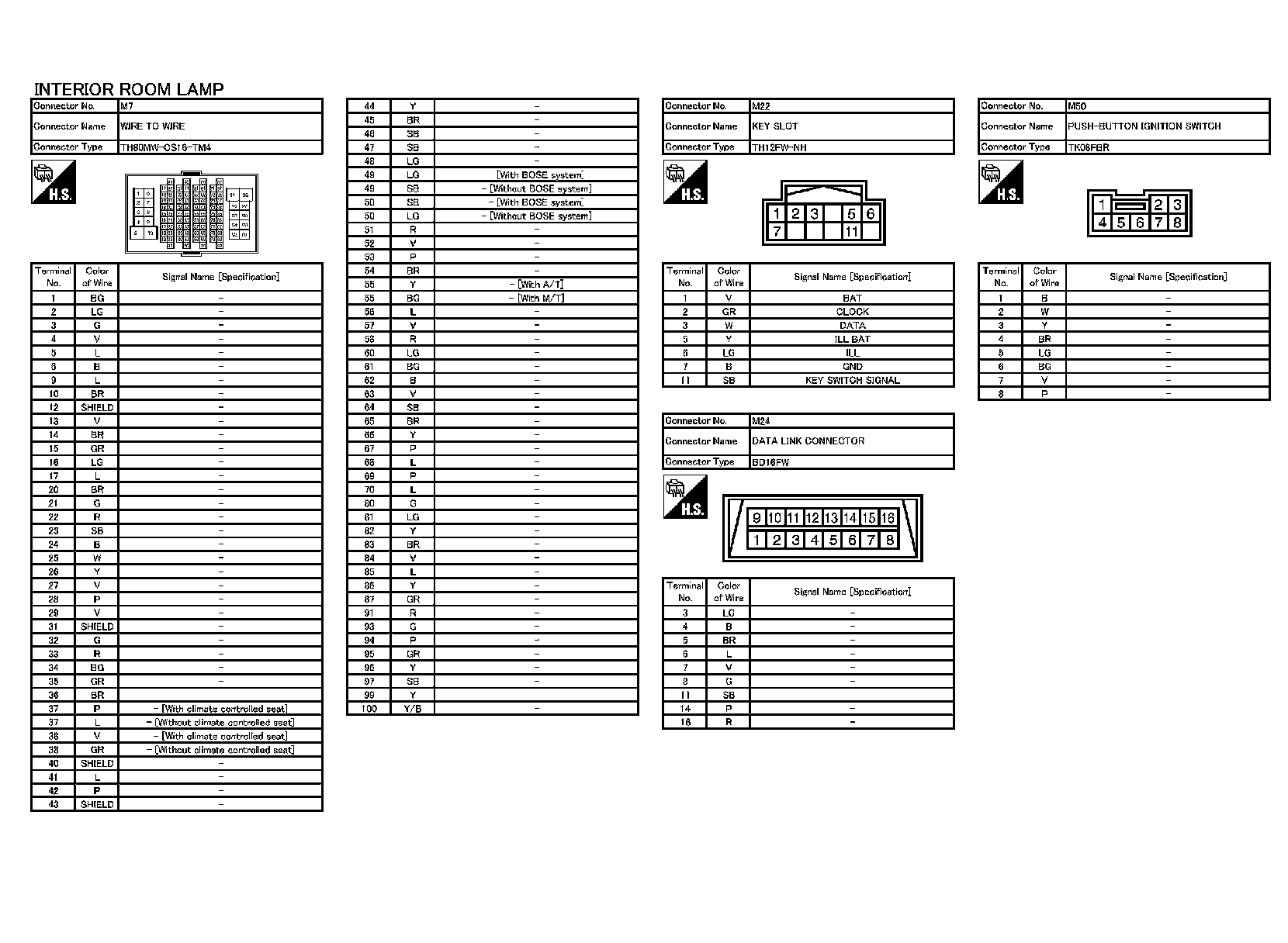

Wiring Diagram - INTERIOR ROOM LAMP
