Unified Meter and A/C Amp.

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

CONSULT-III Function (METER/M&A)

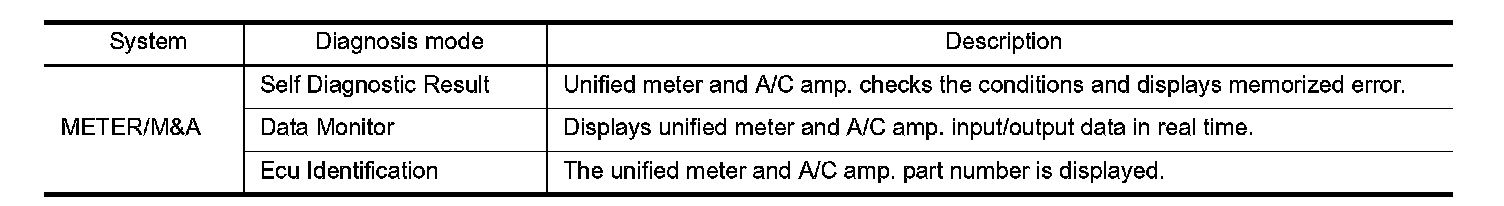

CONSULT-III APPLICATION ITEMS

CONSULT-III can perform the following diagnosis modes with CAN communication with the unified meter and
A/C amp.






SELF DIAG RESULT

Testing and Inspection.

DATA MONITOR

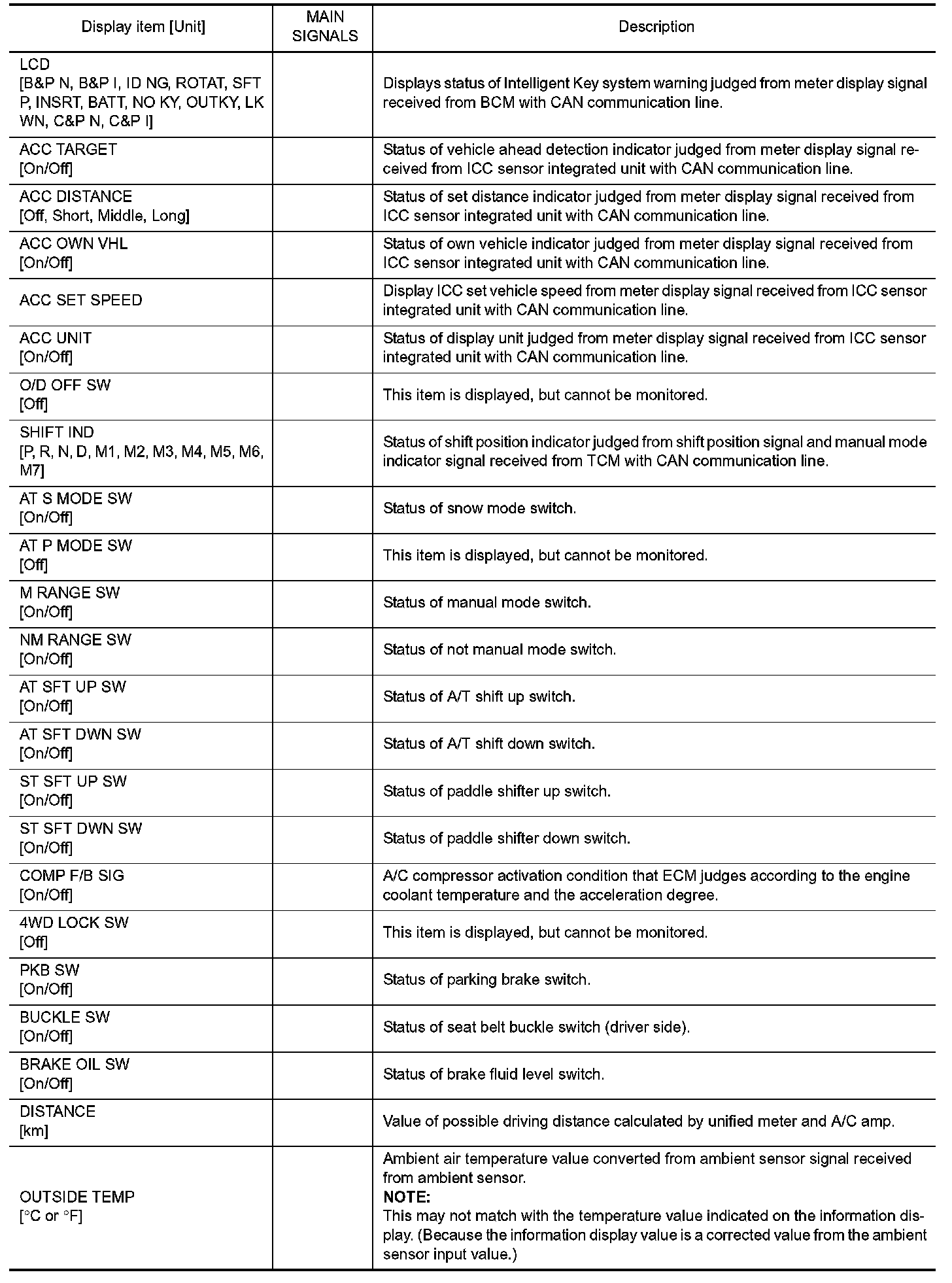

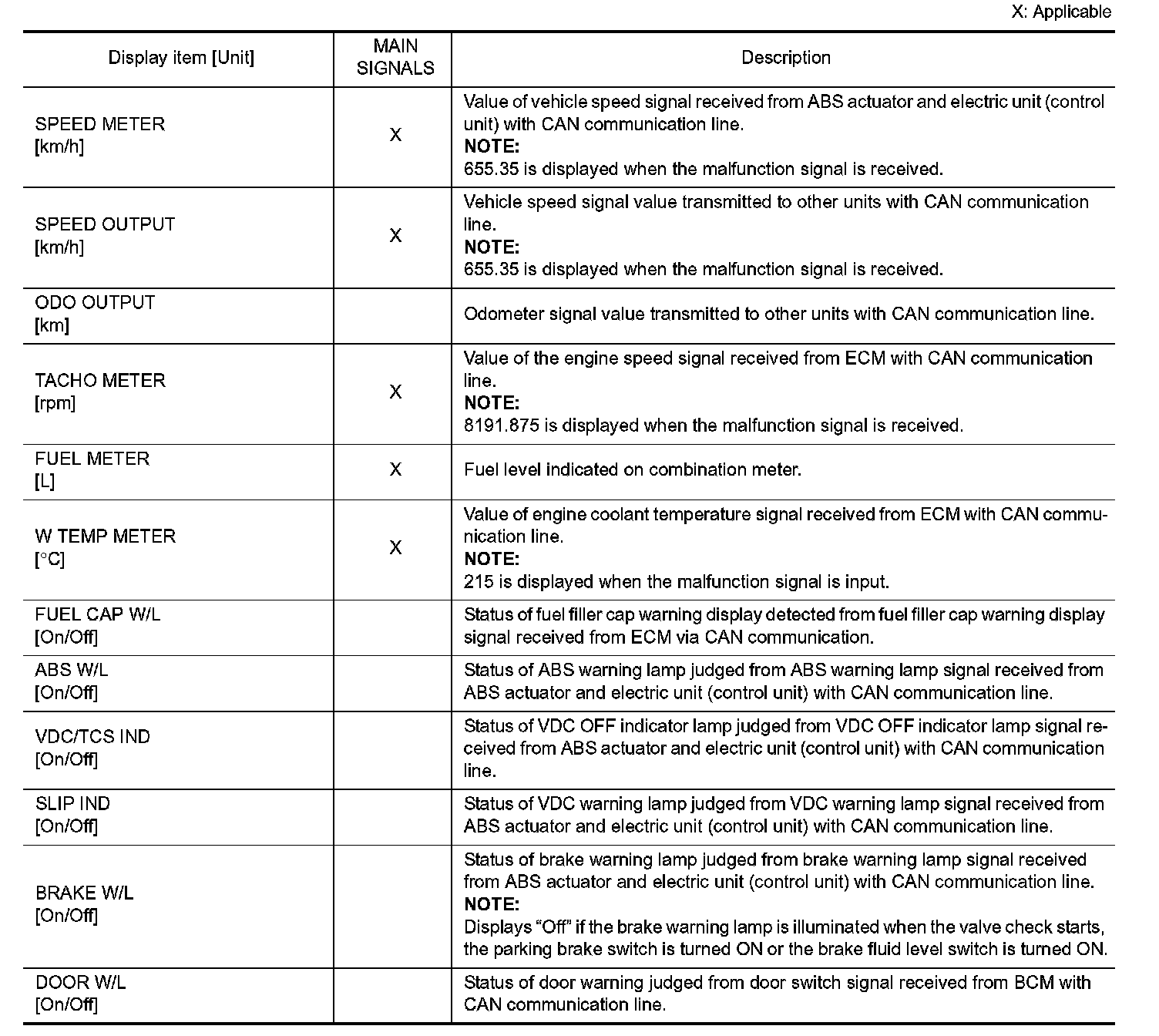

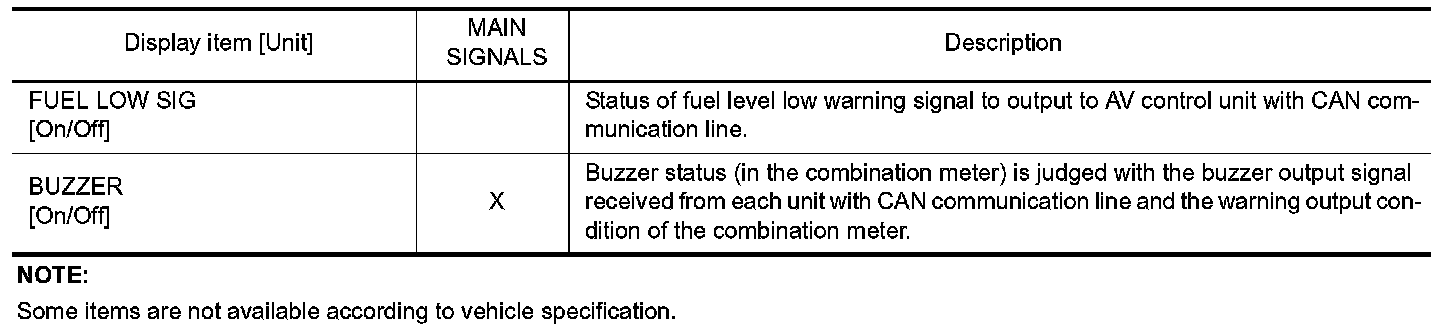

Display Item List
X: Applicable
