Meter, Warning Lamp & Indicator




COMBINATION METER

Reference Value


VALUES ON THE DIAGNOSIS TOOL

Unified Meter and A/C Amp.

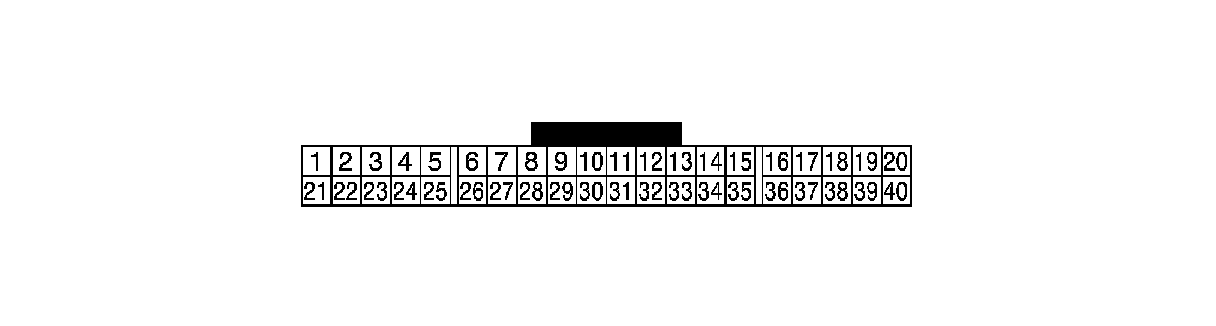

TERMINAL LAYOUT

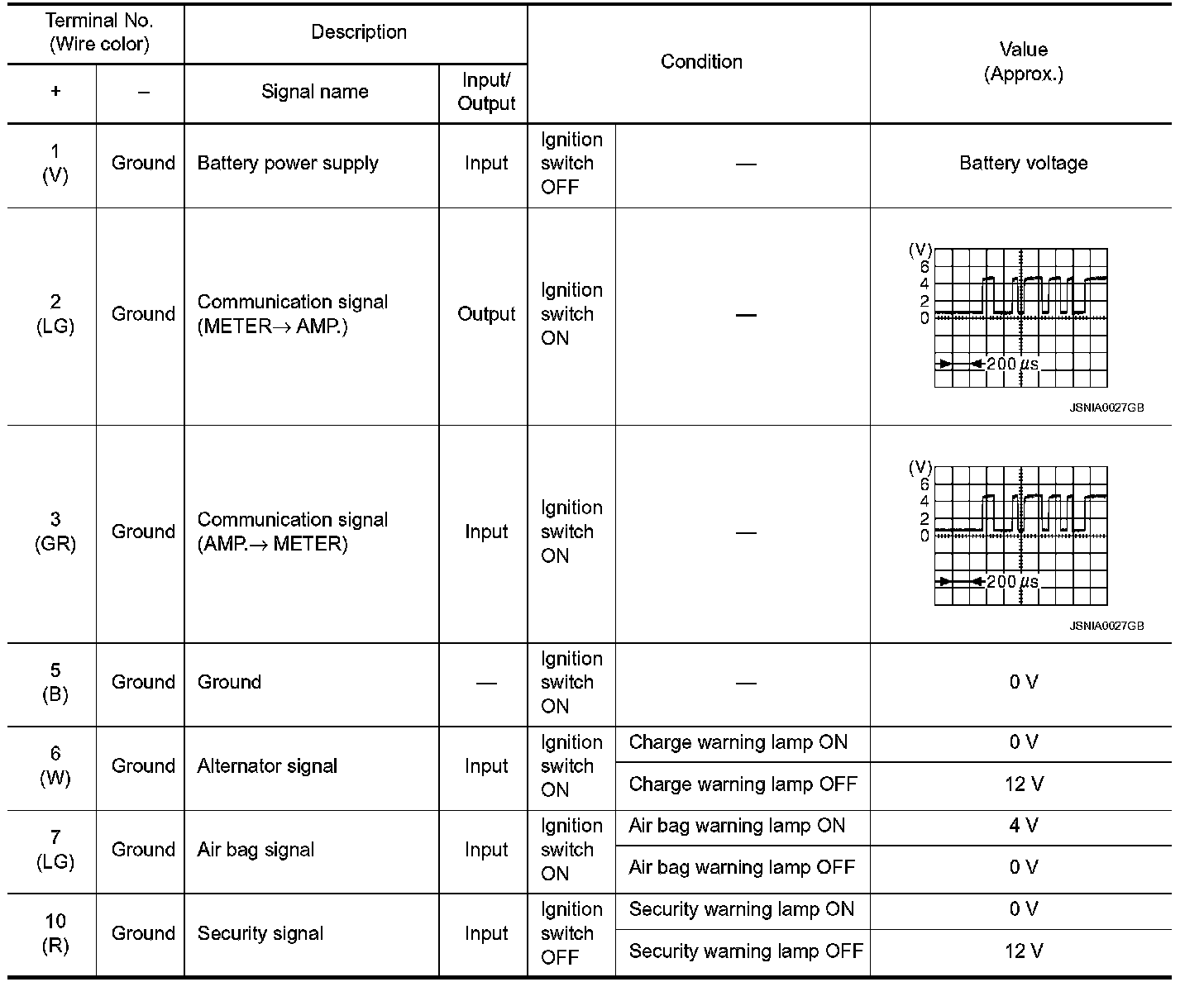

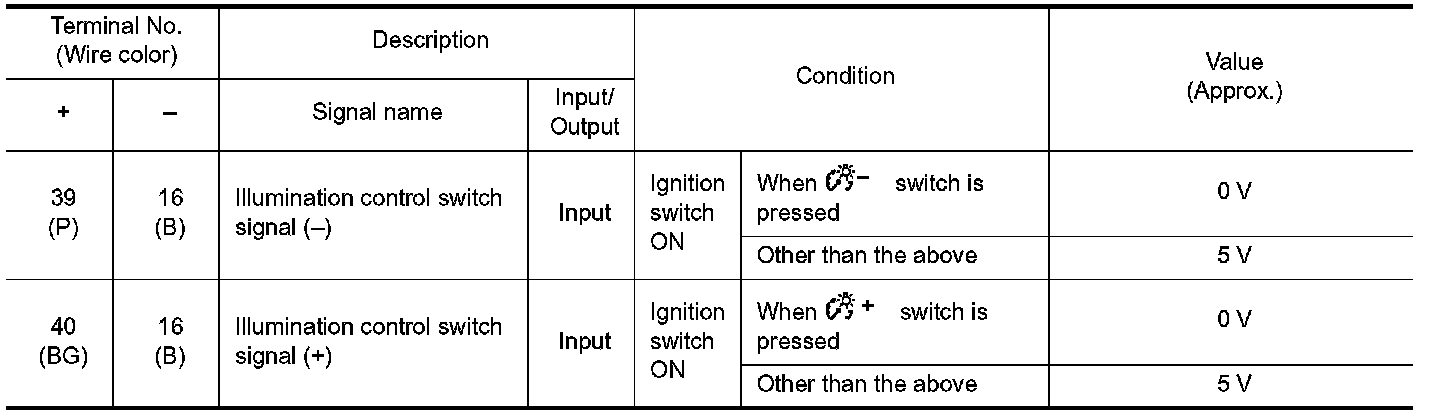

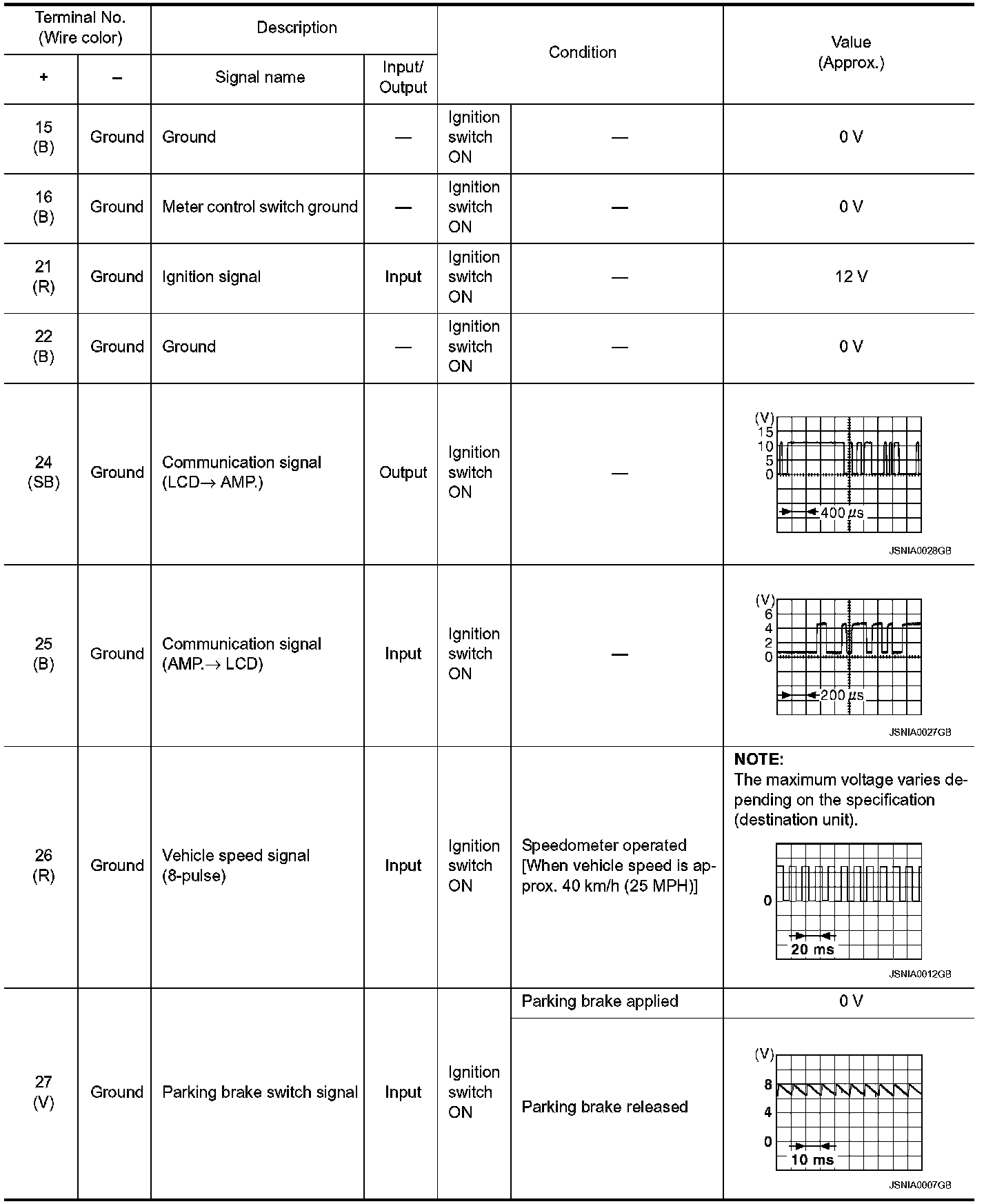

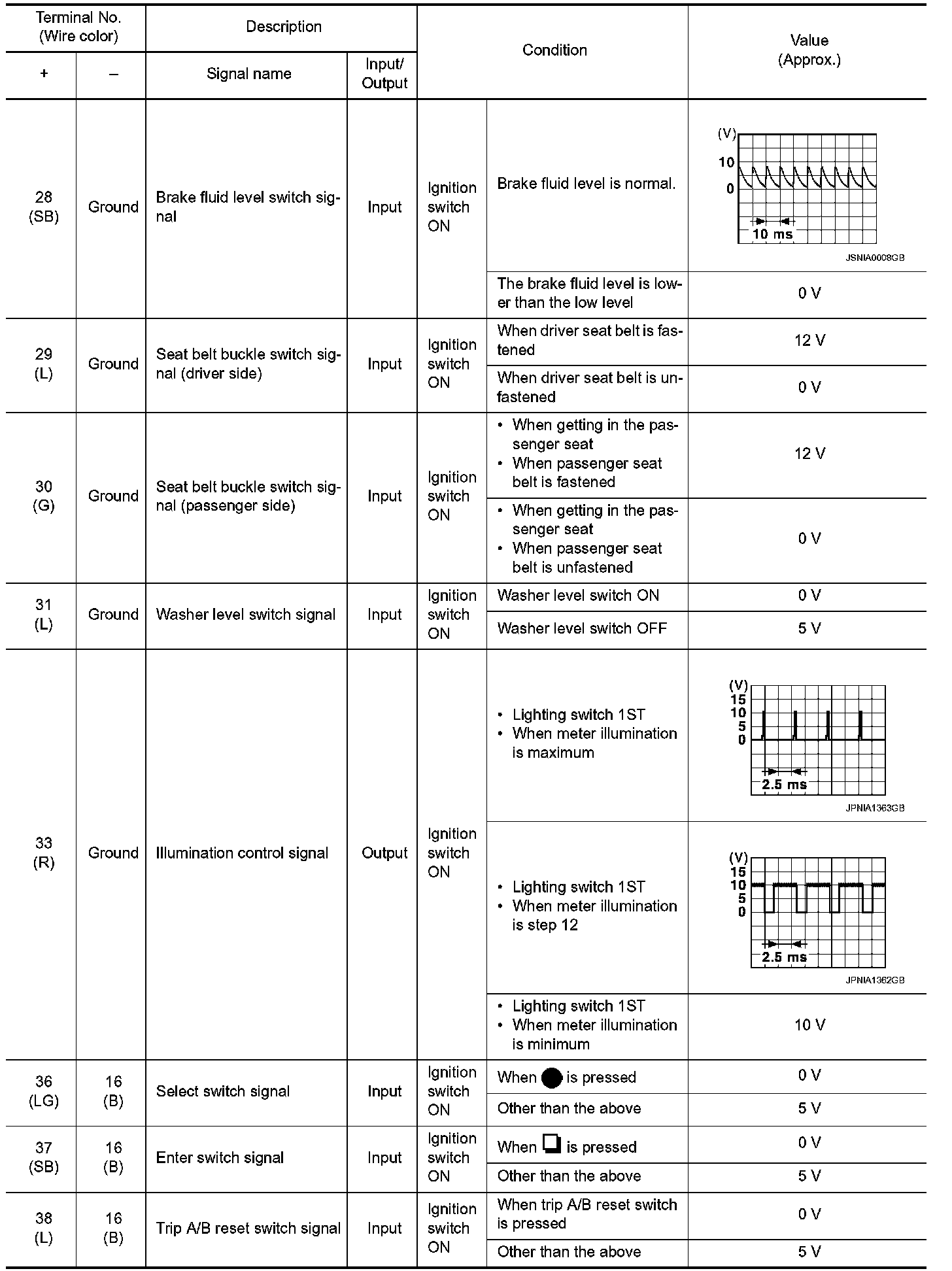

PHYSICAL VALUES
