Removal and Installation

COMBINATION METER

Removal and Installation


REMOVAL

1.Remove cluster lid A assembly. Removal and Installation A/T Models (A/T models) or
Removal and Installation M/T Models (M/T models).

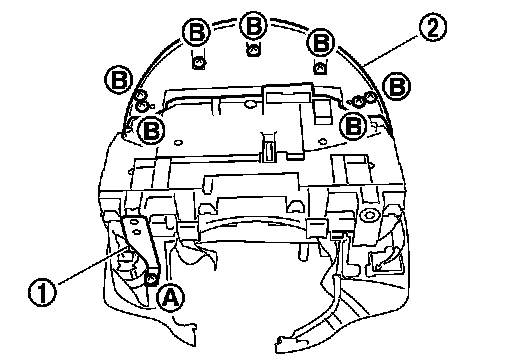

2.Remove screw (A) and remove combination meter stay (1).
3.Remove screws (B) and remove cluster lid A cover (2).

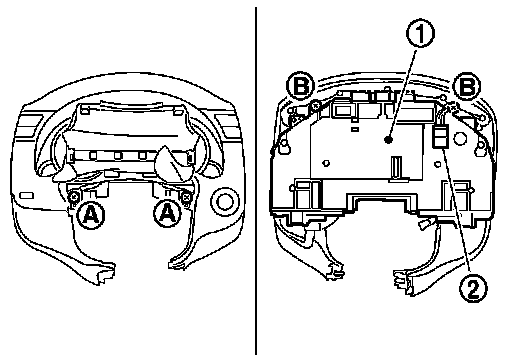

4.Remove screws (A), (B) and remove combination meter (1).
5.Remove meter control switch connector (2) from combination meter.

INSTALLATION

Install in the reverse order of removal.
