Unified Meter and A/C Amp




UNIFIED METER AND A/C AMP.

Reference Value

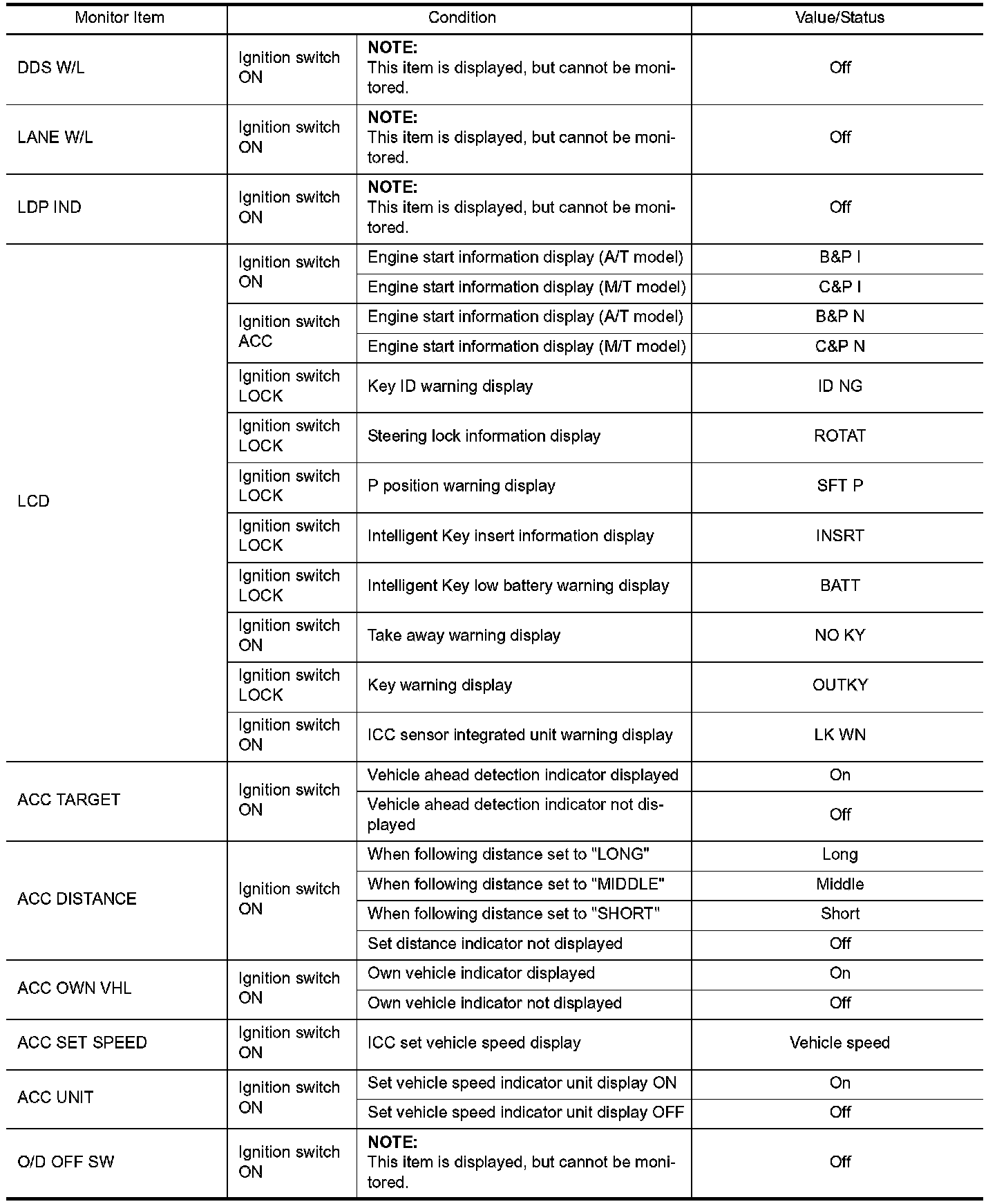

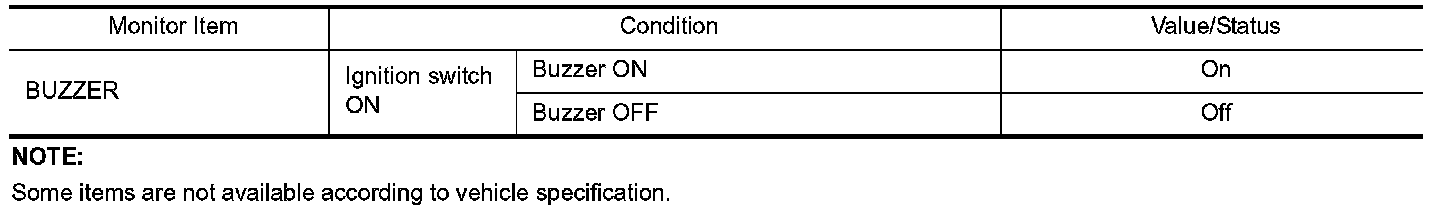

VALUES ON THE DIAGNOSIS TOOL

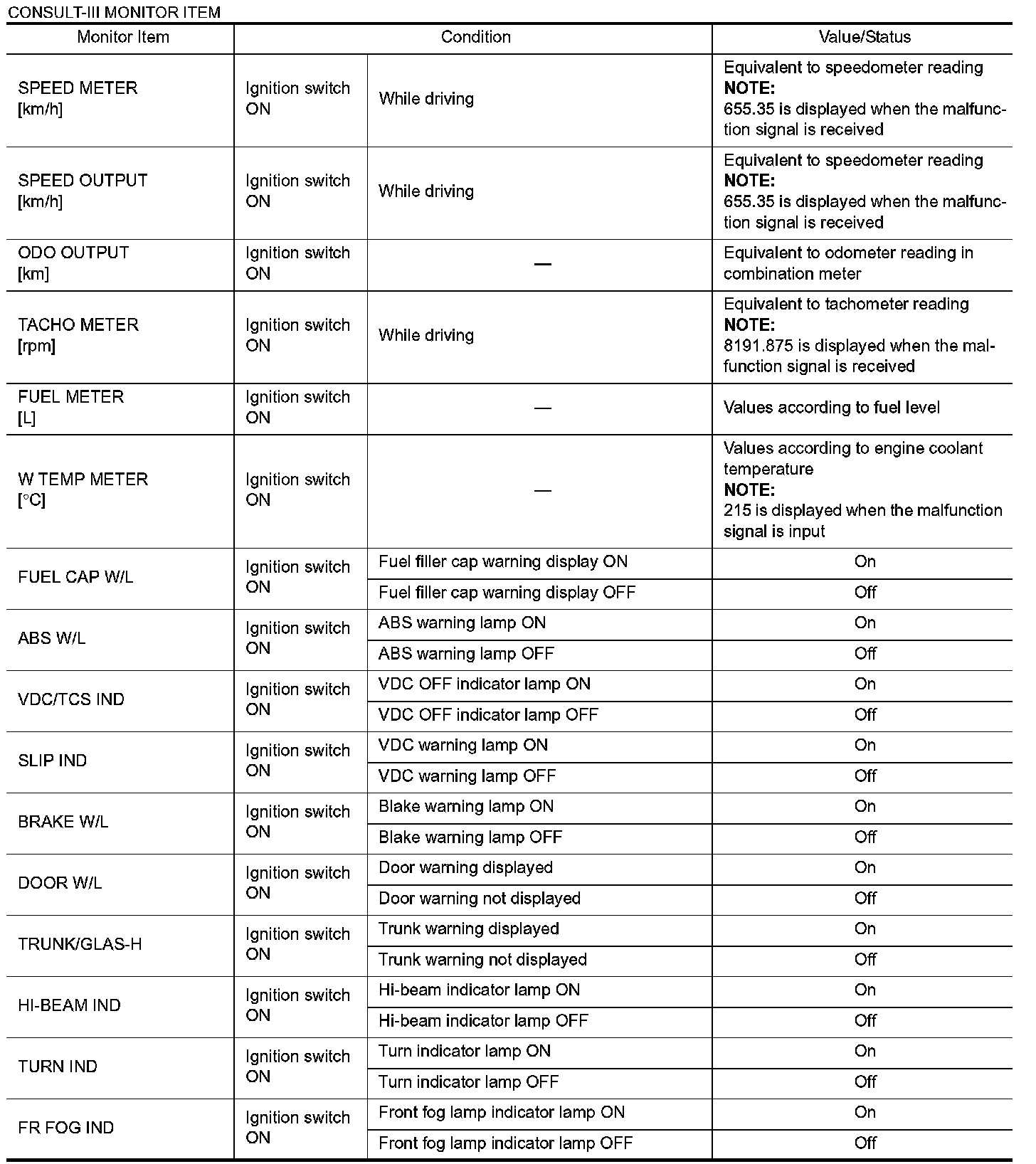

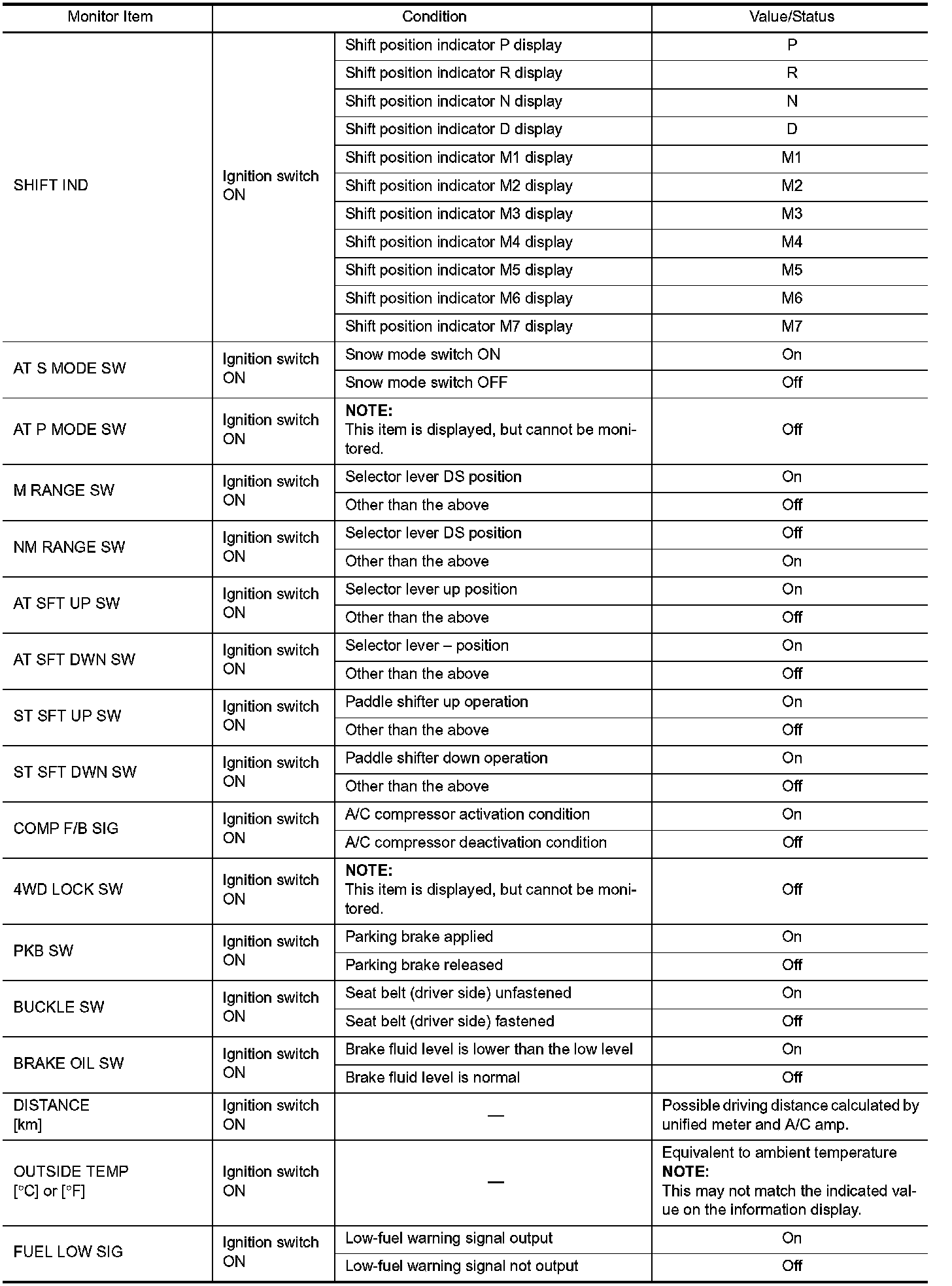

CONSULT-III MONITOR ITEM

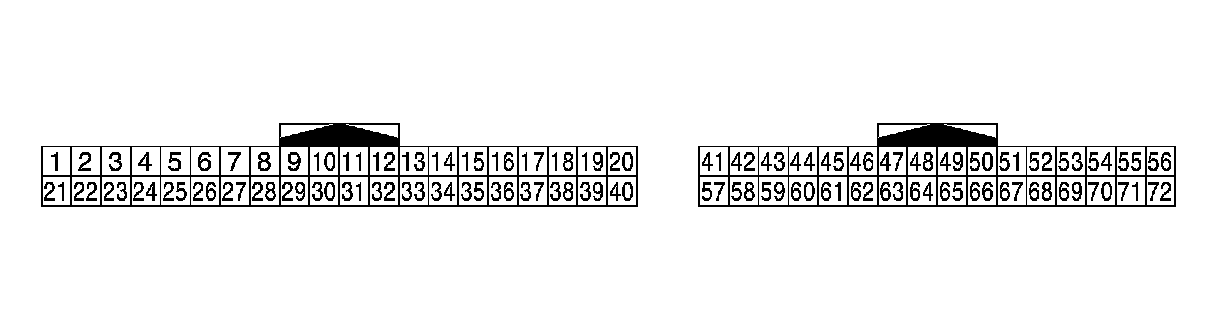

TERMINAL LAYOUT

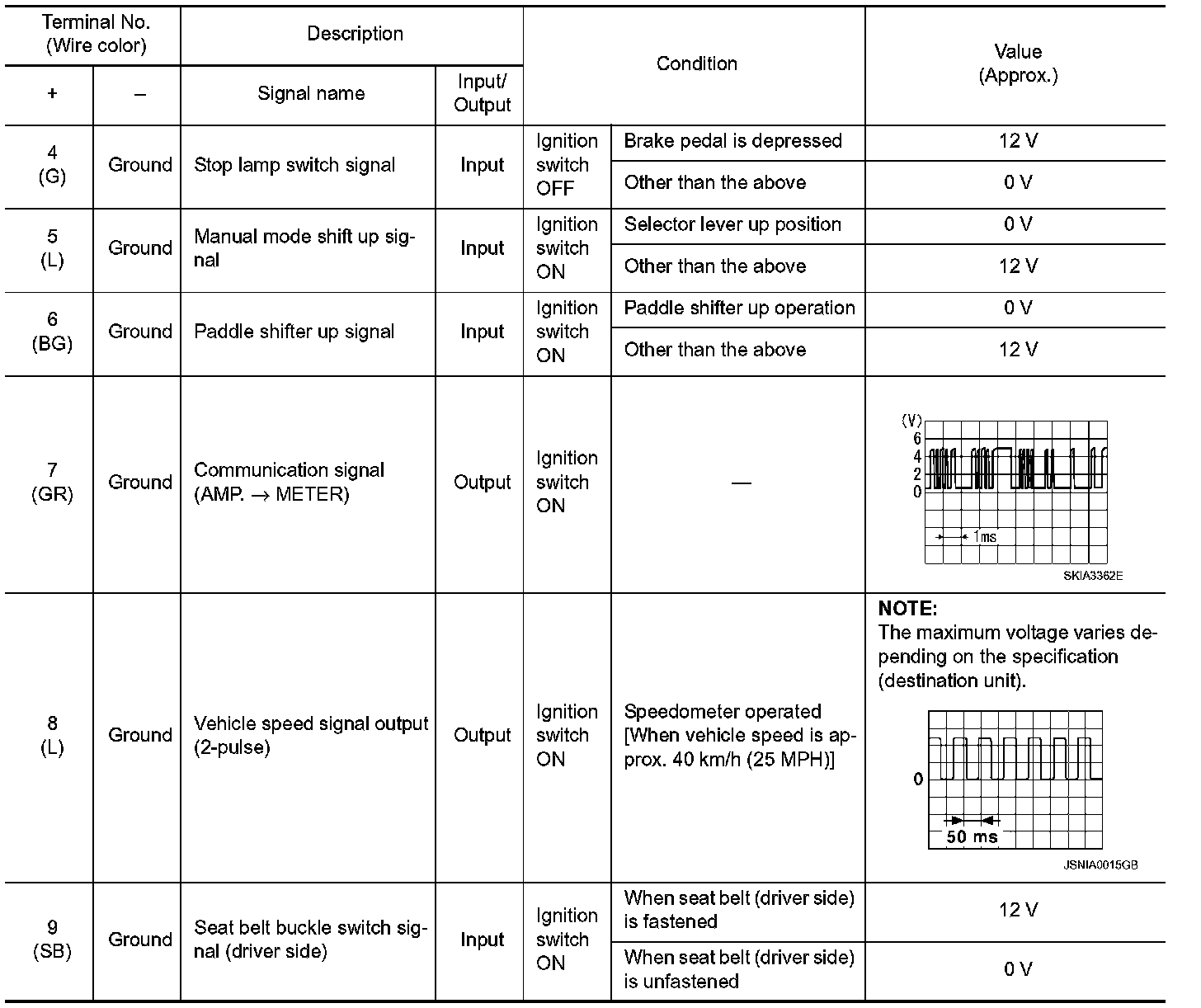

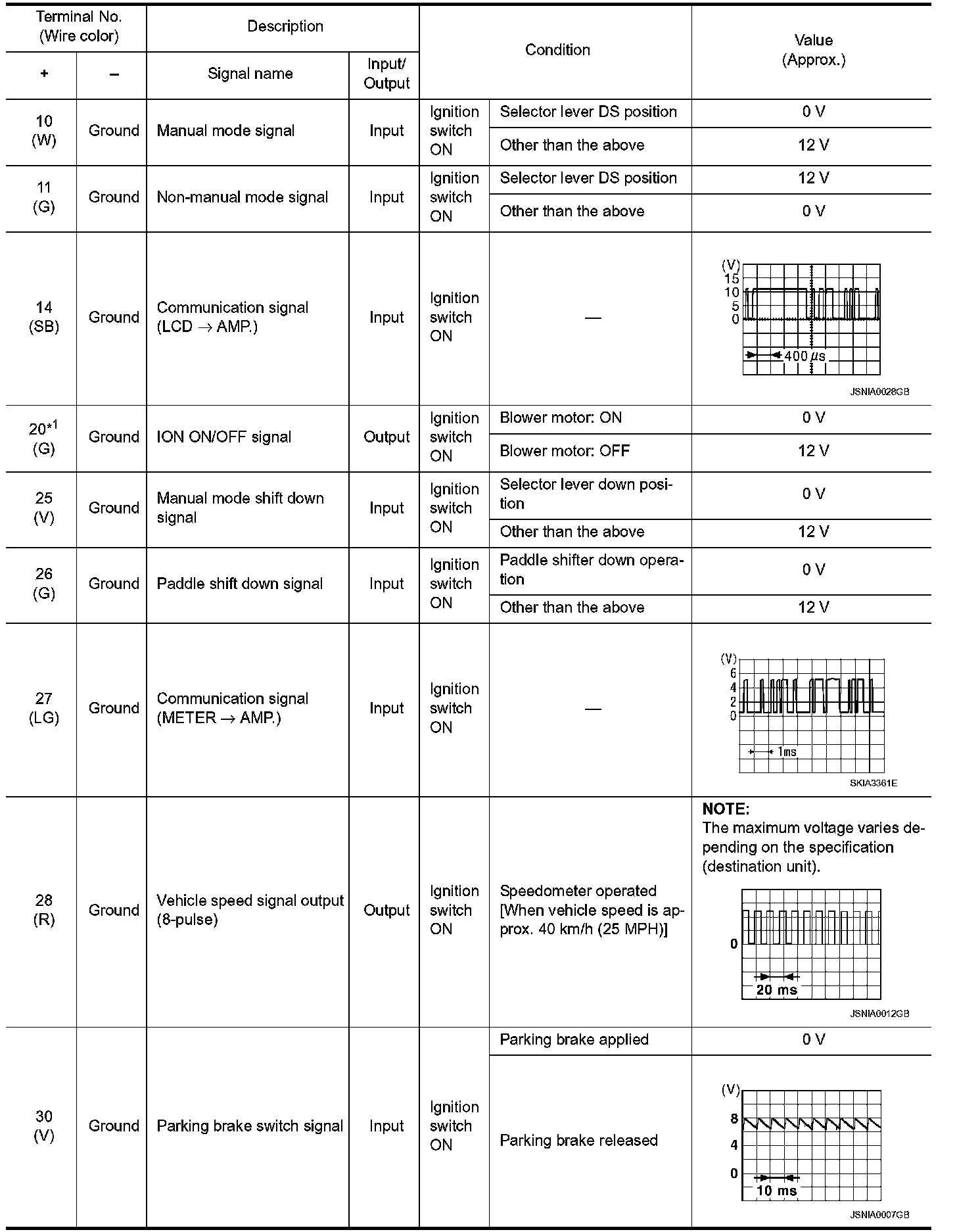

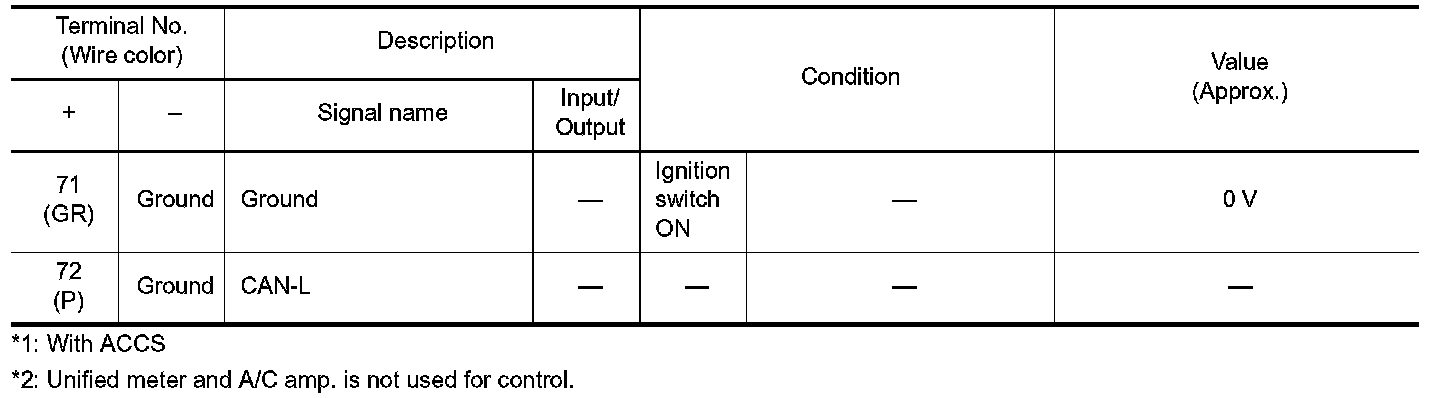

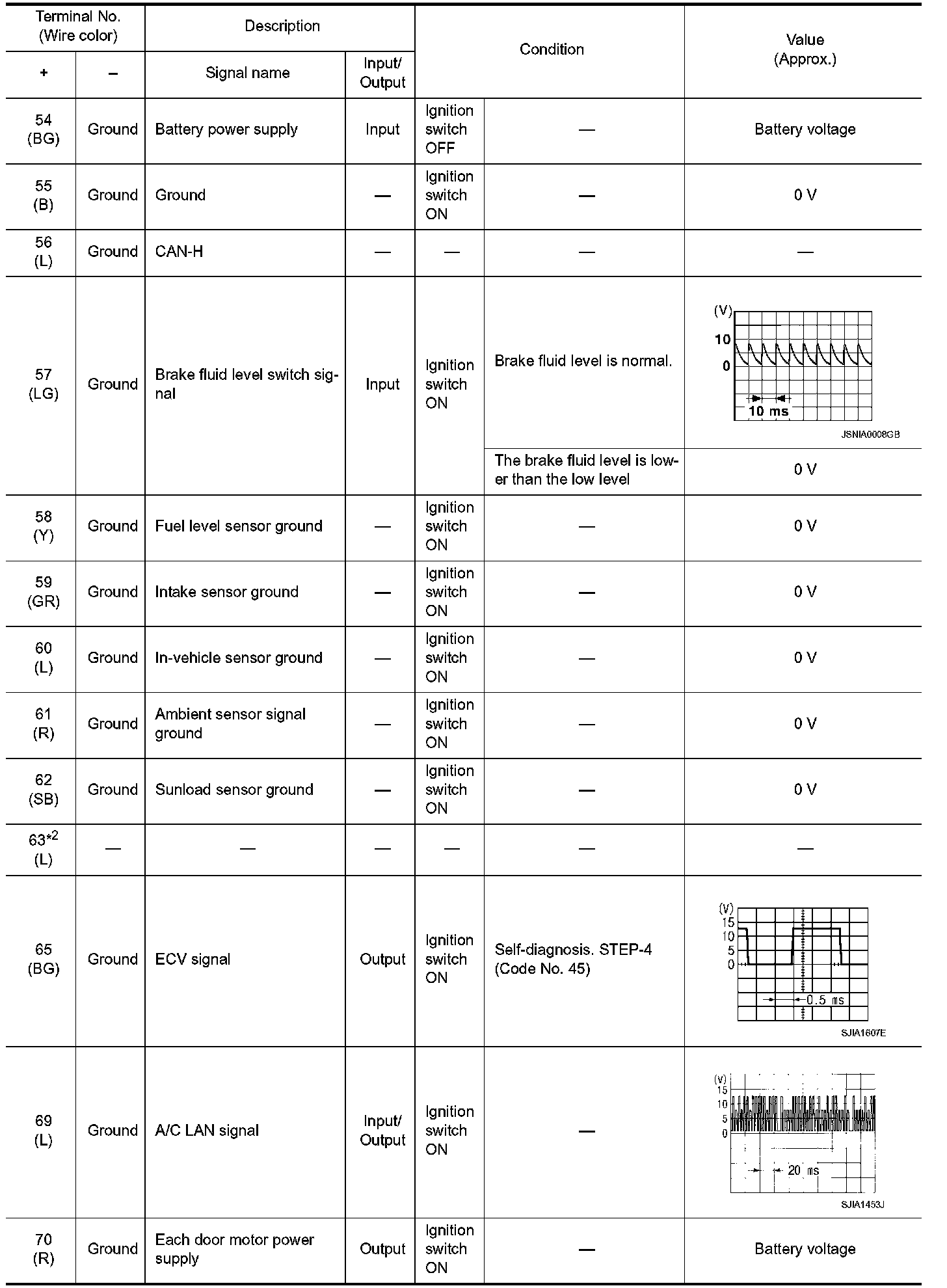

PHYSICAL VALUES
