Exhaust Gas/Outside Odor Detecting Sensor

EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR

Description


COMPONENT DESCRIPTION

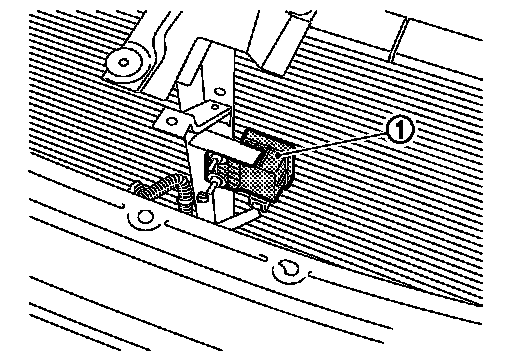

The exhaust gas/outside odor detecting sensor (1) is attached on the radiator core support. It detects smell of exhaust gas and unpleasant odor, and converts it into a duty ratio which is then input into the unified meter and A/C amp.

STRUCTURE AND OPERATION

Exhaust gas/outside odor detecting sensor detects ambient atmospheric CO, NO-2 and unpleasant odor, and converts them to values of resistance. The values are converted to signals with the exhaust gas/outside odor detecting sensor internal circuit, then the unified meter and A/C amp. inputs the signals.
Exhaust gas/outside odor detecting sensor has a construction that detects CO, NO-2 and unpleasant odor by exhaust gas/outside odor detecting sensor element from the air intake of the case through a filter (waterproof sheet). It sends output signals to the unified meter and A/C amp. in response to a resistance value conversion by exhaust gas/outside odor detecting sensor elements. Unified meter and A/C amp. prevent a smell of exhaust gas and ambient atmospheric unpleasant odor from getting into vehicle by performing corrections according to various driving conditions.


Component Function Check


1. PERFORM SELF-DIAGNOSIS STEP-2

Perform self-diagnosis STEP-2. Scan Tool Testing and Procedures, see Nos. 1 to 2.
28, 28, 29 or 29 is displayed.
YES- Go to Diagnosis Procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. ADJUST EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR SENSITIVITY

1.Turn ignition switch ON.
2.Adjust the exhaust gas/outside odor detecting sensor sensitivity. Exhaust Gas/Outside Odor Detecting Sensor Sensitivity Adjustment Function.
Are the symptoms solved?
YES- INSPECTION END
NO- GO TO 2.

2. CHECK EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect exhaust gas/outside odor detecting sensor connector.
3.Turn ignition switch ON.

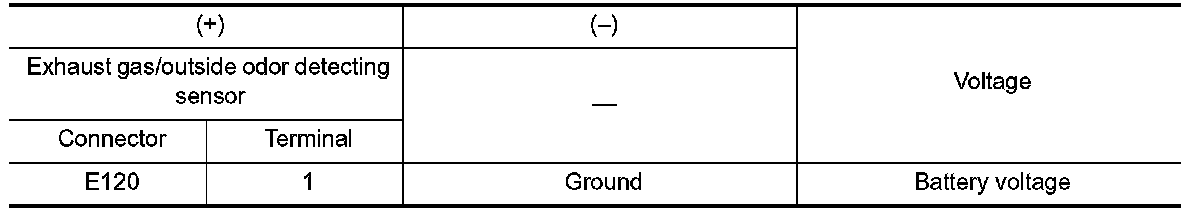

4.Check voltage between exhaust gas/outside odor detecting sensor harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair harness or connector between exhaust gas/outside odor detecting sensor and fuse.

3. CHECK EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR GROUND CIRCUIT FOR OPEN

1.Turn ignition switch OFF.
2.Disconnect unified meter and A/C amp. connector.

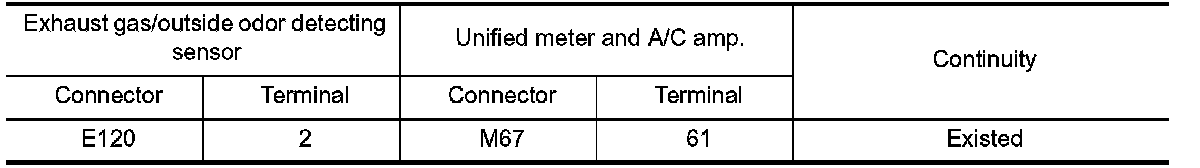

3.Check continuity between exhaust gas/outside odor detecting sensor harness connector and unified meter and A/C amp. harness connector.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair harness or connector.

4. CHECK EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR SIGNAL CIRCUIT

1.Reconnect unified meter and A/C amp. connector.
2.Turn ignition switch ON.
3.Check voltage between exhaust gas/outside odor detecting sensor harness connector and ground using an oscilloscope.





Is the inspection result normal?
YES- Replace exhaust gas/outside odor detecting sensor. Removal and Installation.
NO- GO TO 5.

5. CHECK EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR SIGNAL CIRCUIT FOR OPEN

1.Turn ignition switch OFF.
2.Disconnect unified meter and A/C amp. connector.

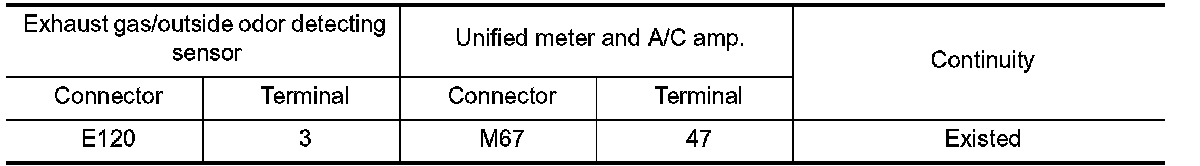

3.Check continuity between exhaust gas/outside odor detecting sensor harness connector and unified meter and A/C amp. harness connector.





Is the inspection result normal?
YES- GO TO 6.
NO- Repair harness or connector.

6. CHECK EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR SIGNAL CIRCUIT FOR SHORT

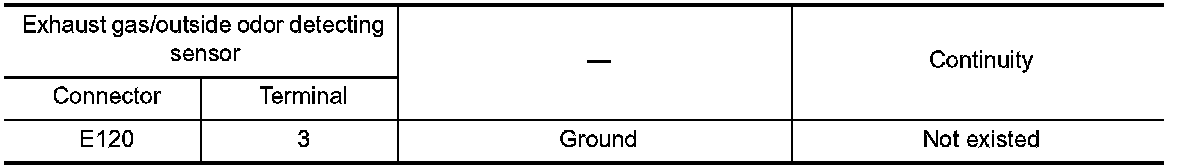

Check continuity between exhaust gas/outside odor detecting sensor harness connector and ground.





Is the inspection result normal?
YES- Replace unified meter and A/C amp. Removal and Installation.
NO- Repair harness or connector.
