Removal and Installation

HEATER & COOLING UNIT ASSEMBLY

HEATER CORE : Removal and Installation


REMOVAL

1.Remove foot duct. Exploded View.

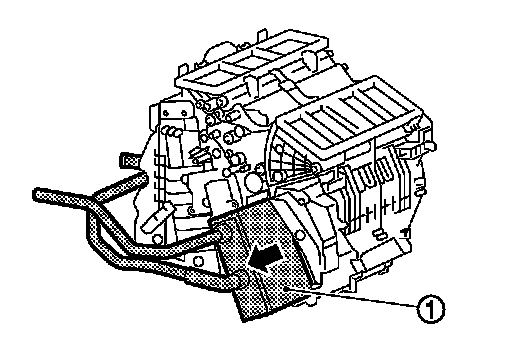

2.Slide heater core (1) to driver side (as shown in the figure).

INSTALLATION

Installation is basically the reverse order of removal.
NOTE:
Refilling Engine Coolant when filling radiator with engine coolant.
