Home >> Infiniti >> 2012 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams

Electrical Diagrams




UNIFIED METER AND A/C AMP.

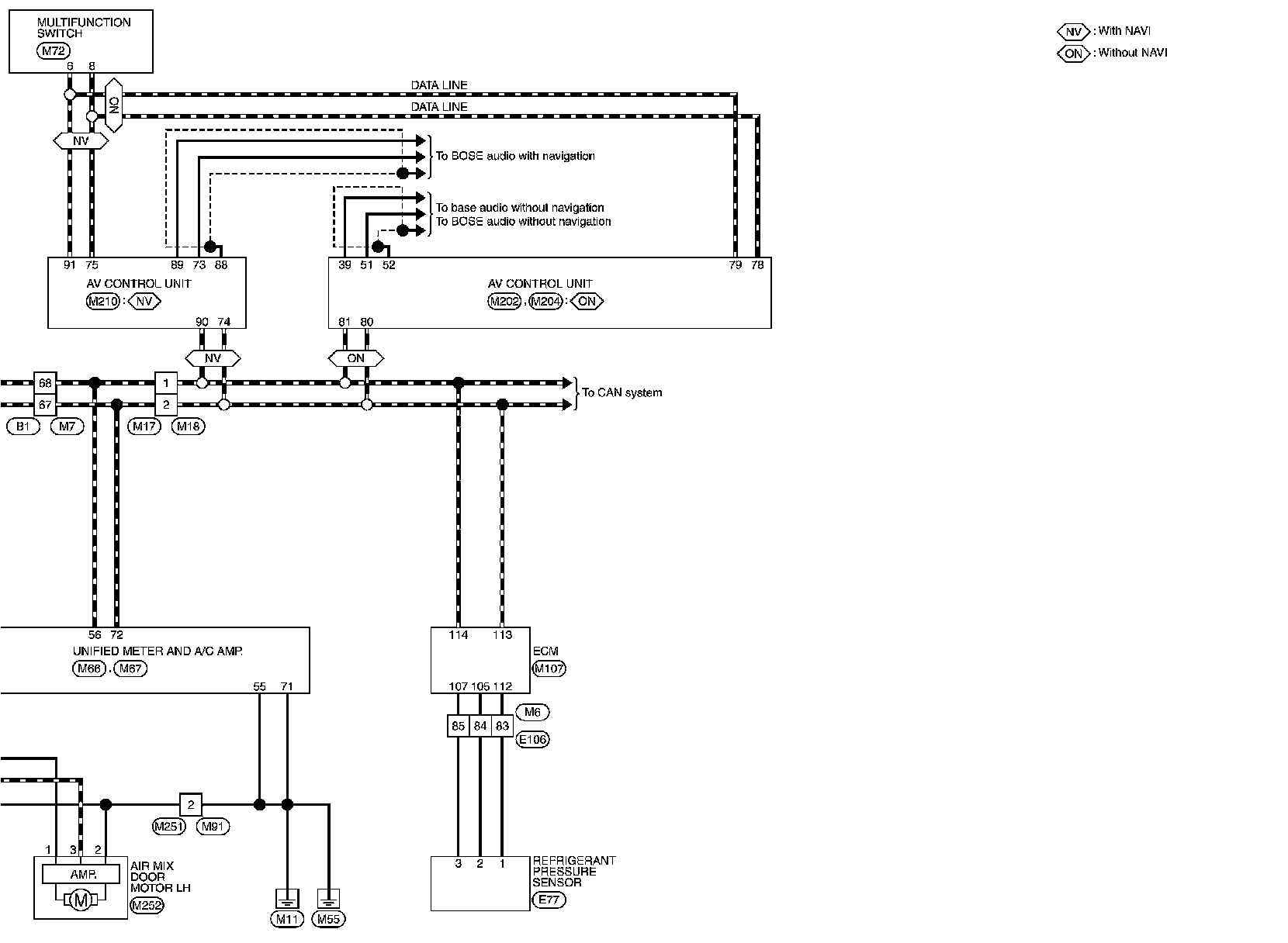

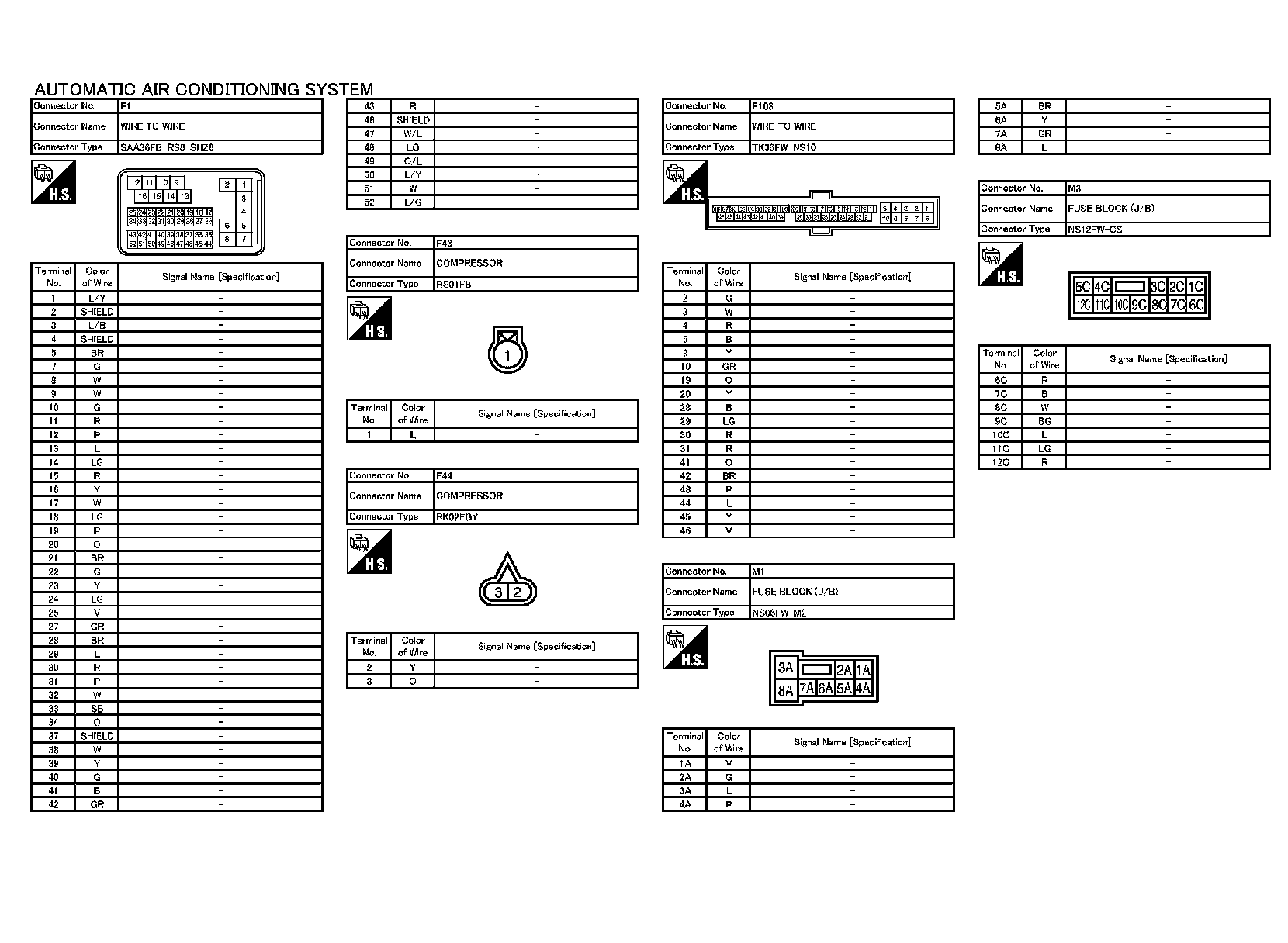

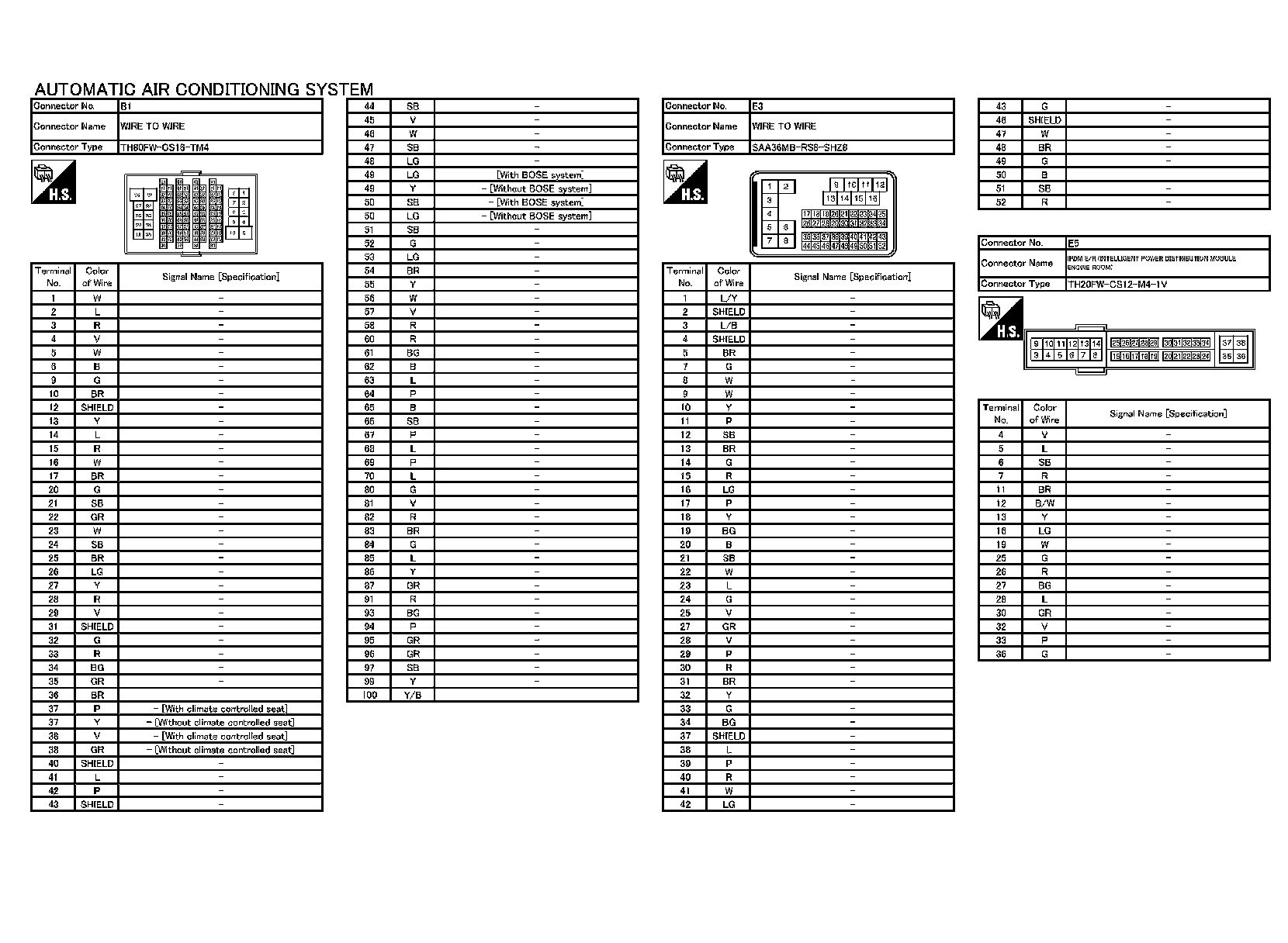

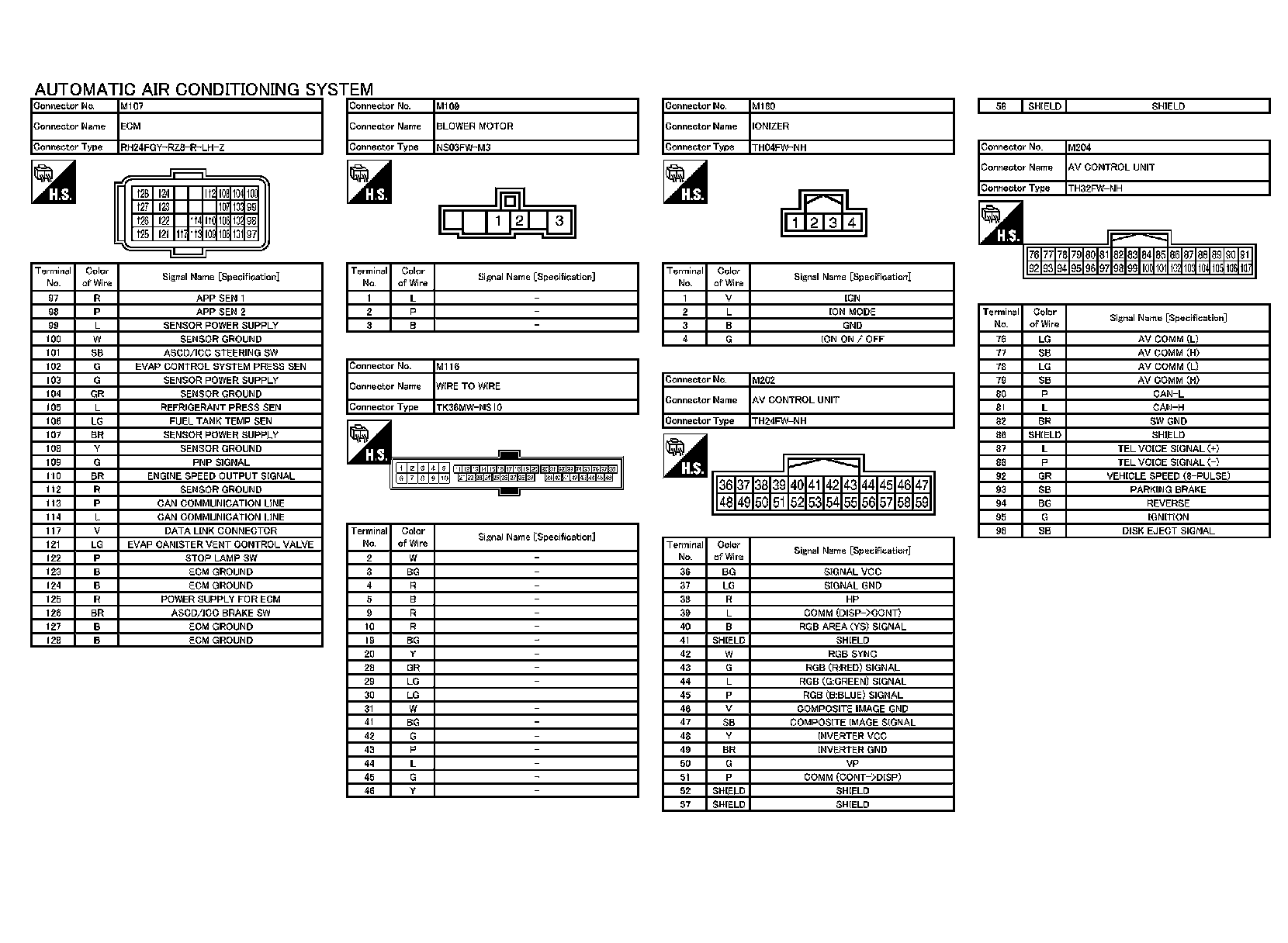

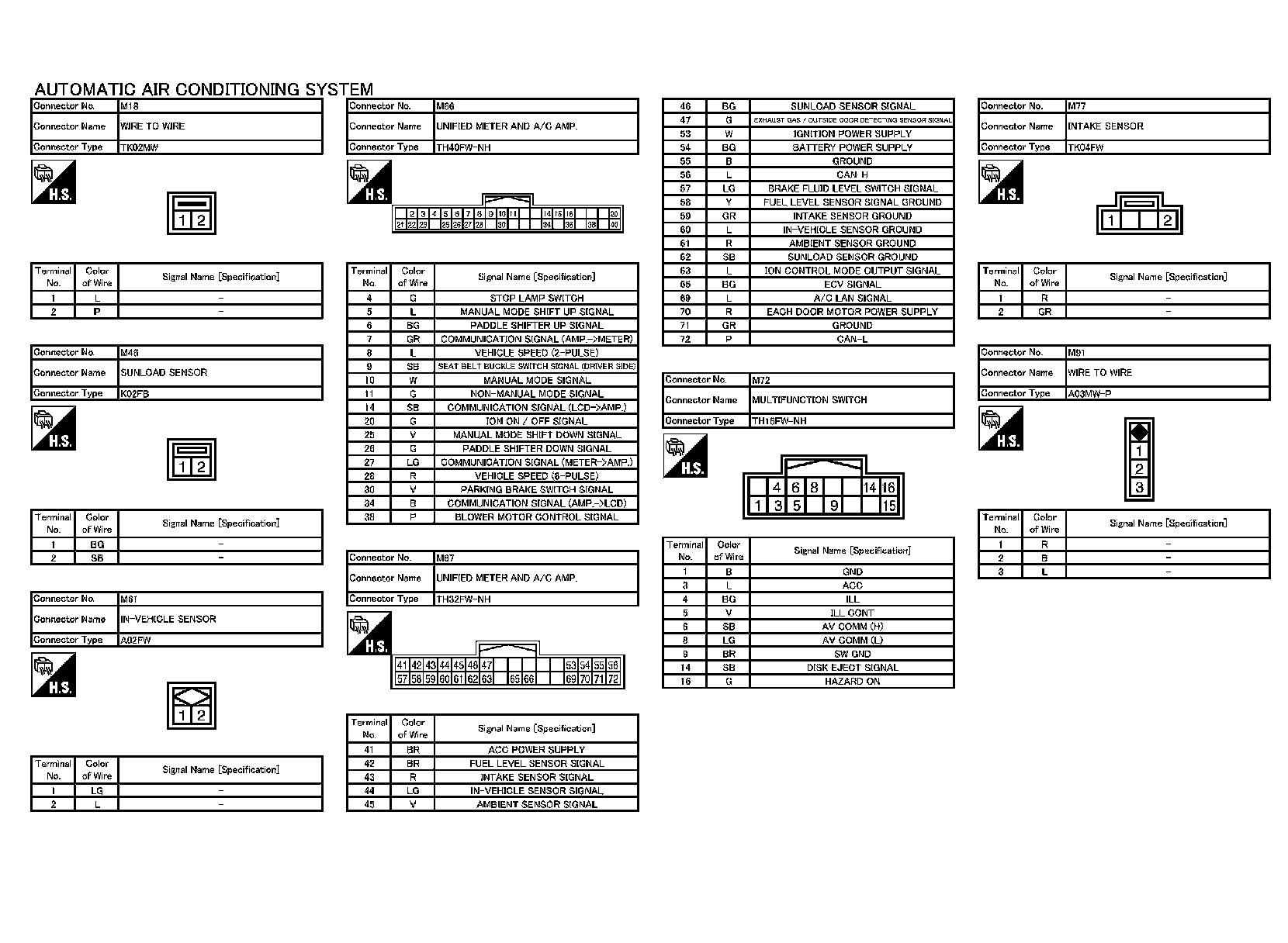

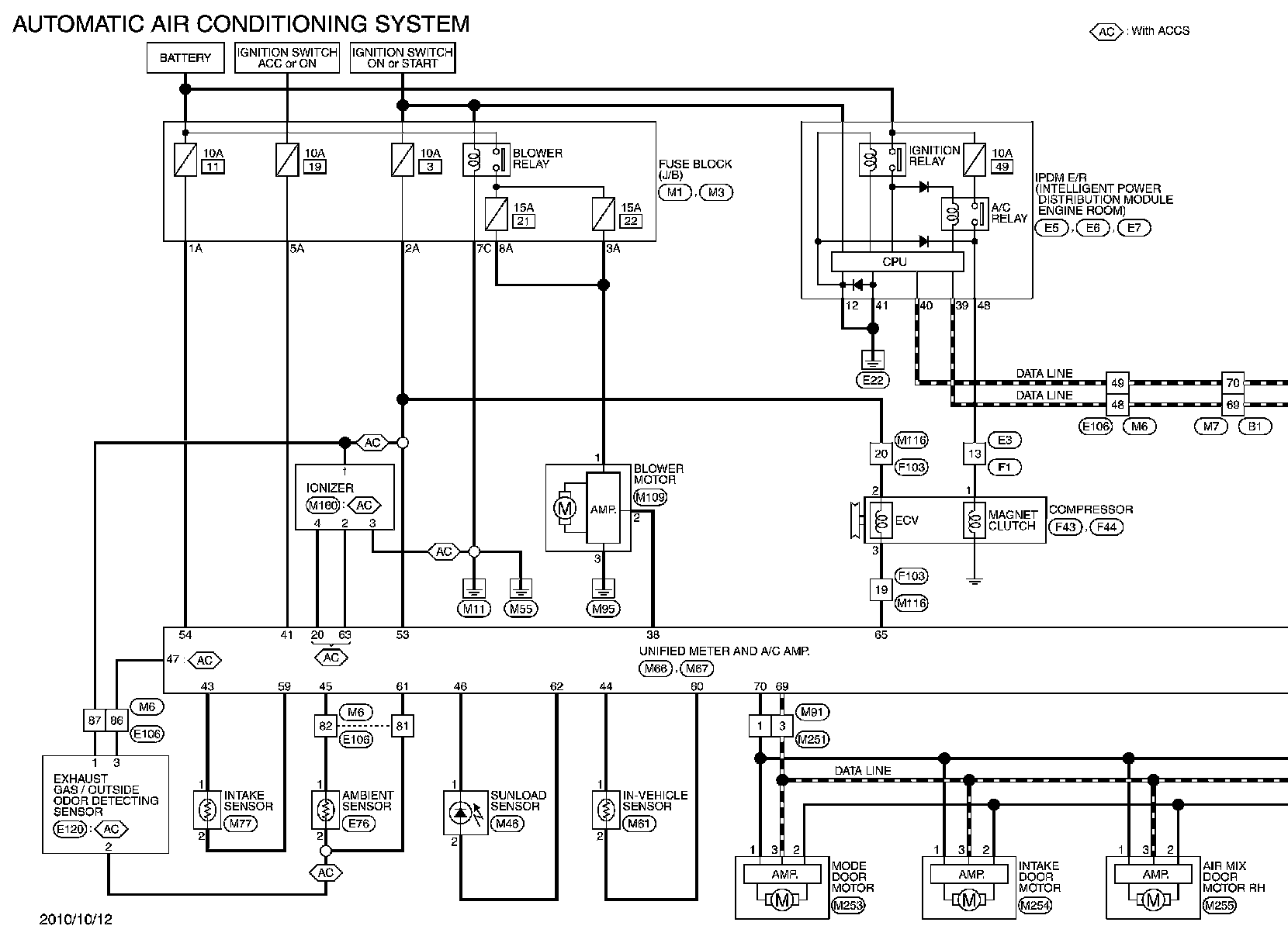

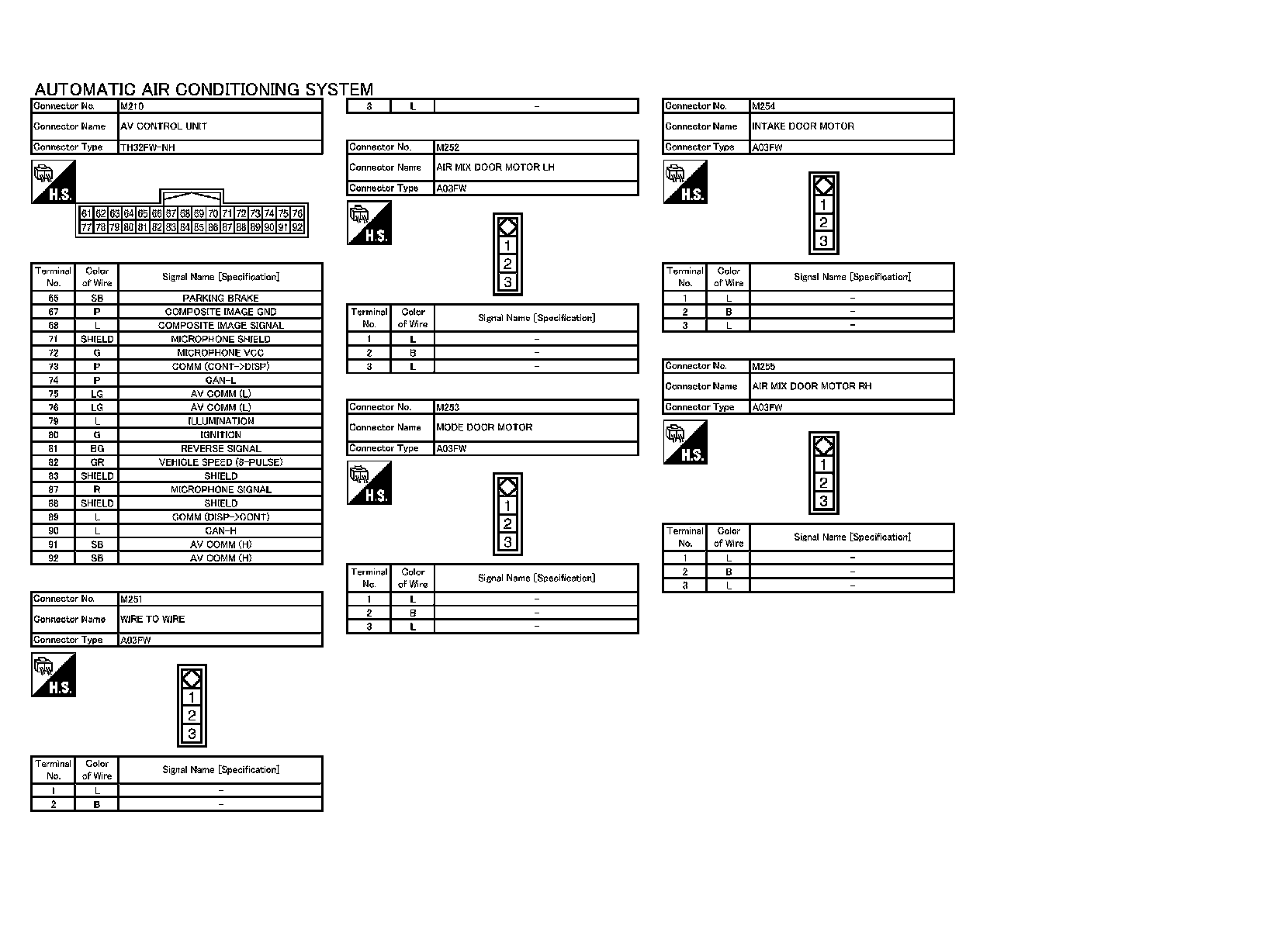

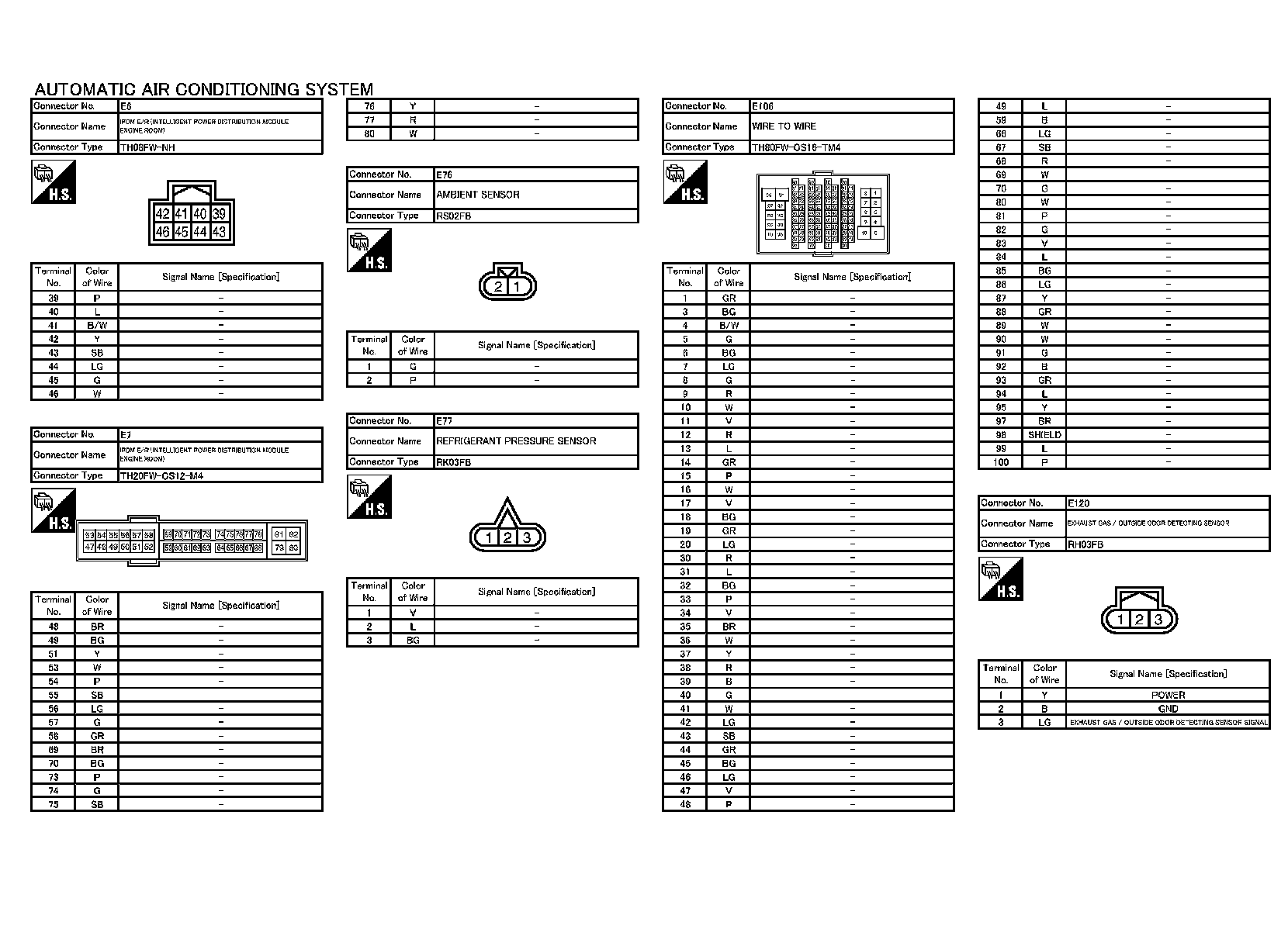

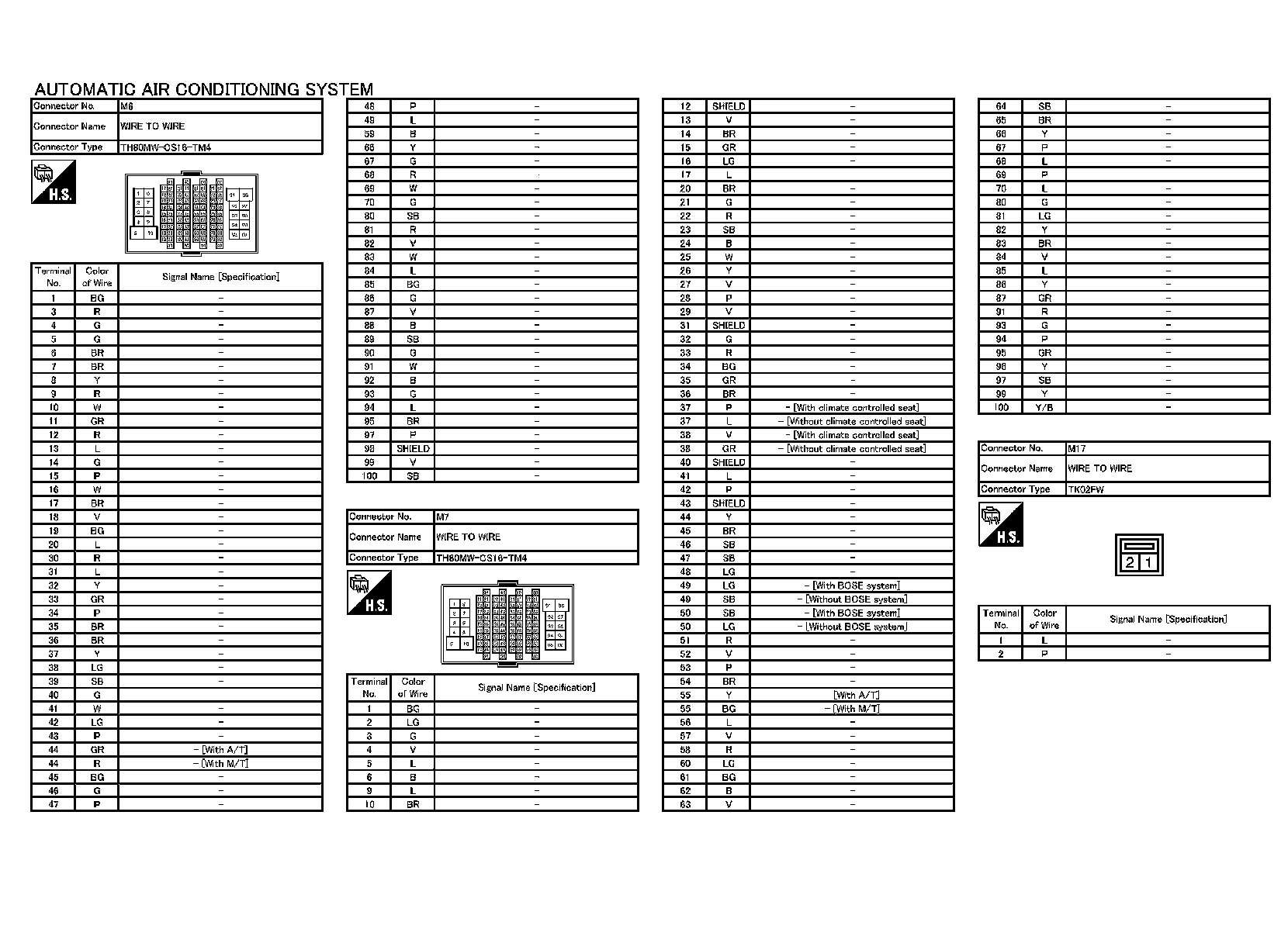

Wiring Diagram - AUTOMATIC AIR CONDITIONING SYSTEM
