Inspection

COMPRESSOR

Inspection


CHECK DISC TO PULLEY CLEARANCE

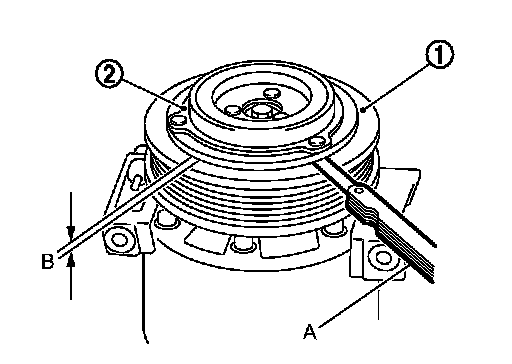

Check the clearance (B) between pulley assembly (1) and clutch disc (2) along the entire periphery with a feeler gauge (A).
Standard: Compressor.
Replace compressor if specified clearance is not obtained.
