Blower Unit

BLOWER UNIT

BLOWER UNIT : Removal and Installation


REMOVAL

1.Remove instrument assist lower panel. Exploded View A/T Models (A/T models) or
Exploded View M/T Models (M/T models).

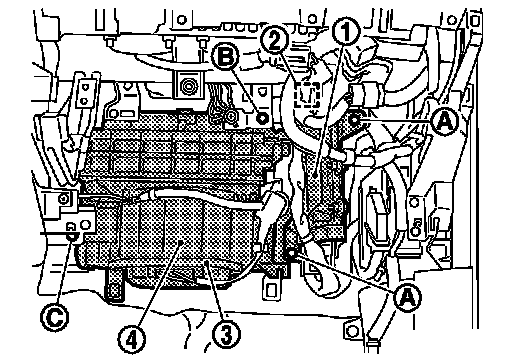

2.Disconnect ECM (1) connectors.
3.Remove mounting nuts (A), and then remove ECM with bracket attached.
4.Disconnect intake door motor (2) connector and blower motor (3) connector.
5.Remove mounting bolt (B) and screw (C), from blower unit (4).
6.Remove blower unit.

CAUTION:
Move blower unit rightward, and remove locating pin (1
part) and joint. Then remove blower unit downward.

INSTALLATION

Installation is basically the reverse order of removal.











CAUTION:

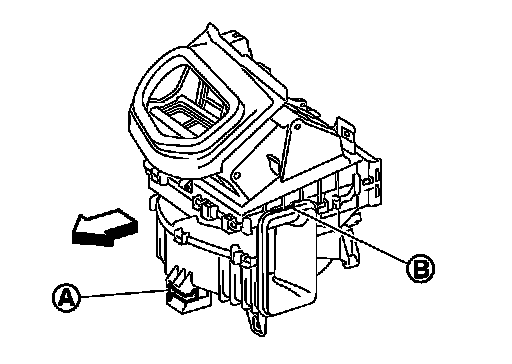

Check locating pin (A) and joint (B) are securely inserted.
