Heater Duct

DUCT AND GRILLE

HEATER DUCT : Removal and Installation


REMOVAL

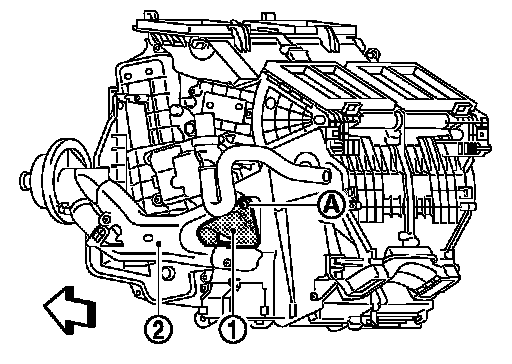

Remove mounting screw (A), and then remove heater duct (1) from heater & cooling unit assembly (2).






INSTALLATION

Installation is basically the reverse order of removal.
