Center Ventilator Grille

DUCT AND GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation


REMOVAL

1.Remove cluster lid D. Exploded View A/T Models (A/T models) to Exploded View M/T Models (M/T models).

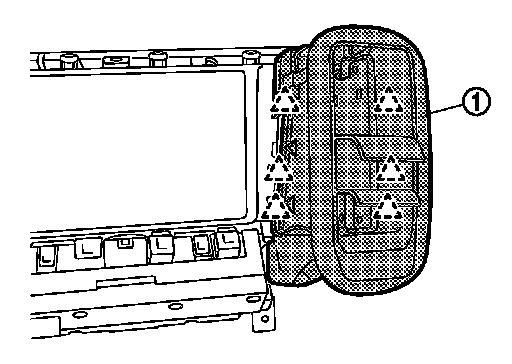

2.Disengage the pawls, and then remove center ventilator grille (1).






INSTALLATION

Installation is basically the reverse order of removal.
