NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

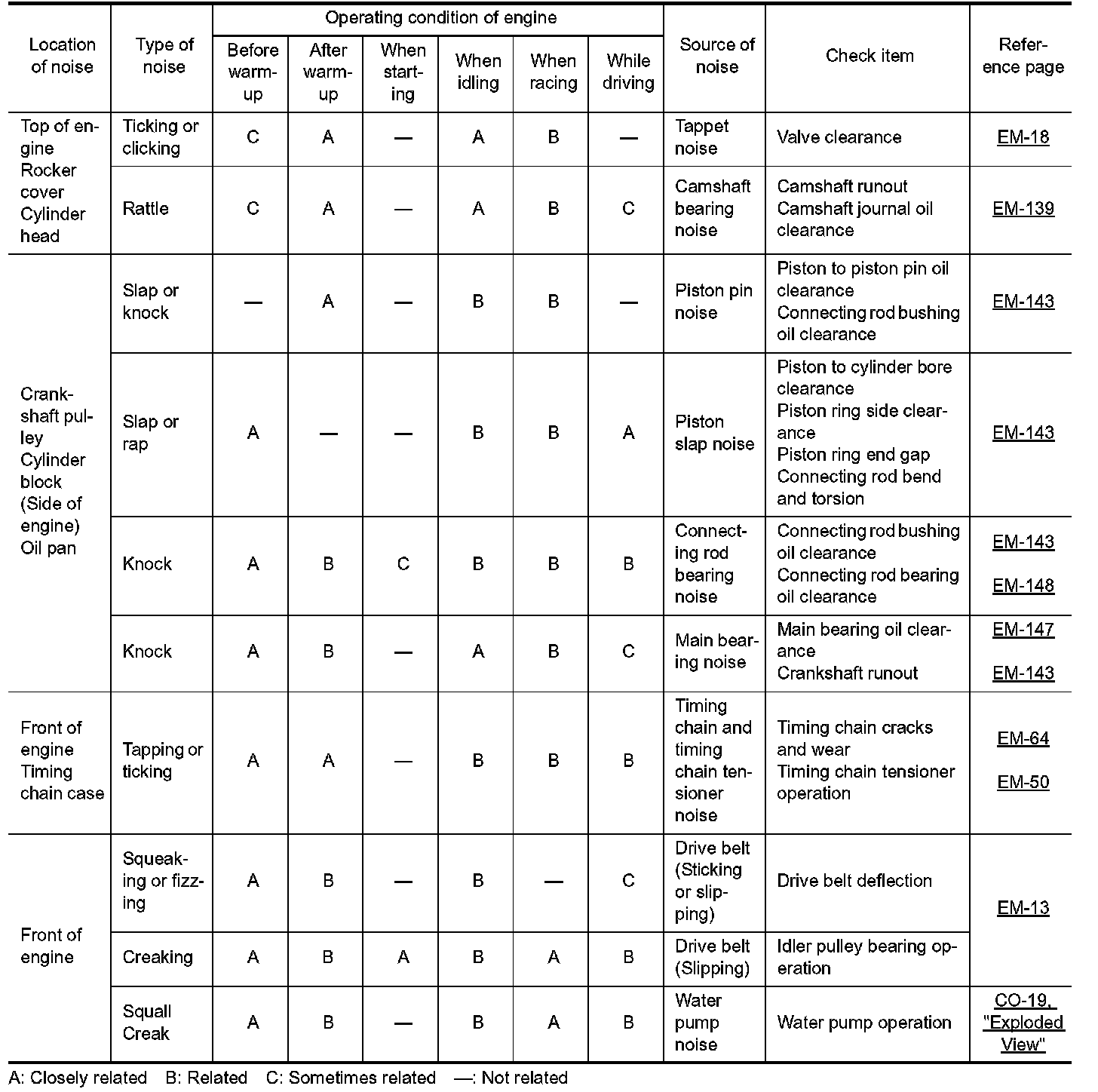

Use the Chart Below to Help You Find the Cause of the Symptom

1.Locate the area where noise occurs.
2.Confirm the type of noise.
3.Specify the operating condition of the engine.
4.Check specified noise source.
If necessary, repair or replace these parts.
