Tightening Torque

Cylinder head

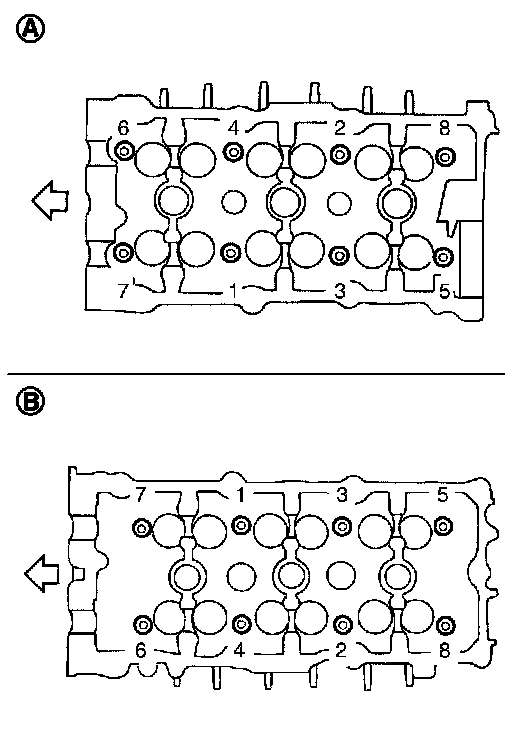

Tighten all cylinder head bolts 105 Nm (11 kg-m, 77 ft-lb)
Completely loosen all bolts 0 Nm (0 kg-m, 0 ft-lb)
Tighten all bolts 40.0 Nm (4.1 kg-m, 30 ft-lb)
Turn all bolts 95 degrees
Turn all bolts 95 degrees again

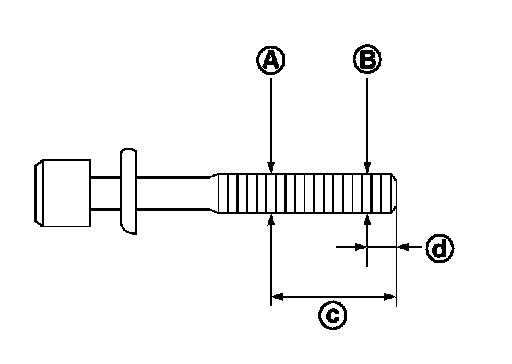

Cylinder Head Bolts Outer Diameter





Whenever the size difference between (B) and (A) exceeds the limit, replace them with new one.

c : 48 mm (1.89 in)
d : 11 mm (0.43 in)

Limit [(B) - (A)] 0.18 mm (0.0071 in)

VVEL ladder assembly

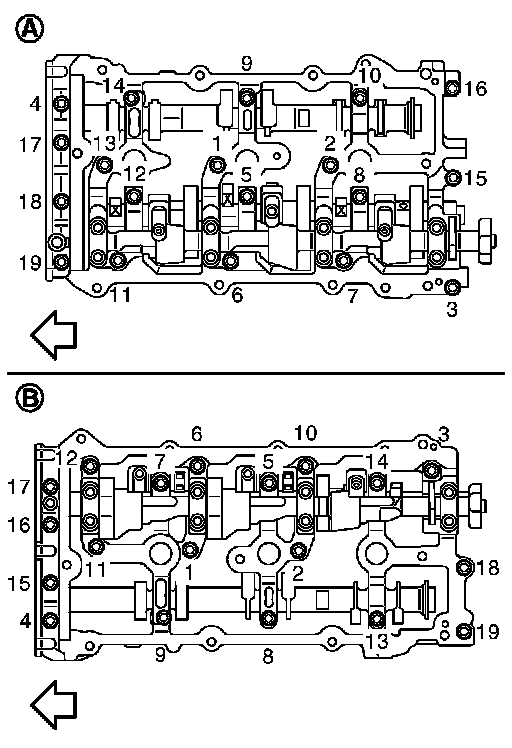

Tighten mounting bolts in the following steps, in numerical order as shown in the figure

i.Tighten bolts 1.96 Nm (0.20 kg-m, 1 ft-lb)
ii.Tighten bolts 5.88 Nm (0.60 kg-m, 4 ft-lb)
iii.Tighten bolts 10.4 Nm (1.1 kg-m, 8 ft-lb)

Intake Manifold Specifications

Exhaust Manifold Specifications

Camshaft Gear Specifications
