Home >> Infiniti >> 2012 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering

Steering




POWER STEERING CONTROL UNIT

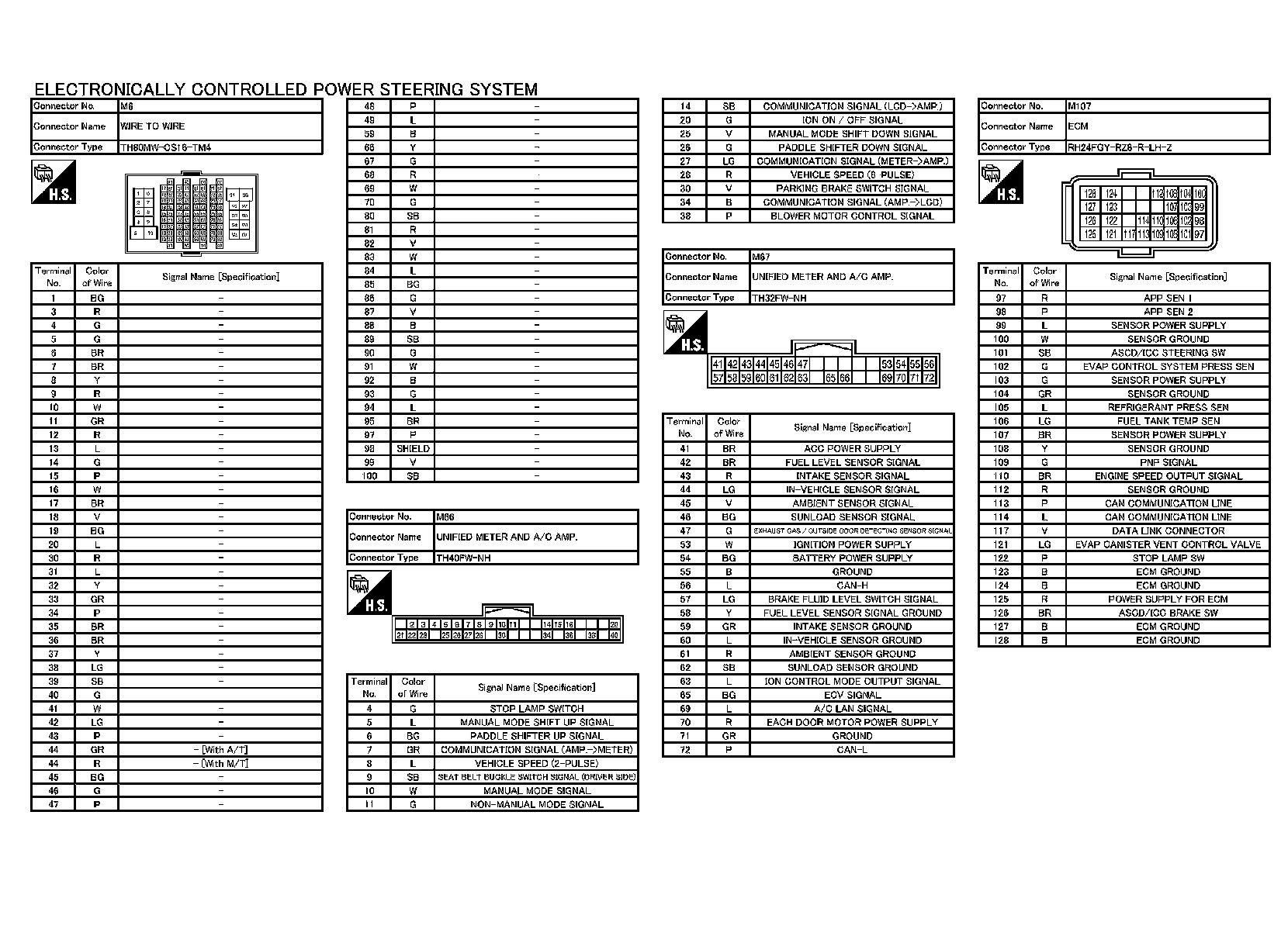

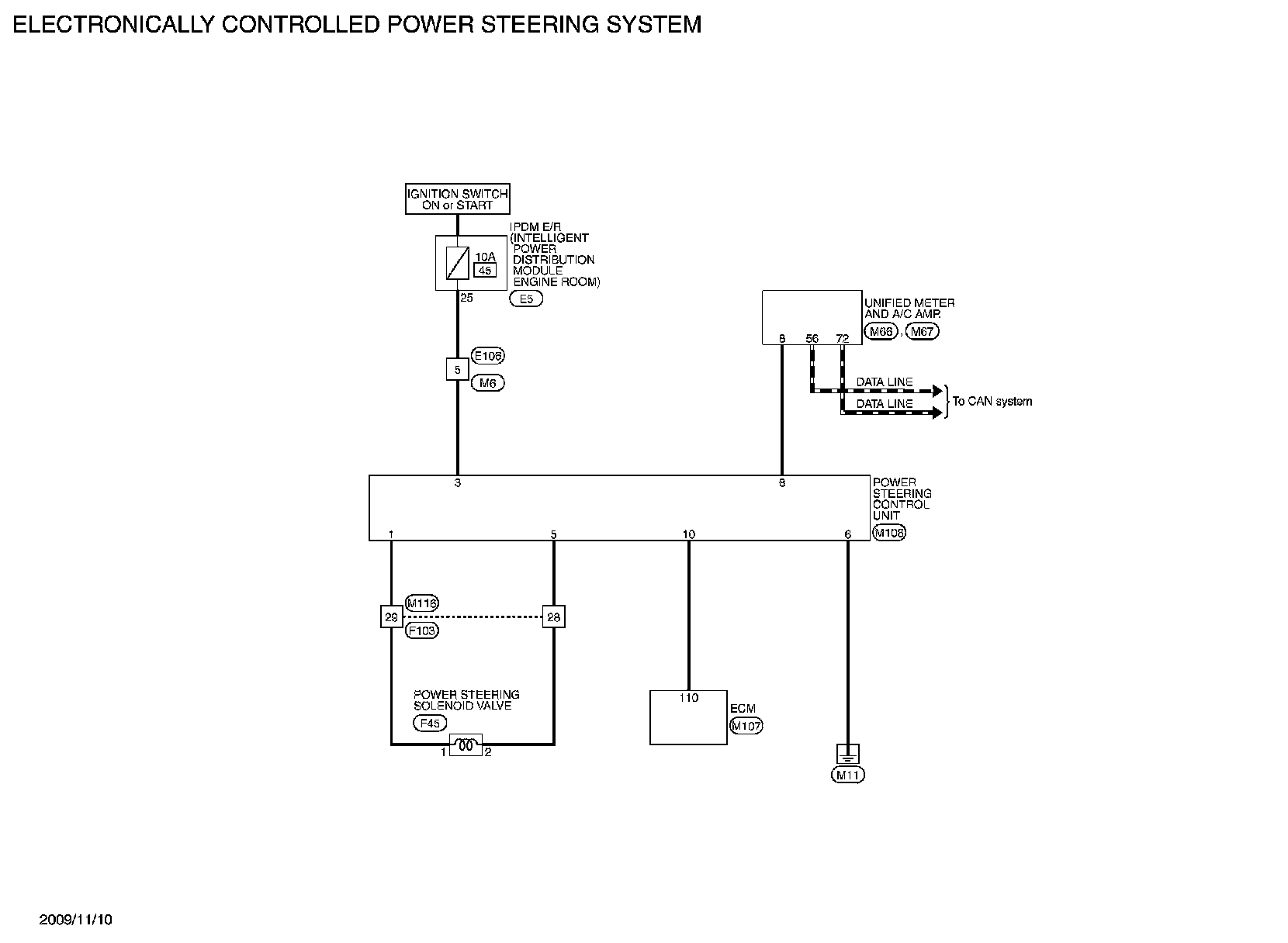

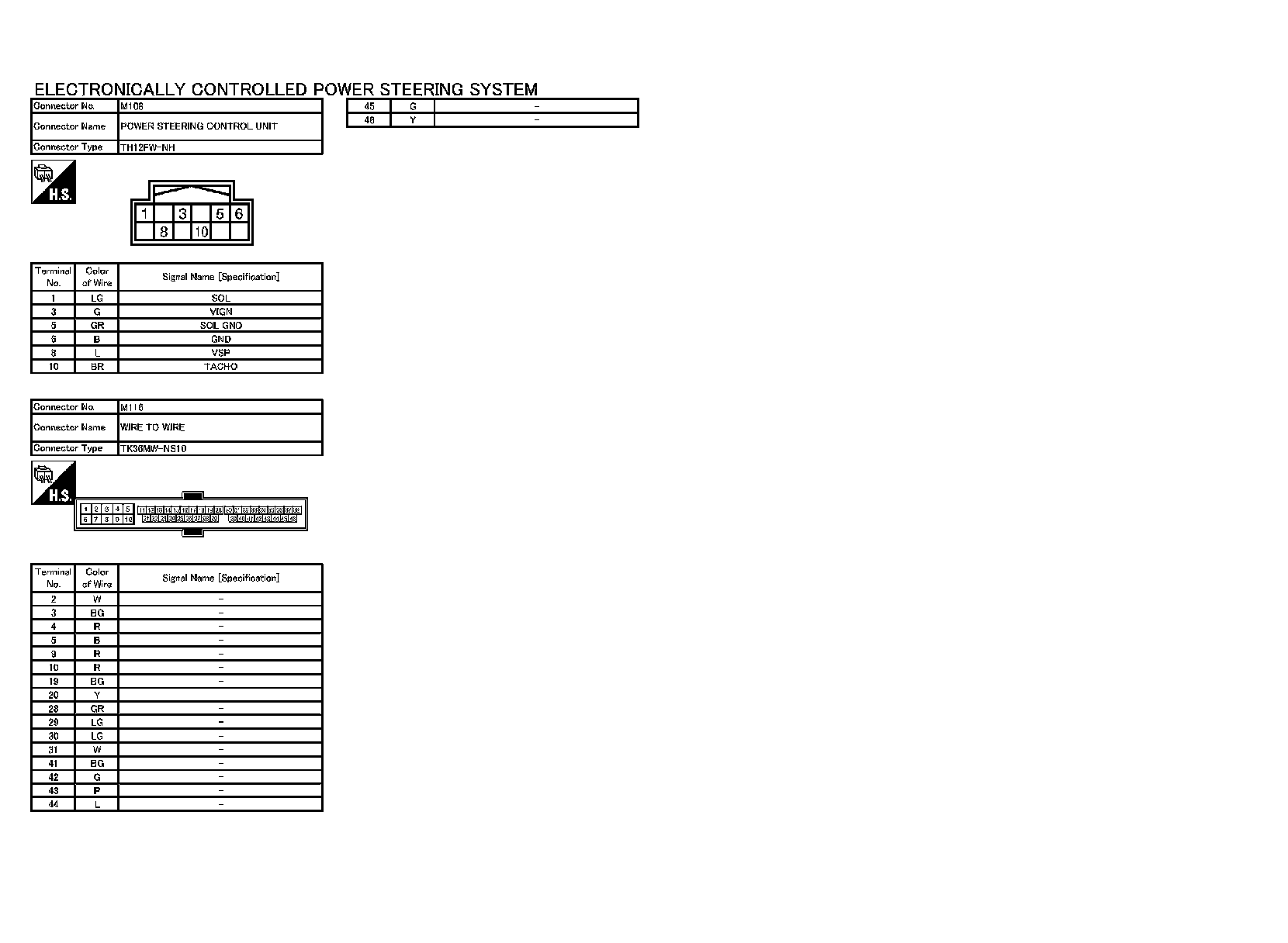

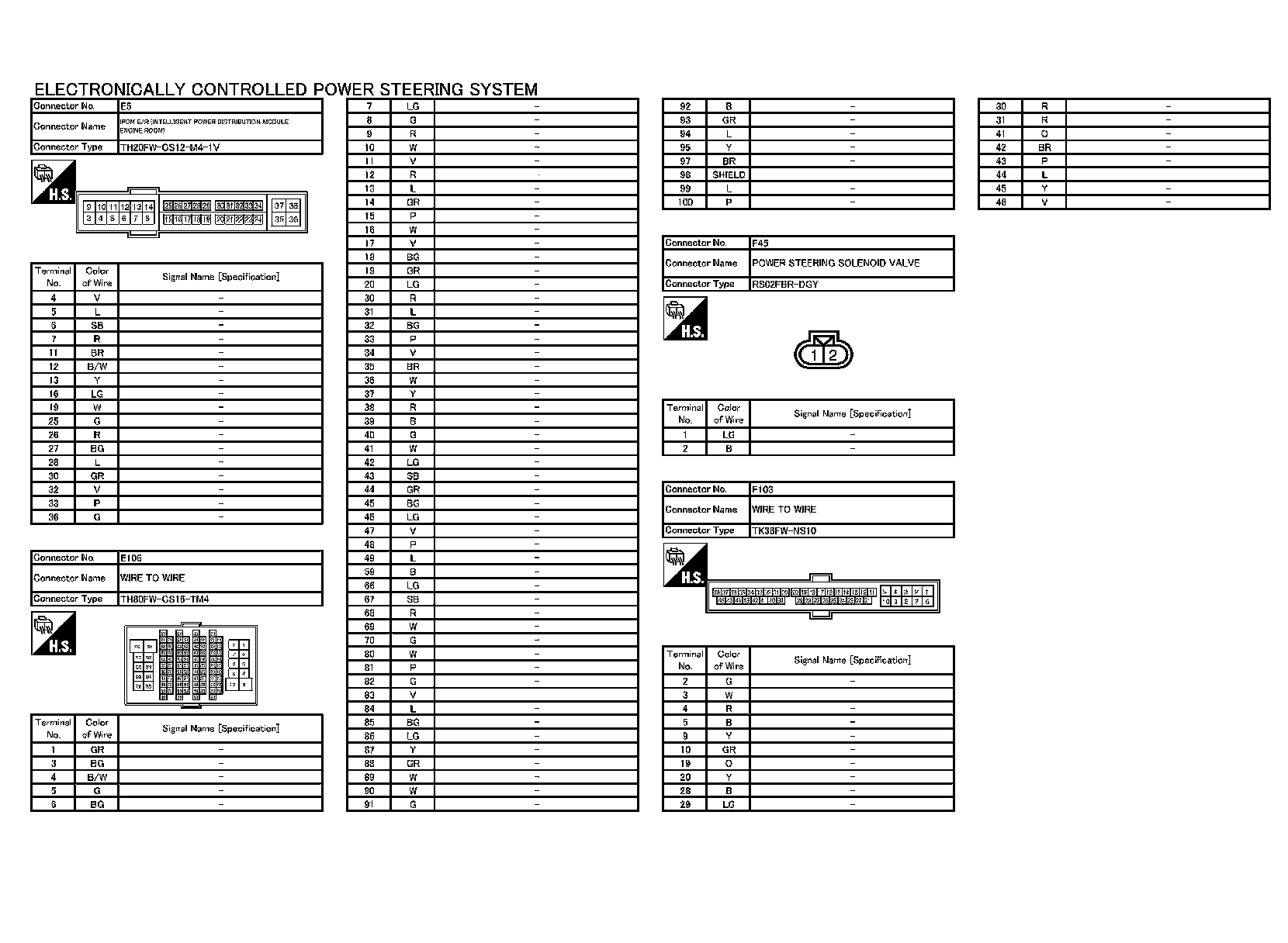

Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM -
