Home >> Infiniti >> 2012 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> Side Support

Side Support




SIDE SUPPORT

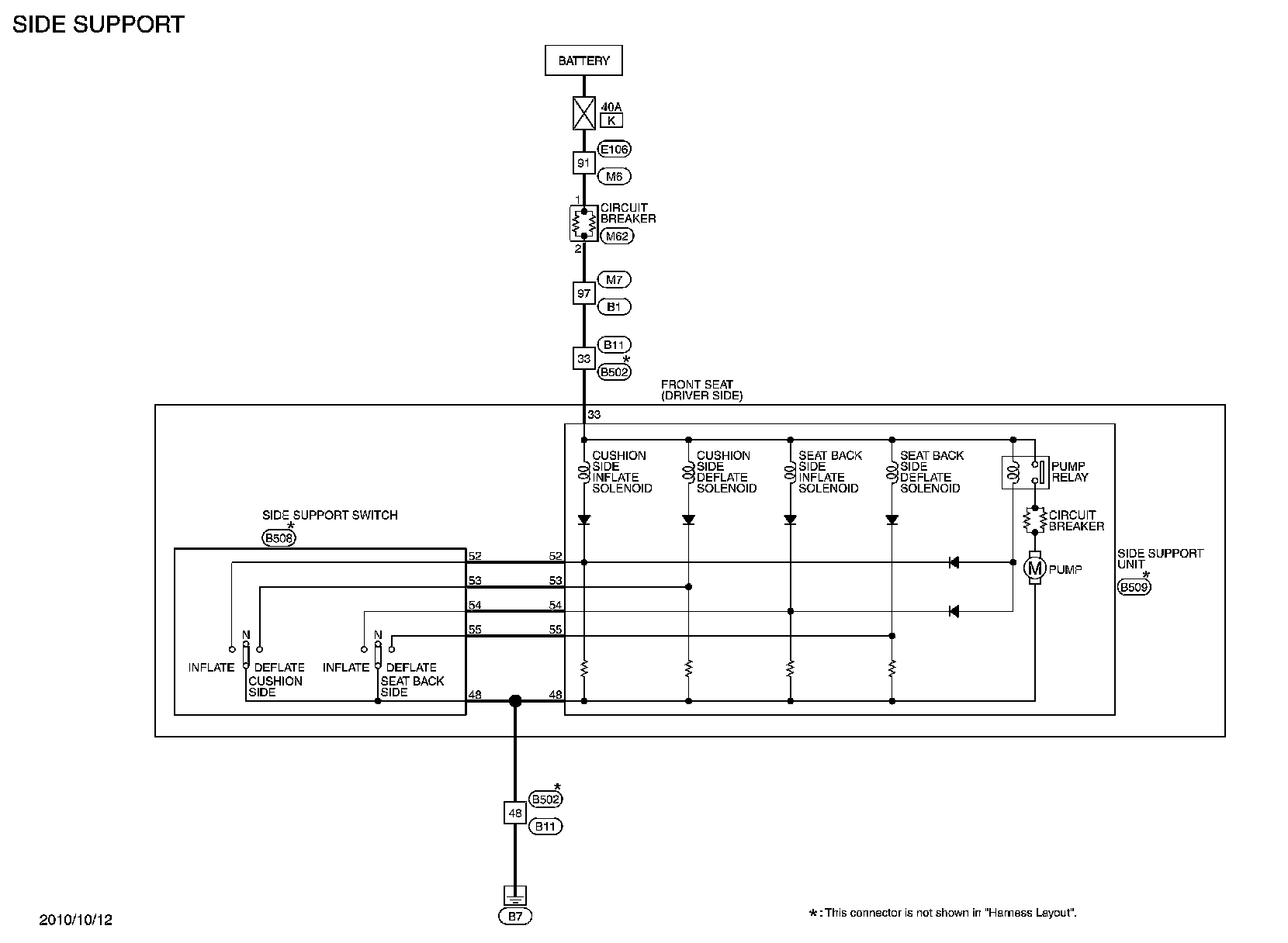

Wiring Diagram - SIDE SUPPORT
