Climate Controlled Seat Control Unit




CLIMATE CONTROLLED SEAT CONTROL UNIT

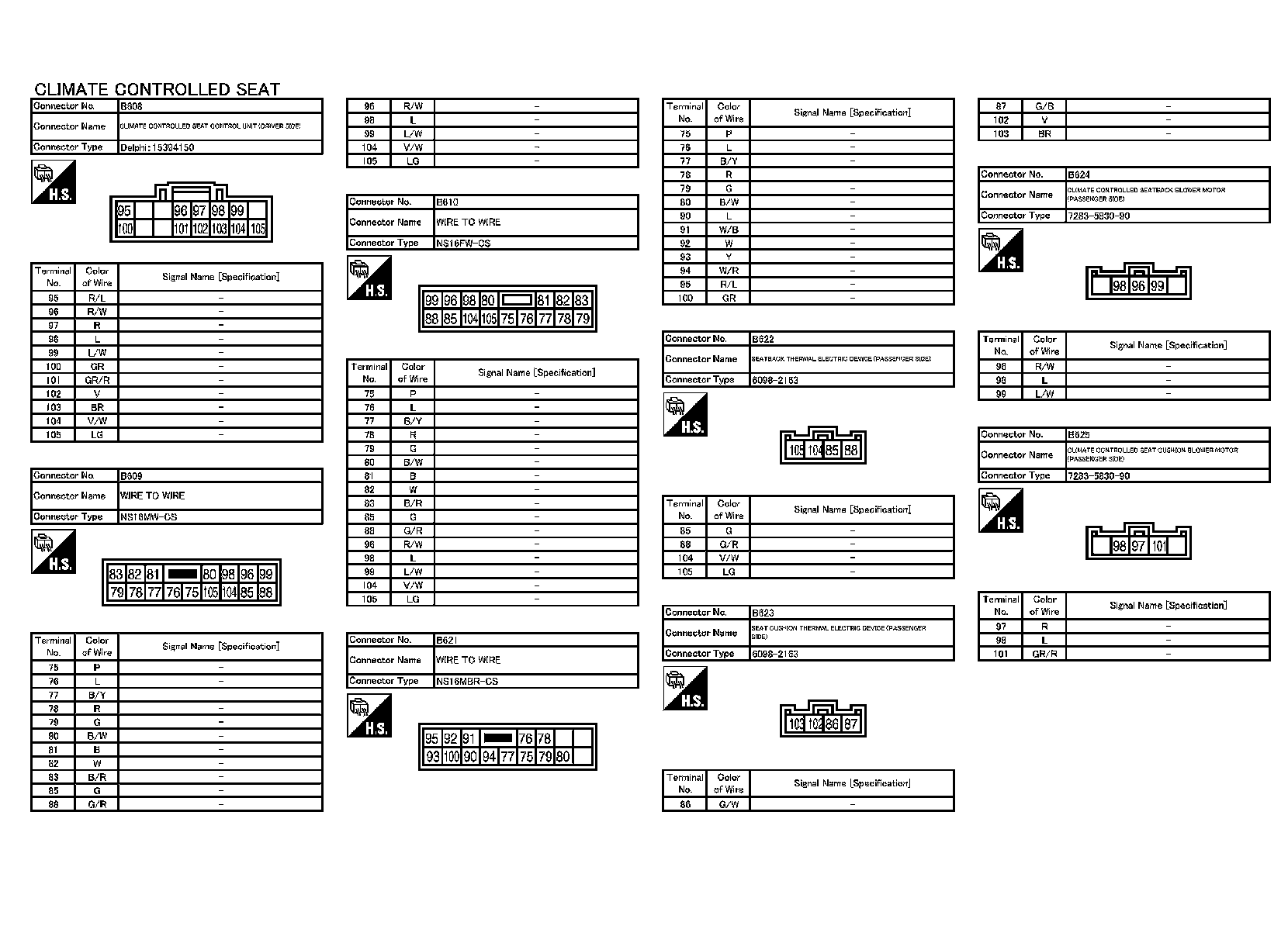

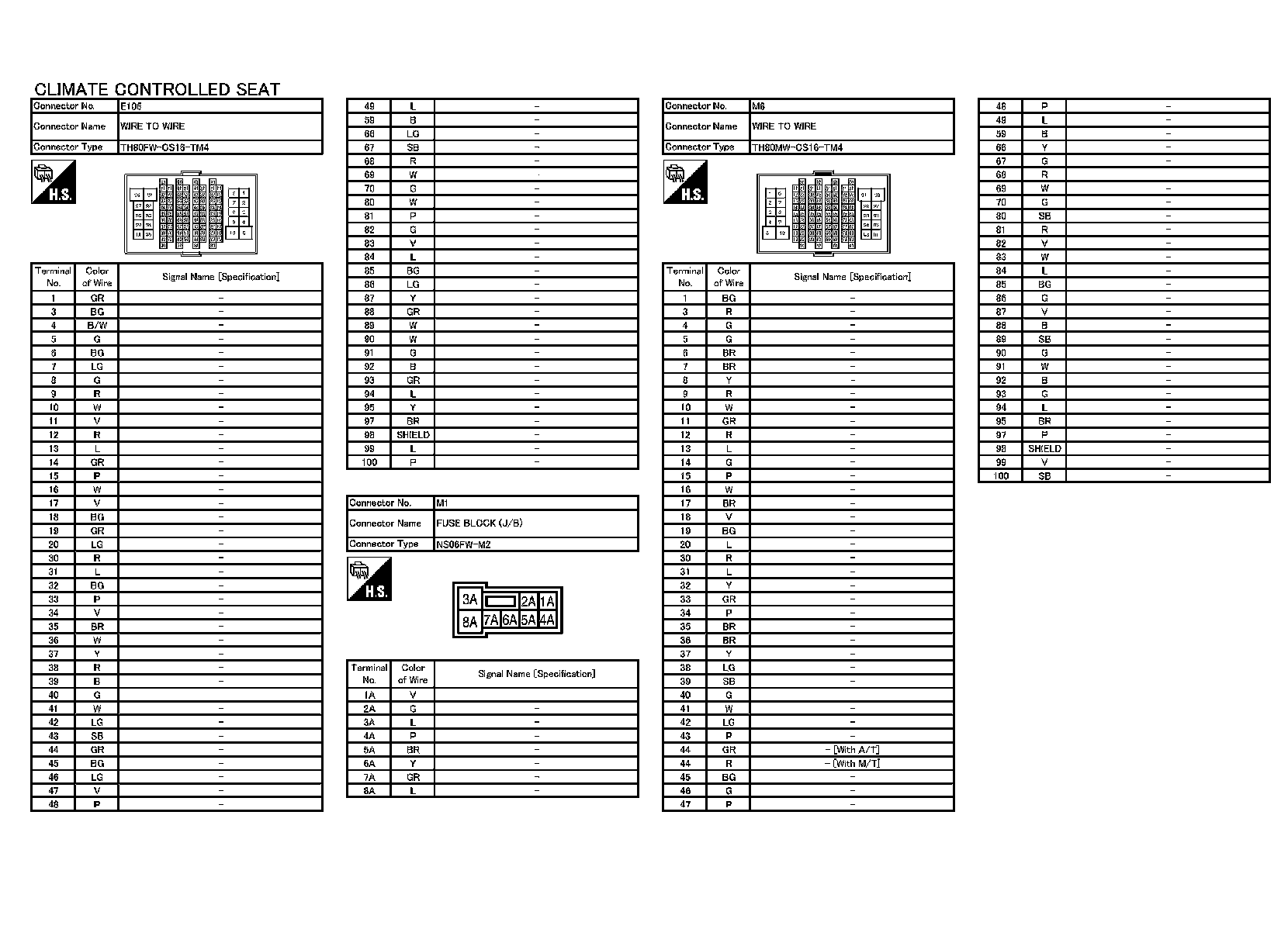

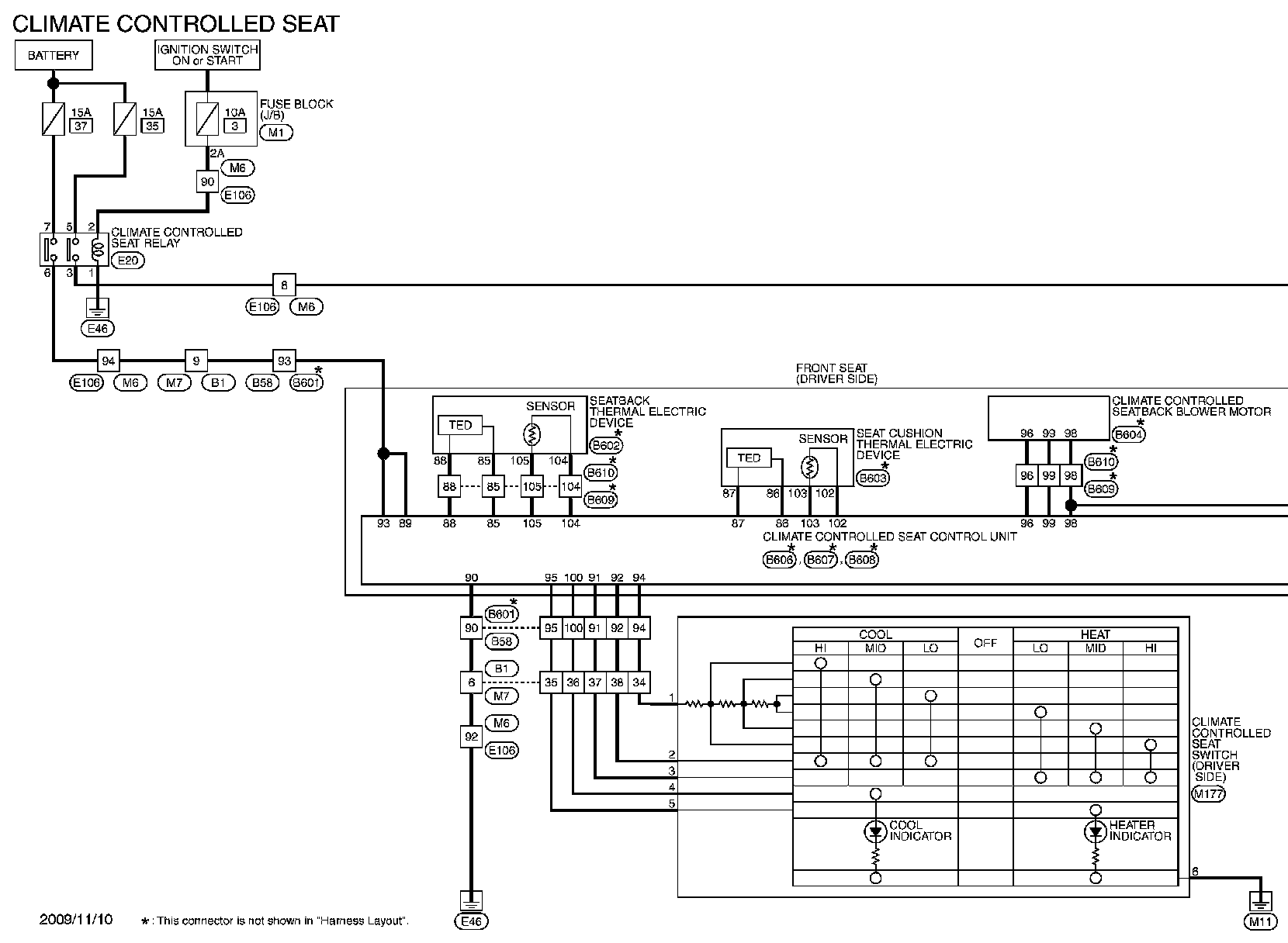

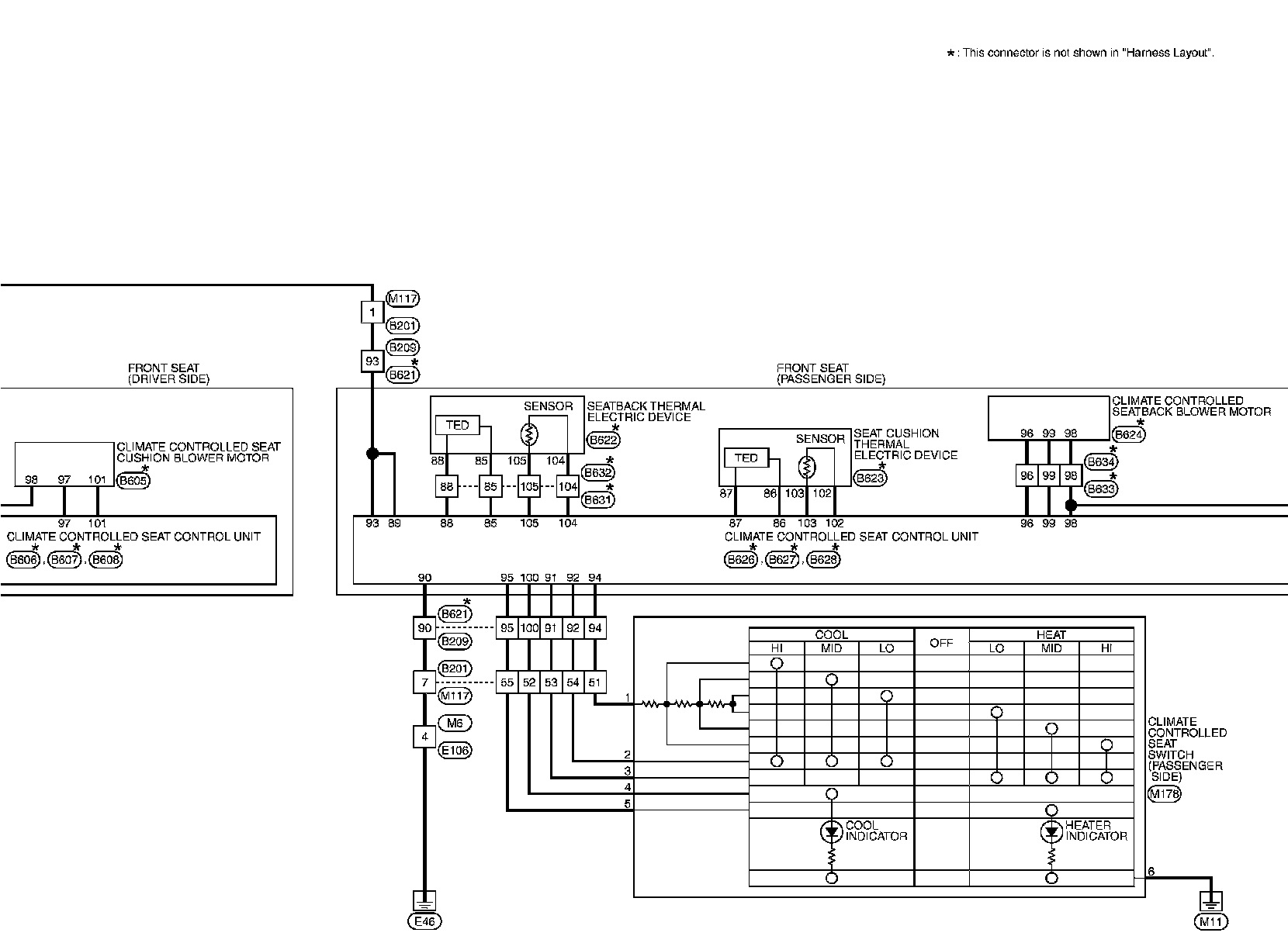

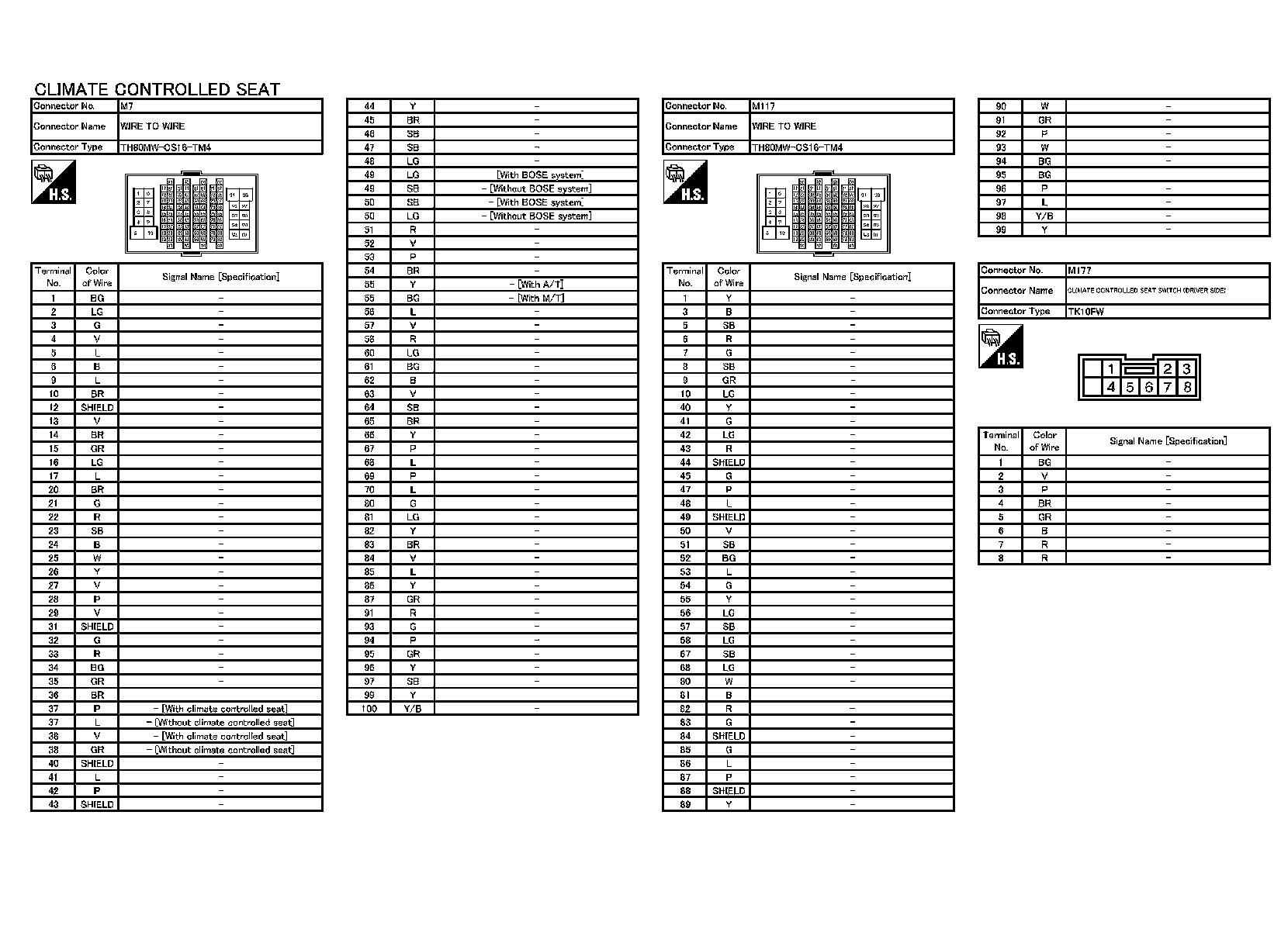

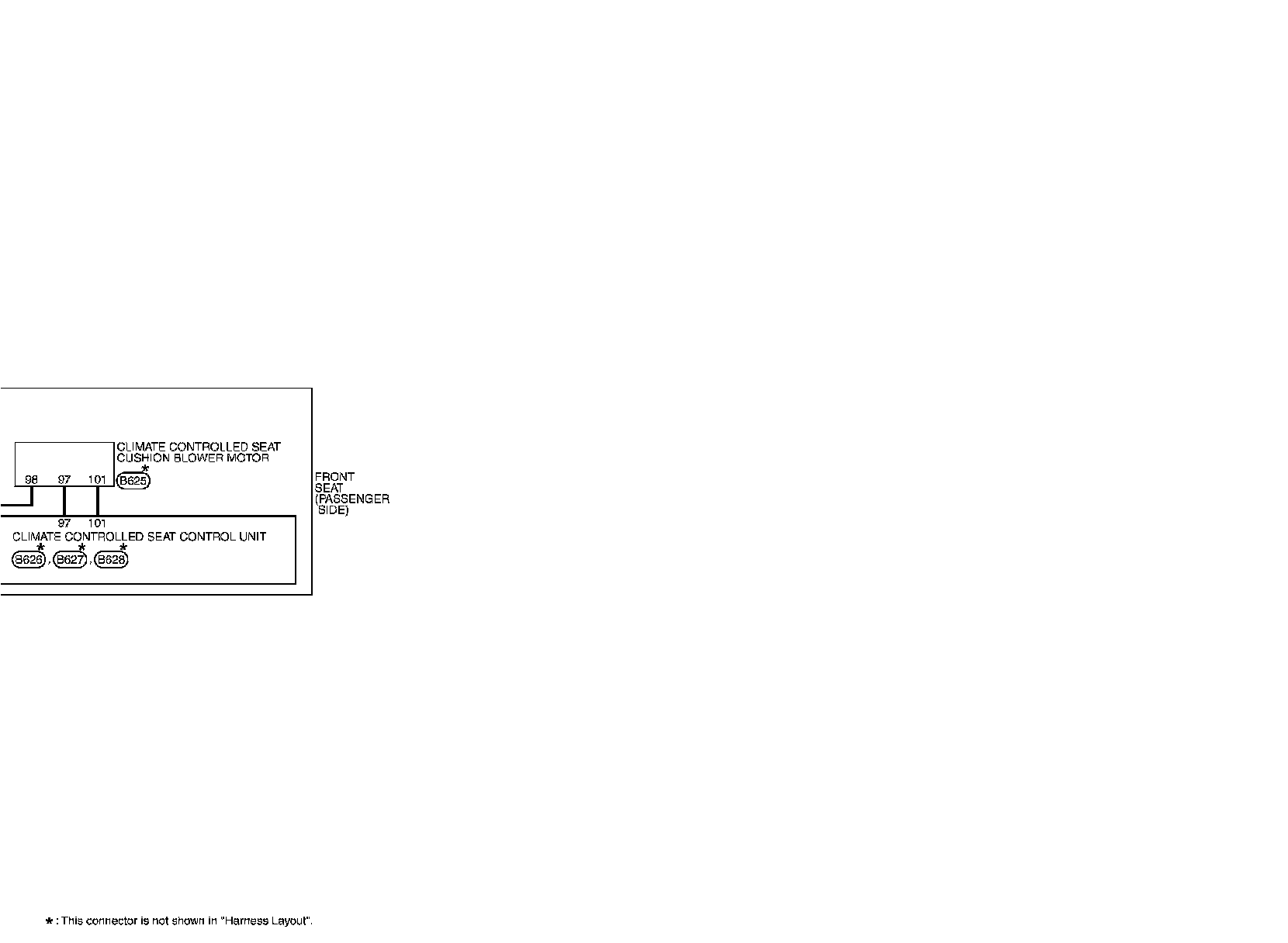

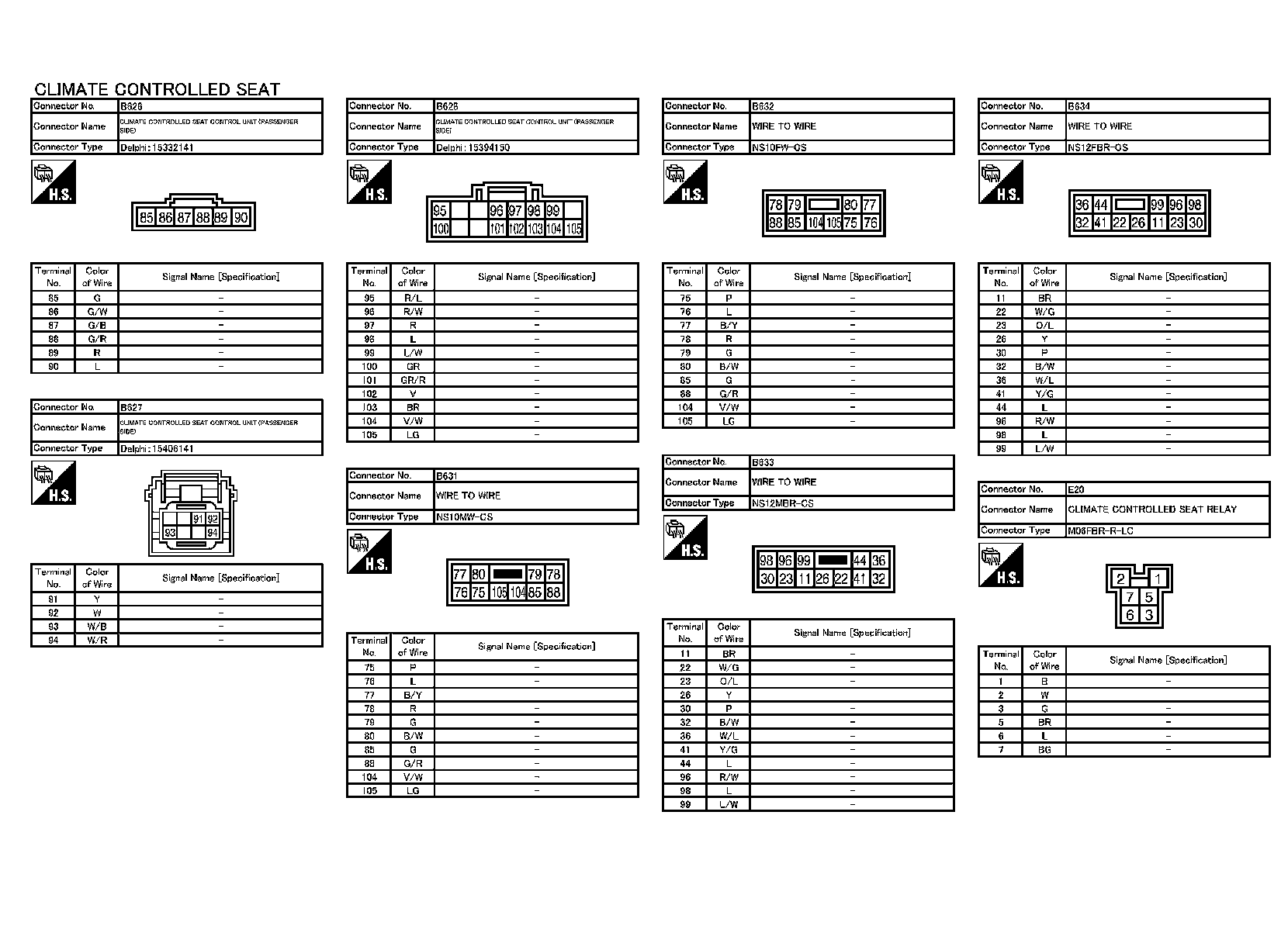

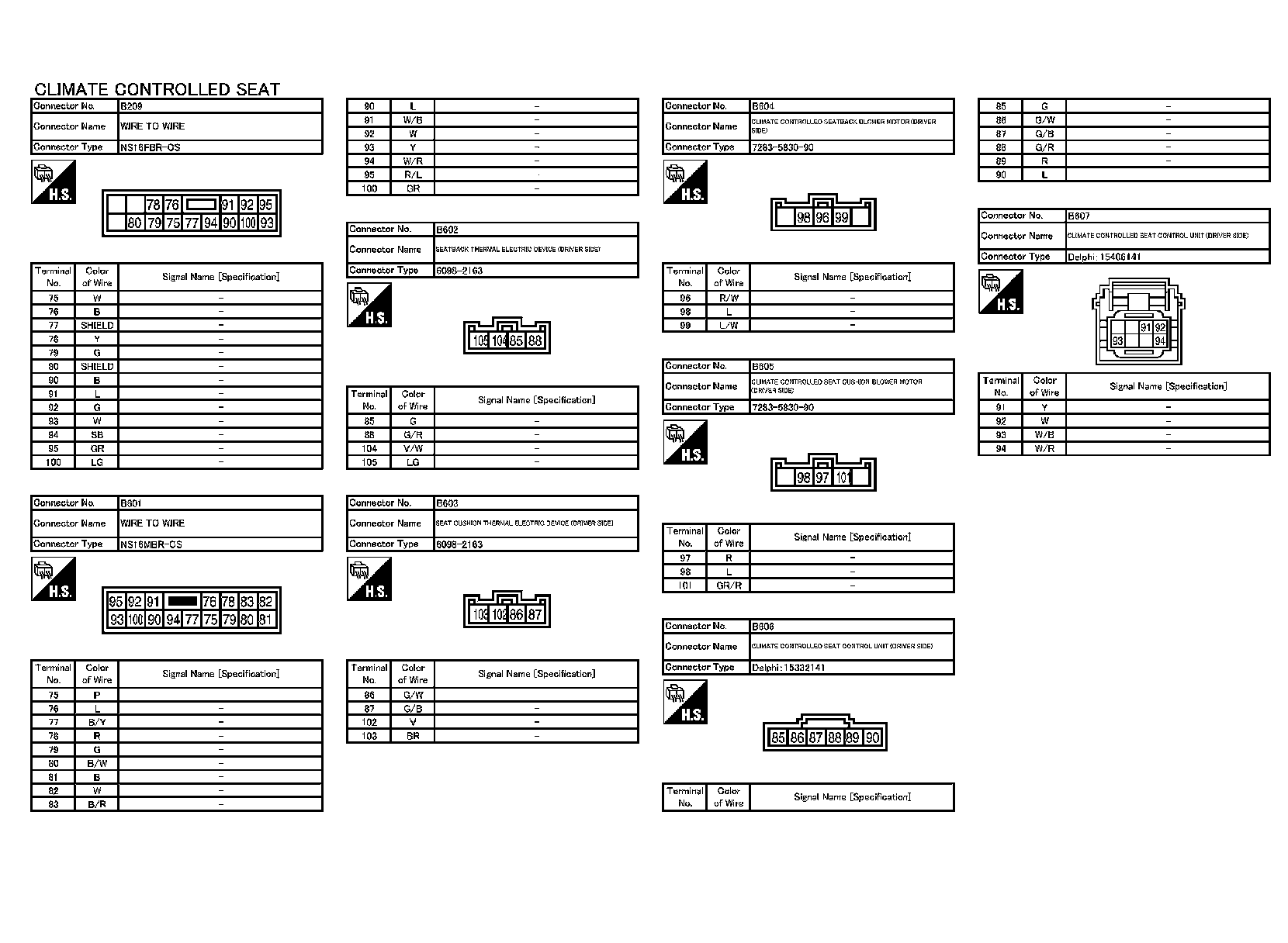

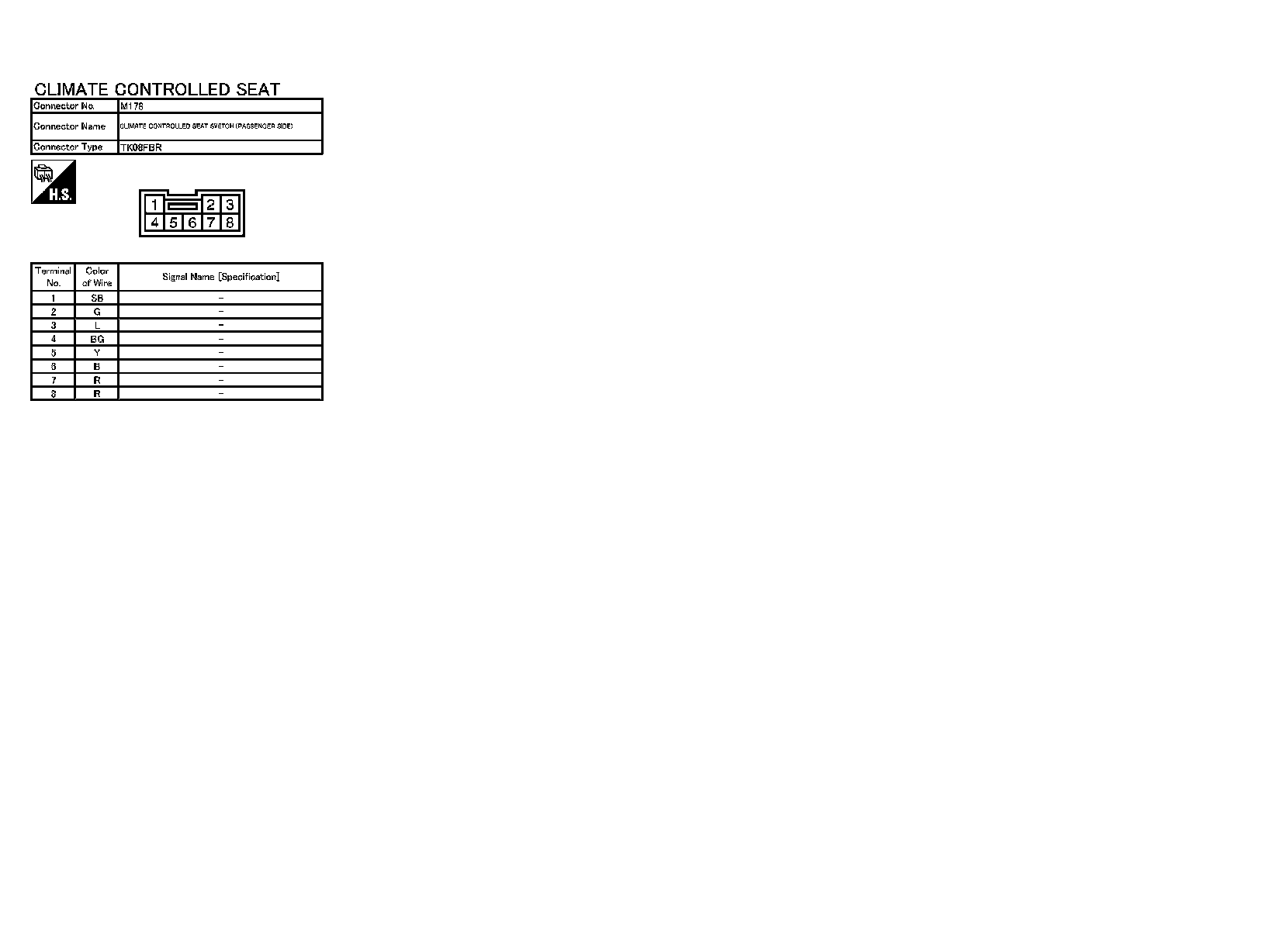

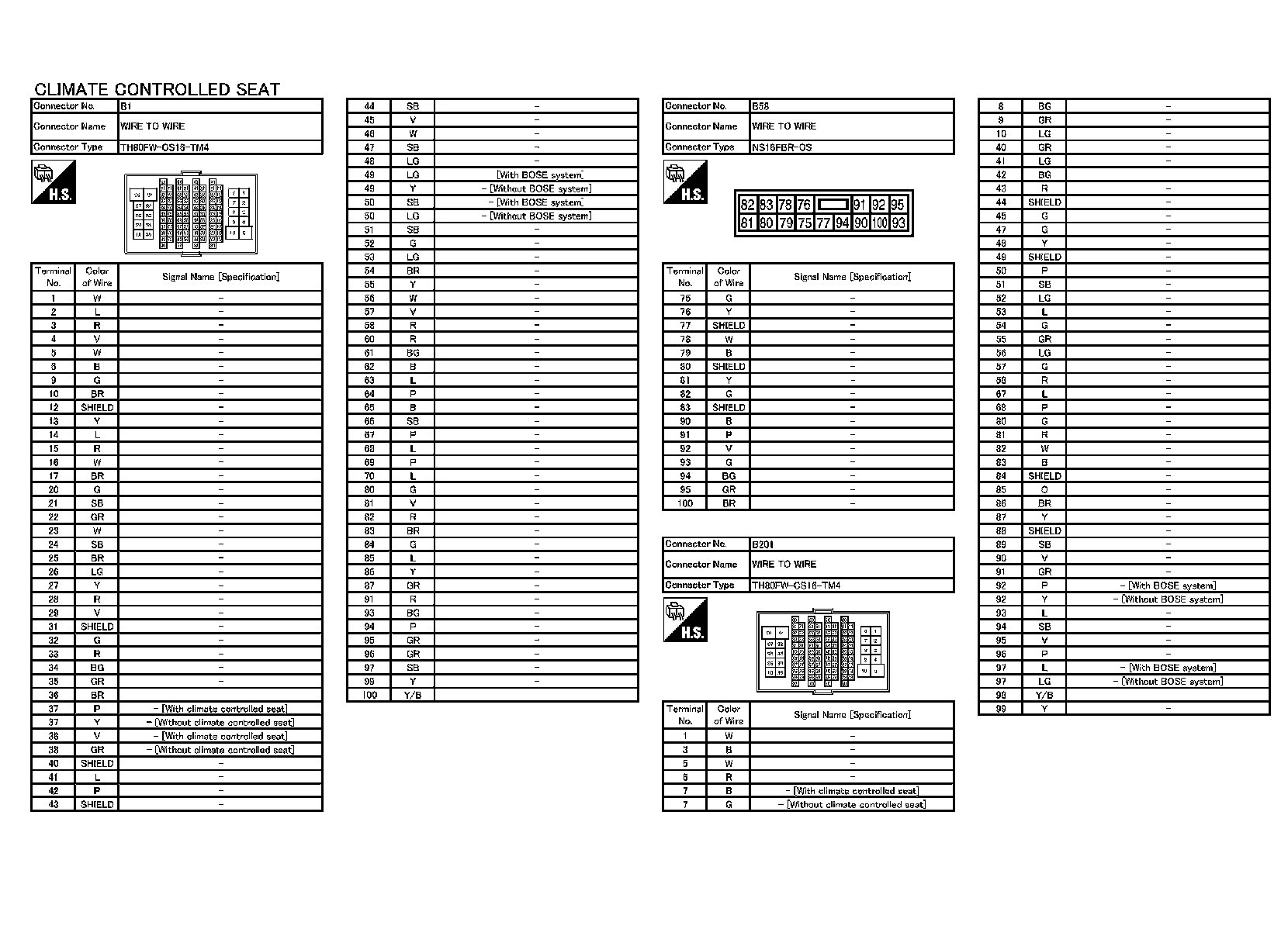

Wiring Diagram - CLIMATE CONTROLLED SEAT CONTROL SYSTEM
