Battery Power Supply Fusible Link No. K
Battery Power Supply Fusible Link No. K

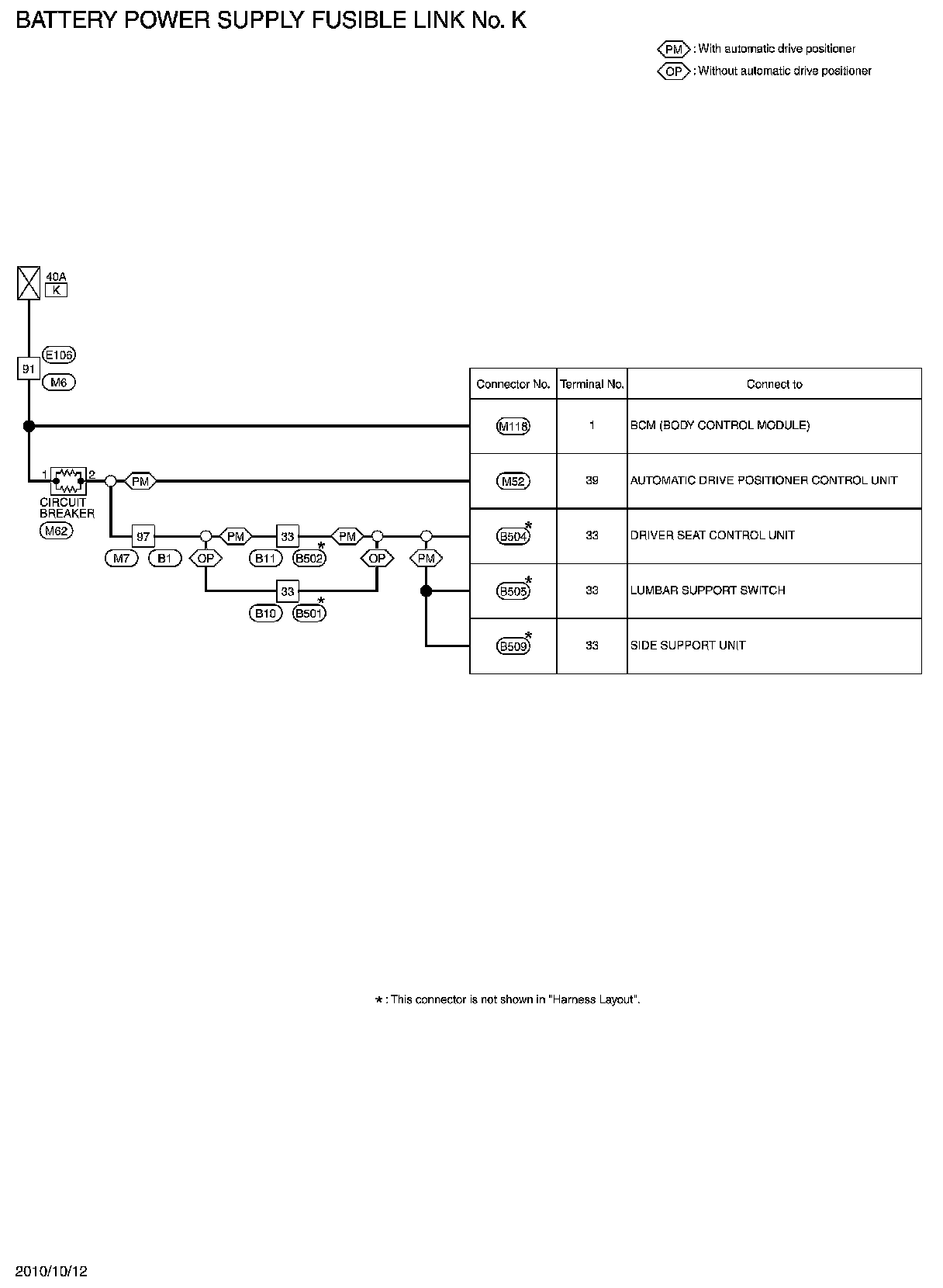

POWER SUPPLY ROUTING CIRCUIT

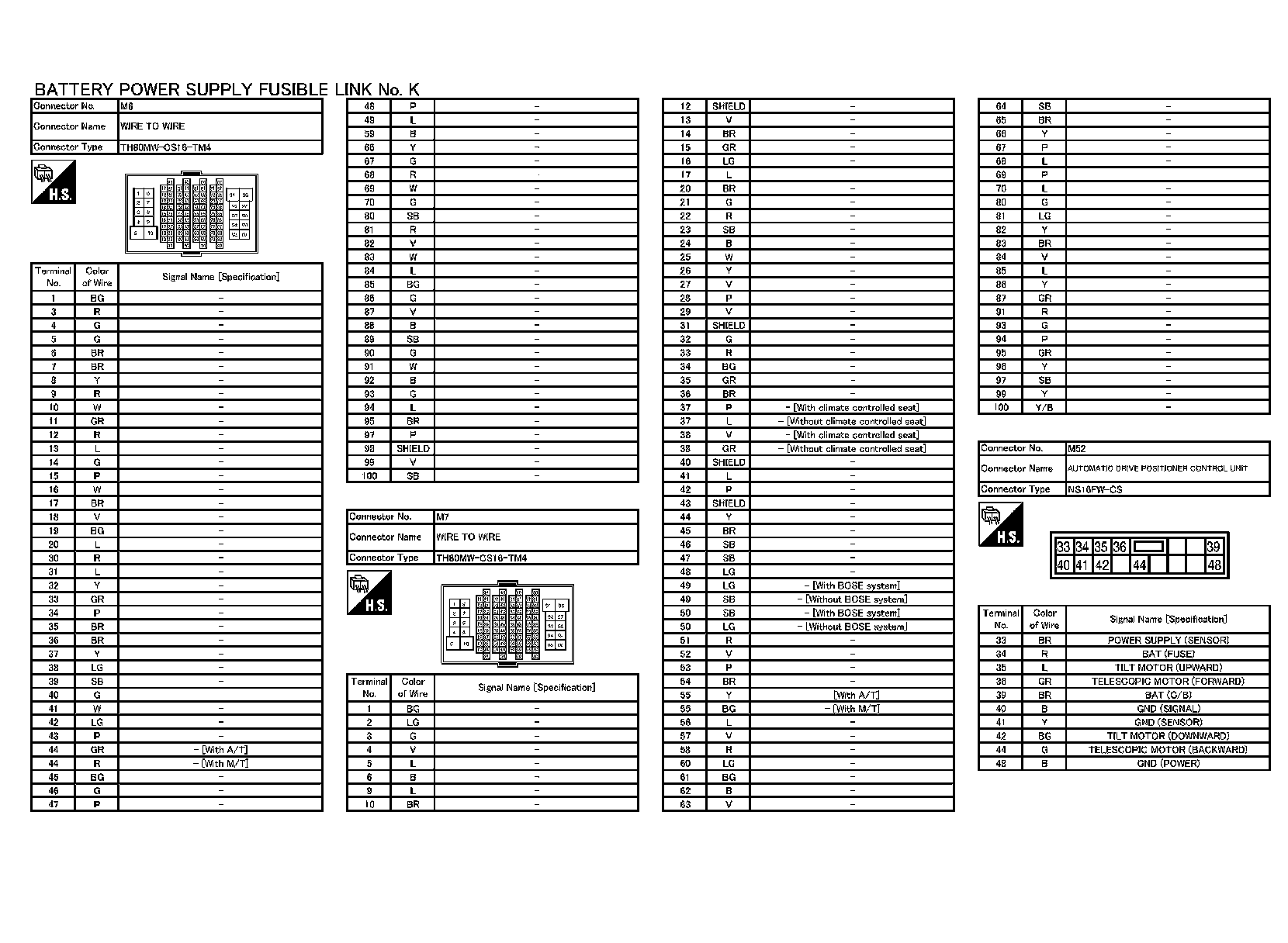

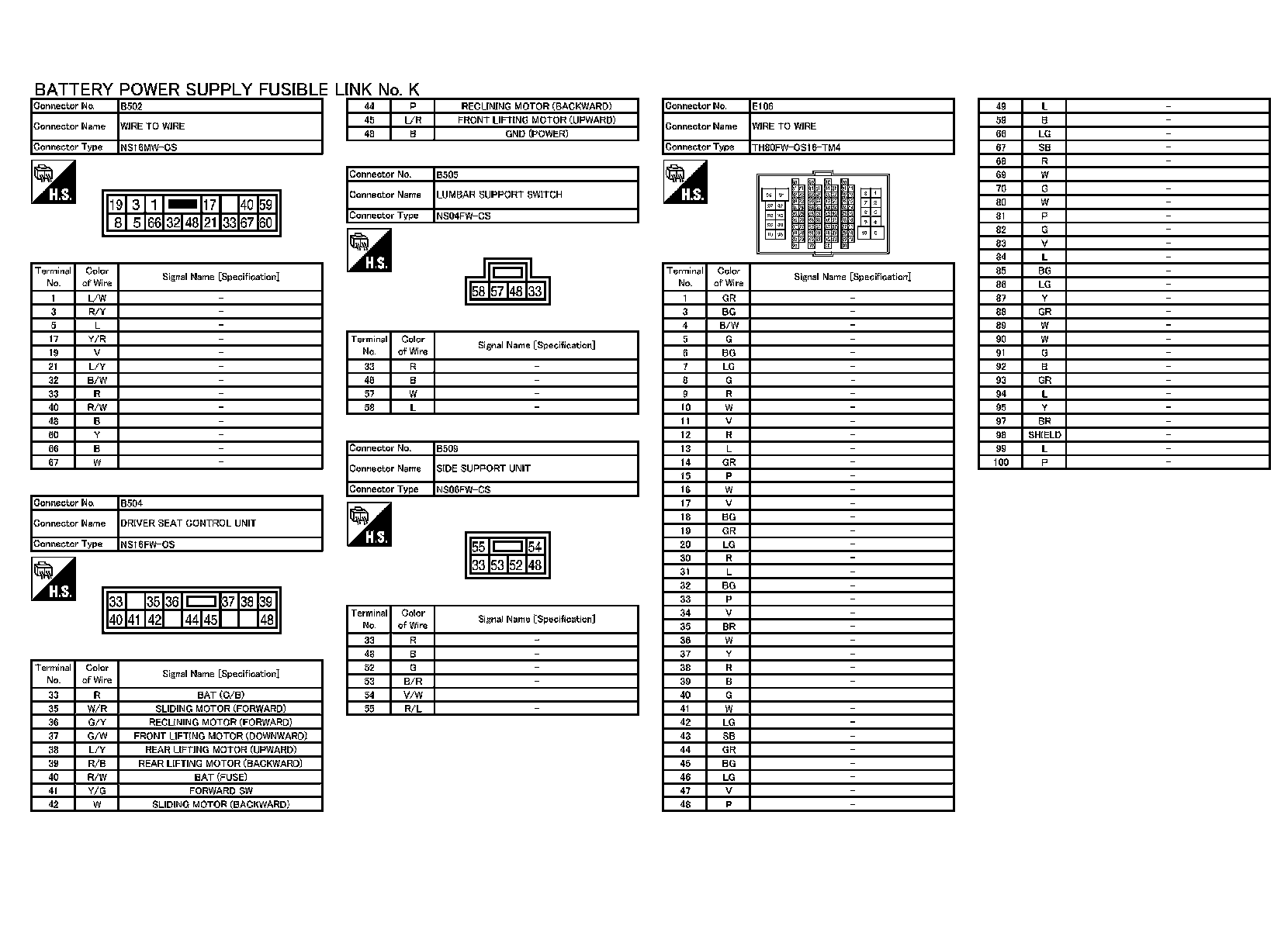

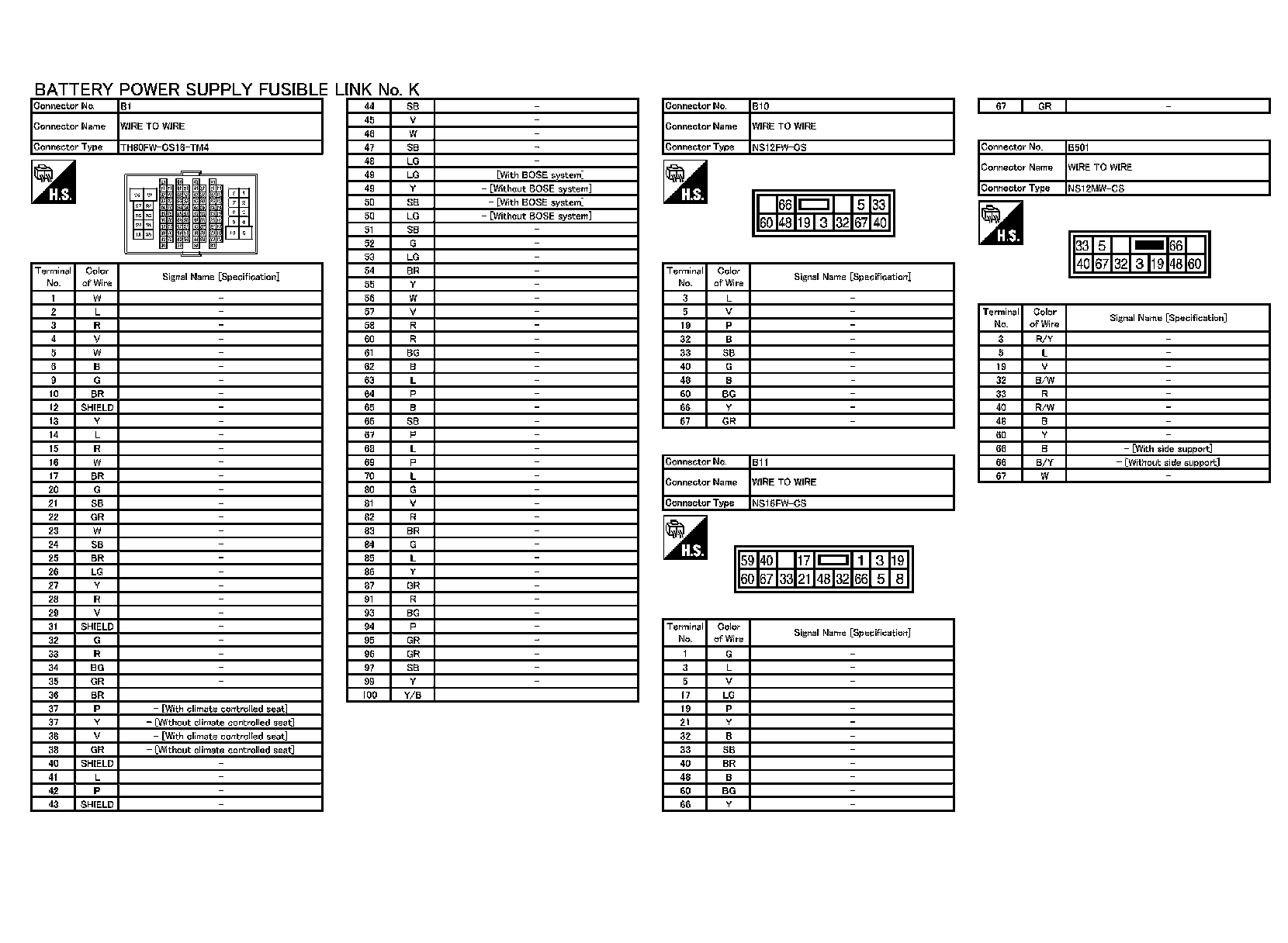

Wiring Diagram - BATTERY POWER SUPPLY
FUSIBLE LINK
No. K
