Turn Signals




TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

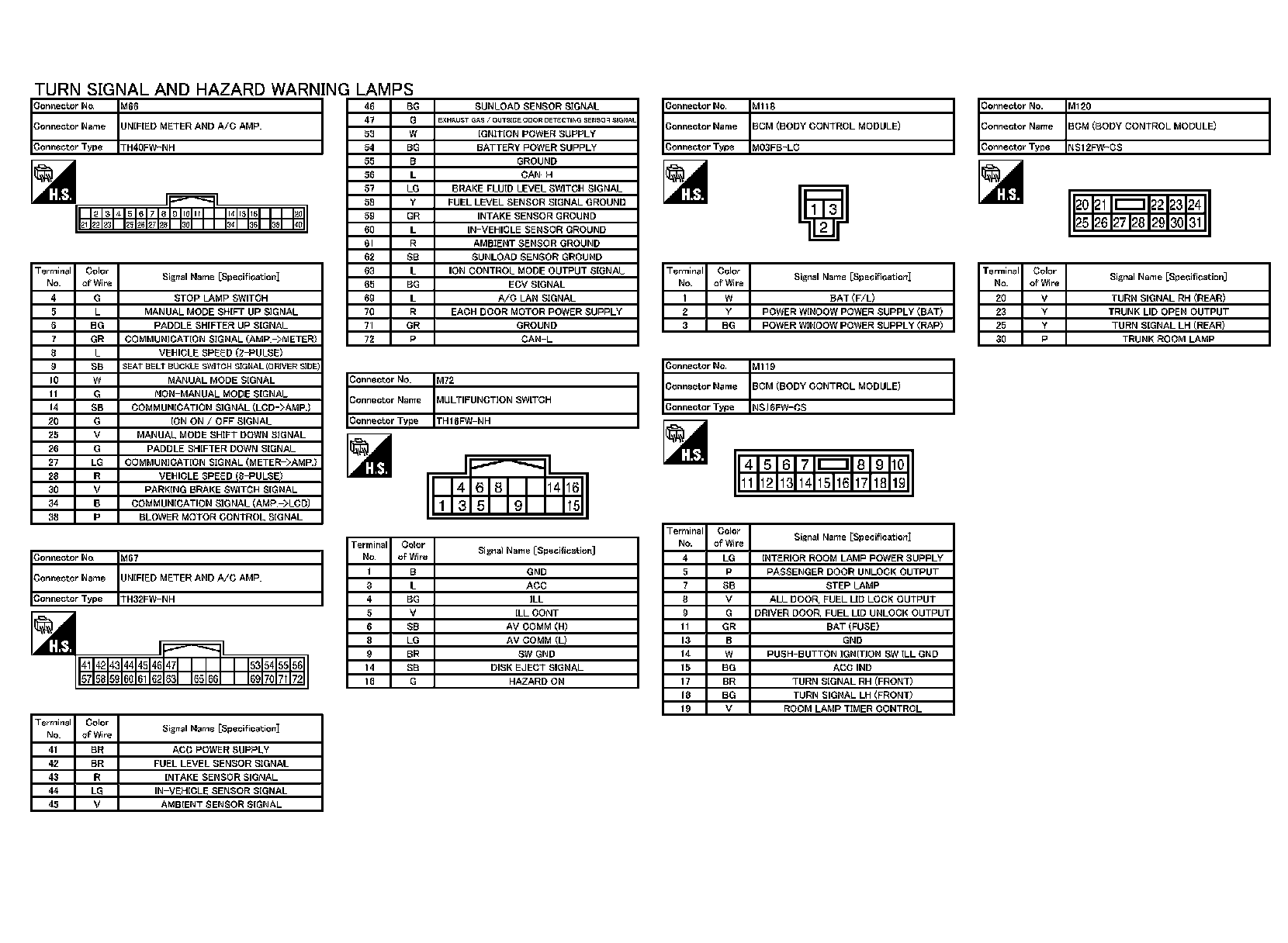

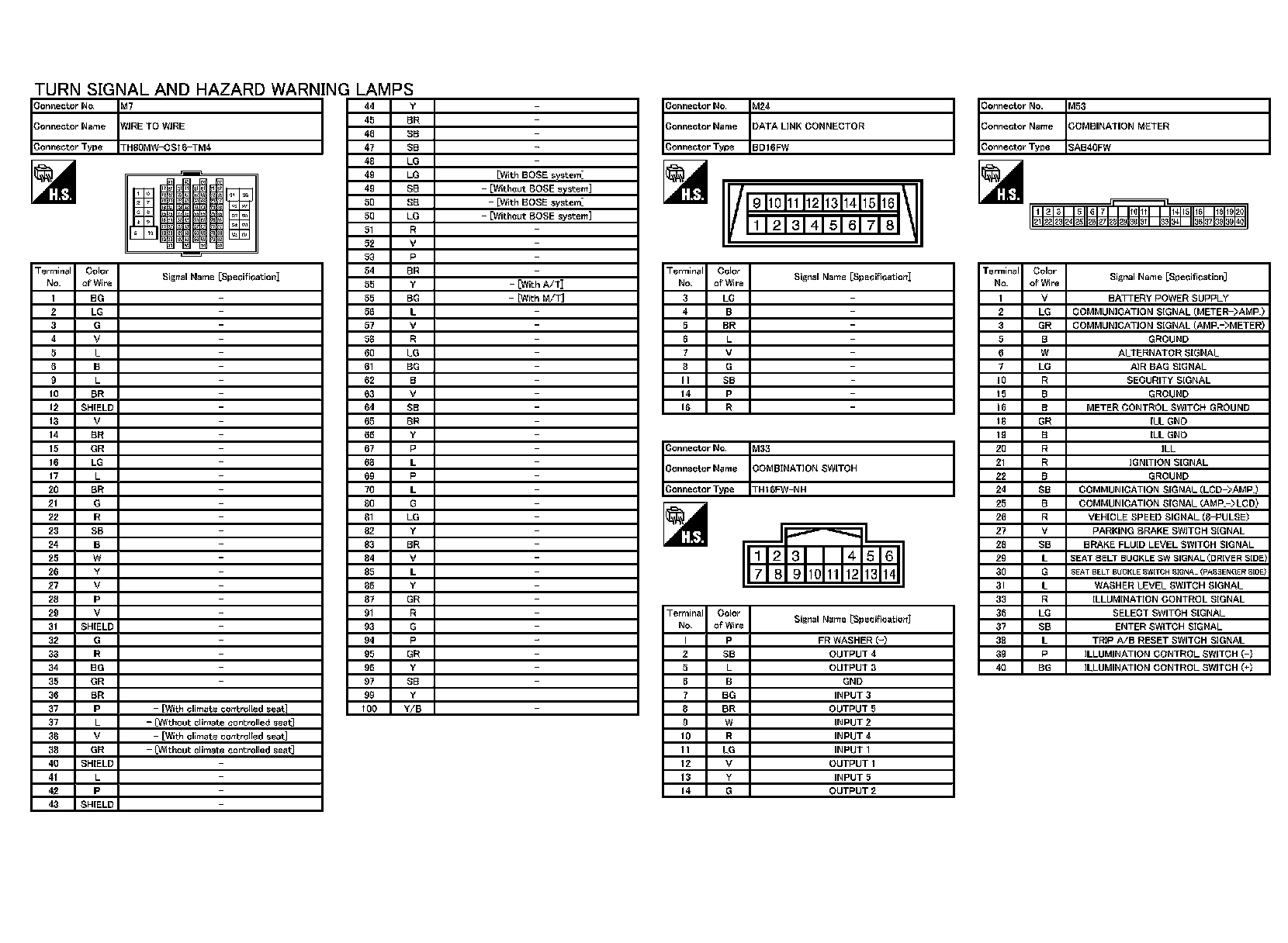

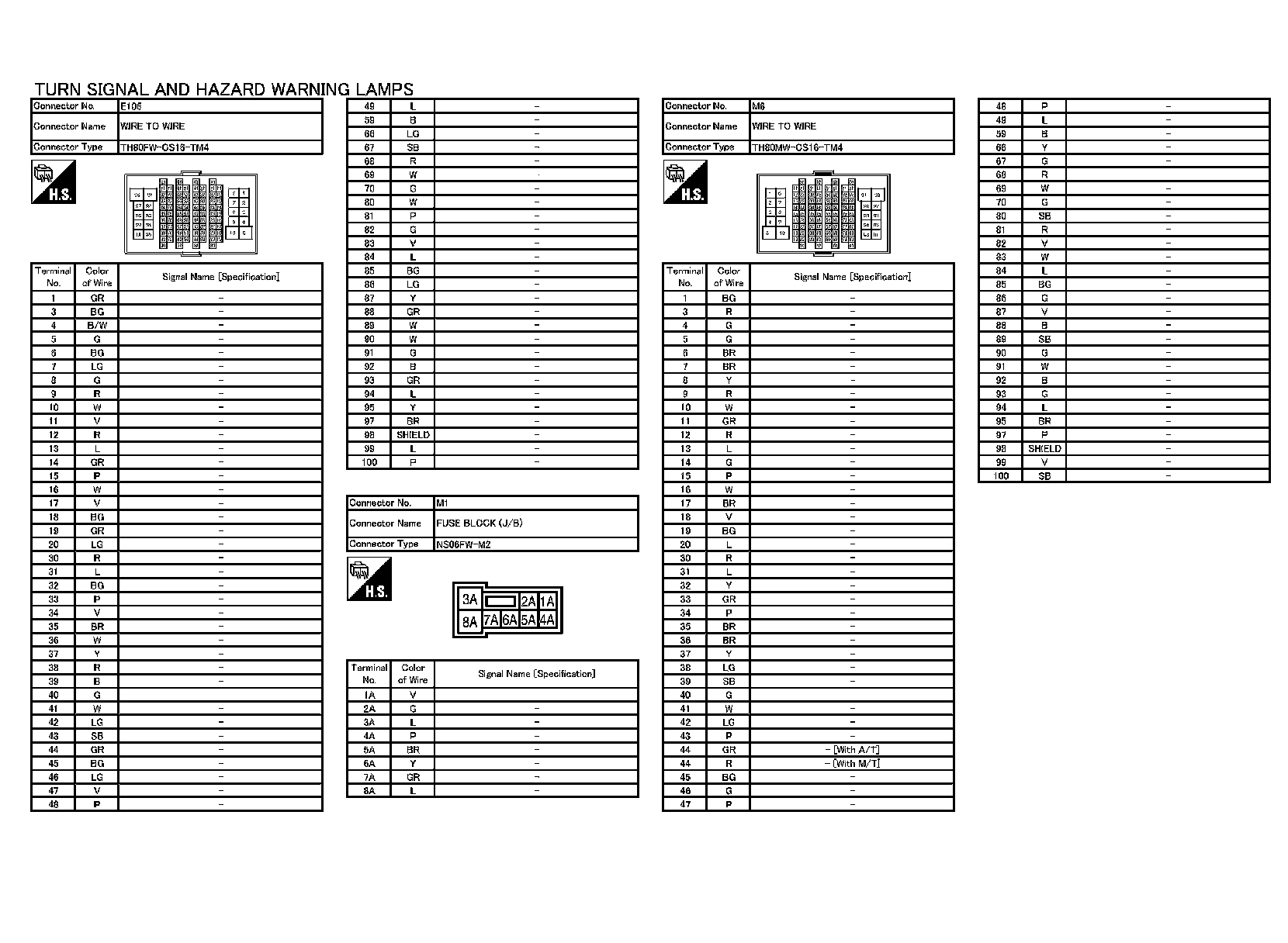

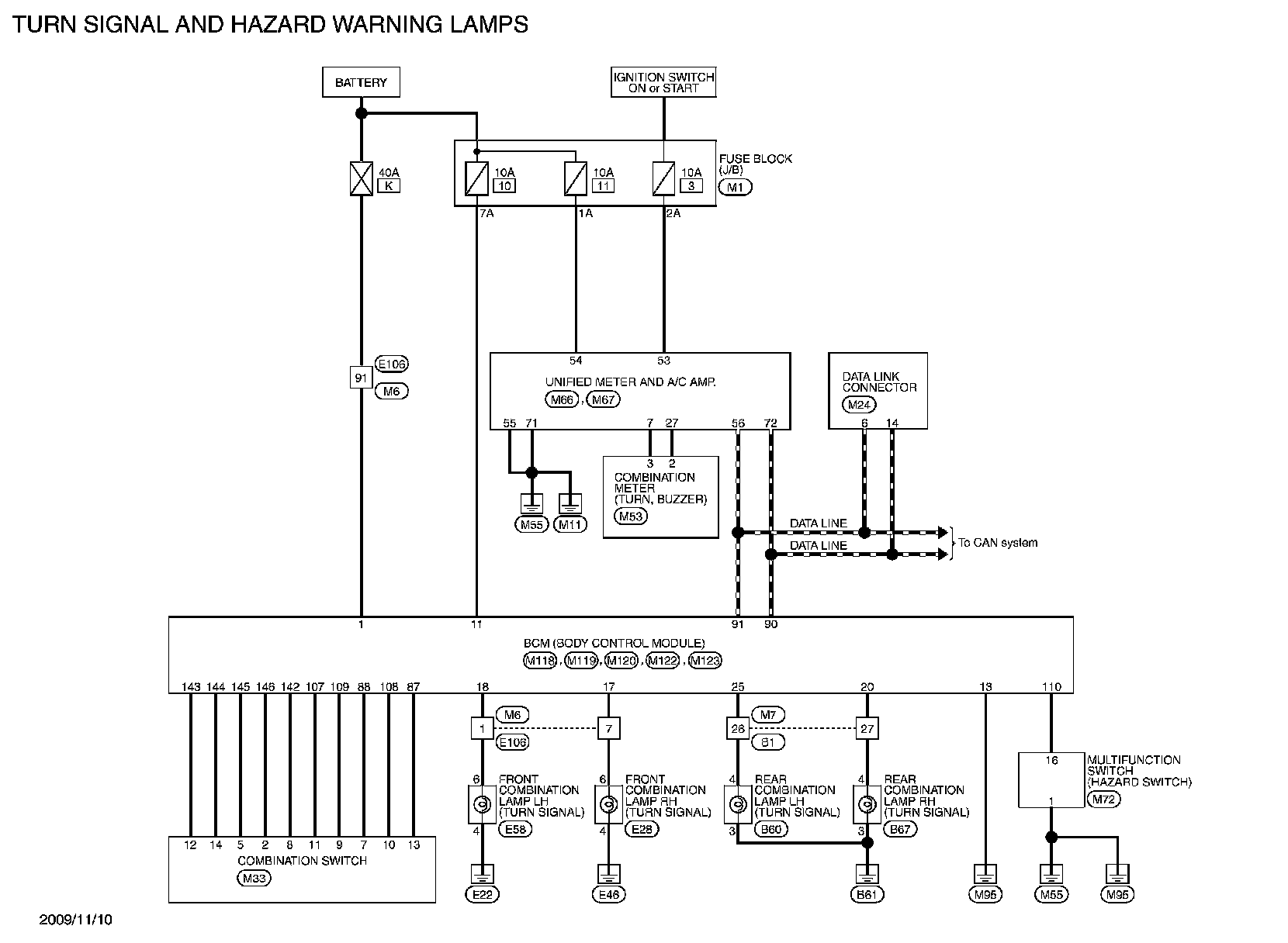

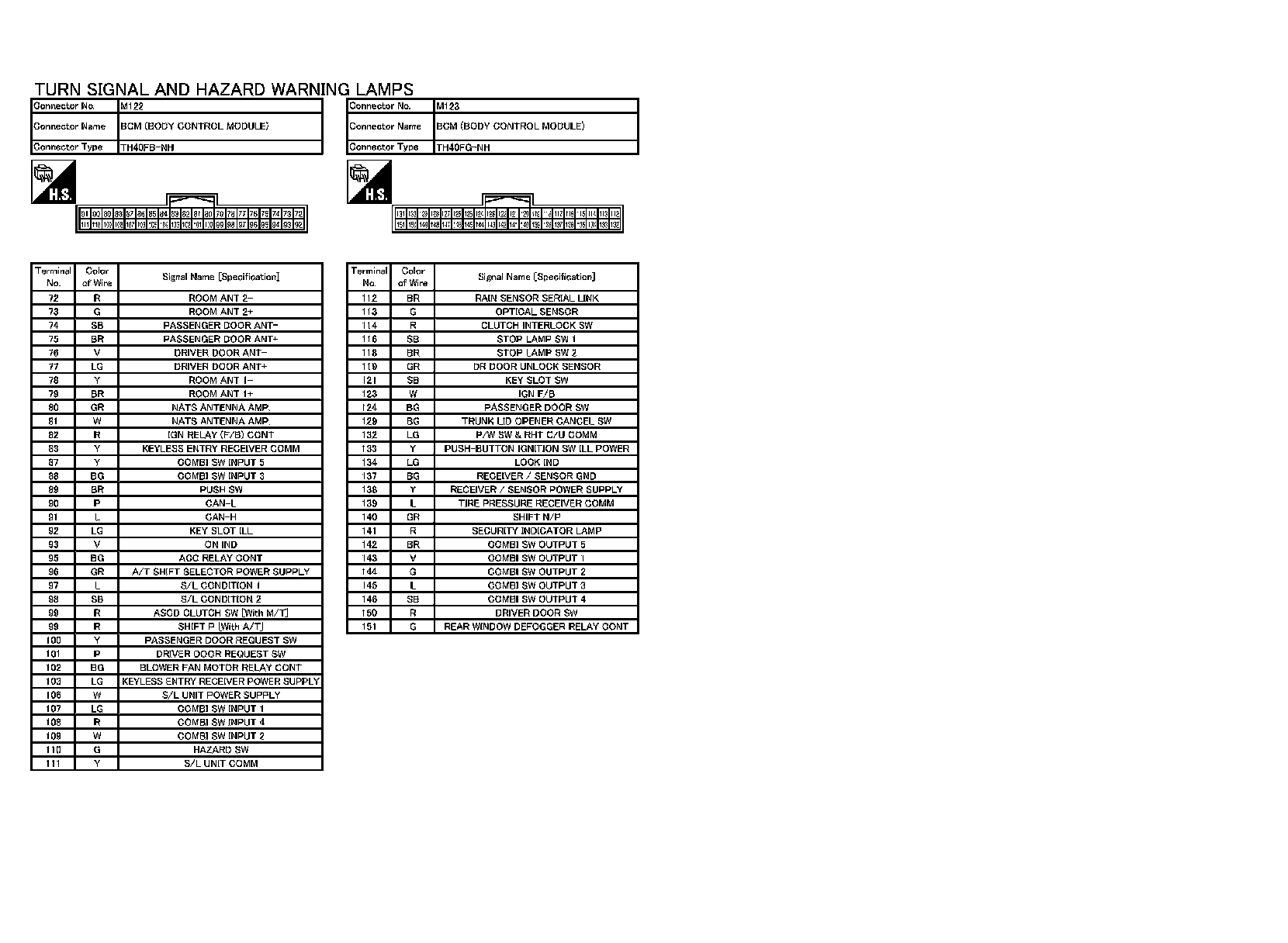

Wiring Diagram - TURN AND HAZARD WARNING LAMPS
