Garage Door Opener Transmitter
Garage Door Opener Transmitter
INTEGRATED HOMELINK TRANSMITTER SYSTEM

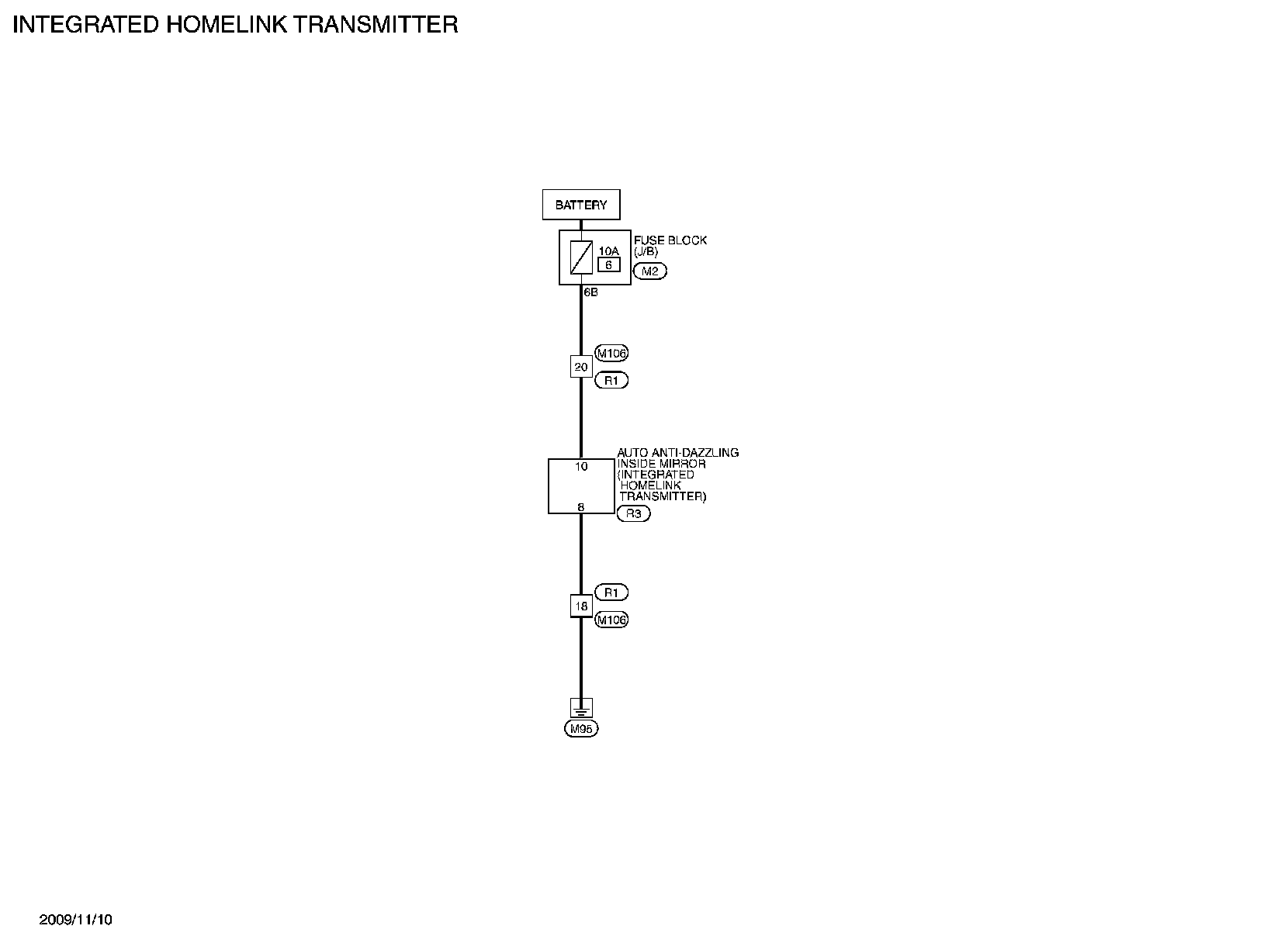

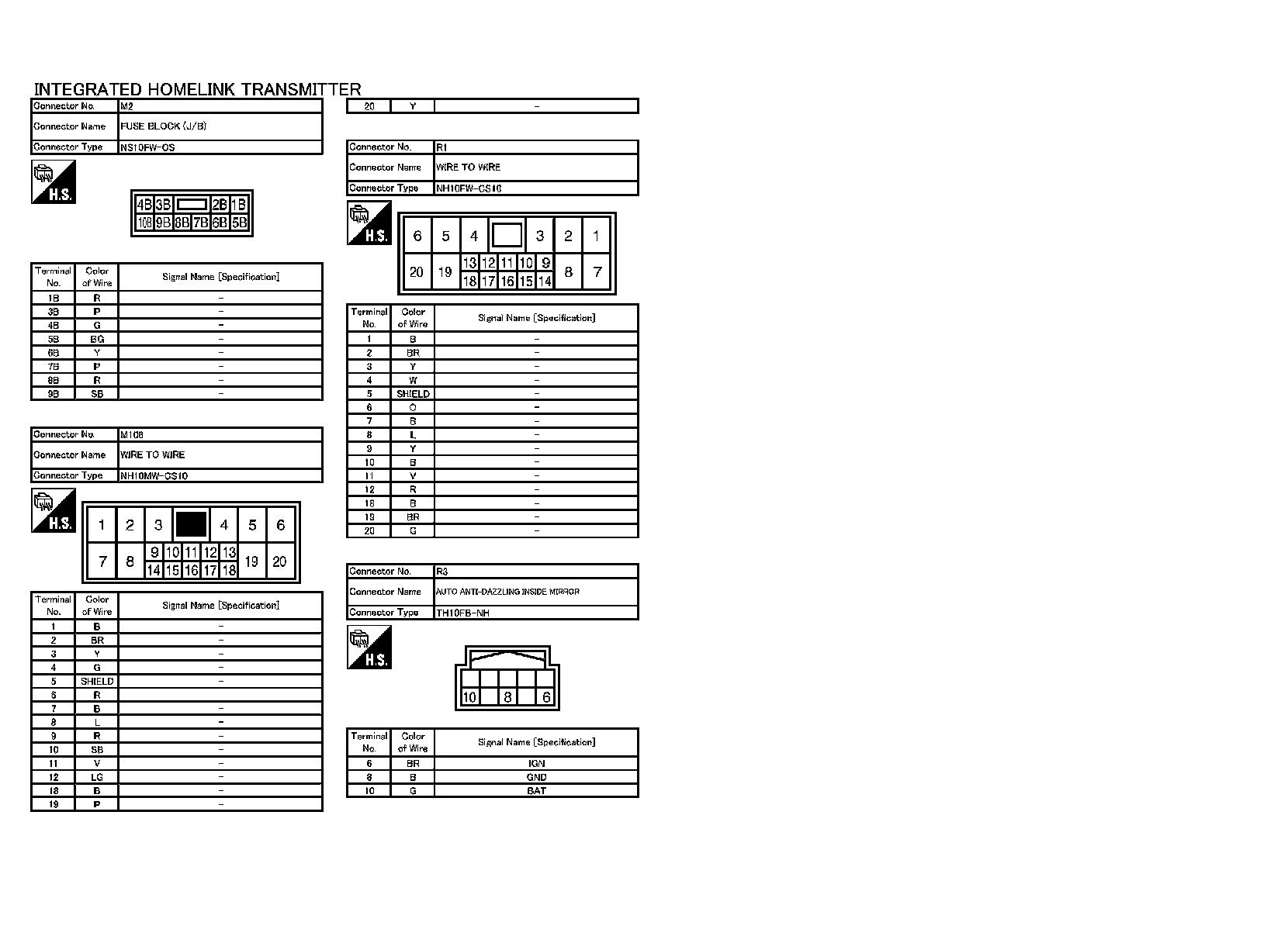

Wiring Diagram - INTEGRATED HOMELINK TRANSMITTER SYSTEM
