Infiniti Vehicle Immobilizer System-NATS
Infiniti Vehicle Immobilizer System-NATS
INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS

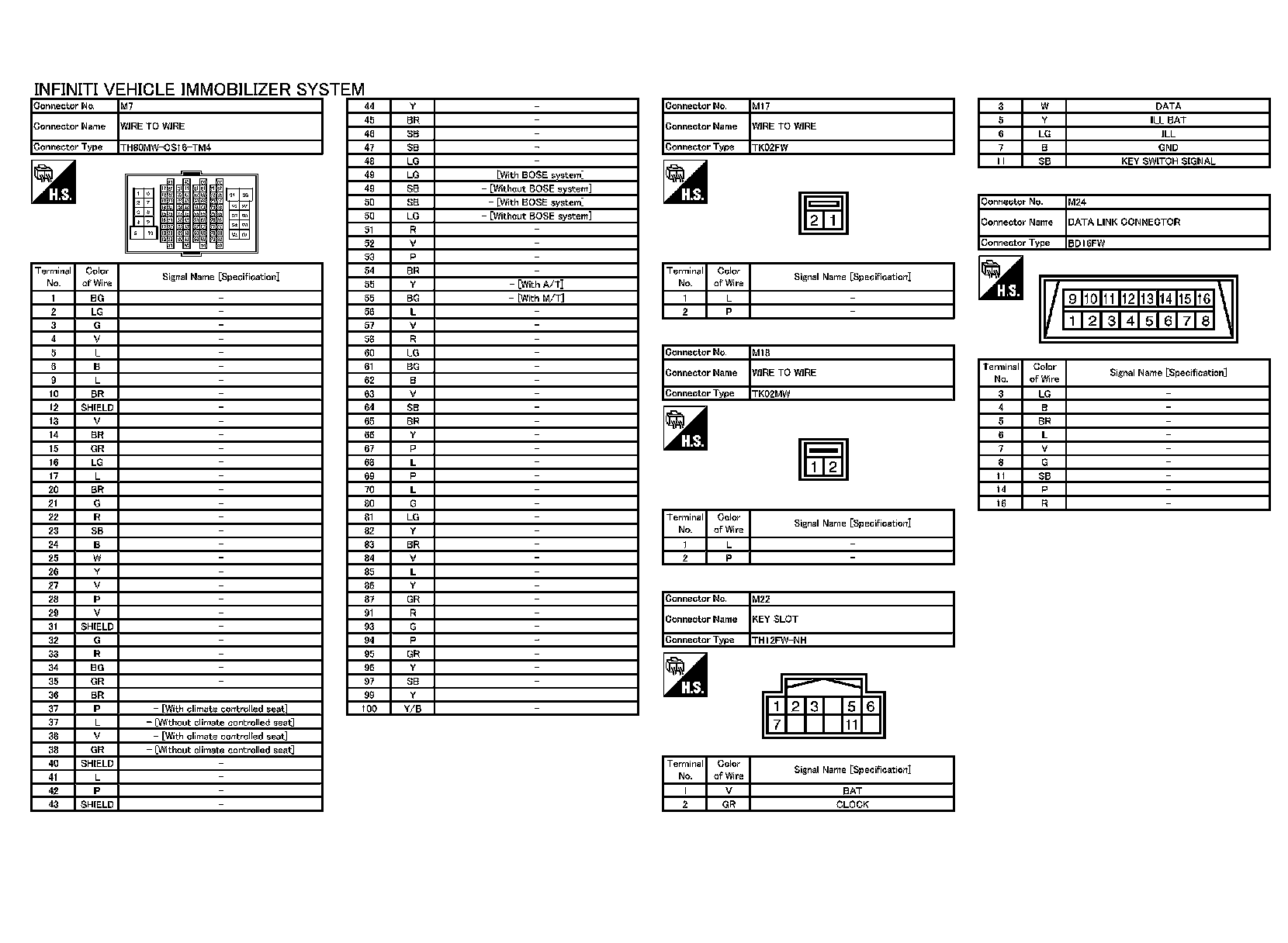

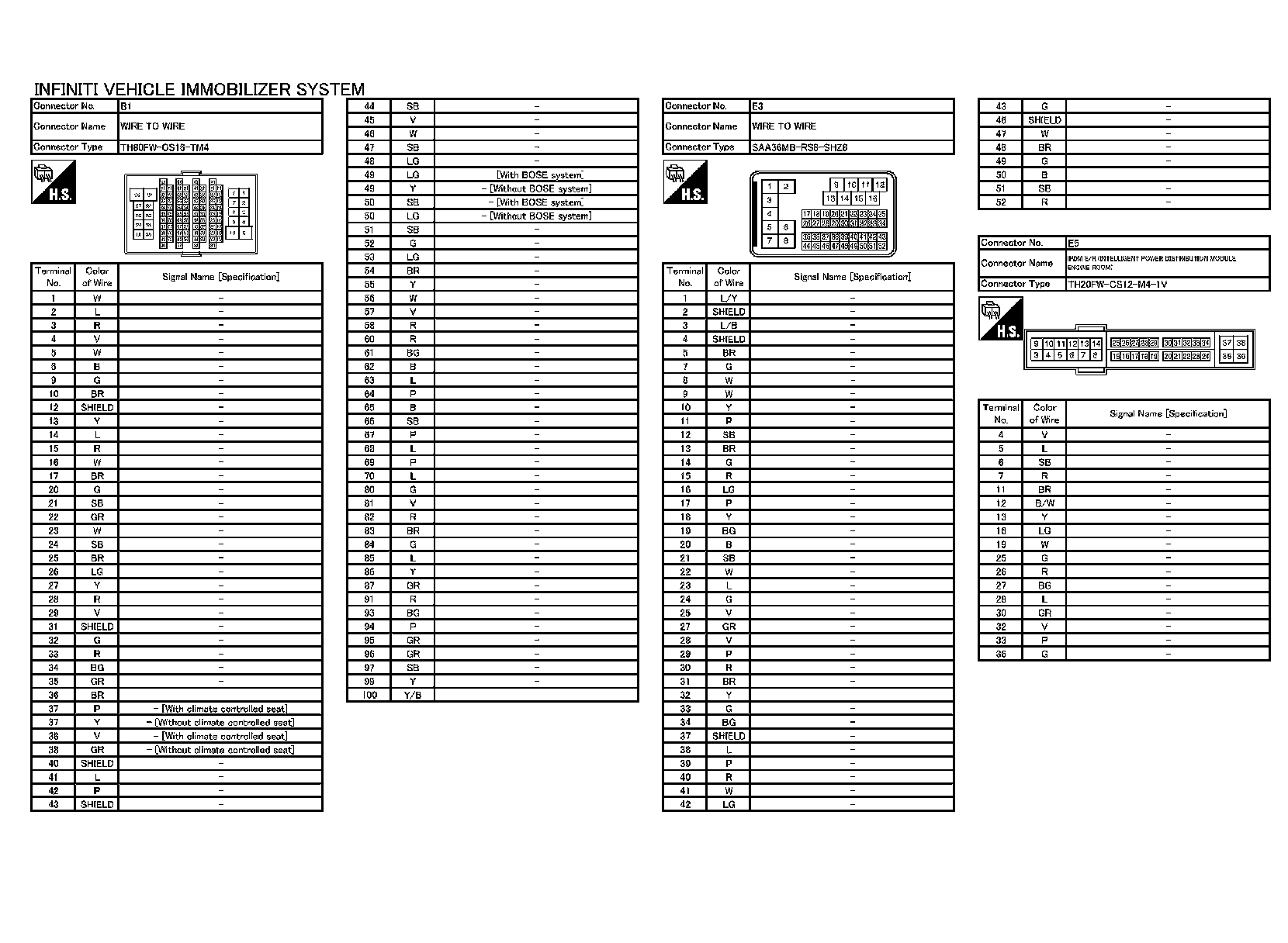

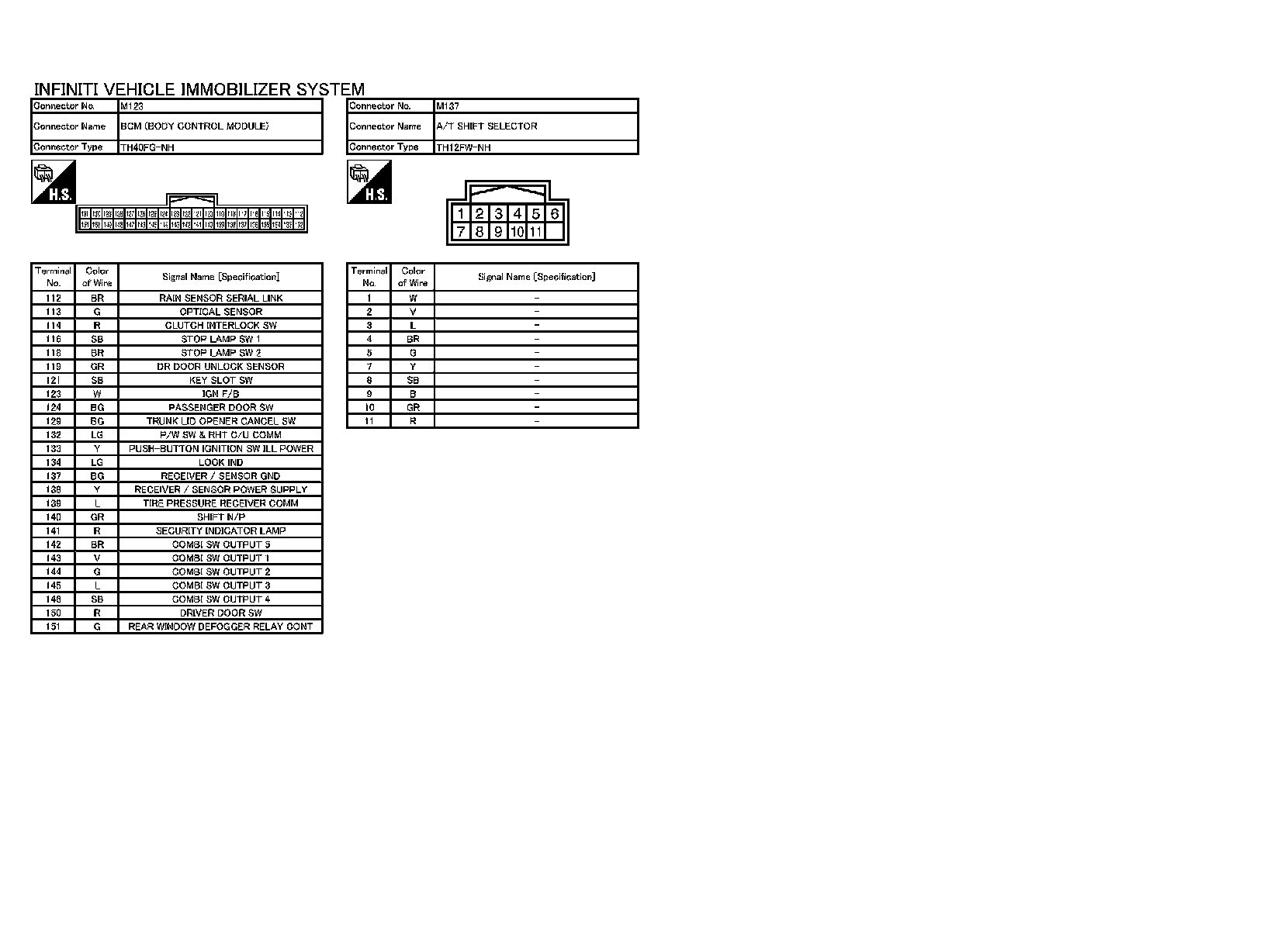

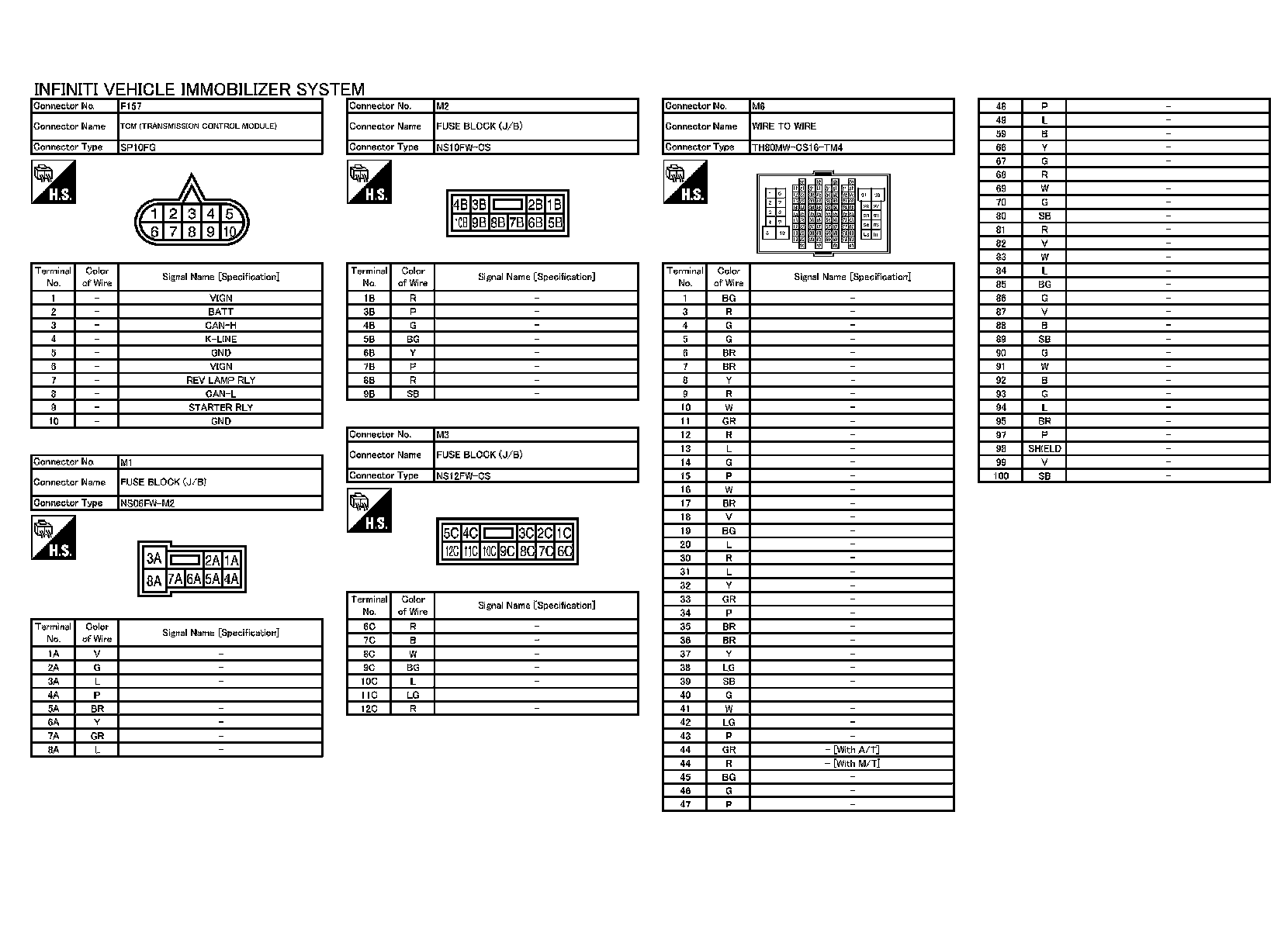

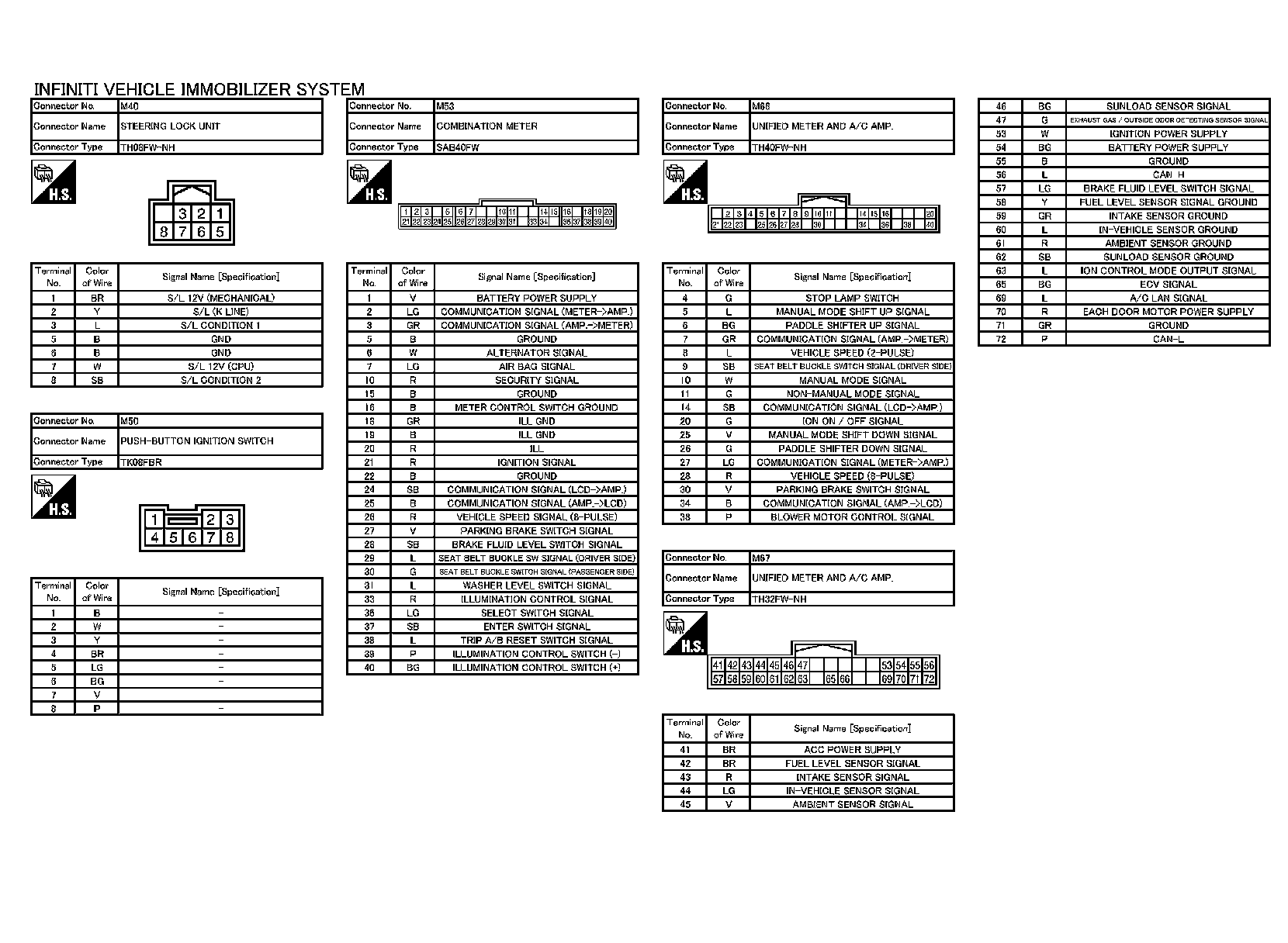

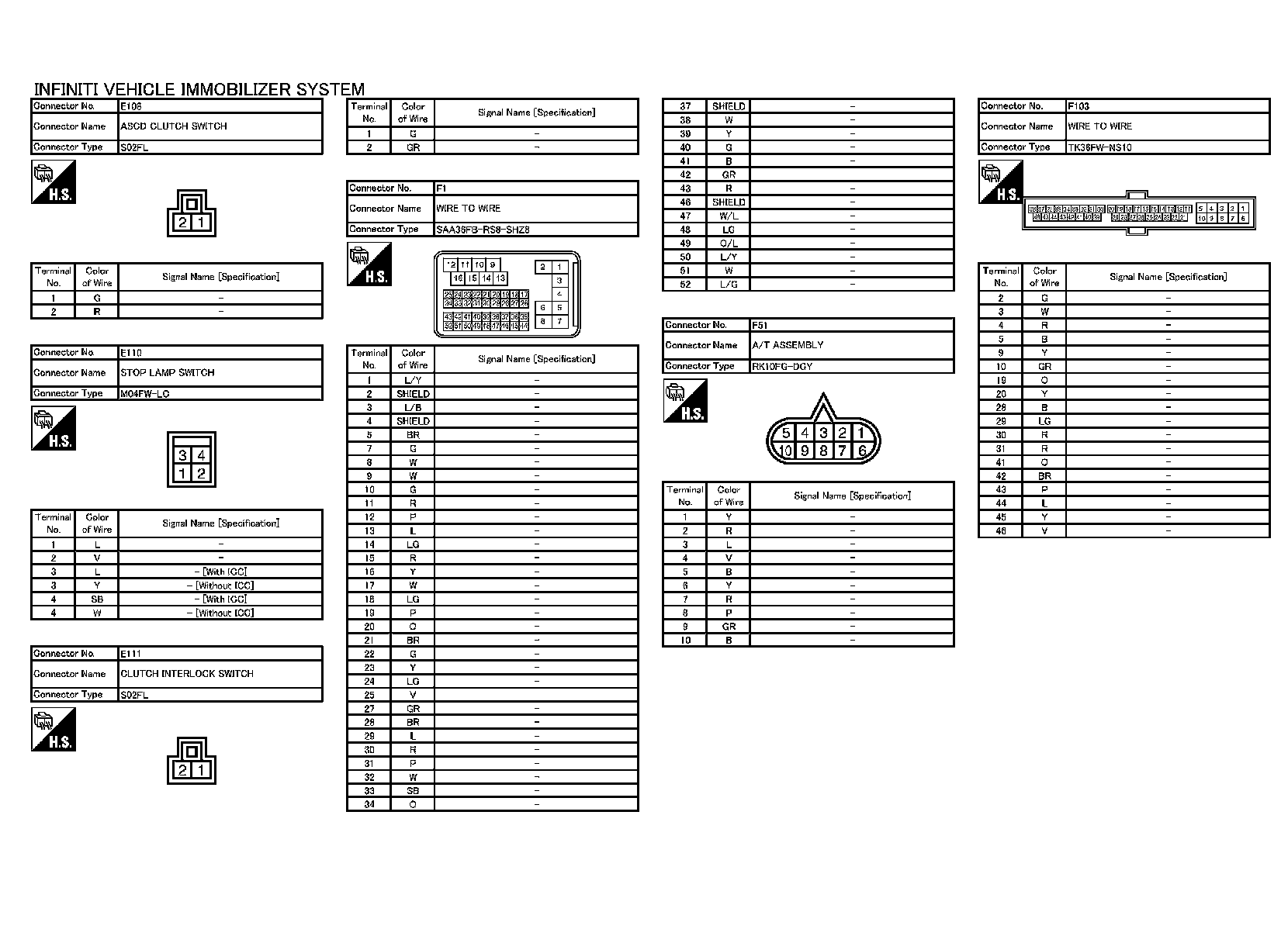

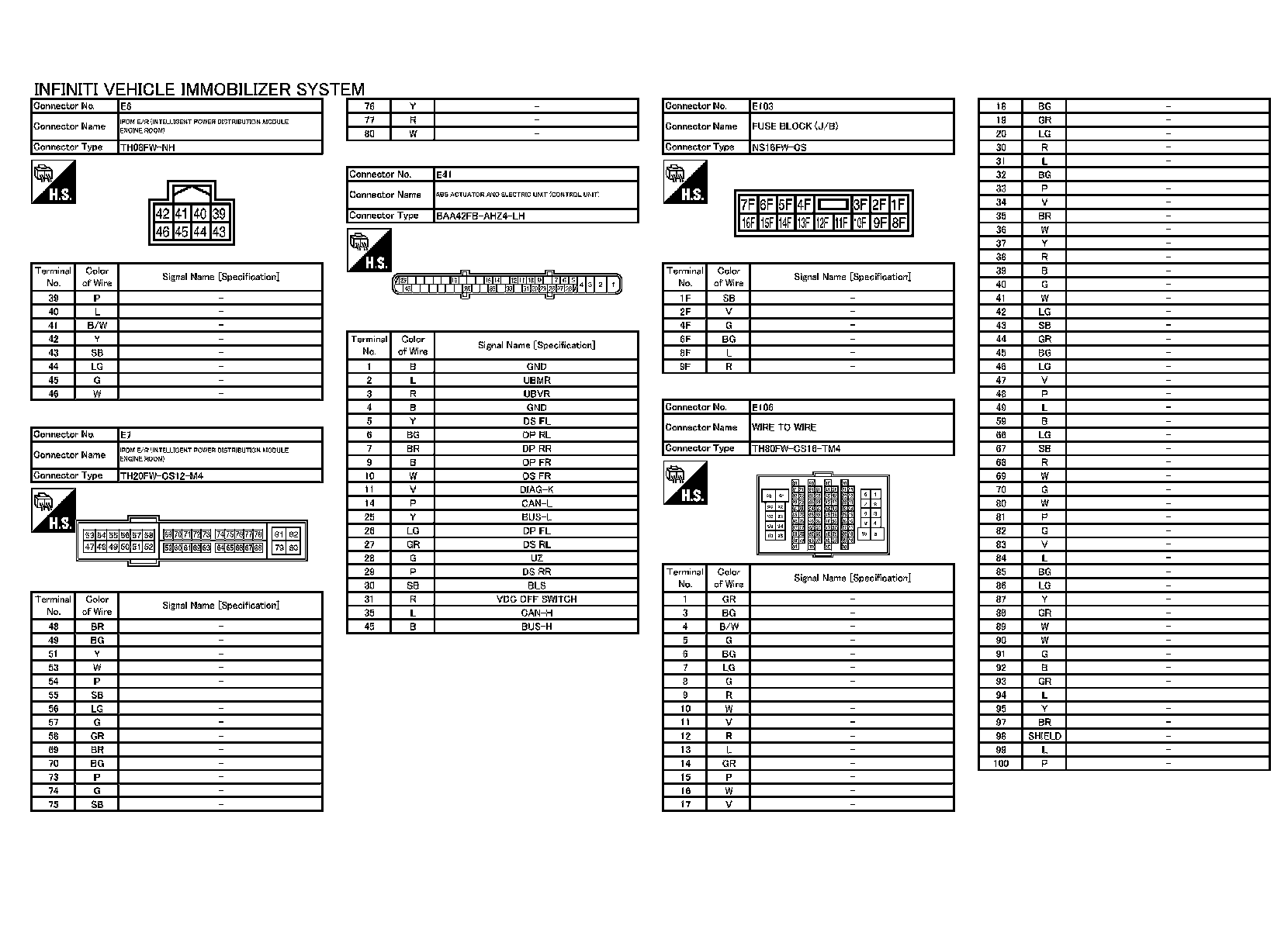

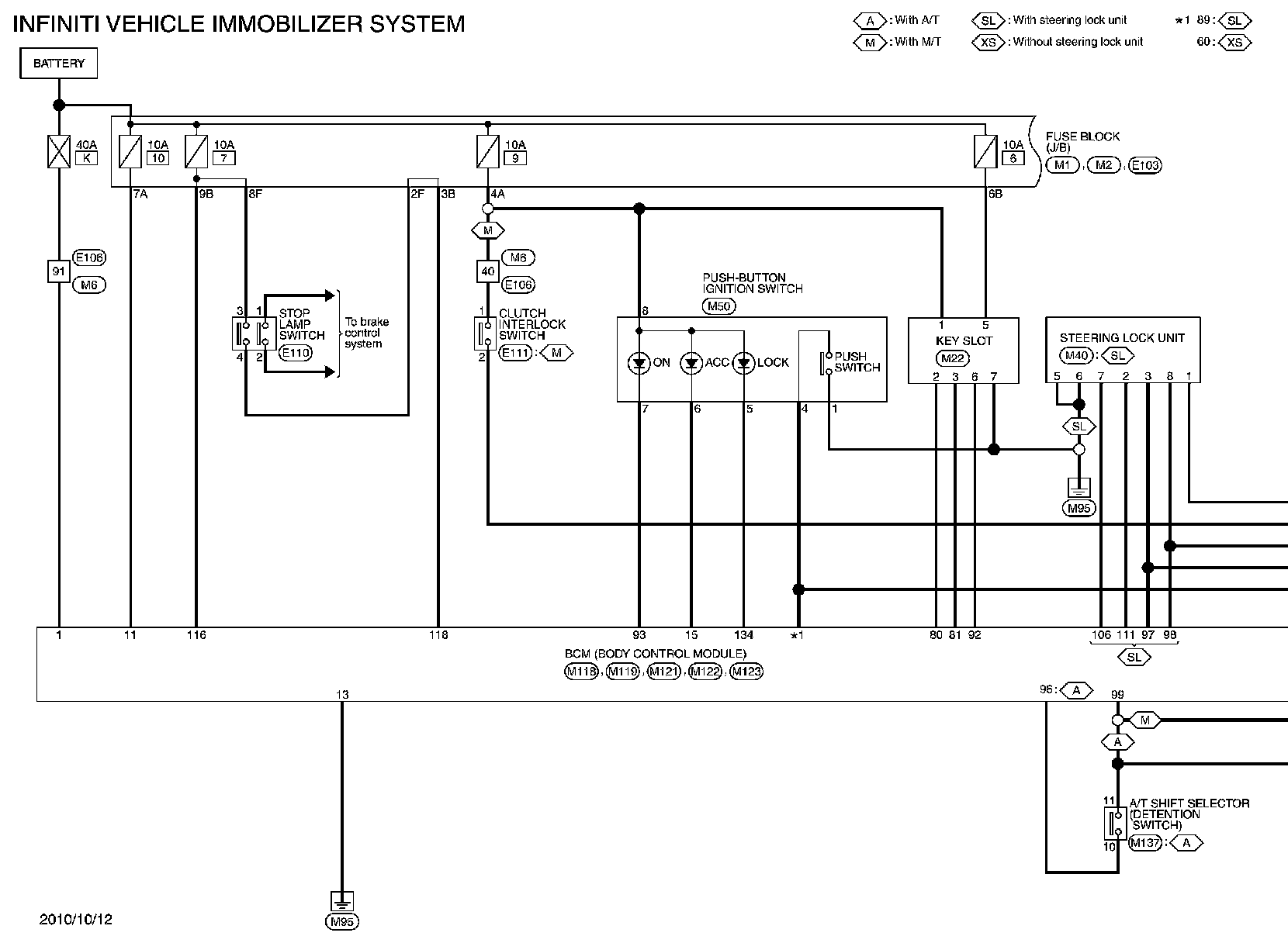

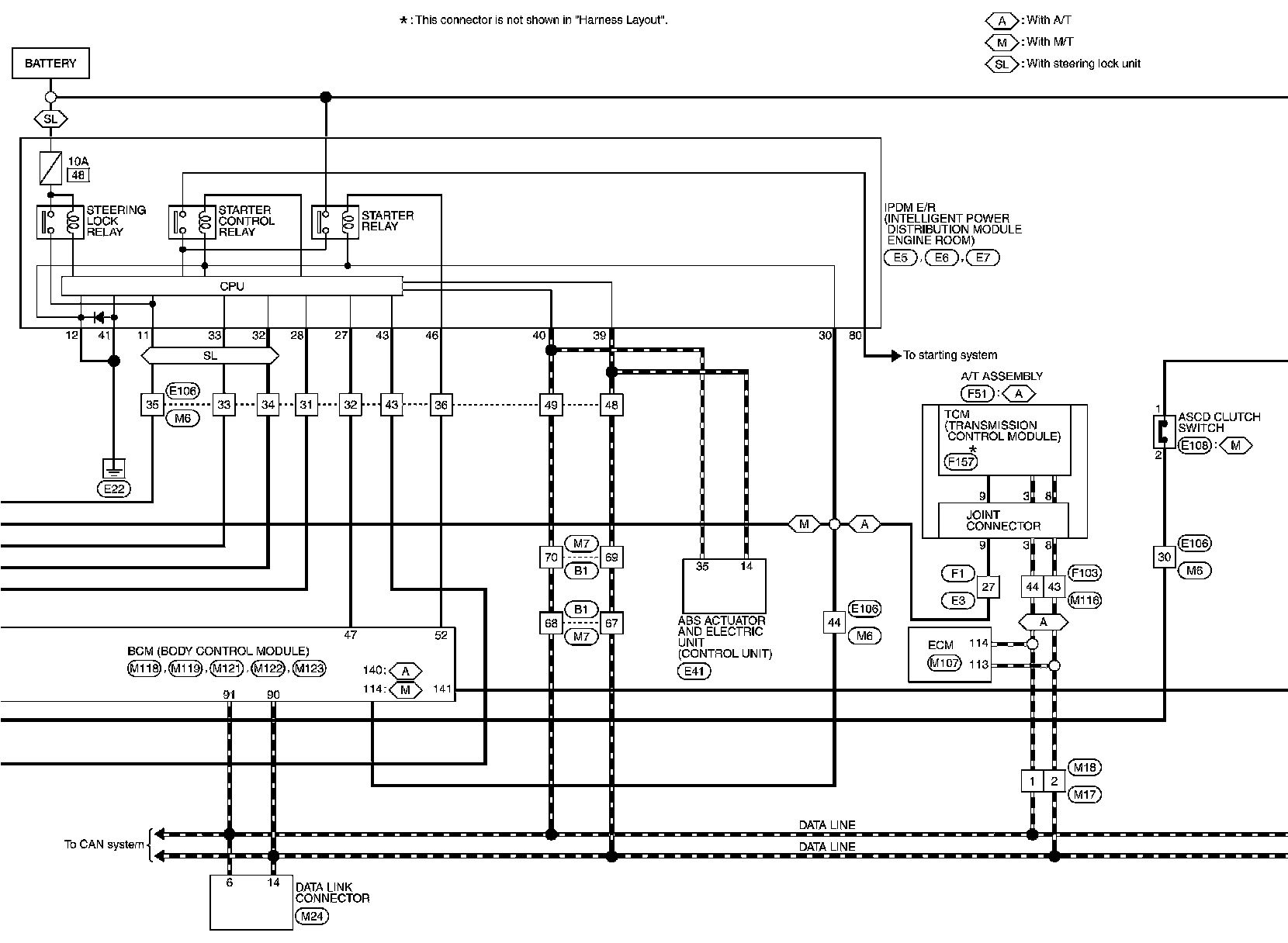

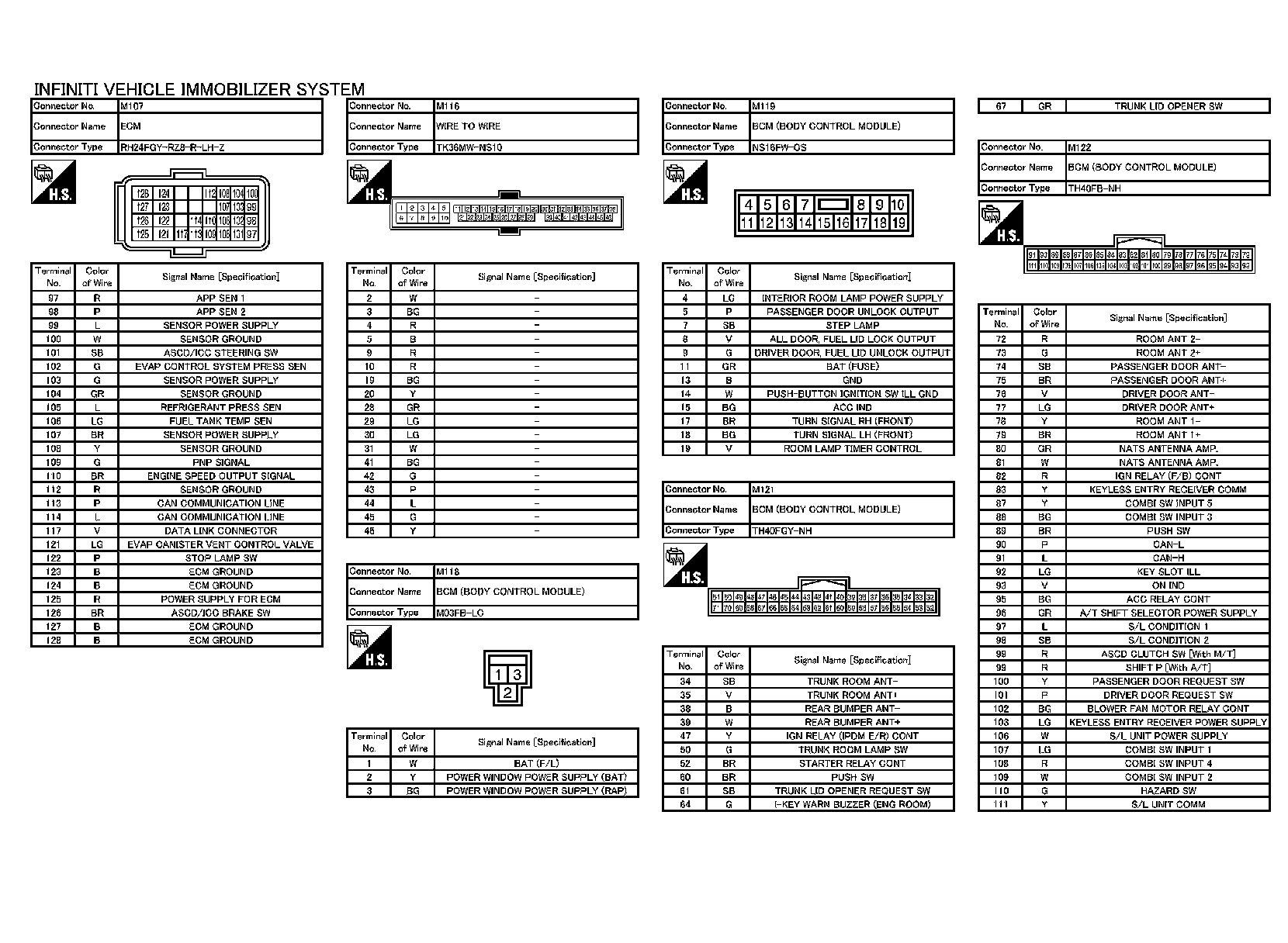

Wiring Diagram - INFINITI VEHICLE IMMOBILIZER SYSTEM
