How to Read Harness Layout




HARNESS LAYOUT

How To Read Harness Layout












CONNECTOR SYMBOL

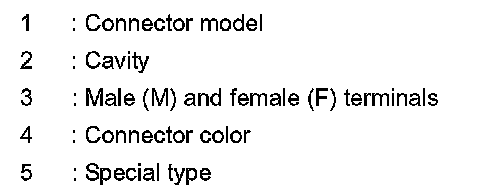

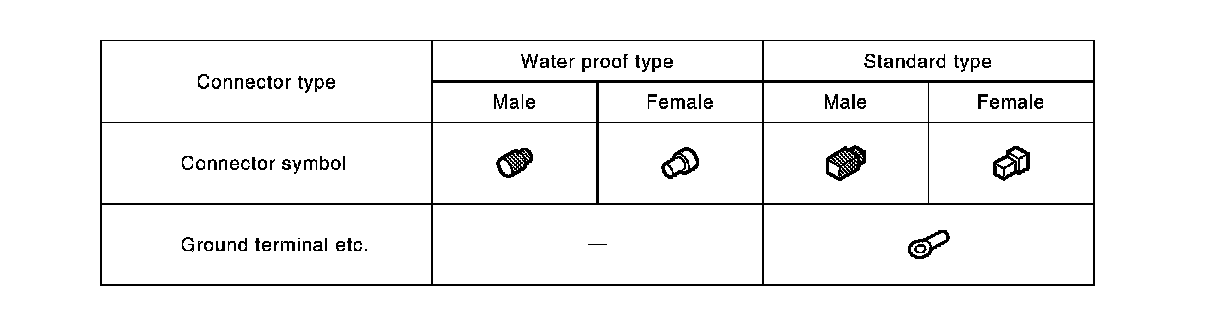

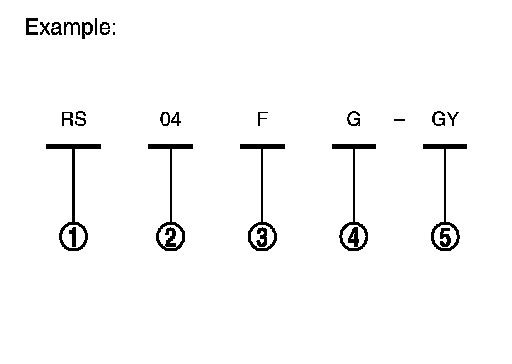

Main symbols of connector (in Harness Layout) are indicated in the below.
