Pinout Values and Diagnostic Parameters




ICC SENSOR INTEGRATED UNIT

Reference Value

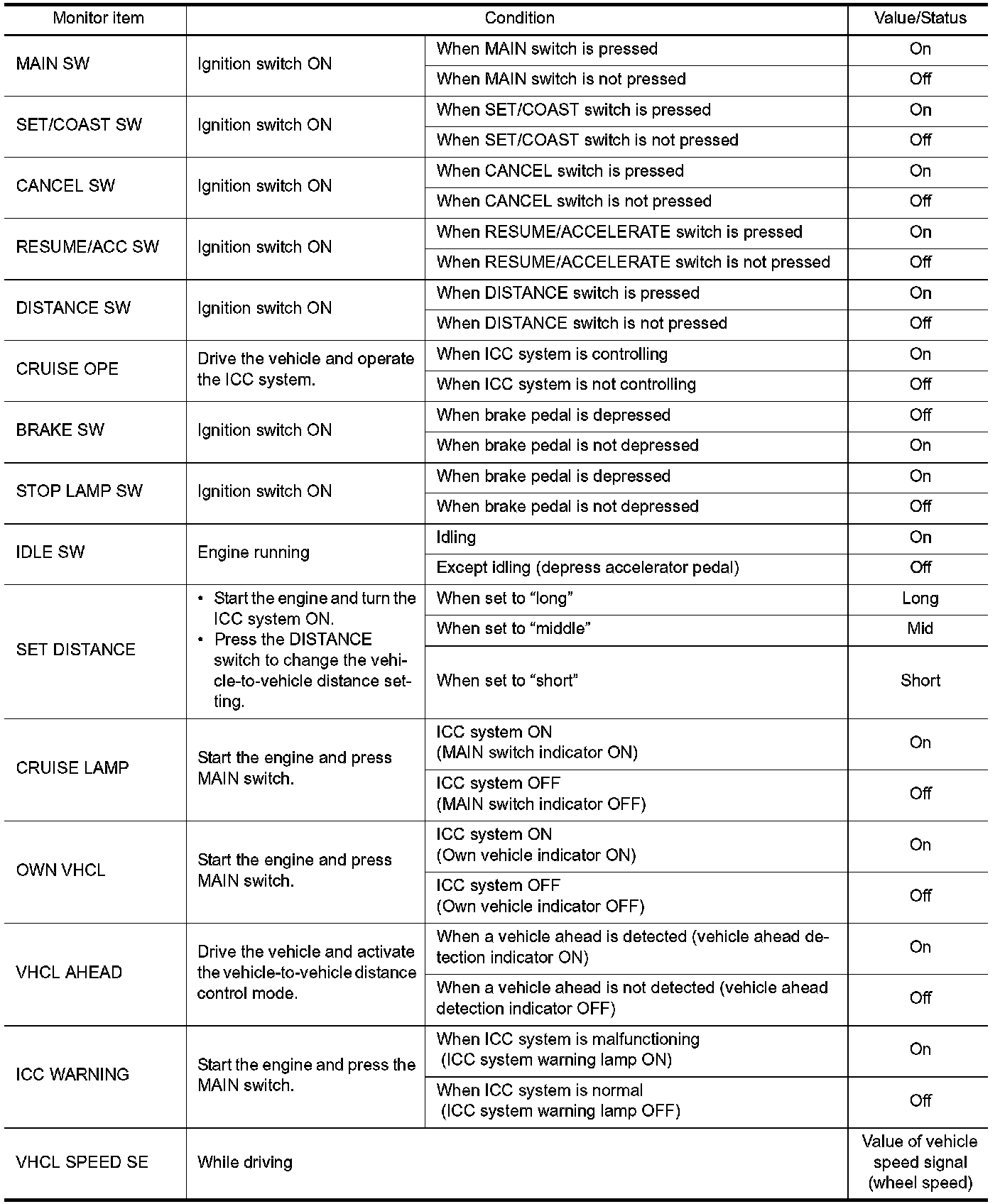

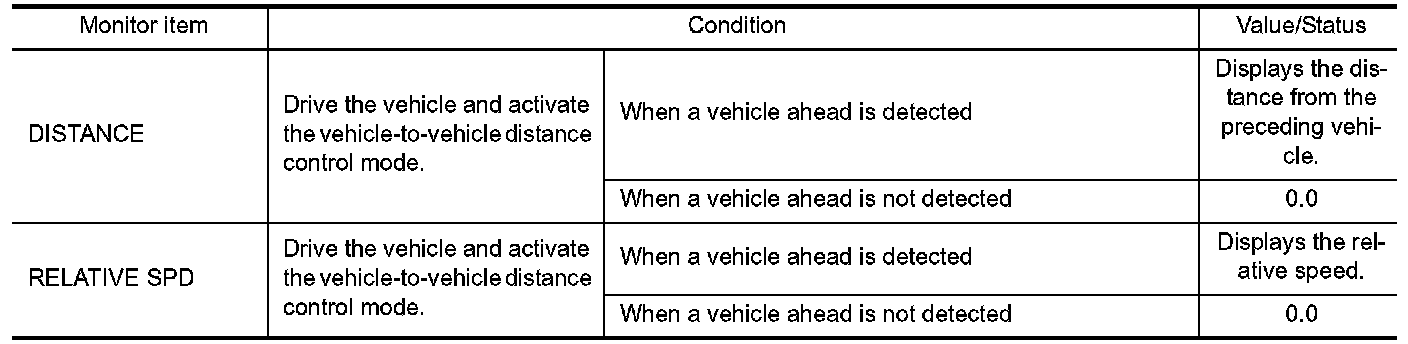

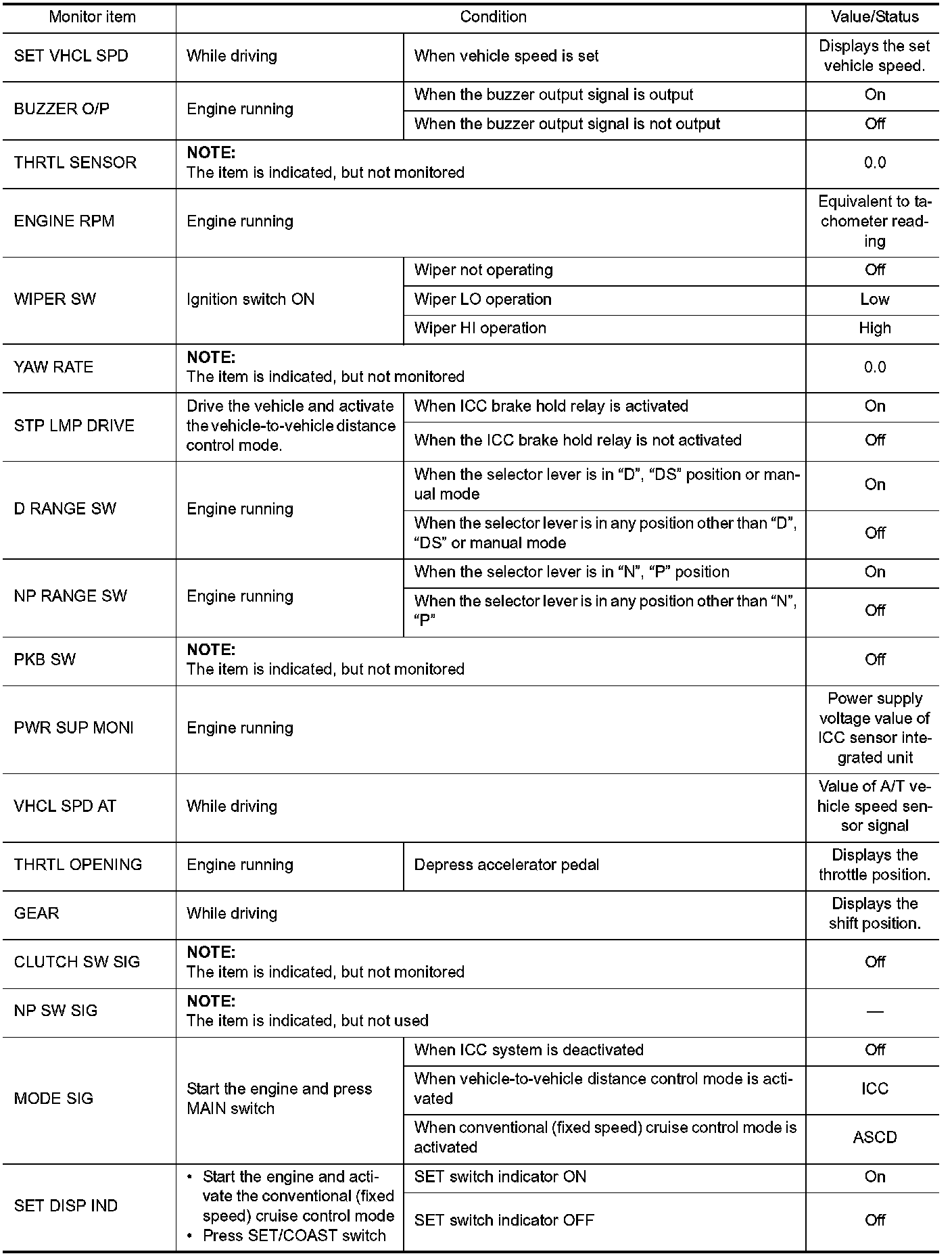

VALUES ON THE DIAGNOSIS TOOL






















TERMINAL LAYOUT


PHYSICAL VALUES
