Brake Warning Lamp

BRAKE WARNING LAMP

Description

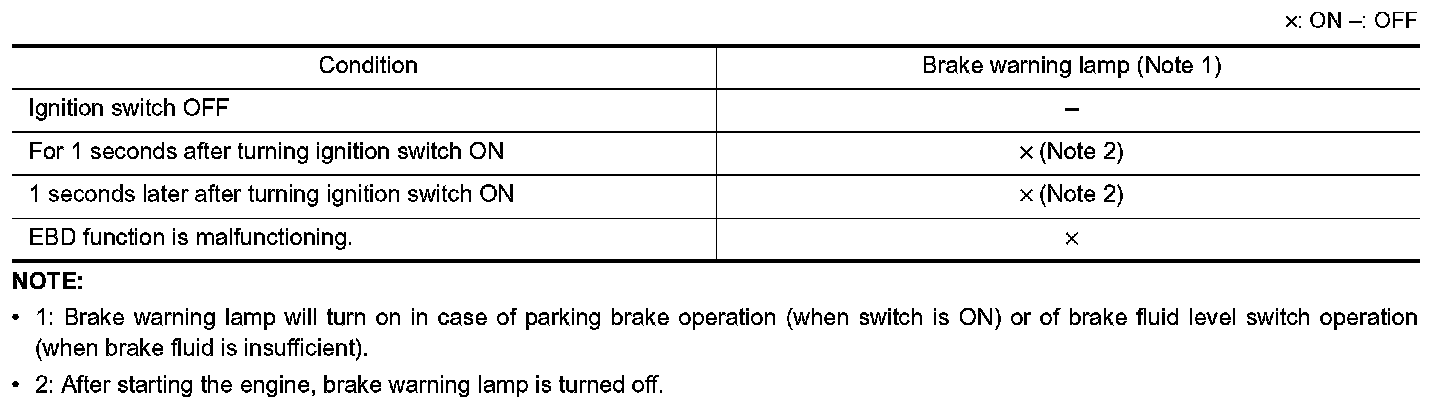

�: ON -: OFF







Component Function Check


1. BRAKE WARNING LAMP OPERATION CHECK 1

Check that the lamp illuminates for approximately 1 seconds after the ignition switch is turned ON.
Is the inspection result normal?
YES- GO TO 2.
NO- Proceed to diagnosis procedure. .

2. BRAKE WARNING LAMP OPERATION CHECK 2

Check that the brake warning lamp in the combination meter turns ON/OFF correctly when operating the parking brake pedal.
Is the inspection result normal?
YES- INSPECTION END
NO- Check parking brake switch. Parking Brake Switch.


Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS

Perform self-diagnosis for "ABS" with CONSULT-III.
Is any DTC detected?
YES- Check the DTC.
NO- GO TO 2.

2. CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Reading and Clearing Diagnostic Trouble Codes.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). Exploded View.
NO- Repair or replace error-detected parts.


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Special Repair Requirement
- END
