Component Function Check

FORWARD SWITCH

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "FORWARD SW" in the "Data Monitor" mode using CONSULT-III.

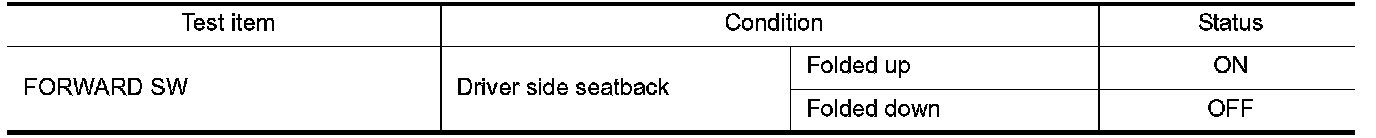

3.Check the forward switch signal under the following condition.





Is the indication normal?
YES- Forward switch function is OK.
NO- Refer to Diagnosis Procedure.
