Component Inspection

DOOR MIRROR REMOTE CONTROL SWITCH

CHANGE OVER SWITCH : Component Inspection


1. CHECK CHANGE OVER SWITCH

1.Turn ignition switch OFF.
2.Disconnect door mirror remote control switch connector.

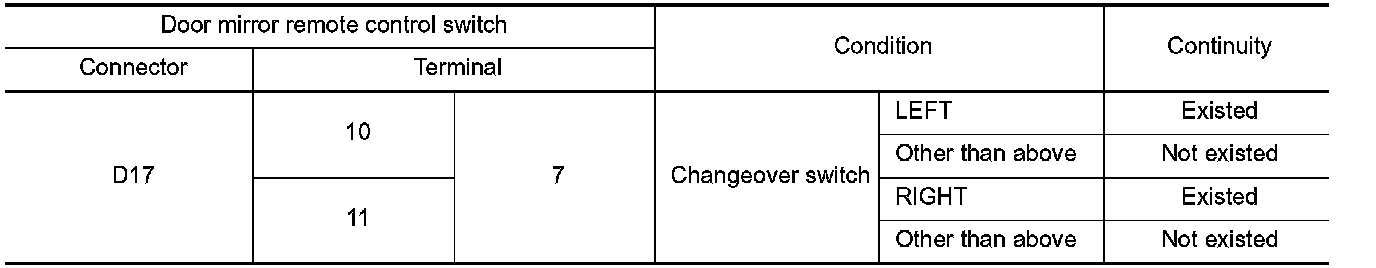

3.Check continuity between door mirror remote control switch terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace door mirror remote control switch. Removal and Installation.
