Component Function Check

DOOR MIRROR REMOTE CONTROL SWITCH

CHANGE OVER SWITCH : Component Function Check


1. CHECK CHANGE OVER SWITCH FUNCTION

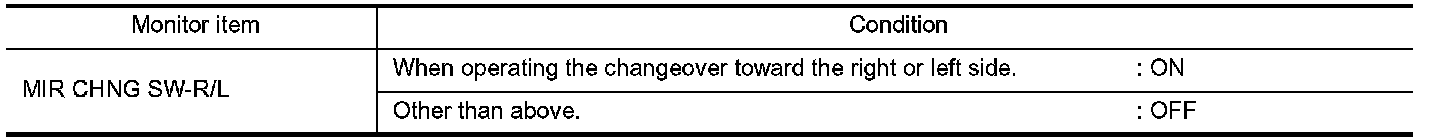

Check the operation on "MIR CHNG SW-R" or "MIR CHNG SW-L" in the "DATA MONITOR" mode using
CONSULT-III.





Is the inspection result normal?
YES- Change over switch function is OK.
NO- Diagnosis Procedure.
