Removal and Installation




DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation


REMOVAL

1.Remove the power window main switch finisher.

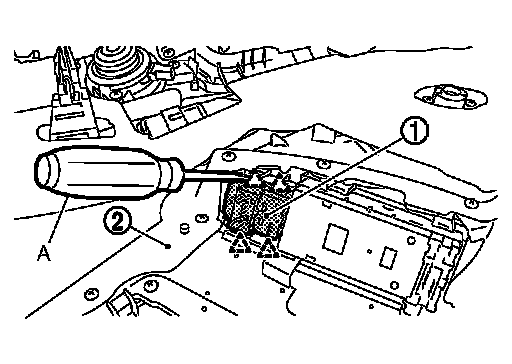

2.Remove door mirror remote control switch (1) from power window main switch finisher (2) using flat-bladed screwdriver (A).






INSTALLATION

Install in the reverse order of removal.
