Driver Seat Control Unit (Without Automatic Drive Positioner)




DRIVER SEAT CONTROL UNIT (WITHOUT AUTOMATIC DRIVE POSITIONER)

Fail-Safe

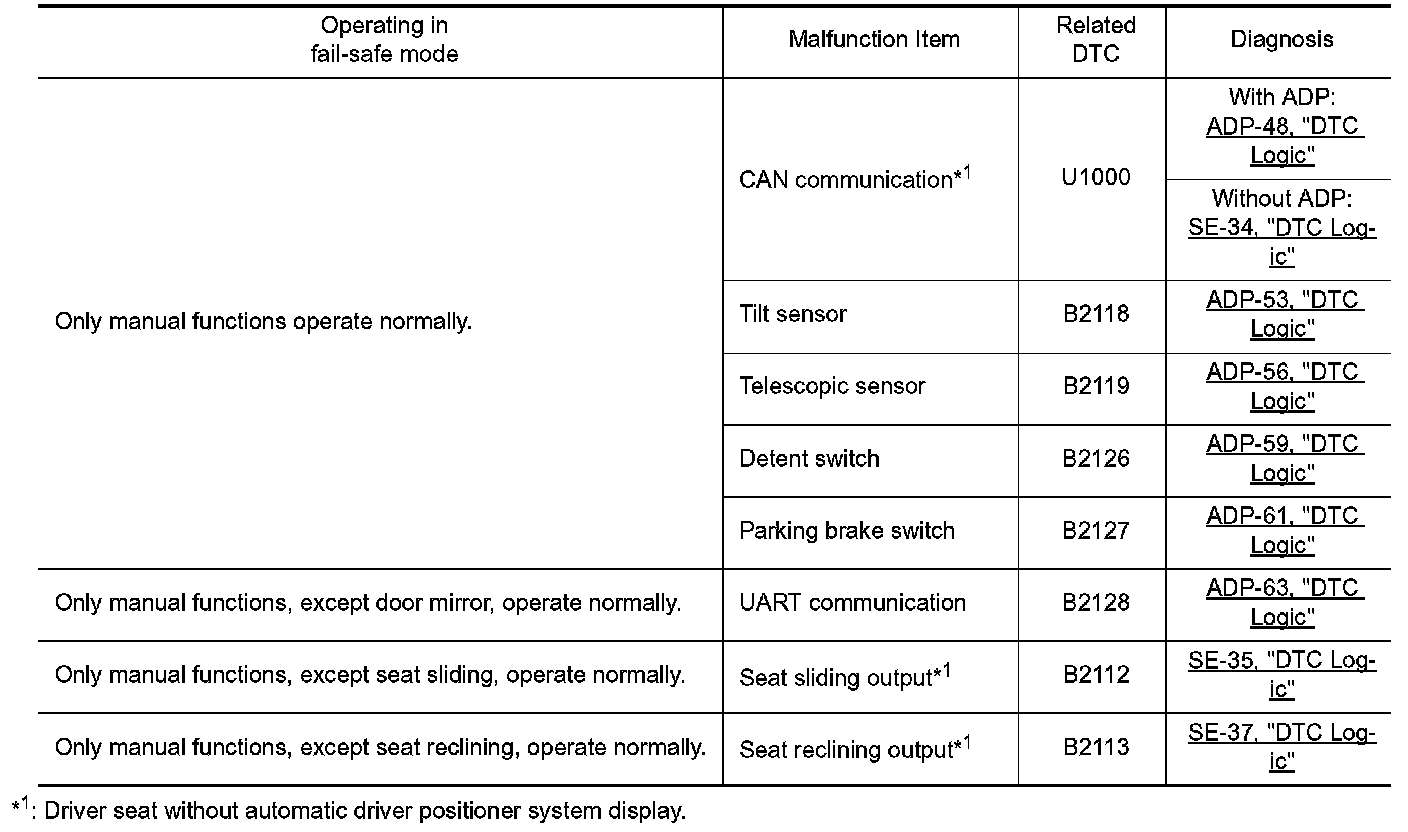

The fail-safe mode may be activated if the following symptoms are observed.
