Component Function Check

SLIDING SENSOR

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "SLIDE PULSE" in the "Data Monitor" mode using CONSULT-III.

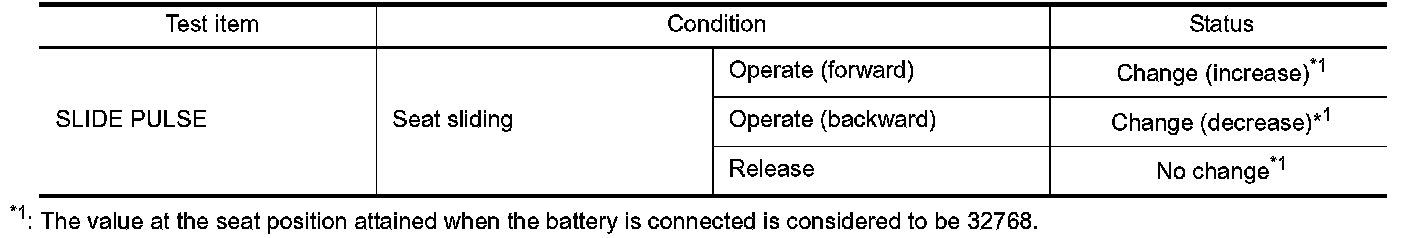

3.Check sliding sensor signal under the following conditions.





Is the indication normal?
YES- Sliding sensor function is OK.
NO- Diagnosis Procedure.
