Diagnosis Procedure

SLIDING LIMIT SWITCH

PASSENGER SIDE : Diagnosis Procedure


1. CHECK SLIDING LIMIT SWITCH SIGNAL

1.Turn ignition switch OFF.

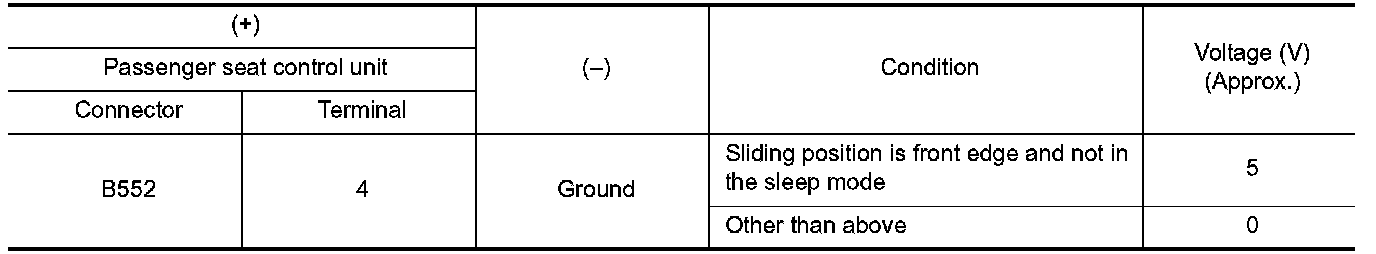

2.Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES- Sliding switch circuit is OK.
NO- GO TO 2.

2. CHECK SLIDING LIMIT SWITCH CIRCUIT

1.Disconnect passenger seat control unit connector and sliding limit switch connector.

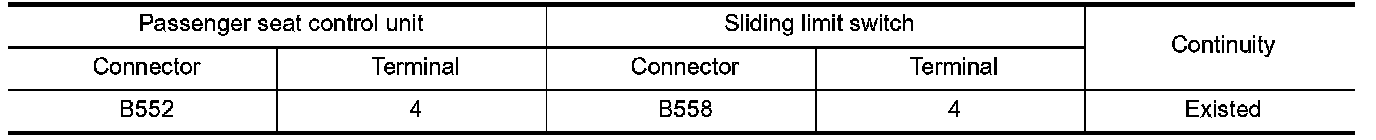

2.Check continuity between passenger seat control unit harness connector and sliding limit switch harness connector.

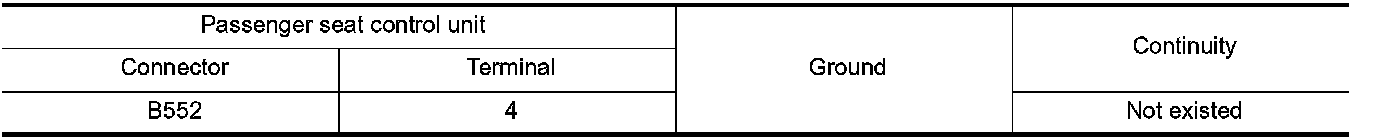

3.Check continuity between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. CHECK SLIDING LIMIT SWITCH GROUND CIRCUIT

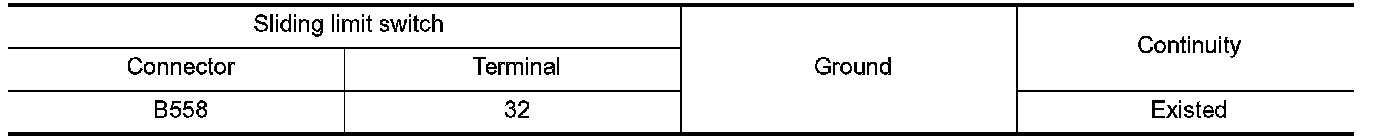

Check continuity between sliding limit switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace harness.

4. CHECK SLIDING LIMIT SWITCH

Check sliding limit switch.
Component Inspection.
Is the inspection result normal?
YES- GO TO 5.
NO- Replace sliding limit switch. Exploded View.

5. CHECK PASSENGER SEAT CONTROL UNIT OUTPUT SIGNAL

1.Connect passenger seat control unit connector.

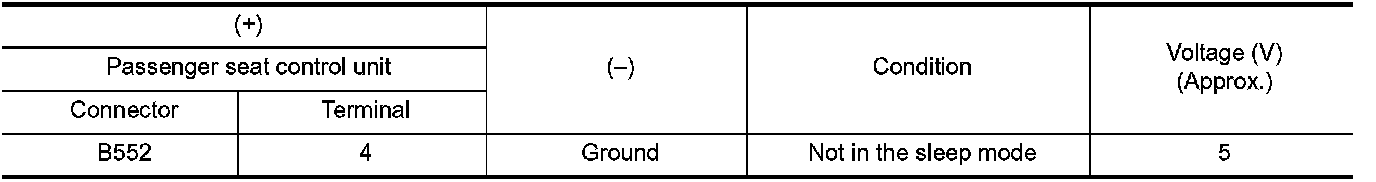

2.Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 6.
NO- Replace passenger seat control unit. Removal and Installation.

6. CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Intermittent Incident.
- INSPECTION END
