Component Inspection

SEAT CUSHION HEATER

PASSENGER SIDE : Component Inspection


1. CHECK SEAT CUSHION HEATER

1.Turn ignition switch OFF.
2.Disconnect seat cushion heater connector and seatback heater connector.

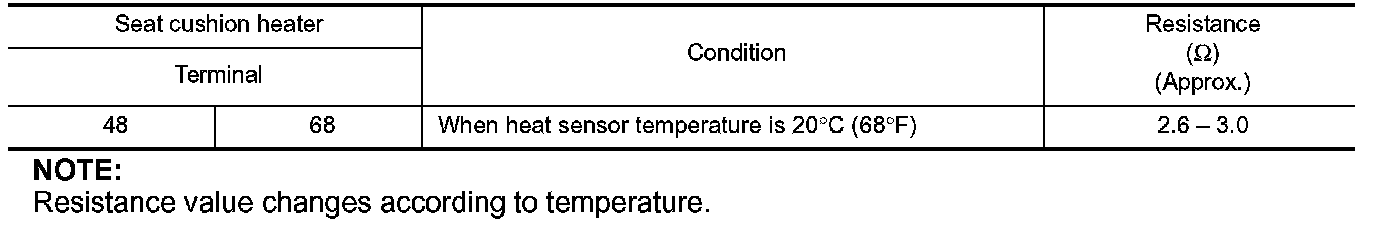

3.Check resistance between seat cushion heater terminals.





NOTE:
Resistance value changes according to temperature.
Is the inspection result normal?
YES- INSPECTION END
NO- Replace seat cushion heater. Exploded View.
