Diagnosis Procedure

SEAT BELT BUCKLE SWITCH

PASSENGER SIDE : Diagnosis Procedure


1. CHECK SEAT BELT BUCKLE SWITCH SIGNAL

1.Turn ignition switch OFF.

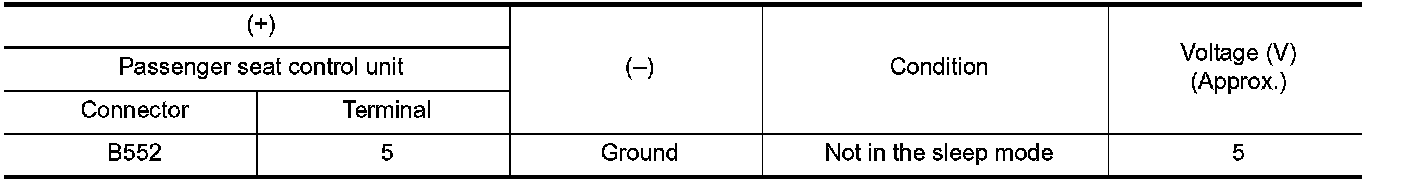

2.Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES- Seat belt buckle switch (passenger side) circuit is OK.
NO- GO TO 2.

2. CHECK SEAT BELT BUCKLE SWITCH (PASSENGER SIDE) CIRCUIT

1.Disconnect passenger seat control unit connector and seat belt buckle switch (passenger side) connector.

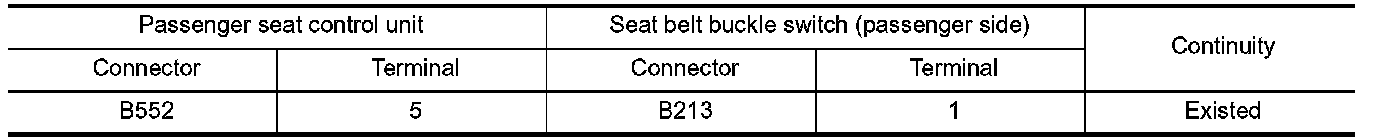

2.Check continuity between passenger seat control unit harness connector and seat belt buckle switch (passenger side) harness connector.

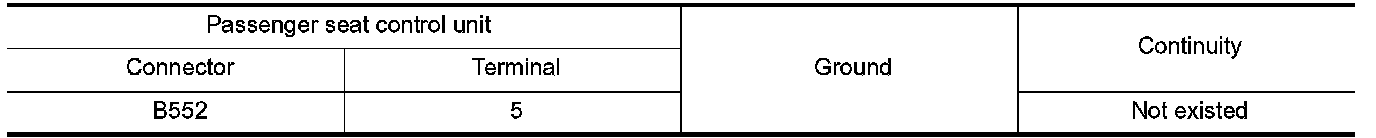

3.Check continuity between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. CHECK SEAT BELT BUCKLE SWITCH (PASSENGER SIDE) GROUND CIRCUIT

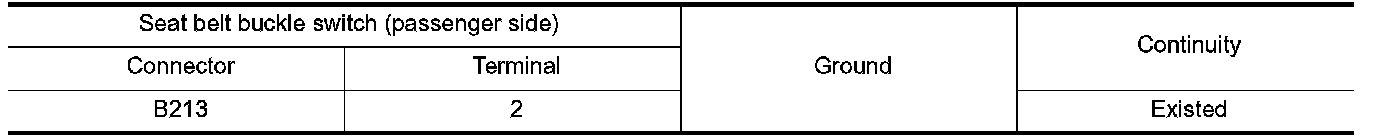

Check continuity between seat belt buckle switch (passenger side) harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace harness.

4. CHECK SEAT BELT BUCKLE SWITCH (PASSENGER SIDE)

Check seat belt buckle switch.
Component Inspection.
Is the inspection result normal?
YES- GO TO 5.
NO- Replace seat belt buckle switch (passenger side). Exploded View.

5. CHECK PASSENGER SEAT CONTROL UNIT OUTPUT SIGNAL

1.Connect passenger seat control unit connector.

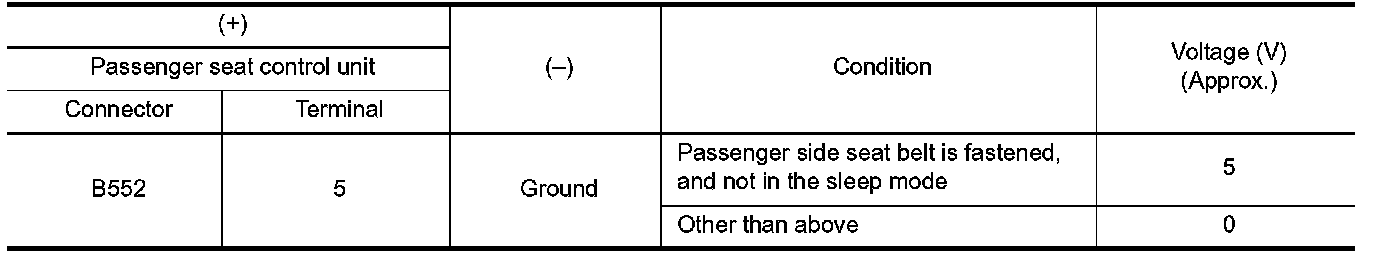

2.Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 6.
NO- Replace passenger seat control unit. Removal and Installation.

6. CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Intermittent Incident.
- INSPECTION END
