Diagnosis Procedure

RECLINING MOTOR

DRIVER SIDE : Diagnosis Procedure


1. CHECK RECLINING MOTOR POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect reclining motor connector.
3.Check voltage between reclining motor harness connector and ground.





Is the inspection result normal?
YES- Replace reclining motor.
NO- GO TO 2.

2. CHECK RECLINING MOTOR CIRCUIT

1.Disconnect driver seat control unit connector.

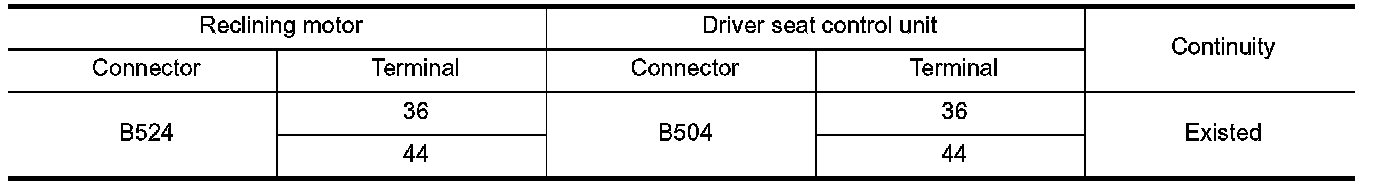

2.Check continuity between reclining motor harness connector and driver seat control unit harness connector.

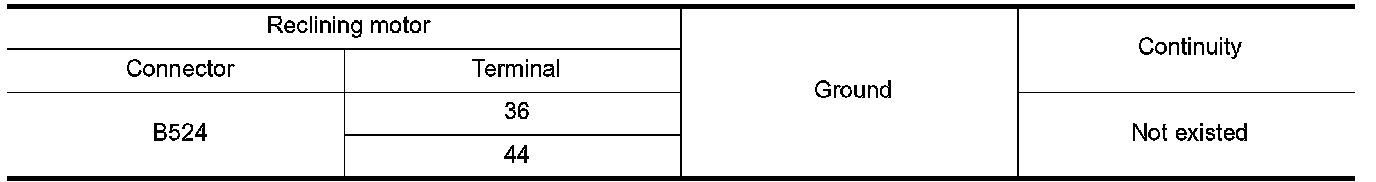

3.Check continuity between reclining motor harness connector and ground.





Is the inspection result normal?
YES- Replace driver seat control unit. Removal and Installation.
NO- Repair or replace harness.
