Diagnosis Procedure

LIFTING SWITCH (REAR)

DRIVER SIDE : Diagnosis Procedure


1. CHECK LIFTING SWITCH (REAR) SIGNAL

1.Turn ignition switch OFF.
2.Disconnect power seat switch connector.

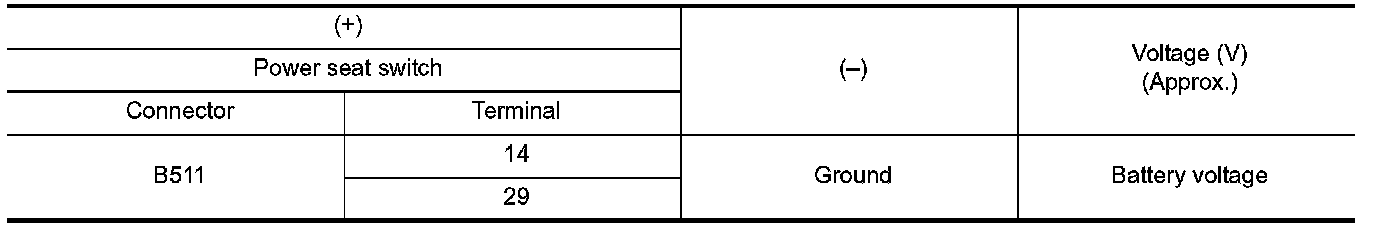

3.Check voltage between power seat switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK LIFTING SWITCH (REAR) CIRCUIT

1.Disconnect driver seat control unit connector.

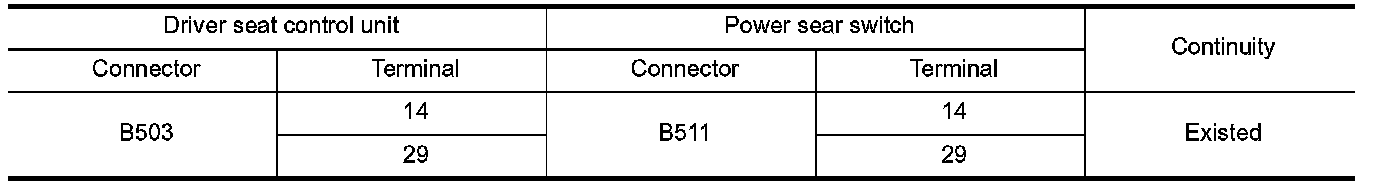

2.Check continuity between driver seat control unit harness connector and power seat switch harness connector.





3.Check continuity between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES- Replace driver seat control unit. Removal and Installation.
NO- Repair or replace harness.

3. CHECK LIFTING SWITCH (REAR)

Check lifting switch (rear).
Component Inspection.
Is the inspection result normal?
YES- GO TO 4.
NO- Replace power seat switch. Power Seat Switch.

4. CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Intermittent Incident.
- INSPECTION END
