Component Function Check

LIFTING SWITCH (REAR)

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "LIFT RR SW-UP", "LIFT RR SW-DN" in the "Data monitor" mode using CONSULT-III.

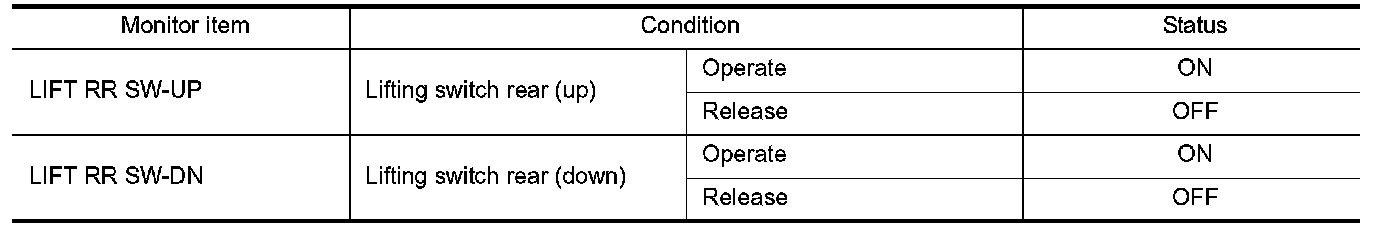

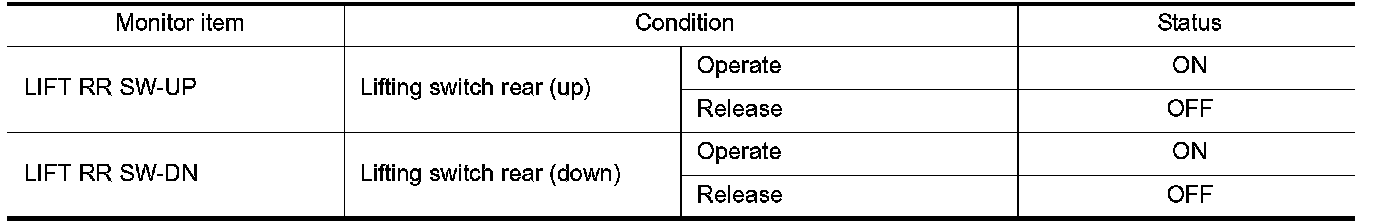

3.Check lifting switch (rear) signal under the following conditions.





Is the indication normal?
YES- Lifting switch (rear) function is OK.
NO- Diagnosis Procedure.
