Tilt Motor

TILT MOTOR

Description

- The tilt motor is installed to the steering column assembly.
- The tilt motor is activated with the automatic drive positioner control unit.
- The steering column is tilted upward/downward by changing the rotation direction of tilt motor.


Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.

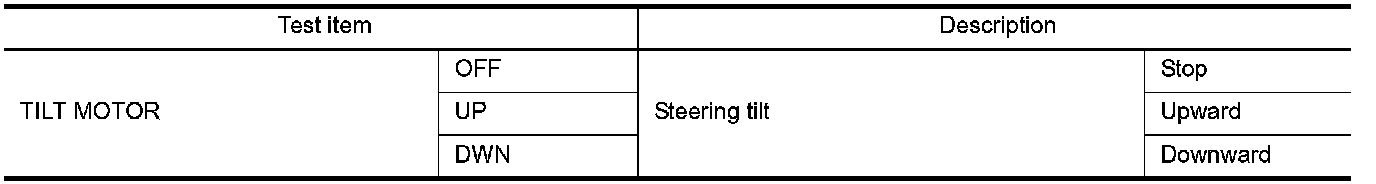

2.Select "TILT MOTOR" in "Active test" mode using CONSULT-III.
3.Check the tilt motor operation.





Is the operation of relevant parts normal?
YES- INSPECTION END
NO- Perform diagnosis procedure. .


Diagnosis Procedure


1. CHECK TILT MOTOR POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect tilt & telescopic motor connector.
3.Turn ignition switch ON.
4.Perform "Active test" ("TILT MOTOR") using CONSULT-III.

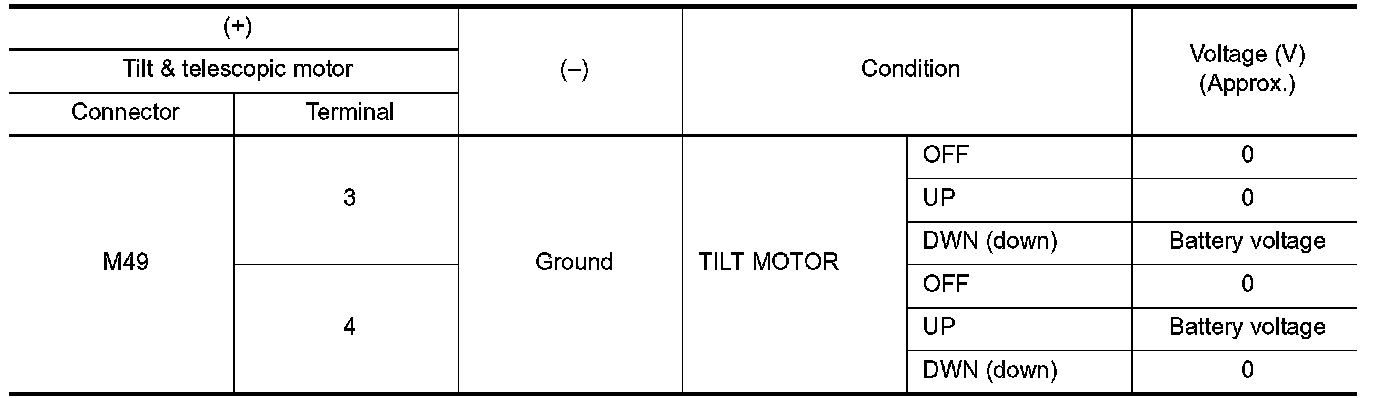

5.Check voltage between tilt & telescopic motor harness connector and ground.





Is the inspection result normal?
YES- Replace tilt motor. (Built in steering column assembly.) Exploded View.
NO- GO TO 2.

2. CHECK TILT MOTOR CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect automatic drive positioner control unit connector.

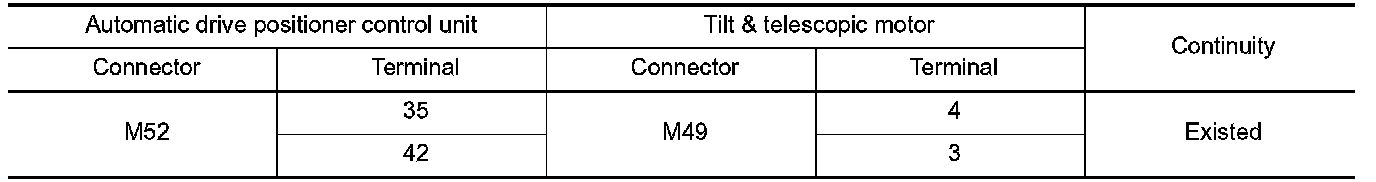

3.Check continuity between automatic drive positioner control unit harness connector and tilt & telescopic motor harness connector.

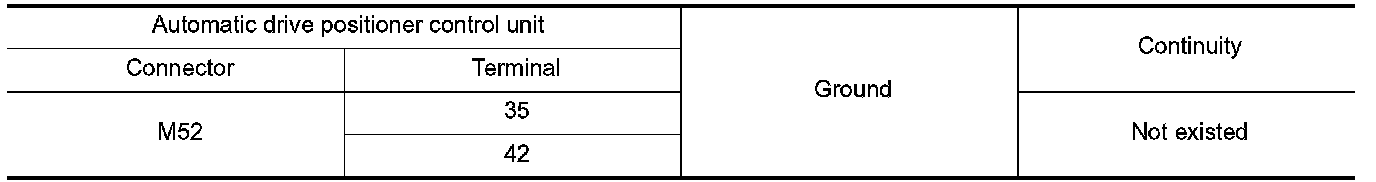

4.Check continuity between automatic drive positioner control unit harness connector and ground.





Is the inspection result normal?
YES- Replace automatic drive positioner control unit. Removal and Installation.
NO- Repair or replace harness.
