Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (RETRACTABLE HARD TOP CONTROL UNIT)

CONSULT-III Function


APPLICATION ITEM

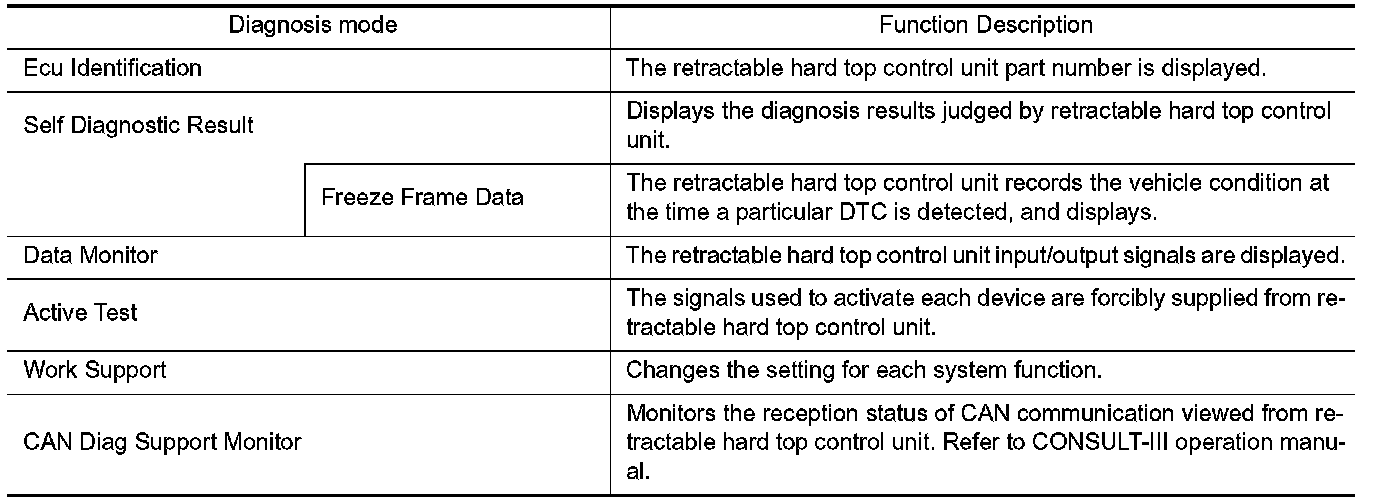

CONSULT-III performs the following functions via CAN communication with retractable hard top control unit.






WORK SUPPORT







SELF-DIAG RESULT

Testing and Inspection.
Freeze Frame Data
The retractable hard top control unit records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.

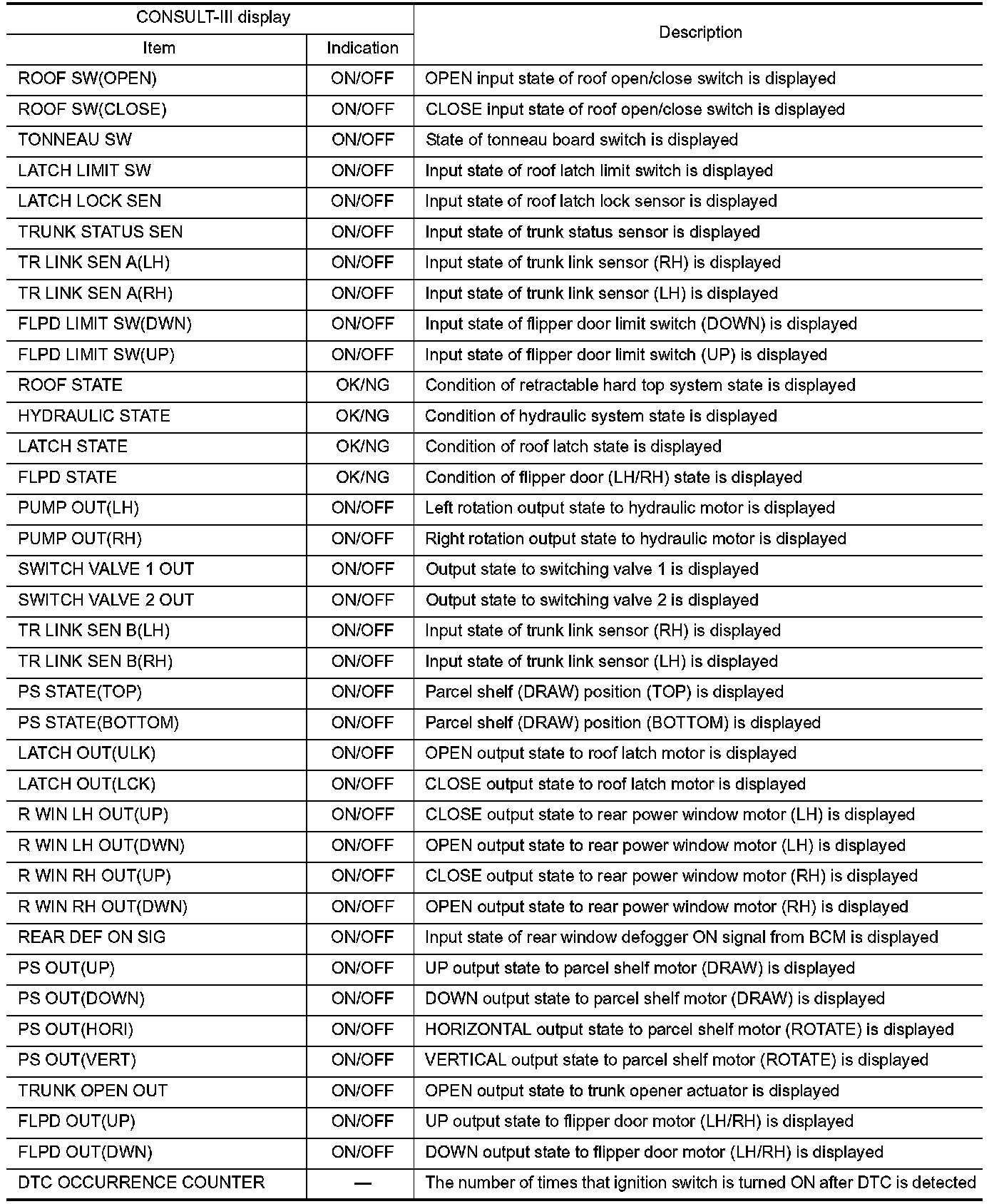

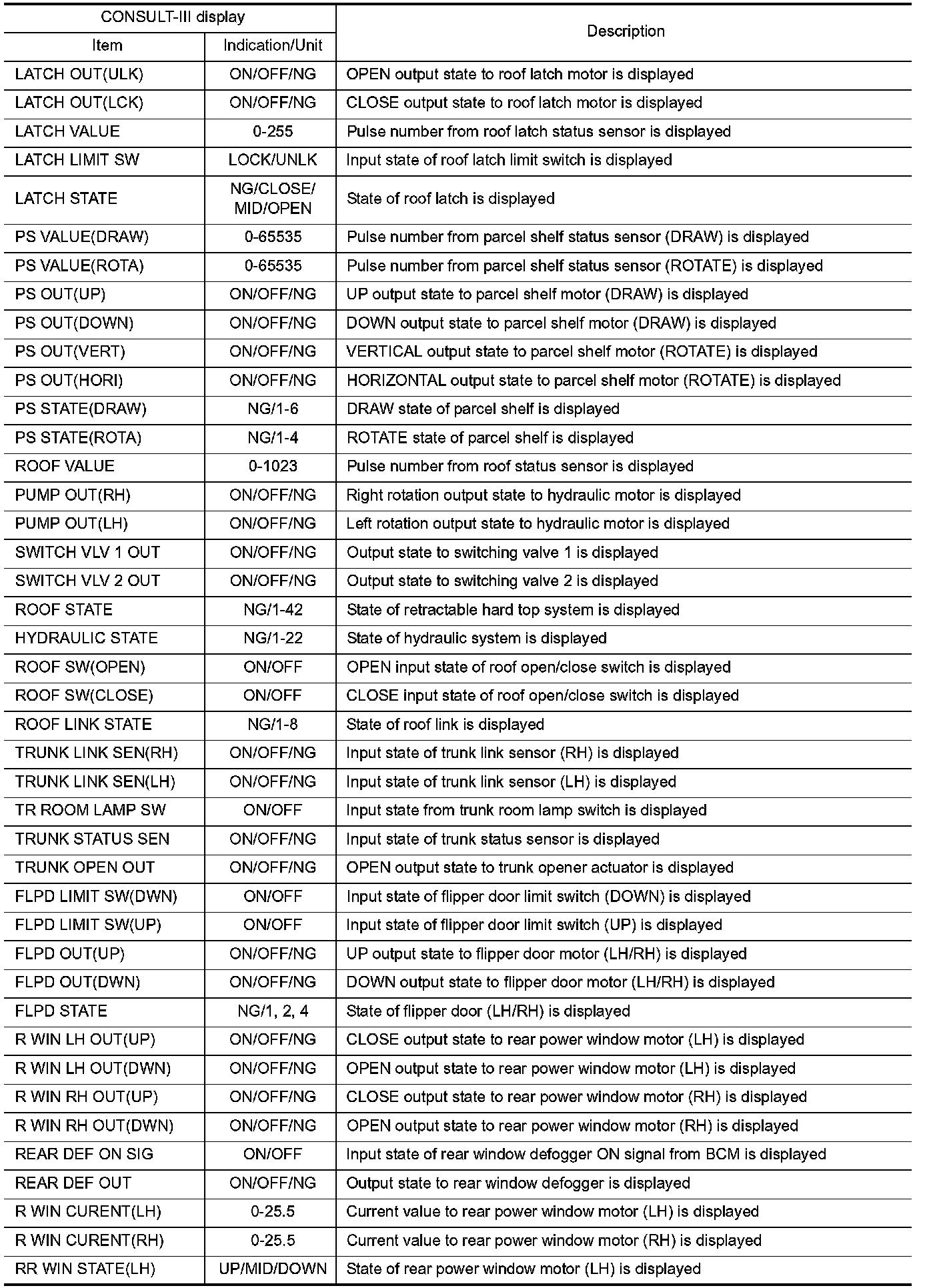

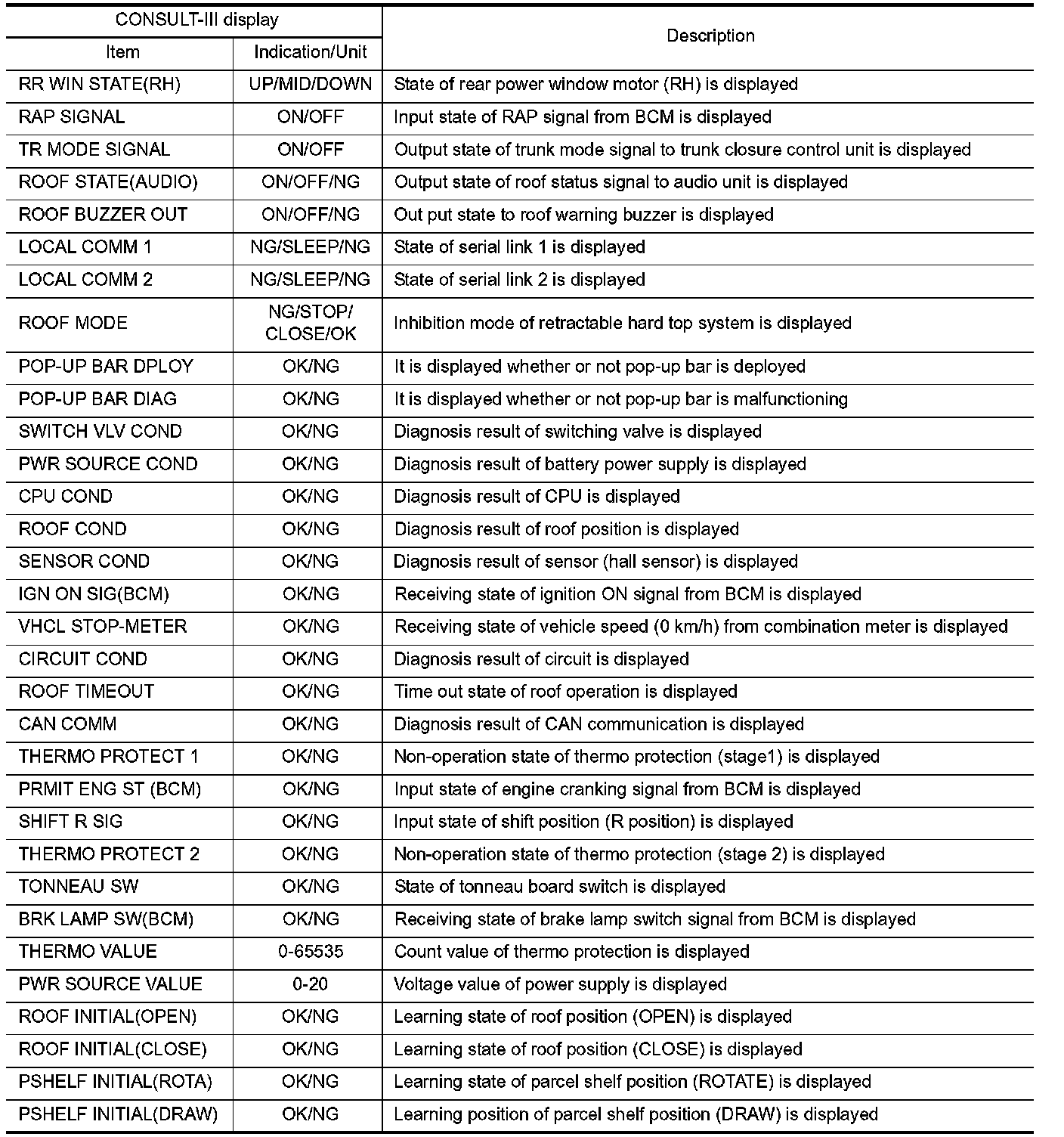

DATA MONITOR

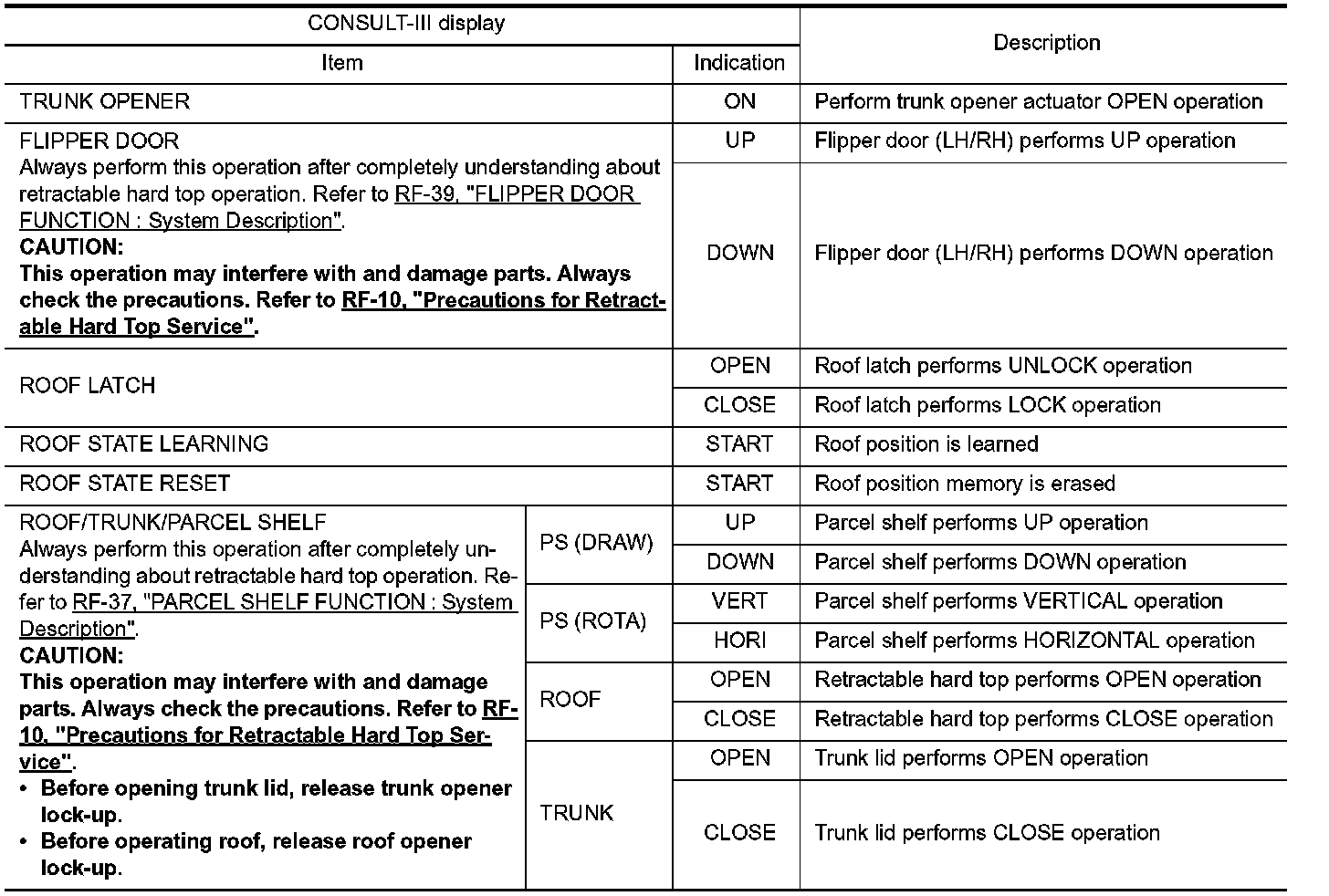

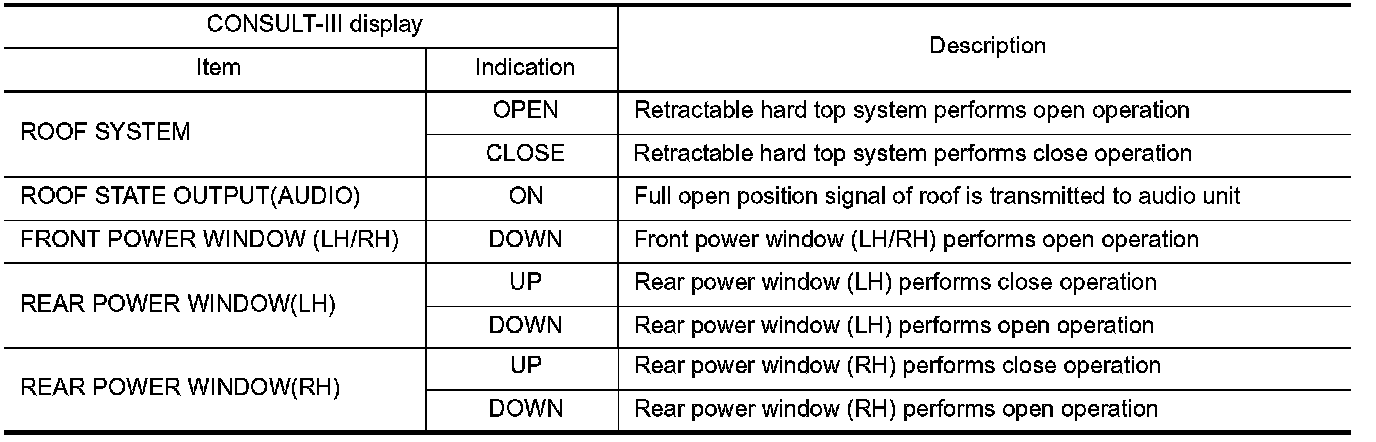

ACTIVE TEST
