Roof




RETRACTABLE HARD TOP CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL

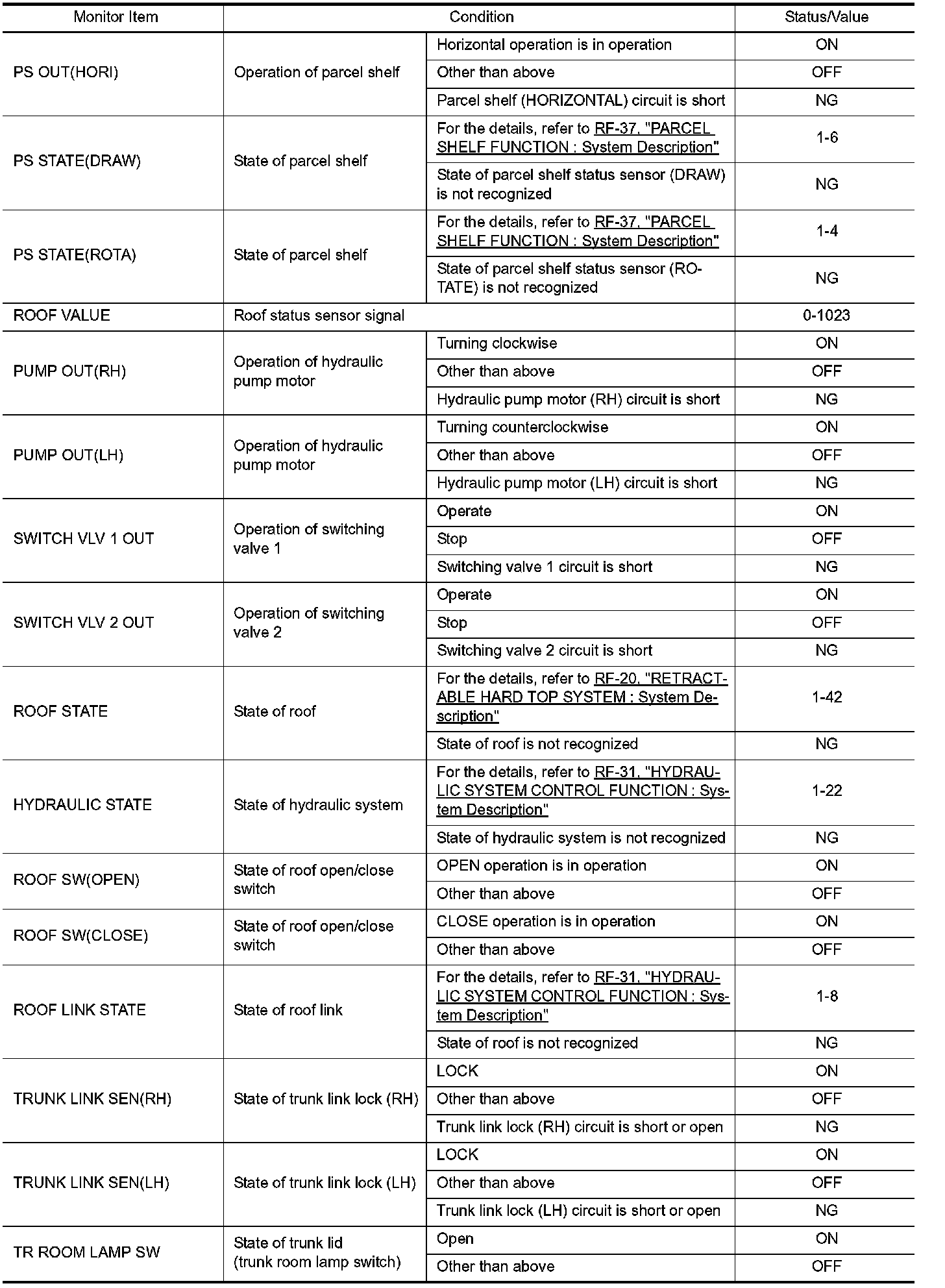

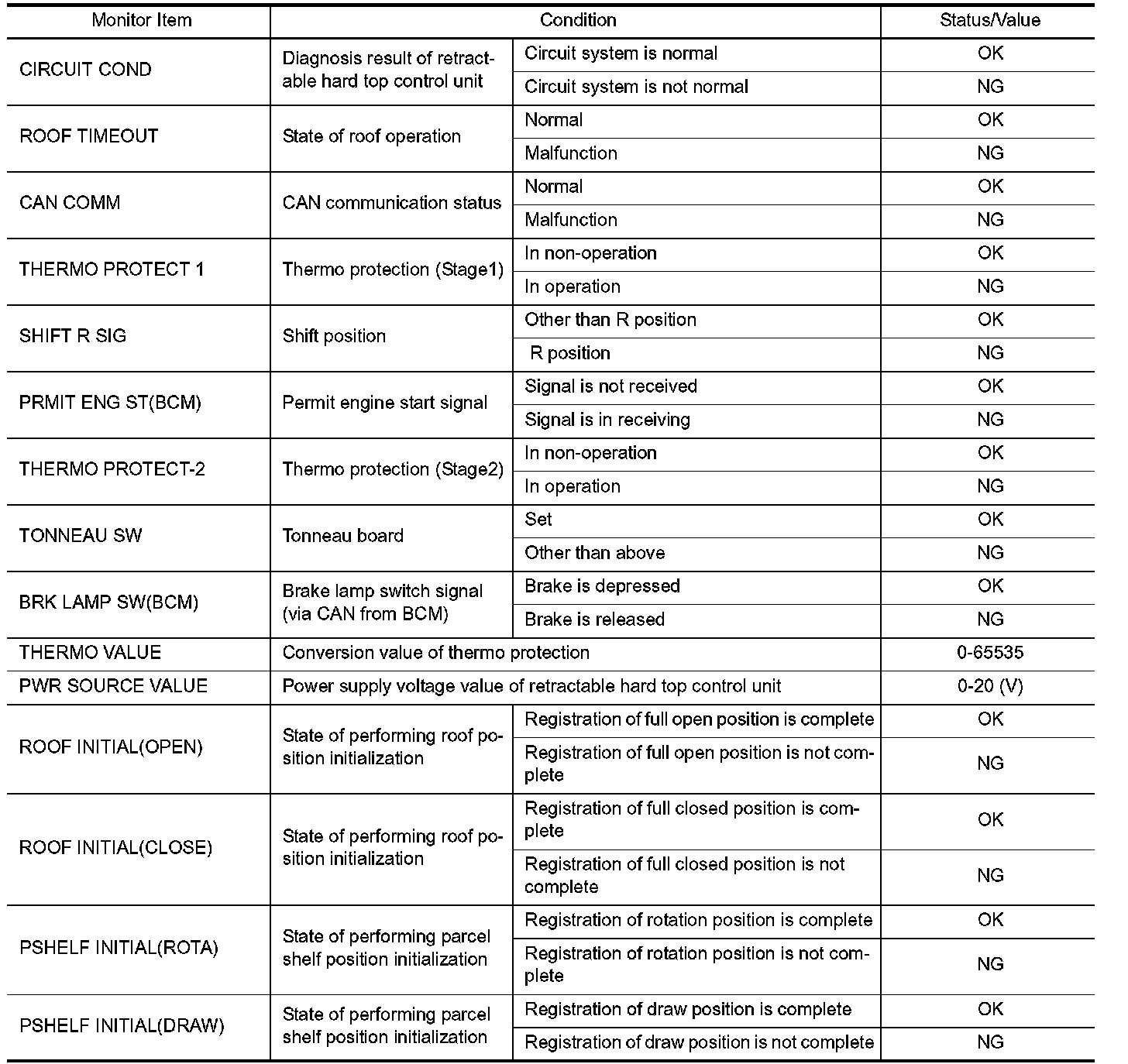

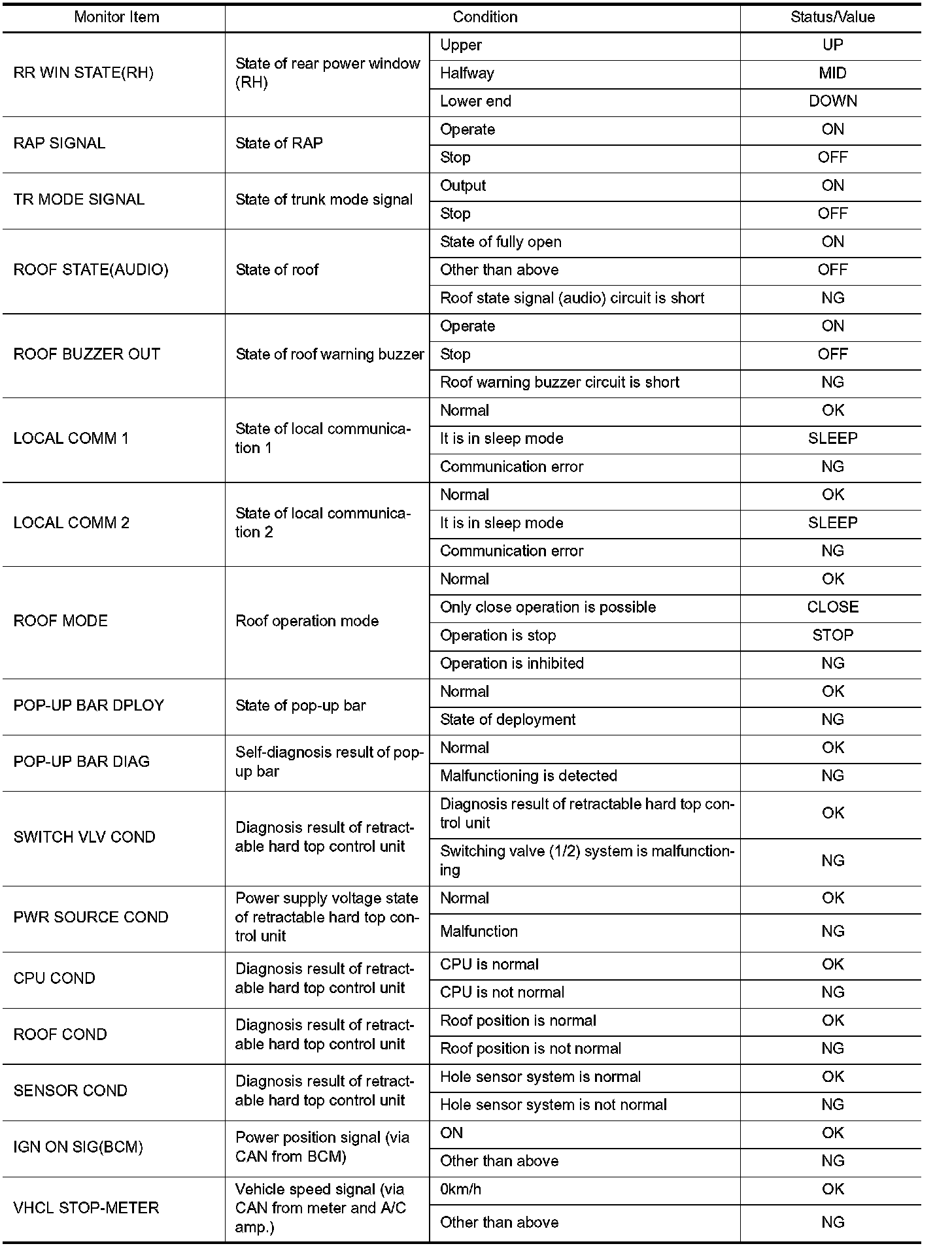

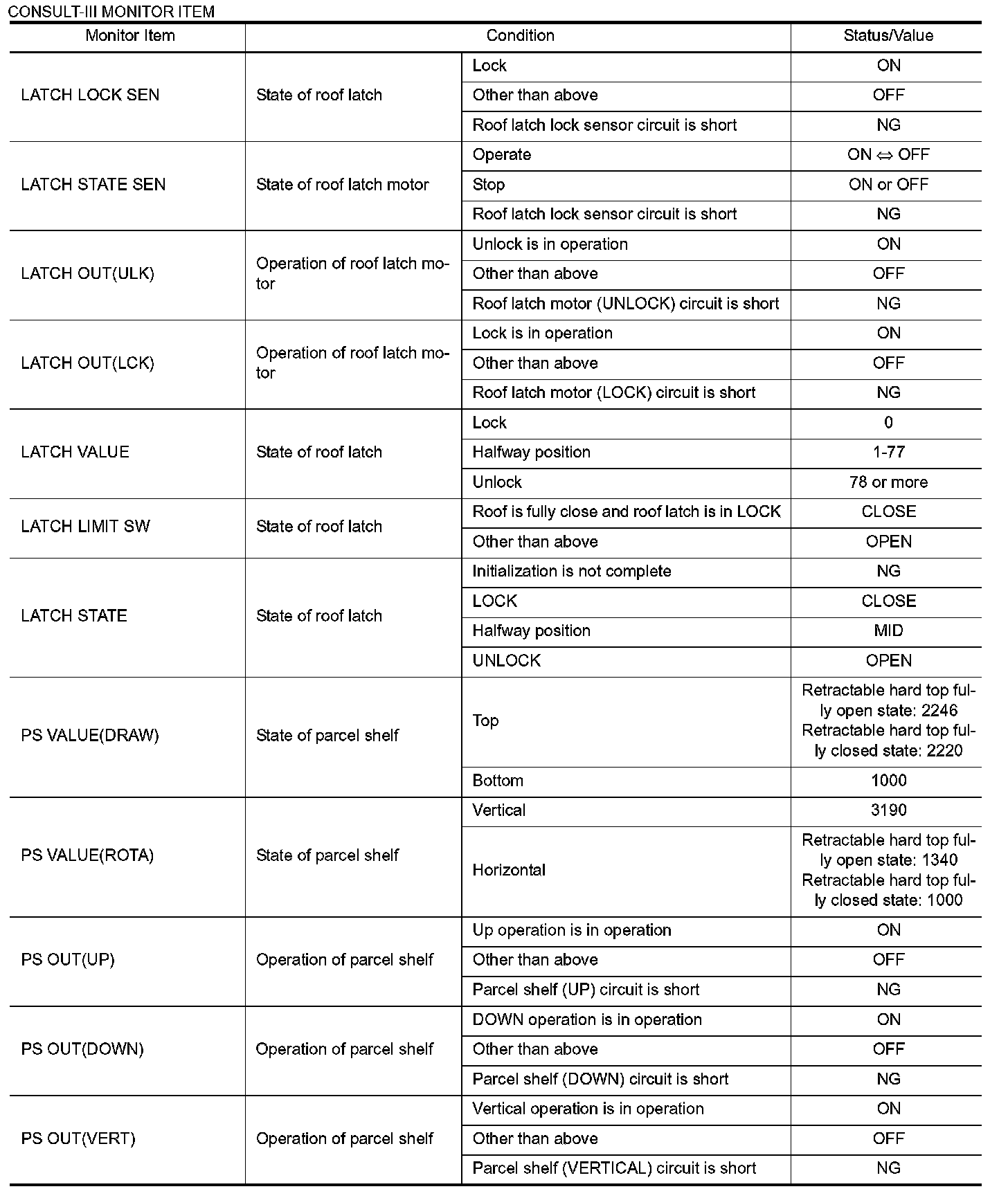

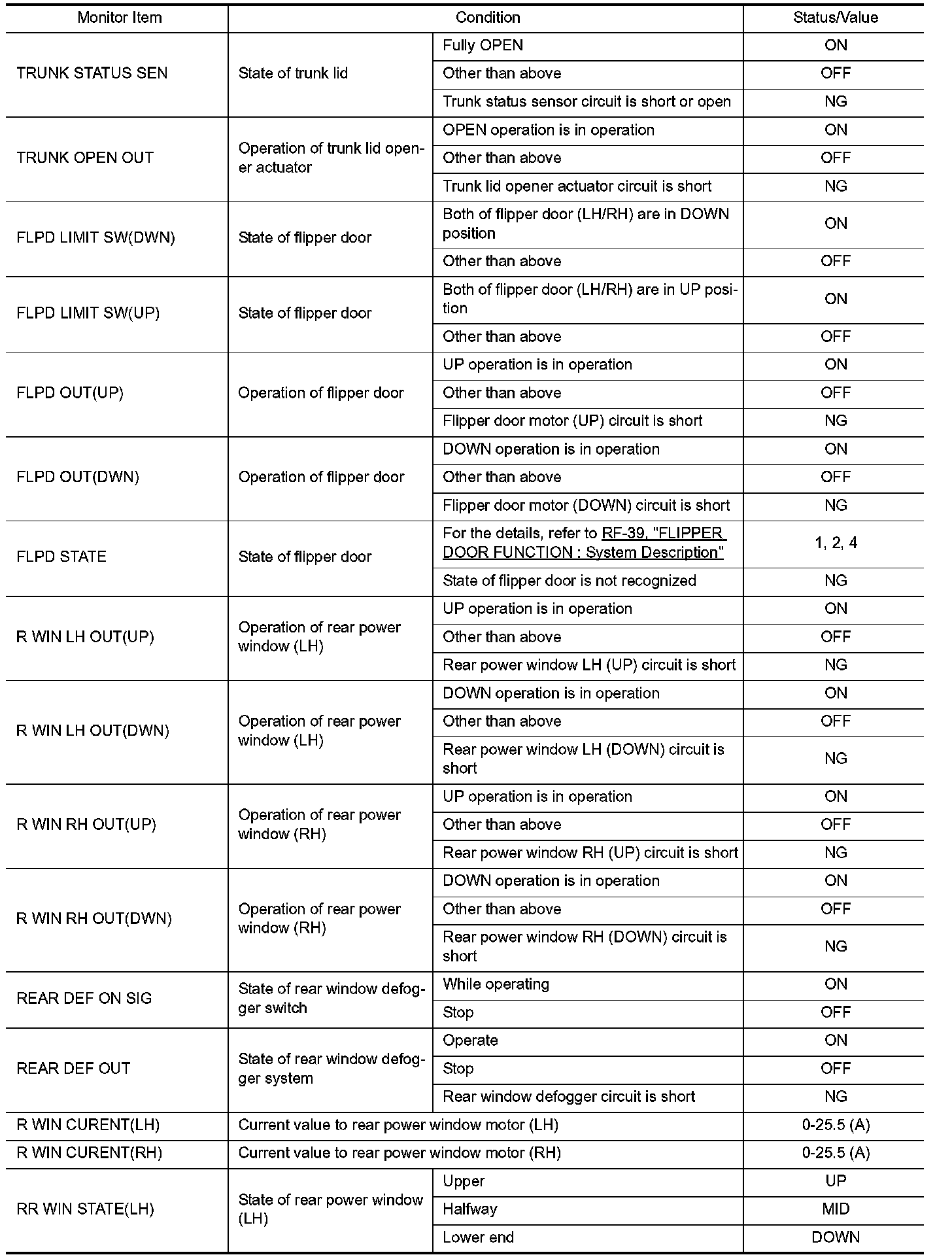

CONSULT-III MONITOR ITEM

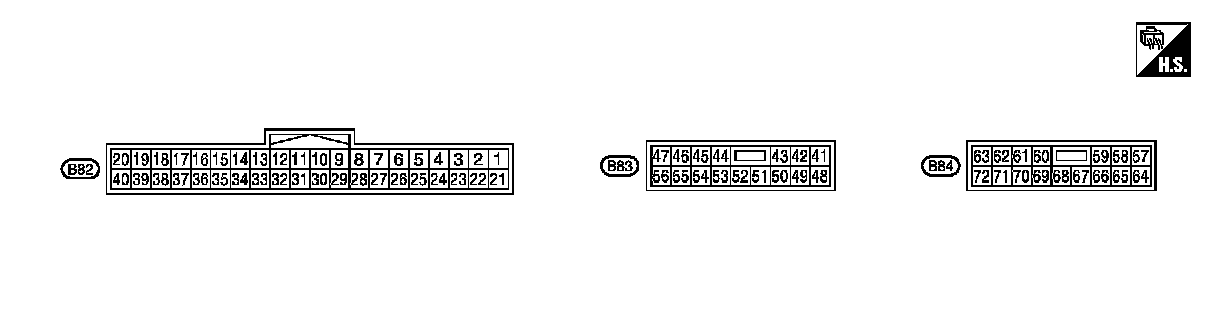

TERMINAL LAYOUT

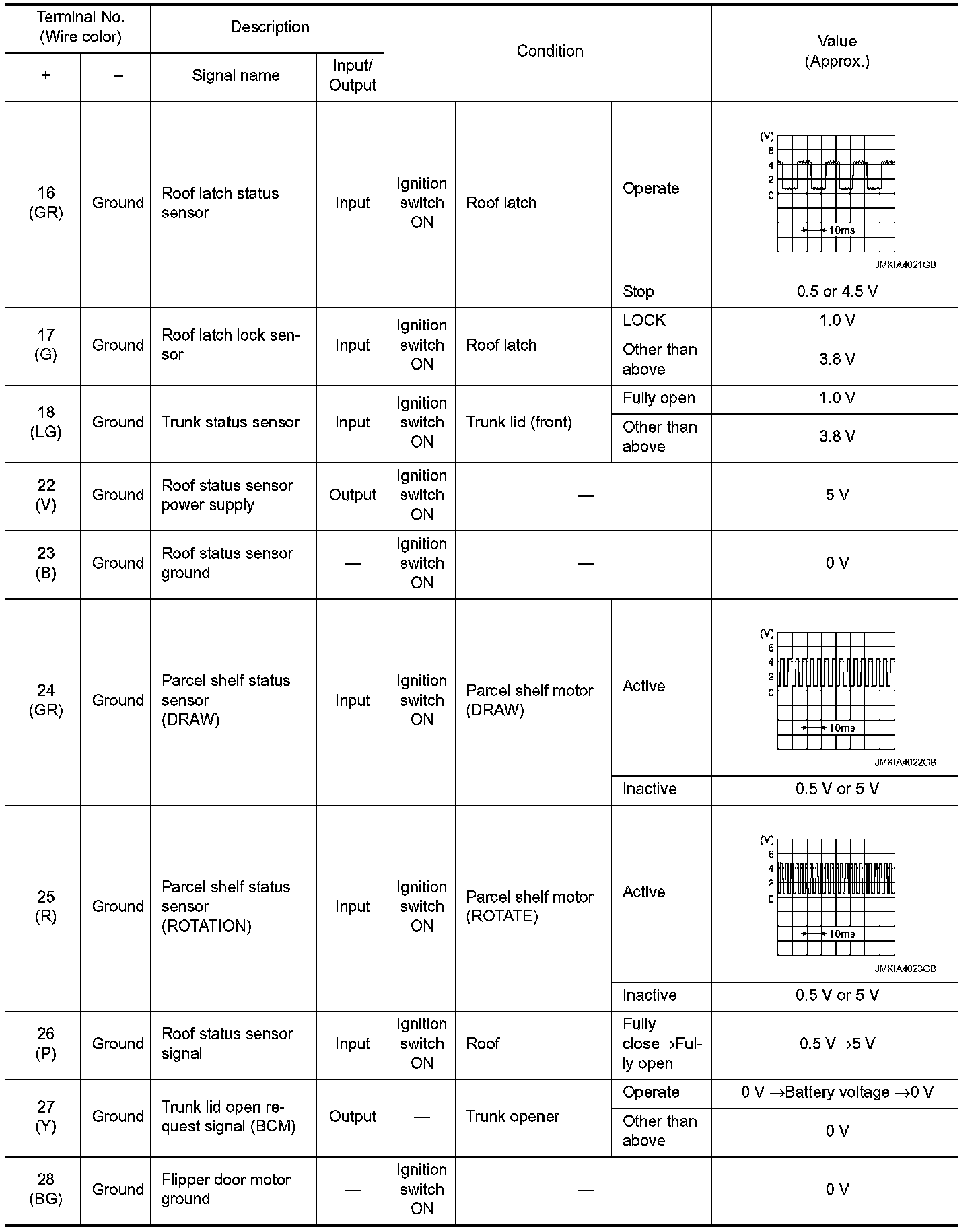

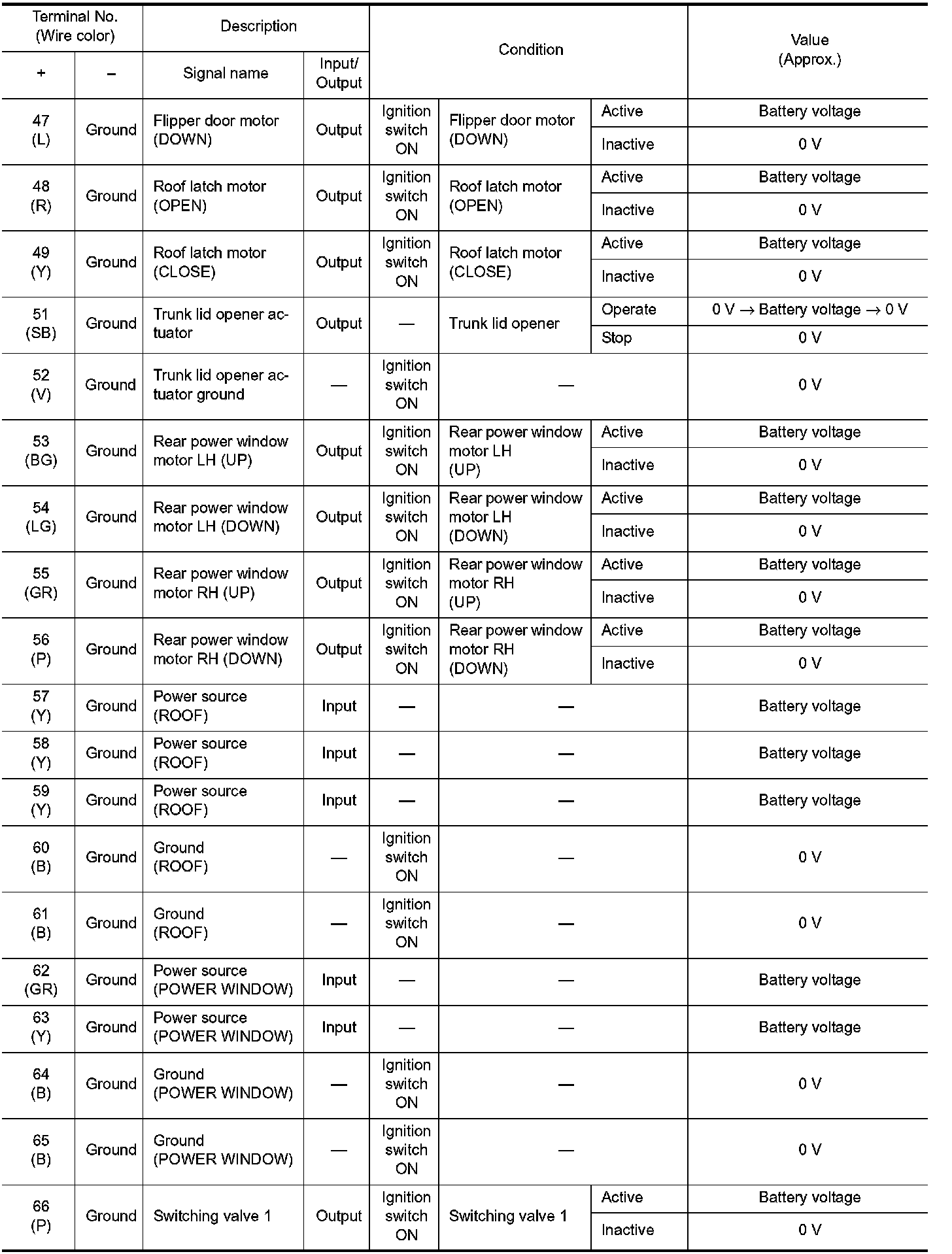

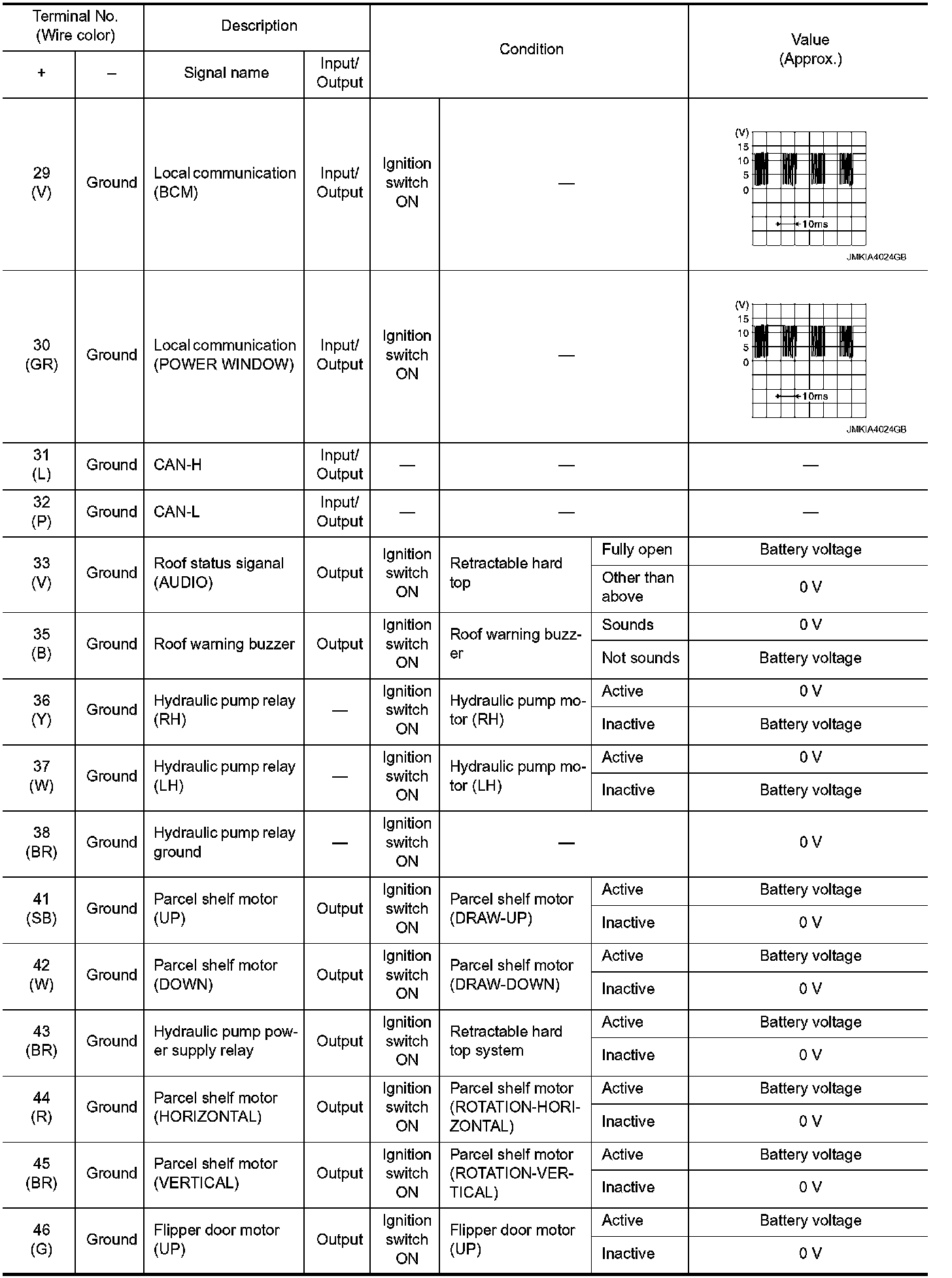

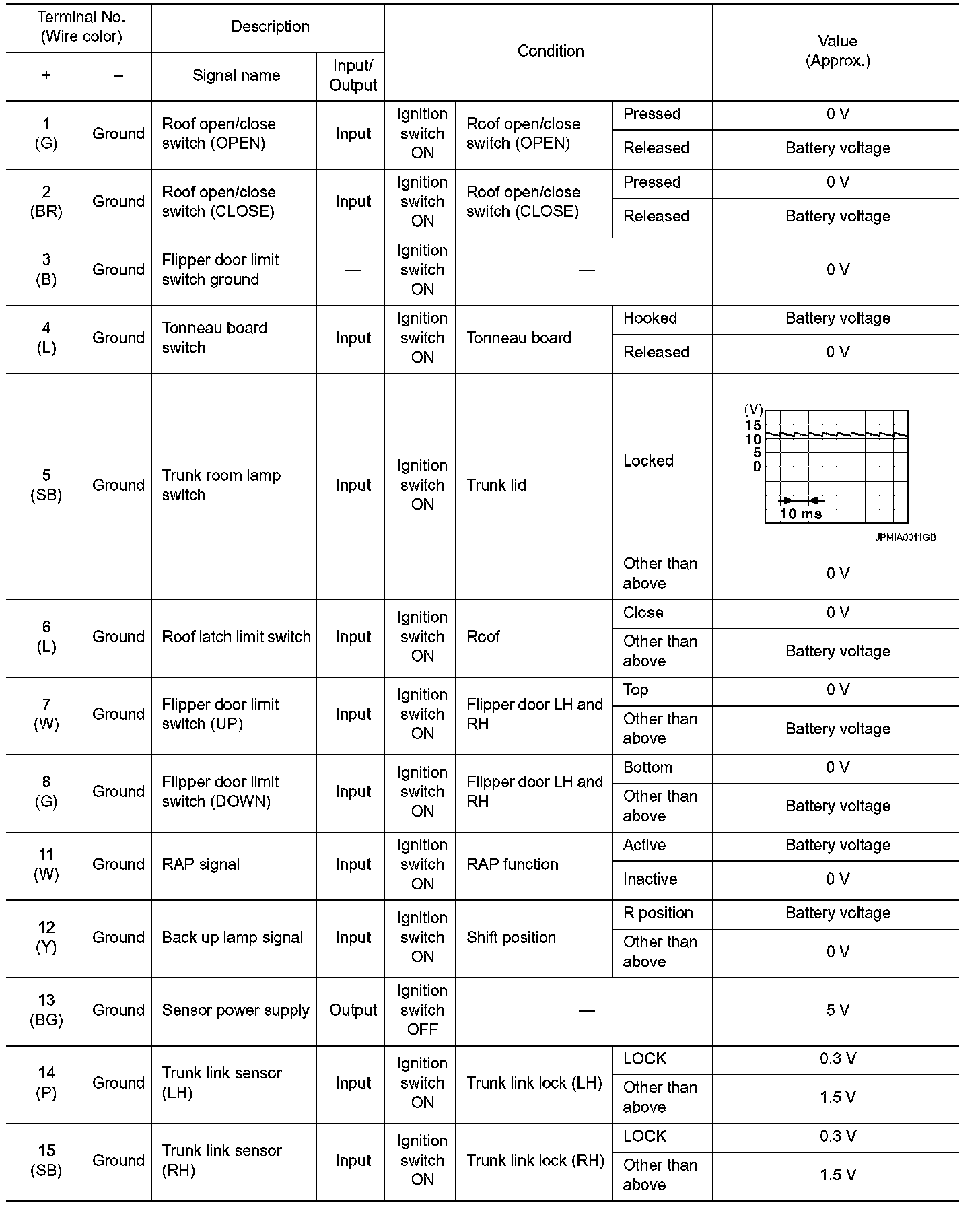

PHYSICAL VALUES
