Trunk Closure Control Unit
Trunk Closure Control Unit
TRUNK CLOSURE CONTROL UNIT

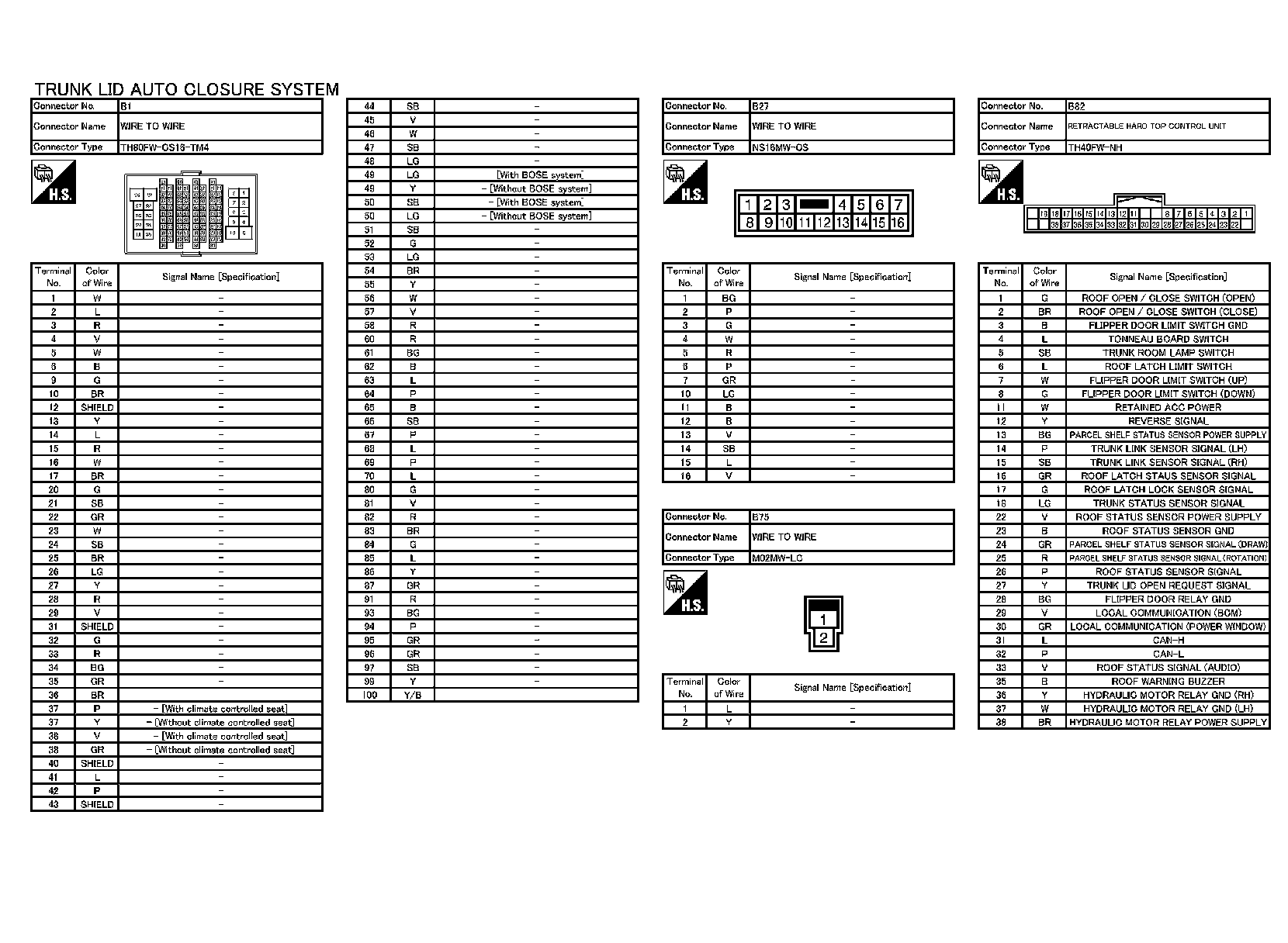

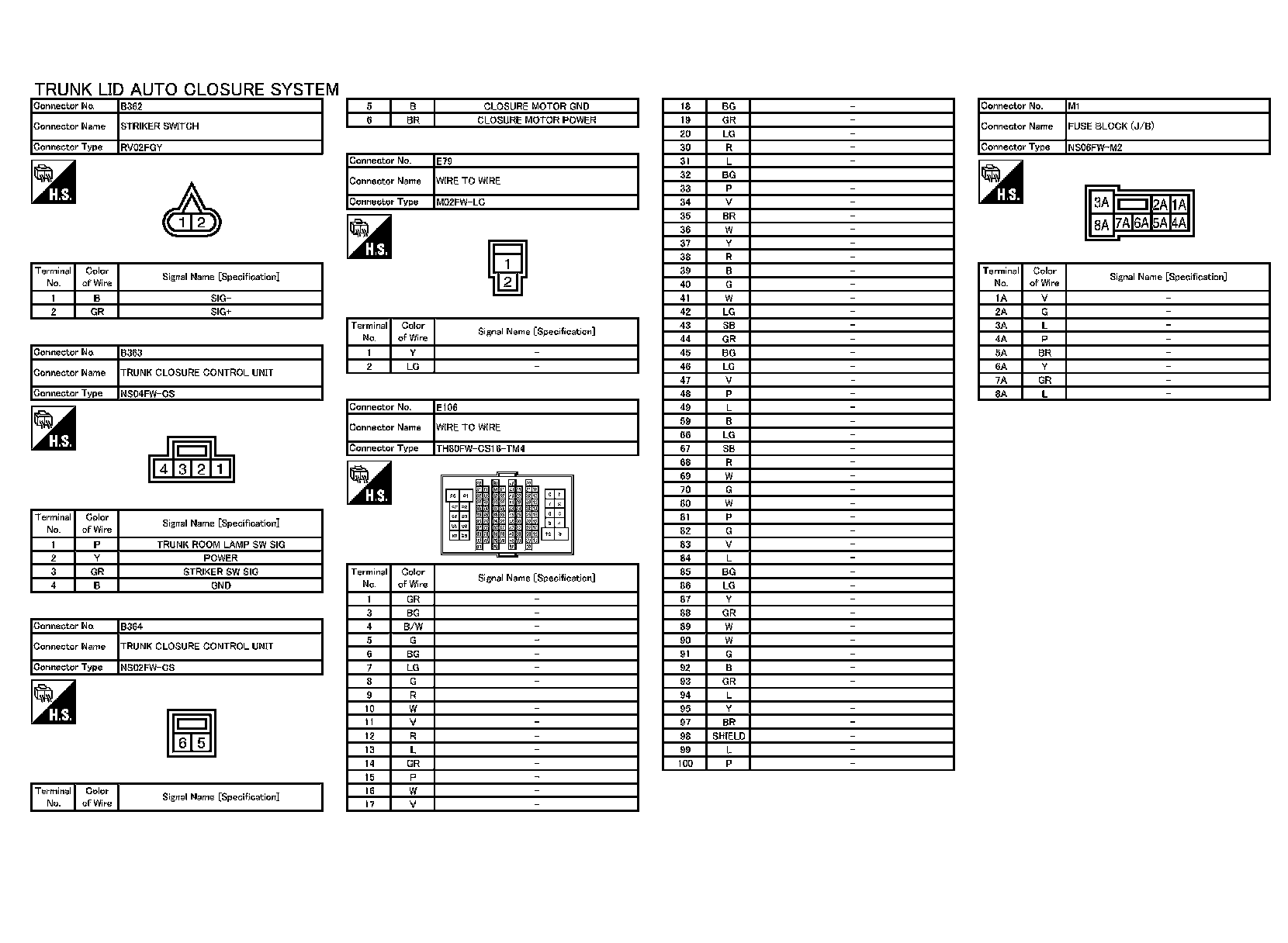

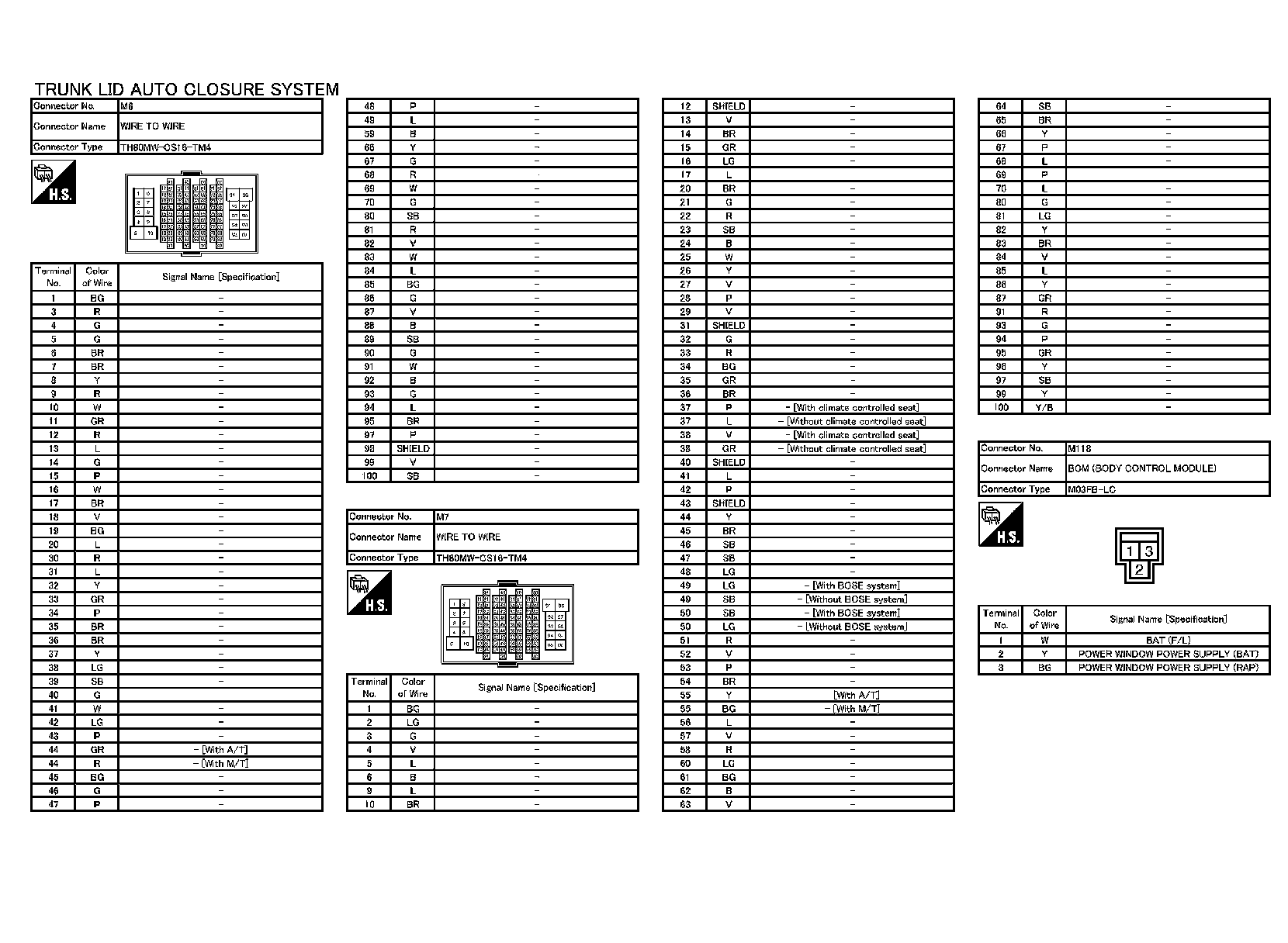

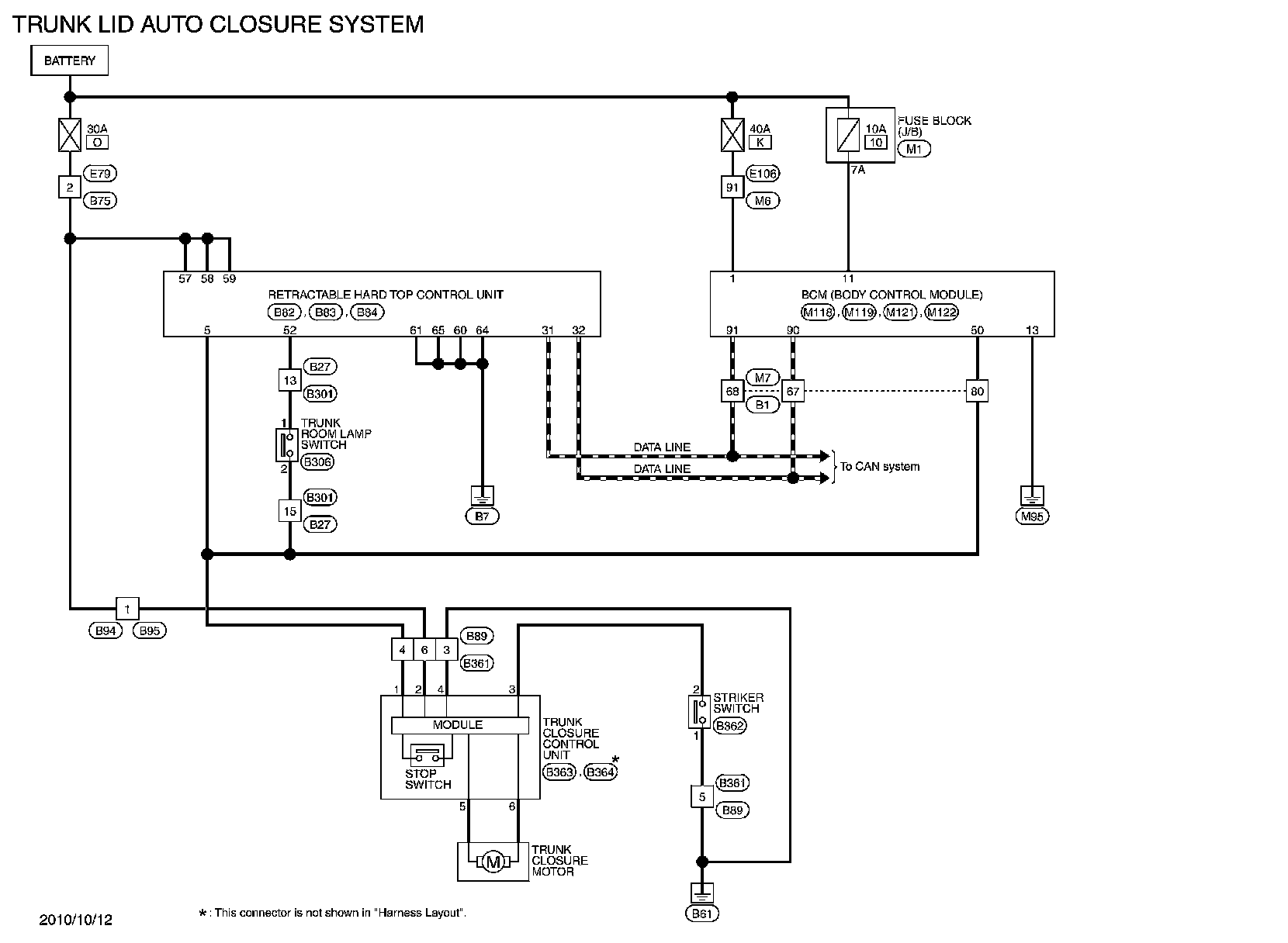

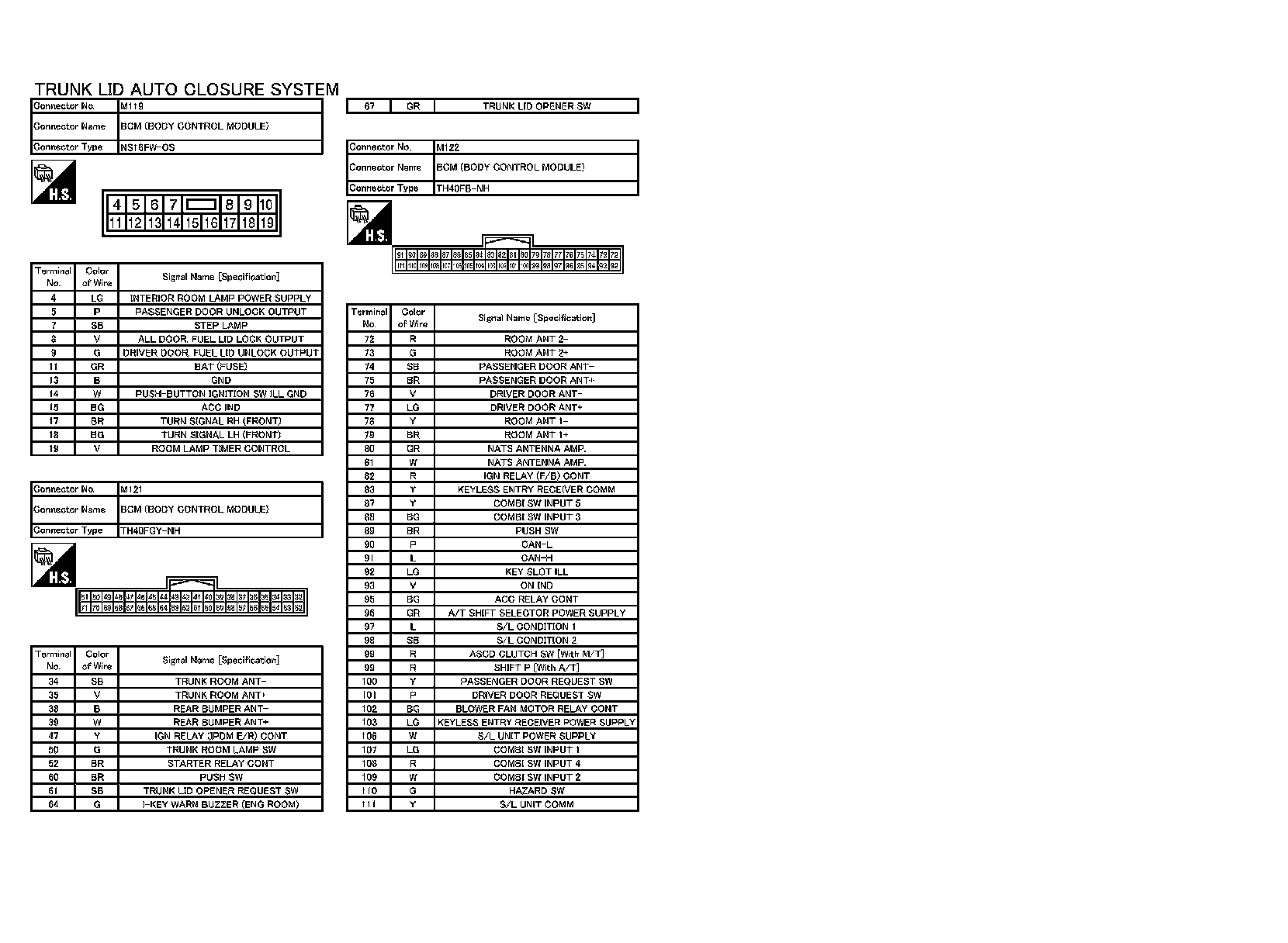

Wiring Diagram - TRUNK LID AUTO CLOSURE SYSTEM
