System Description

SYSTEM

WARNING FUNCTION : System Description


SYSTEM DESCRIPTION

Retractable hard top control unit indicates retractable hard top system state using roof warning buzzer and
LCD.

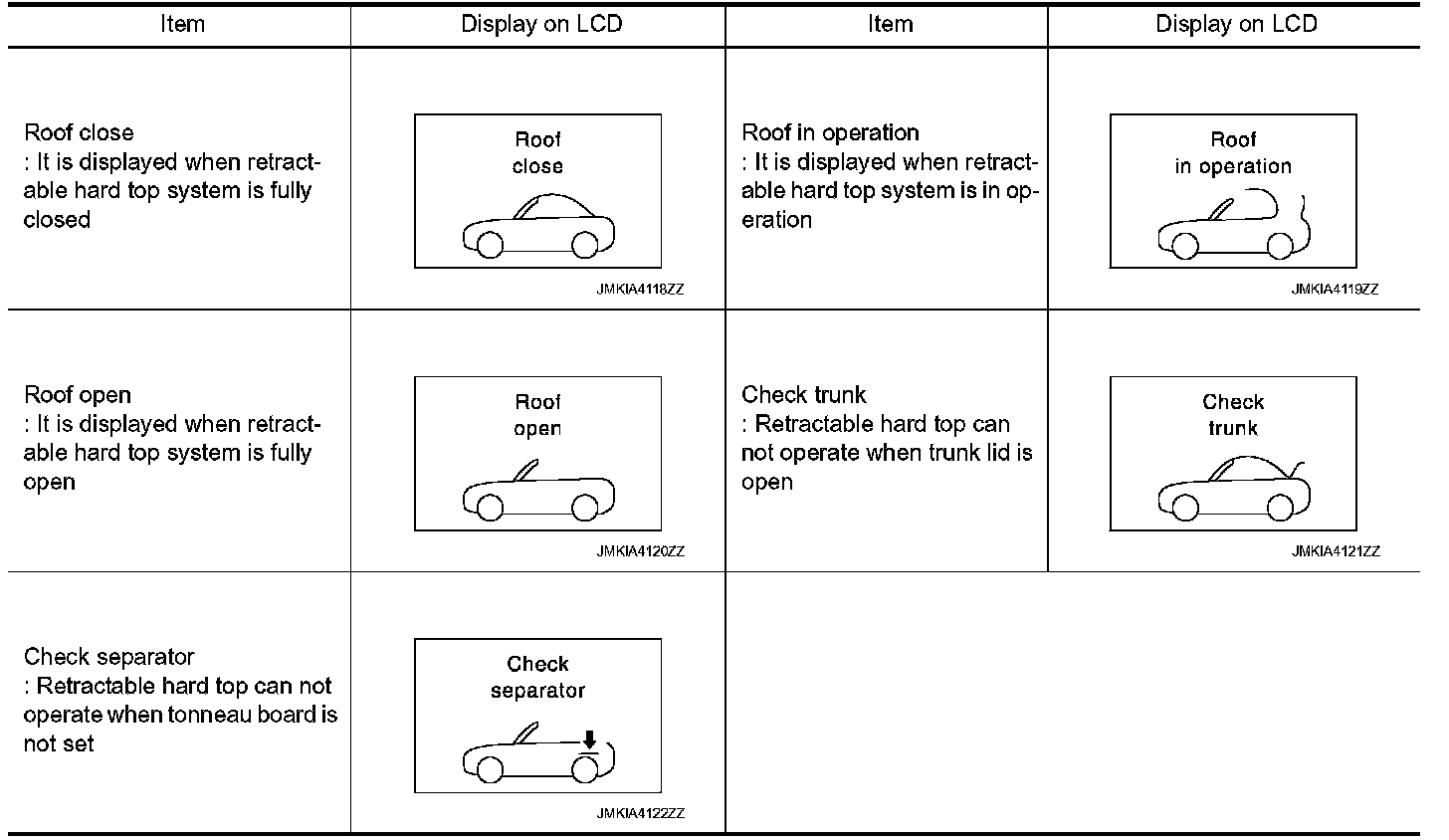

LCD INDICATION

LCD in combination meter displays the following items.
NOTE:
- LCD does not display the following items if initialization (roof state, roof latch state, or parcel shelf state) is not complete.
Perform initialization when the following screen is not displayed. Description.
- LCD does not display the following screen if battery voltage is low when roof open/close switch is operated.
When roof open/ close switch is released, "Roof in operation" is displayed. (roof warning buzzer does not sound)

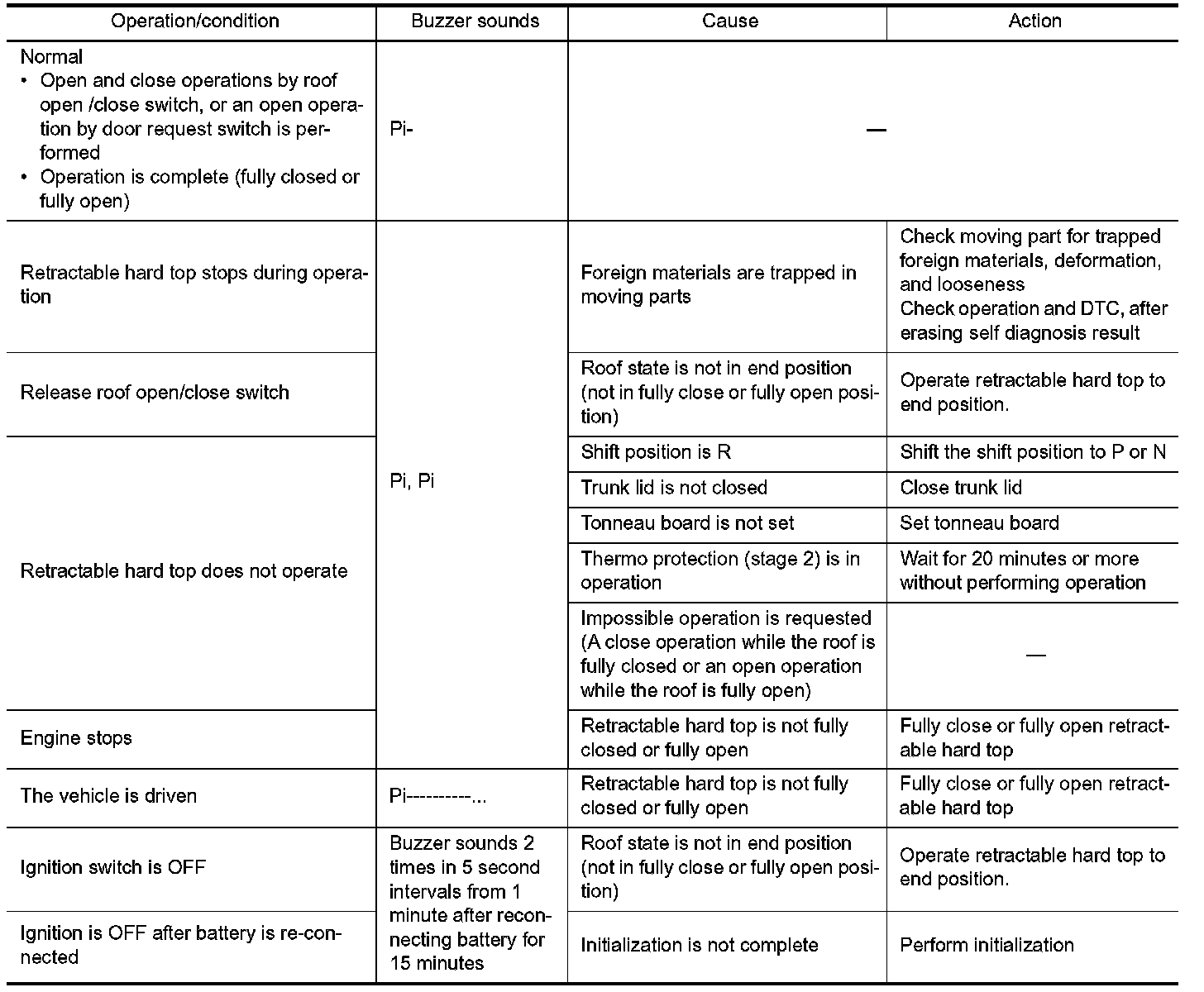

WARNING BUZZER FUNCTION

Roof warning buzzer sounds due to the following conditions.
NOTE:
Warning buzzer operation in initialize procedure, Description.
